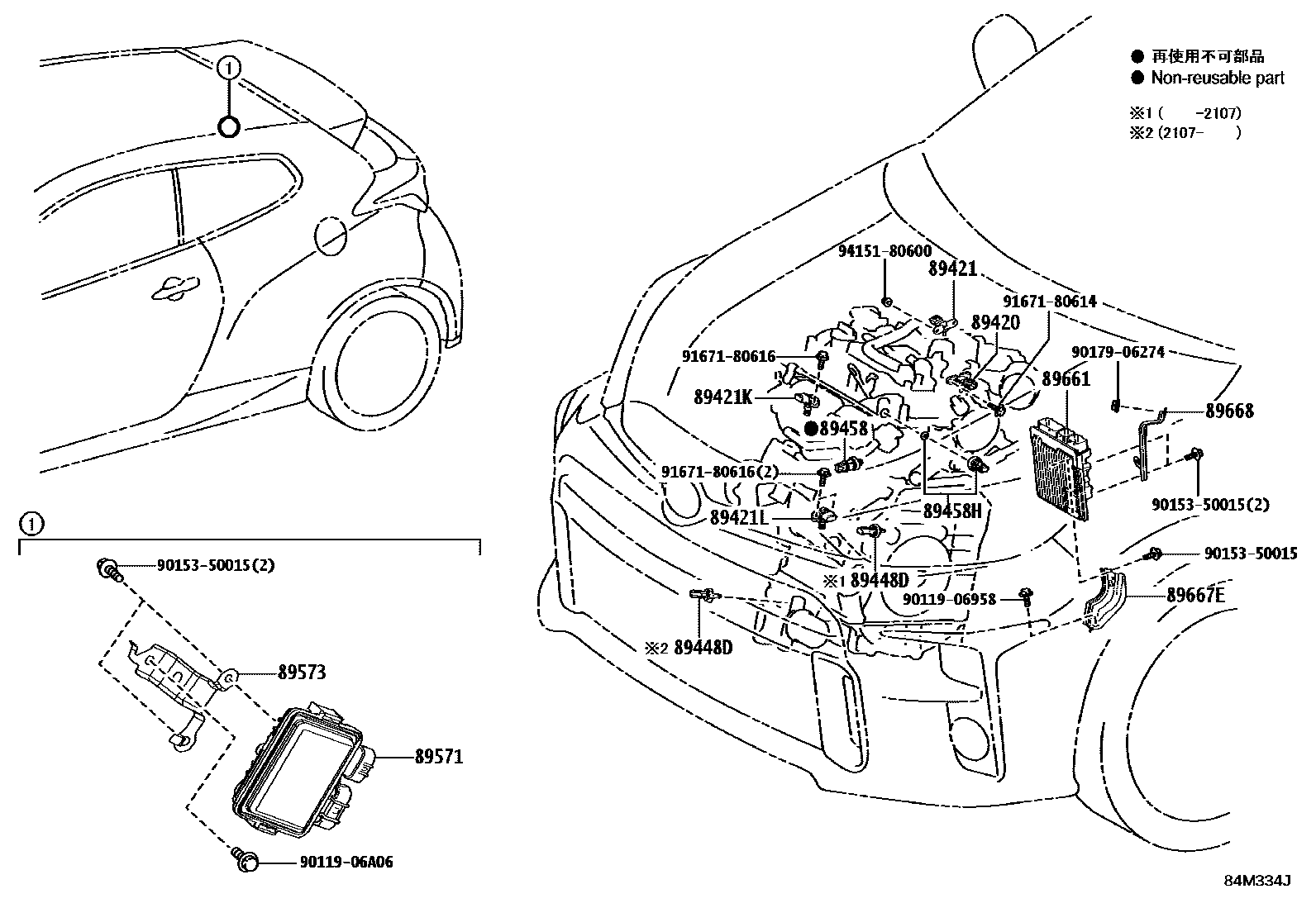

Toyota YARIS 电子燃油喷射系统 — Figure 8404
Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89420 | Vacuum sensor assembly | 89421-60050 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-33010 |
| 89421K | Turbo pressure sensor No. 1 | 89421-12170 · 89421-78010 |
| 89421L | Turbocharger No. 2 pressure sensor | 89421-12170 · 89421-78010 |
| 89448D | Oil pressure and sensors | 89448-33010 |
| 89458 | fuel pressure sensor | 89458-33030 · 89458-78030 |
| 89458H | No. 2 fuel pressure sensor | 89458-33041 · 89458-33042 |
| 89571 | Fuel pump control ECU | 89571-58020 · 89571-K0010 |
| 89573 | Fuel pump control ECU bracket | 89573-52090 · 89573-K0010 |
| 89661 | Engine control ECU | 89661-5CD90 · 89661-5CJ50 · 89661-5CL70 |
| 89667E | No. 1 engine control ECU bracket | 89667-52400 |
| 89668 | No. 2 engine control ECU bracket | 89668-52420 |
