Toyota YARIS 线束和卡夹 — Figure 8202
Toyota YARIS EPC diagram 8202, 线束和卡夹, with 14 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

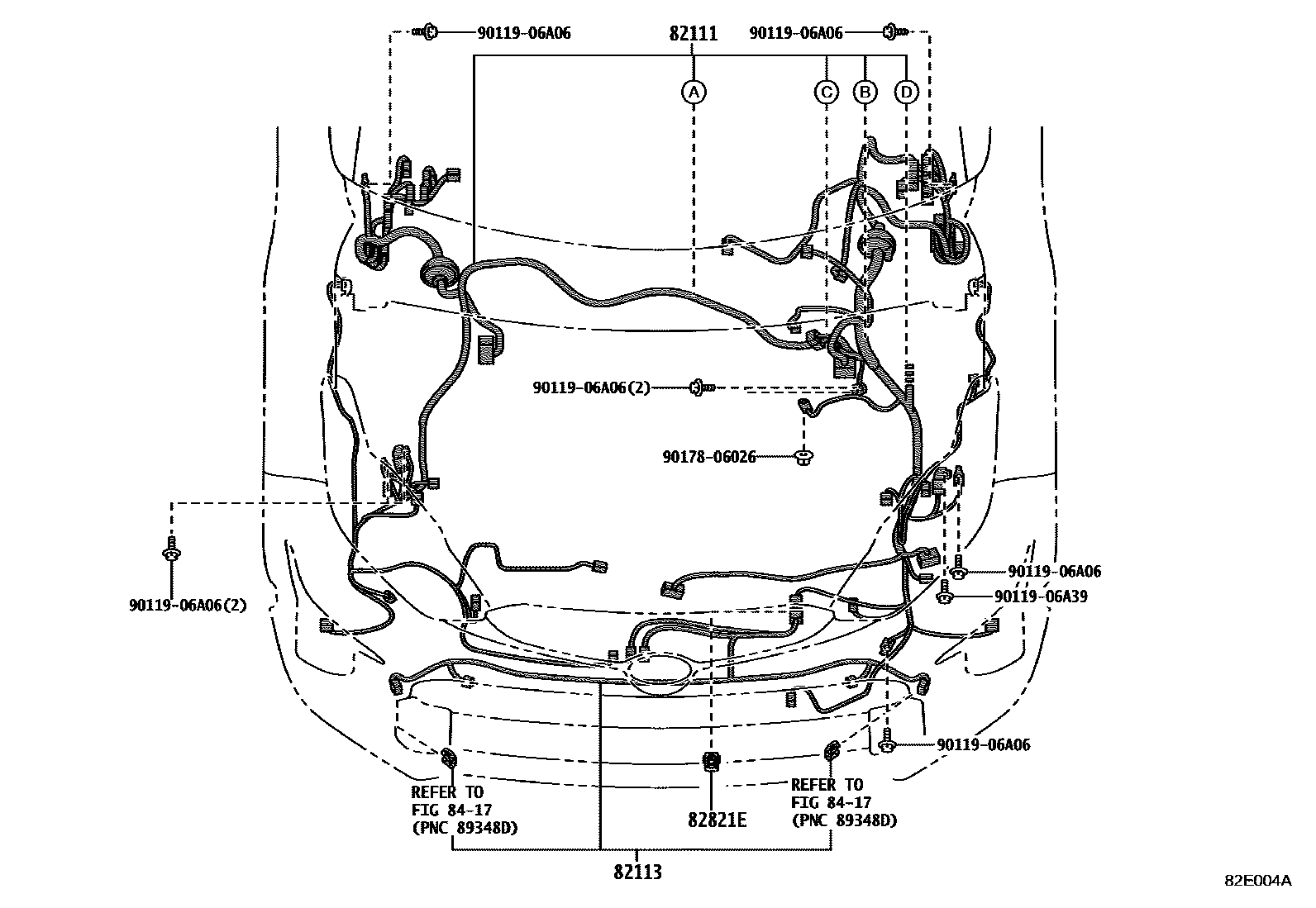

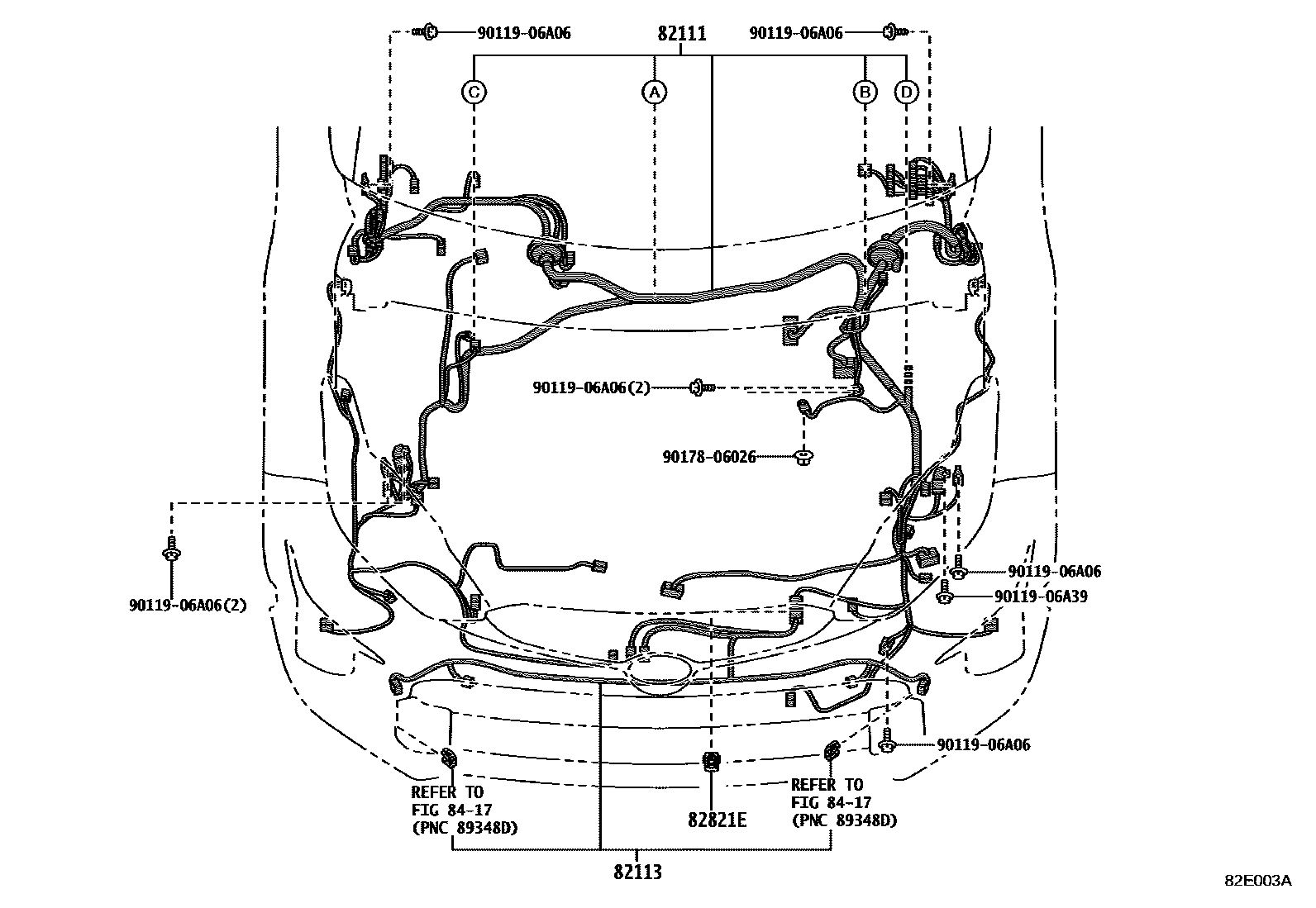

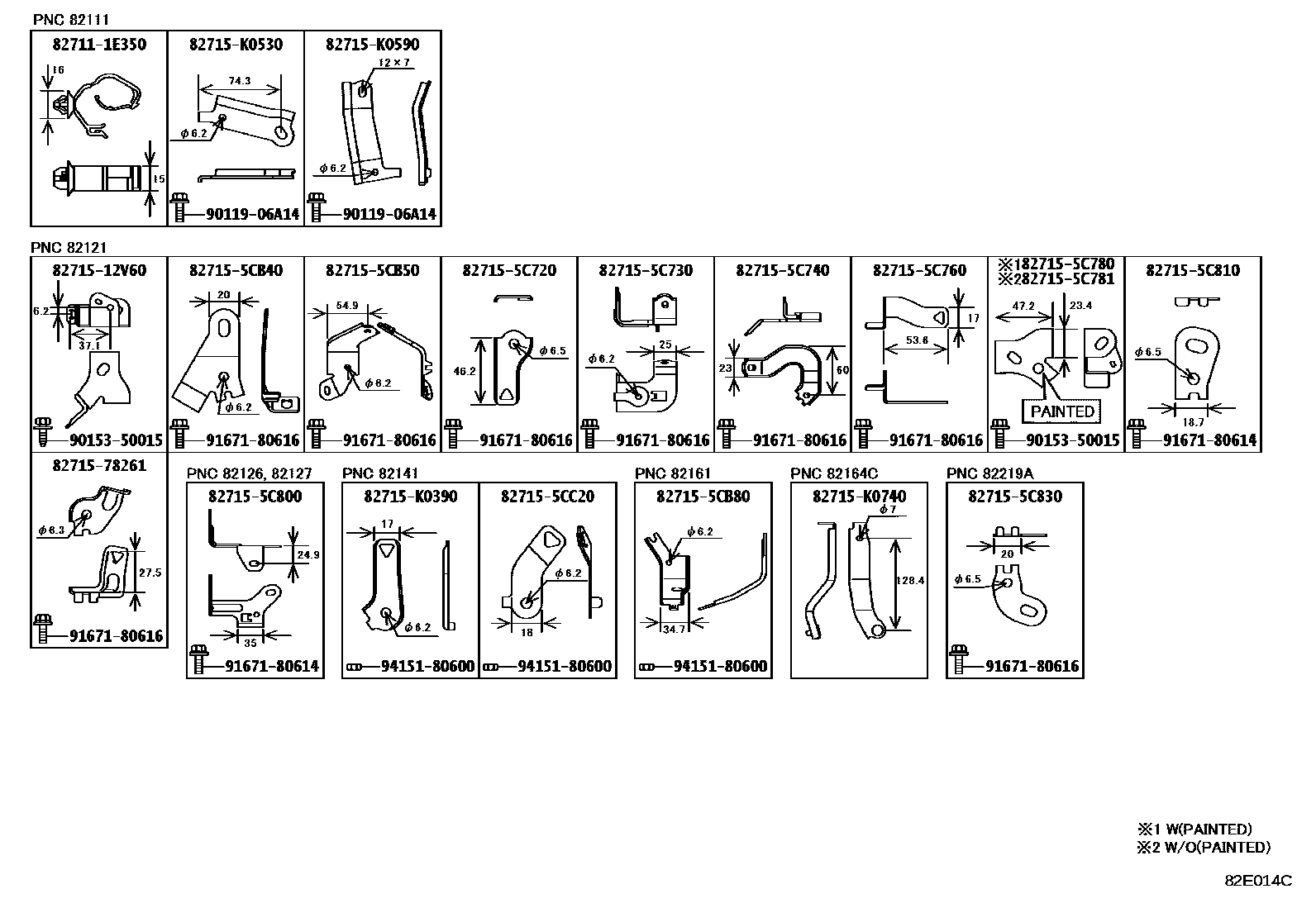

| 82111 | Engine room main wiring harness | 82111-5DX10 · 82111-5DX20 · 82111-5DX70 · 82111-5DX80 · 82111-5DY00 · 82111-5DY10 · 82115-52Y10 · 82115-52Y60 · 82115-52Y61 · 82115-52Y70 · 82115-52Y71 · 82115-52Y80 · 82115-52Z10 · 82115-52Z30 · 82115-52Z40 · 82115-5CA10 |
| 82113 | Engine room wiring harness No. 3 | 82113-52220 · 82113-52250 · 82113-52C00 · 82113-52C10 · 82113-52D90 |

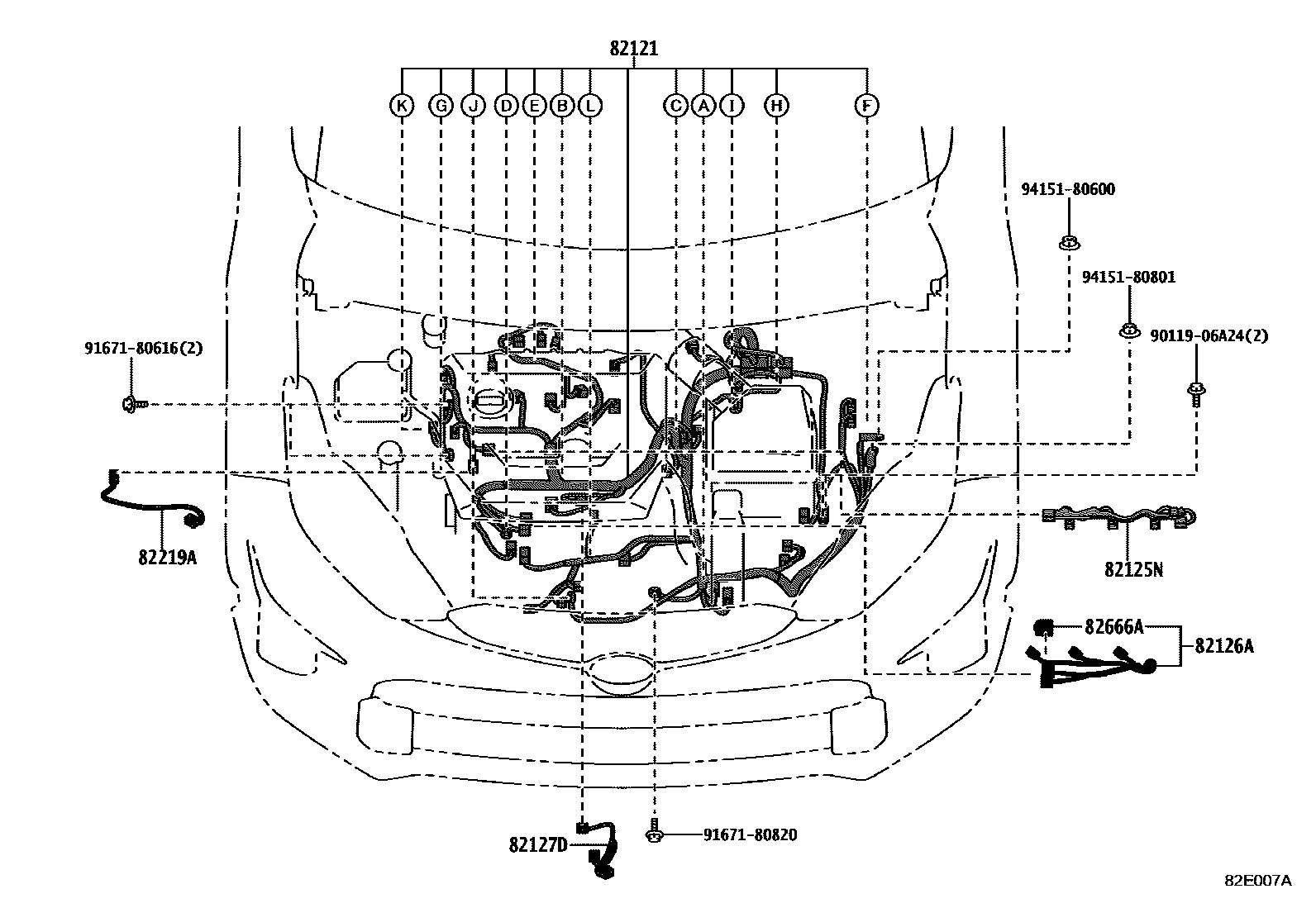

| 82121 | Engine wiring harness | 82121-52P70 · 82121-52P71 · 82121-52U30 · 82121-52U31 · 82121-52V50 · 82121-52V90 · 82121-52W00 · 82121-52W10 · 82121-52W20 · 82121-52W30 · 82121-52X80 |
| 82125N | Engine No. 5 wiring harness | 82125-52150 |
| 82126A | No. 6 engine wiring harness | 82126-52020 |
| 82127D | Engine No. 7 wiring harness | 82127-12010 · 82127-52010 |

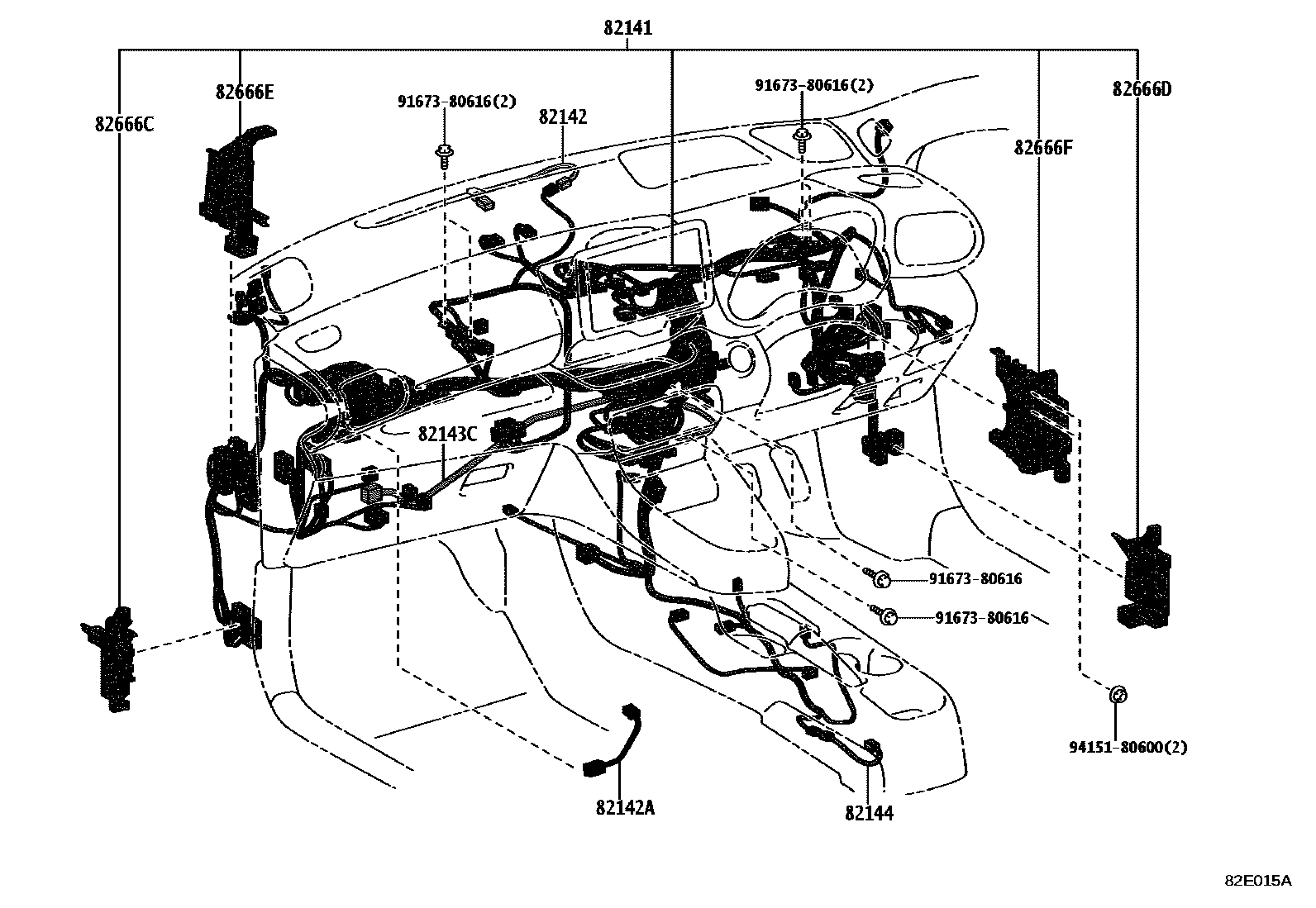

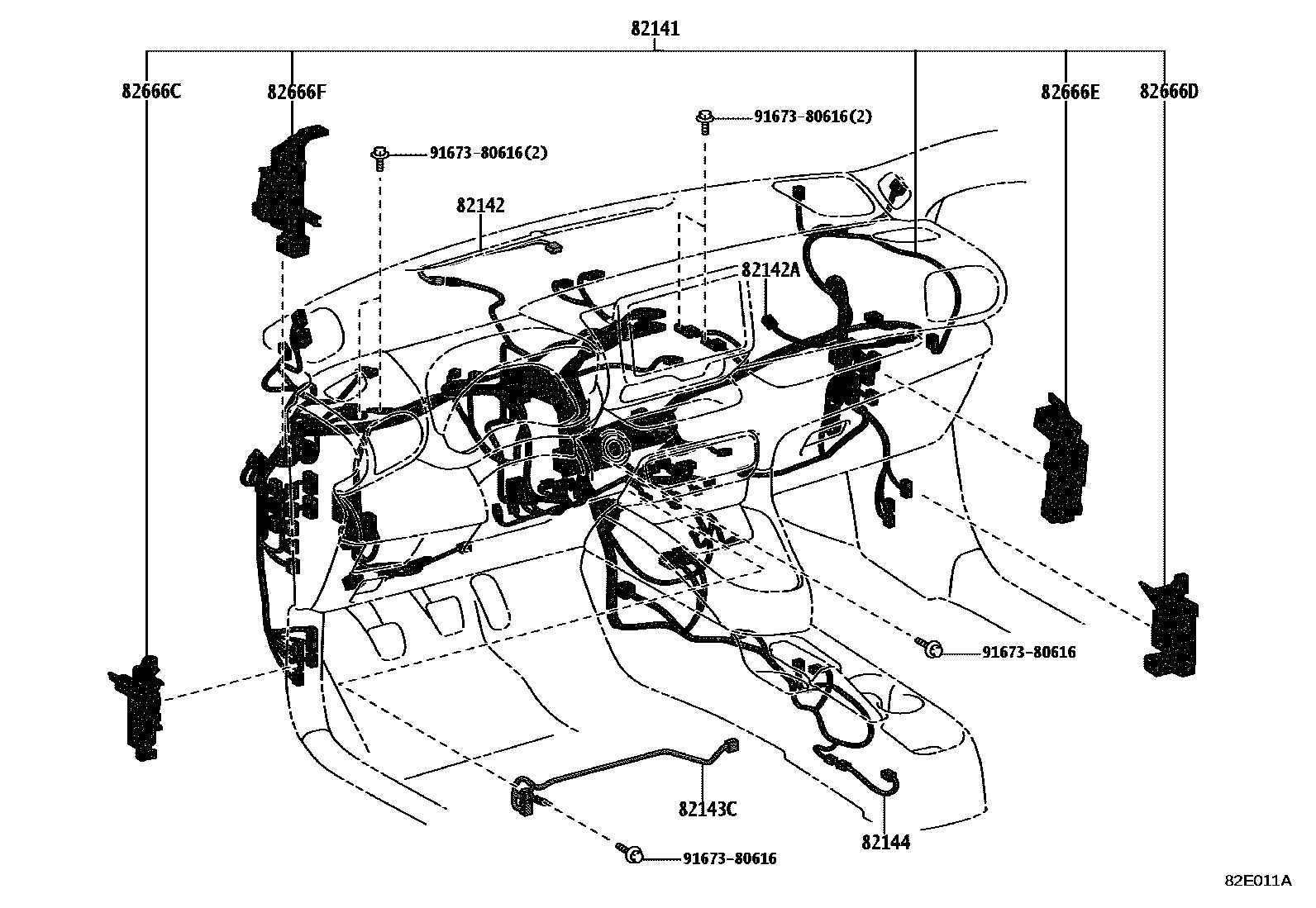

| 82141 | Dashboard wiring harness | 82145-5CR80 · 82145-5CR81 · 82145-5DQ50 · 82145-5DQ51 · 82145-5DQ60 · 82145-5DQ61 · 82146-52760 · 82146-52761 · 82146-52770 · 82146-52780 · 82146-52781 · 82146-52790 · 82146-52791 · 82146-52800 · 82146-52801 · 82146-52810 · 82146-52E20 · 82146-52F10 · 82146-52F50 · 82146-52F60 · 82146-52F70 · 82146-52F90 · 82146-52G60 · 82146-52J50 · 82146-52J51 · 82146-52J90 · 82146-52J91 · 82146-52K20 · 82146-52K21 · 82146-52K30 · 82146-52K31 · 82146-52K60 · 82146-52K61 · 82146-52K80 · 82146-52K81 · 82146-52K90 · 82146-52K91 · 82146-52L00 · 82146-52L10 · 82146-52L11 · 82146-52L12 · 82146-52L20 · 82146-52L30 · 82146-52N70 · 82146-52P00 · 82146-52P10 · 82146-52P20 · 82146-52P30 · 82146-52P60 · 82146-52P61 · 82146-5CD40 · 82146-5CD50 · 82146-5CD60 · 82146-5CD61 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-52630 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-30030 · 82140-K0010 |
| 82143C | Instrument panel wiring harness No. 3 | 82143-52050 |
| 82144 | Instrument panel wiring harness No. 4 | 82144-52070 |

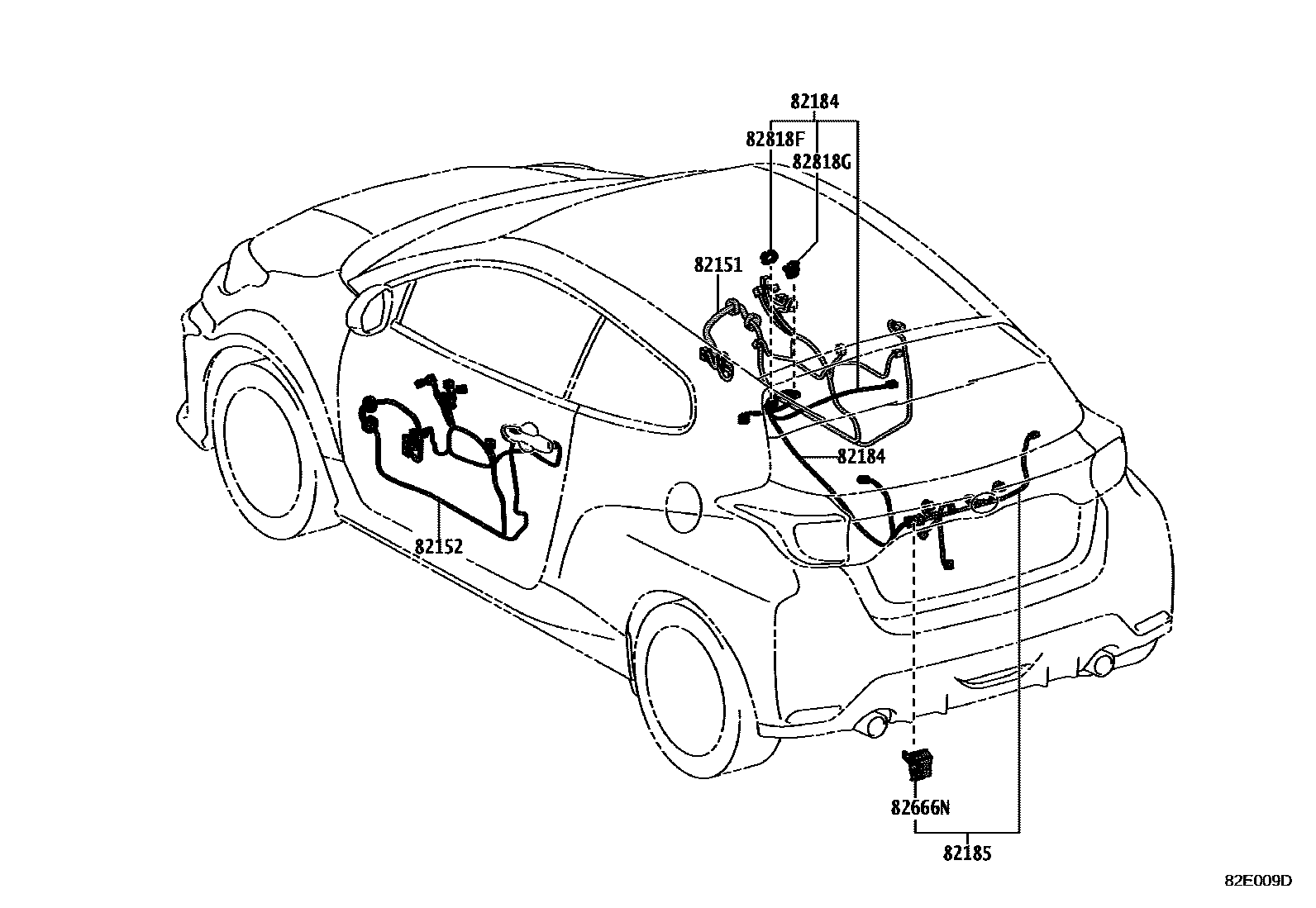

| 82151 | Right front door wiring harness | 82151-5C120 · 82151-5C160 · 82151-5C240 · 82151-5C320 · 82151-5C460 · 82151-5C470 · 82151-5C480 · 82151-5C500 · 82151-5CJ10 · 82151-5CJ20 · 82151-5CM50 · 82151-5CM60 · 82151-5CM70 · 82151-5CM80 |
| 82152 | Left front door wiring harness | 82152-52X90 · 82152-52Y30 · 82152-52Z10 · 82152-52Z90 · 82152-5C140 · 82152-5C150 · 82152-5C160 · 82152-5CD70 · 82152-5CD80 · 82152-5CD90 · 82152-5CG30 · 82152-5CG40 · 82152-5CG50 · 82152-5CG60 |

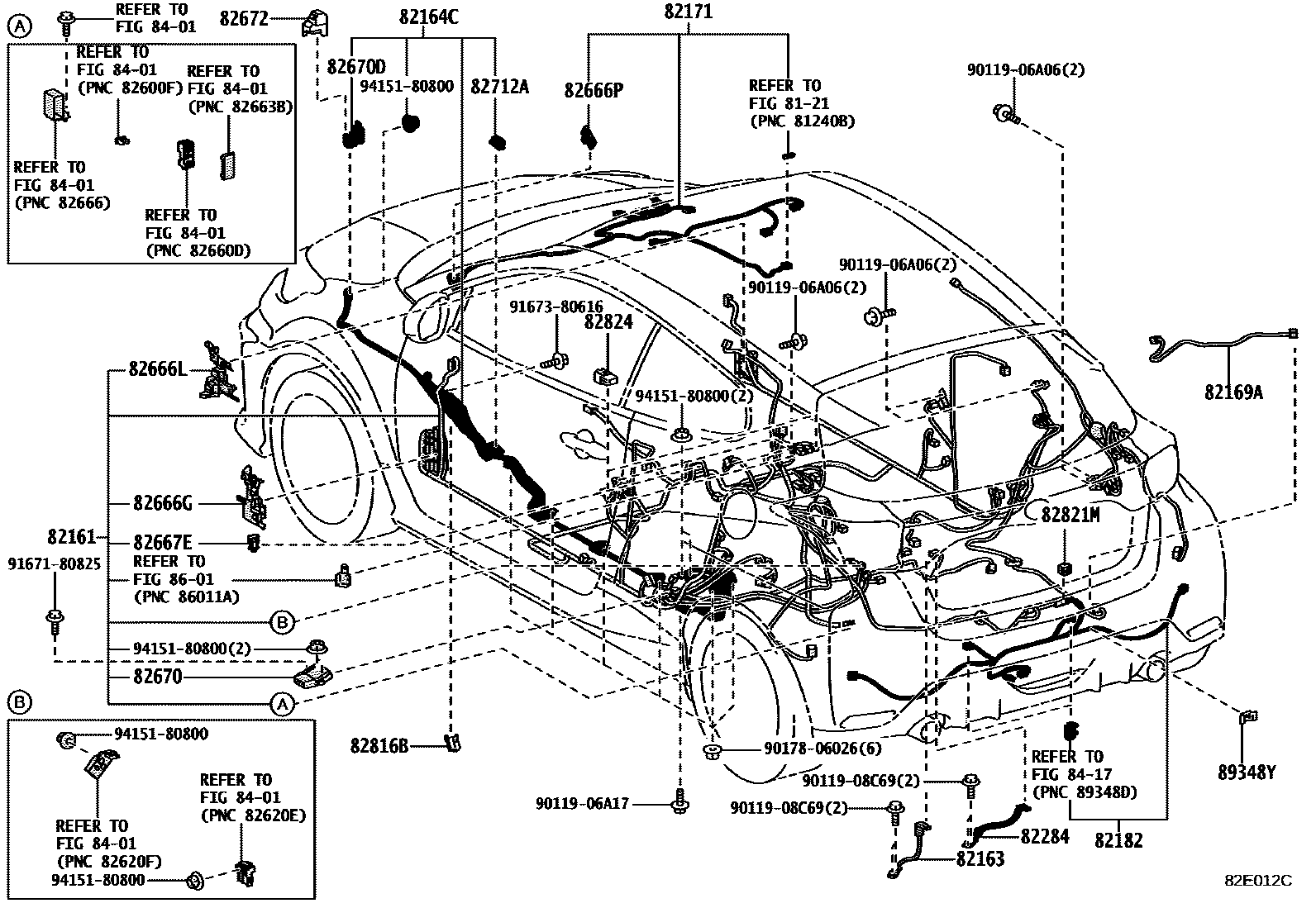

| 82161 | floor wiring harness | 82161-5DV80 · 82161-5DV90 · 82161-5DW00 · 82161-5DW20 · 82161-5DW30 · 82161-5DW60 · 82161-5DW70 · 82199-52B70 · 82199-52B80 · 82199-52B90 · 82199-52C00 · 82199-52C10 · 82199-52C20 · 82199-52C30 · 82199-52C40 · 82199-5C170 · 82199-5C230 · 82199-5D510 · 82199-5D520 · 82199-5D521 · 82199-5D530 · 82199-5D531 · 82199-5D540 · 82199-5D541 · 82199-5D590 · 82199-5D600 · 82199-5D601 · 82199-5D610 · 82199-5D620 · 82199-5D621 · 82199-5D630 · 82199-5D640 · 82199-5D641 · 82199-5D642 · 82199-5D650 · 82199-5D651 · 82199-5D660 · 82199-5D661 · 82199-5D690 · 82199-5D691 · 82199-5D692 · 82199-5D700 · 82199-5D701 · 82199-5D710 · 82199-5D711 · 82199-5D712 · 82199-5D720 · 82199-5D721 · 82199-5D730 · 82199-5D731 · 82199-5D740 · 82199-5D741 |
| 82163 | Floor wiring harness No. 3 | 82163-12430 · 82163-52120 |
| 82164C | No. 4 floor wiring harness | 82164-52190 · 82164-52250 · 82164-52320 · 82164-52330 |
| 82169A | No. 6 floor wiring harness | 82169-52030 |
| 82171 | Roof No. 1 wiring harness | 82171-52890 · 82171-52A00 · 82171-52A10 · 82171-52A20 · 82171-52A30 · 82171-52A40 · 82171-52A50 · 82171-52A60 · 82171-52A70 · 82171-52A80 · 82171-52G31 · 82171-52G90 · 82171-52G91 · 82171-52J10 · 82171-52J11 · 82171-52J20 · 82171-52K30 · 82171-52K31 · 82171-52K40 · 82171-52K41 · 82171-52K50 · 82171-52K60 · 82171-52K61 · 82171-52K70 · 82171-52K71 · 82171-52K80 · 82171-52K81 · 82171-52M00 · 82171-52M10 · 82171-52M20 |
| 82182 | Luggage No. 2 wiring harness | 82182-52410 · 82182-52470 · 82182-52810 · 82182-52820 · 82182-52830 · 82182-52850 · 82182-52860 |
| 82184 | Rear door No. 1 wiring harness | 82184-52A70 · 82184-52A80 · 82184-52J50 · 82184-52J60 |
| 82185 | Rear door wiring harness No. 2 | 82185-52D60 · 82185-52F30 · 82185-52F40 · 82185-52F50 · 82185-52K20 · 82185-52R10 · 82185-52U60 |
| 82219A | sensor harness | 82219-52100 |
| 82284 | Ground wire | 82284-12030 |
| 82666A | Connector holder No. 2 | 82666-48130 |
| 82666C | No. 4 connector holder | 82666-K0100 |
| 82666D | No. 5 connector holder | 82666-K0110 |
| 82666E | No. 6 connector holder | 82666-K0120 · 82666-K0130 |
| 82666F | No. 7 connector holder | 82666-0D250 · 82666-K0140 |
| 82666G | No. 8 connector holder | 82666-K0070 |
| 82666L | No. 9 connector holder | 82666-K0080 |
| 82666N | No. 10 connector holder | 82666-52430 |
| 82666P | No. 11 Connector Block | 82666-60220 |
| 82667E | No. 20 Connector Fixture | 82666-26180 |
| 82670 | No. 1 junction box assembly | 82670-52030 |
| 82670D | No. 2 junction box assembly | 82670-52040 |
| 82672 | Junction box cover | 82672-52170 · 82672-52171 |
| 82712A | Wire harness bracket | 82712-33190 |

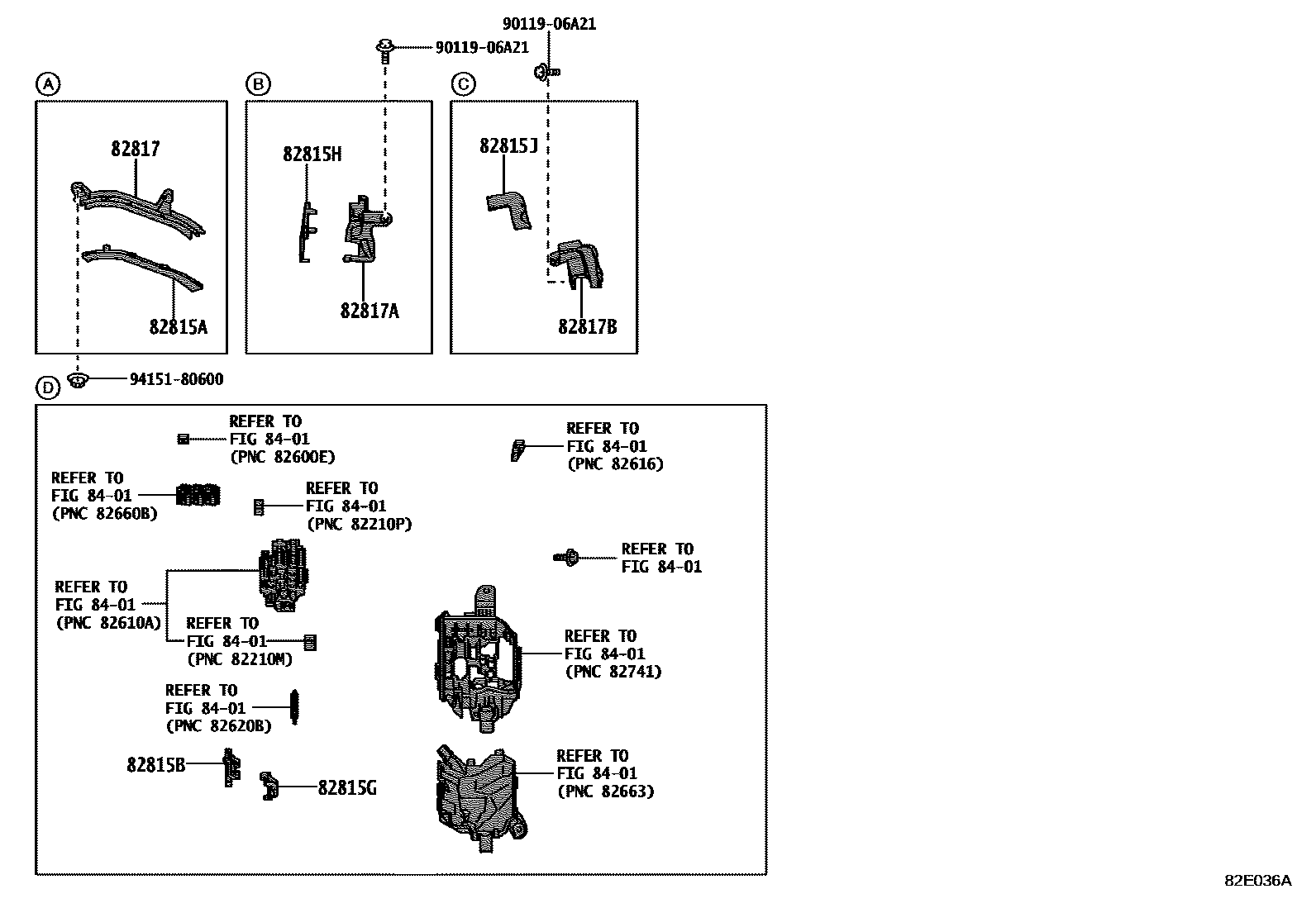

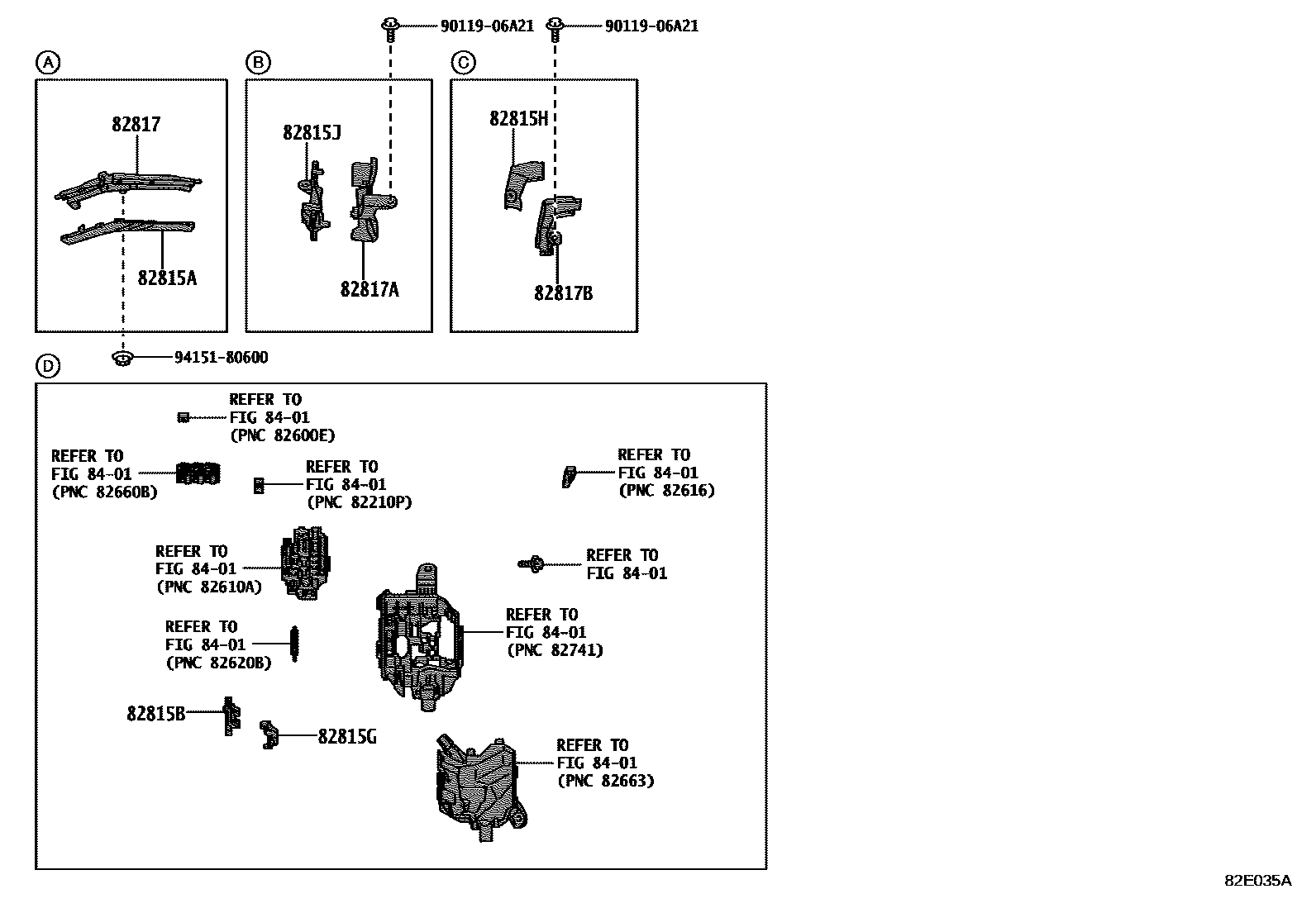

| 82815A | Wiring harness protector cover | 82815-52560 · 82815-52570 |
| 82815B | Wiring harness protector cover | 82815-52580 · 82815-52B90 |
| 82815G | No. 5 wire harness protector cover | 82815-K0730 |
| 82815H | No. 6 wire harness protector cover | 82815-K0480 · 82815-K0530 |
| 82815J | No. 7 wire harness protector cover | 82815-K0490 · 82815-K0740 |
| 82815L | No. 9 wire harness protector cover | 82815-52600 |
| 82815M | No. 10 wire harness protector cover | 82815-52620 |
| 82815N | No. 11 wire harness protector cover | 82815-52630 |
| 82815P | No. 12 wire harness protector cover | 82815-52650 |
| 82815Q | No. 13 wire harness protector cover | 82815-52660 · 82815-52B60 |
| 82815R | No. 14 wire harness protector cover | 82815-52730 |
| 82815S | No. 15 wire harness protector cover | 82815-33J10 |
| 82815T | No. 16 wire harness protector cover | 82815-33L00 |
| 82815U | No. 17 wire harness protector cover | 82815-K0370 |
| 82815V | No. 1 wire harness protector cover | 82815-K0380 |
| 82816B | No. 1 wire harness protector cover | 82815-52720 |

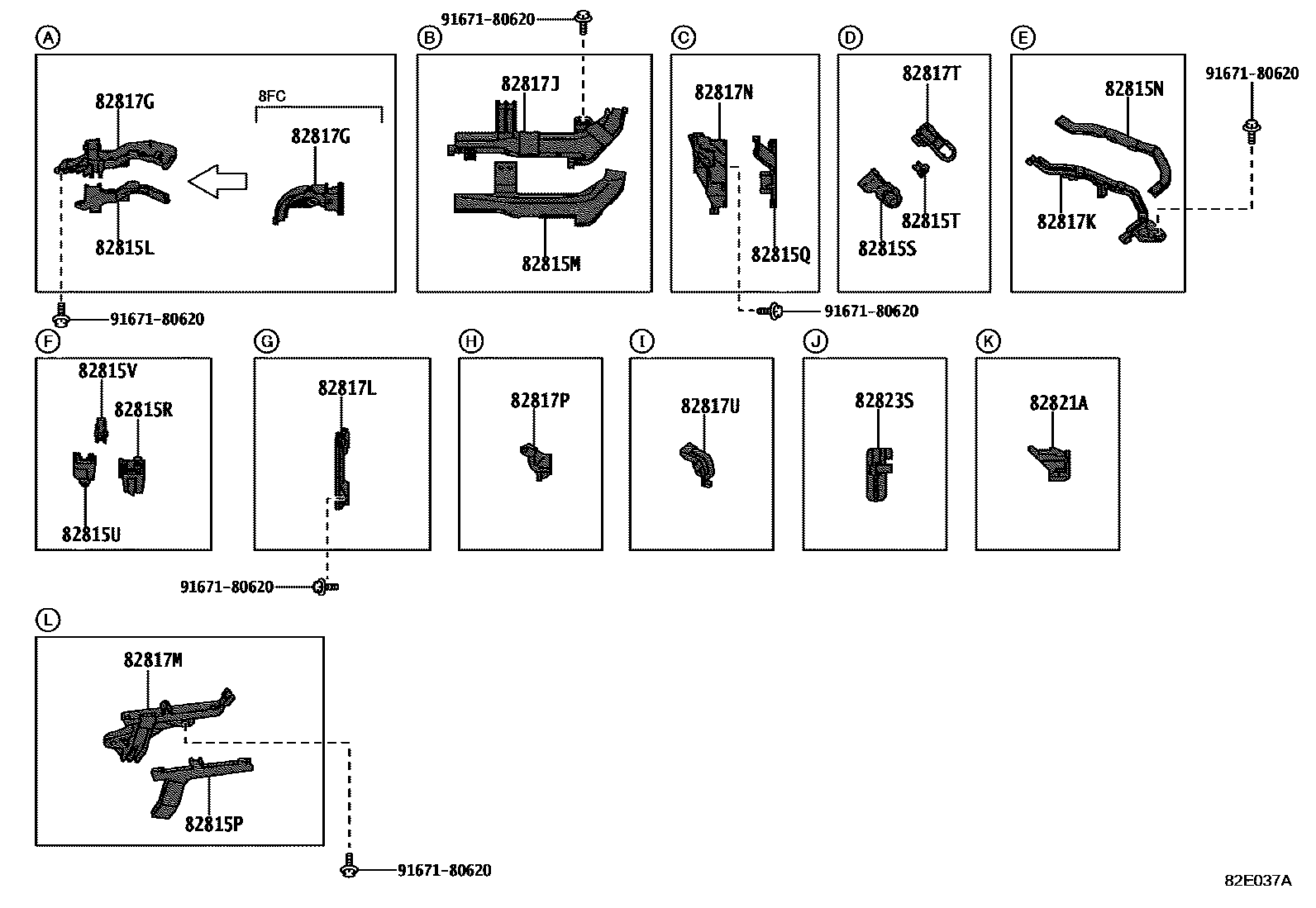

| 82817 | No. 1 wire harness protection device | 82817-52L50 · 82817-52L60 |
| 82817A | No. 2 wire harness protection device | 82817-52L70 · 82817-52L80 |
| 82817B | No. 3 wire harness protection device | 82817-K0730 · 82817-K0750 |
| 82817G | No. 8 wire harness protection device | 82817-52L90 · 82817-52T40 |
| 82817J | No. 9 wire harness protection device | 82817-52M10 |
| 82817K | No. 10 wire harness protection device | 82817-52M20 |
| 82817L | No. 11 wire harness protection device | 82817-52M30 |
| 82817M | No. 12 wire harness protection device | 82817-52M40 |
| 82817N | No. 13 wire harness protection device | 82817-52M50 · 82817-52T50 |
| 82817P | No. 14 wire harness protection device | 82817-52M60 |
| 82817T | No. 15 wire harness protection device | 82817-33S70 |
| 82817U | No. 16 wire harness protection device | 82817-K0390 |
| 82818F | No. 7 wire harness protection device | 82817-52K80 |
| 82818G | No. 8 wire harness protection device | 82817-K2020 |
| 82821A | Connector cover | 82821-52290 |
| 82821E | Connector cover | 82821-52410 |
| 82821M | Connector cover | 82821-76030 |
| 82823S | starter terminal cover | 82823-20080 |

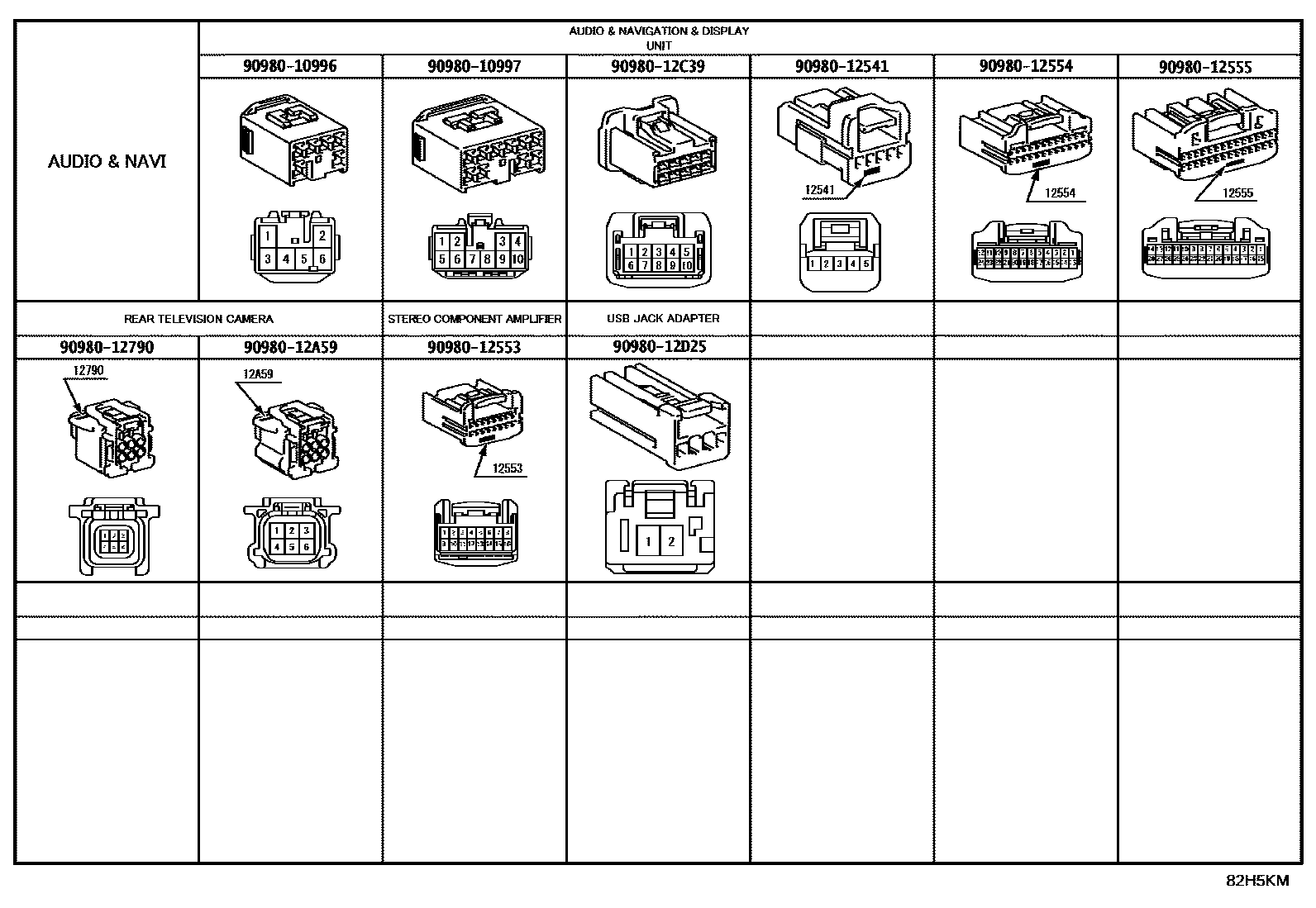

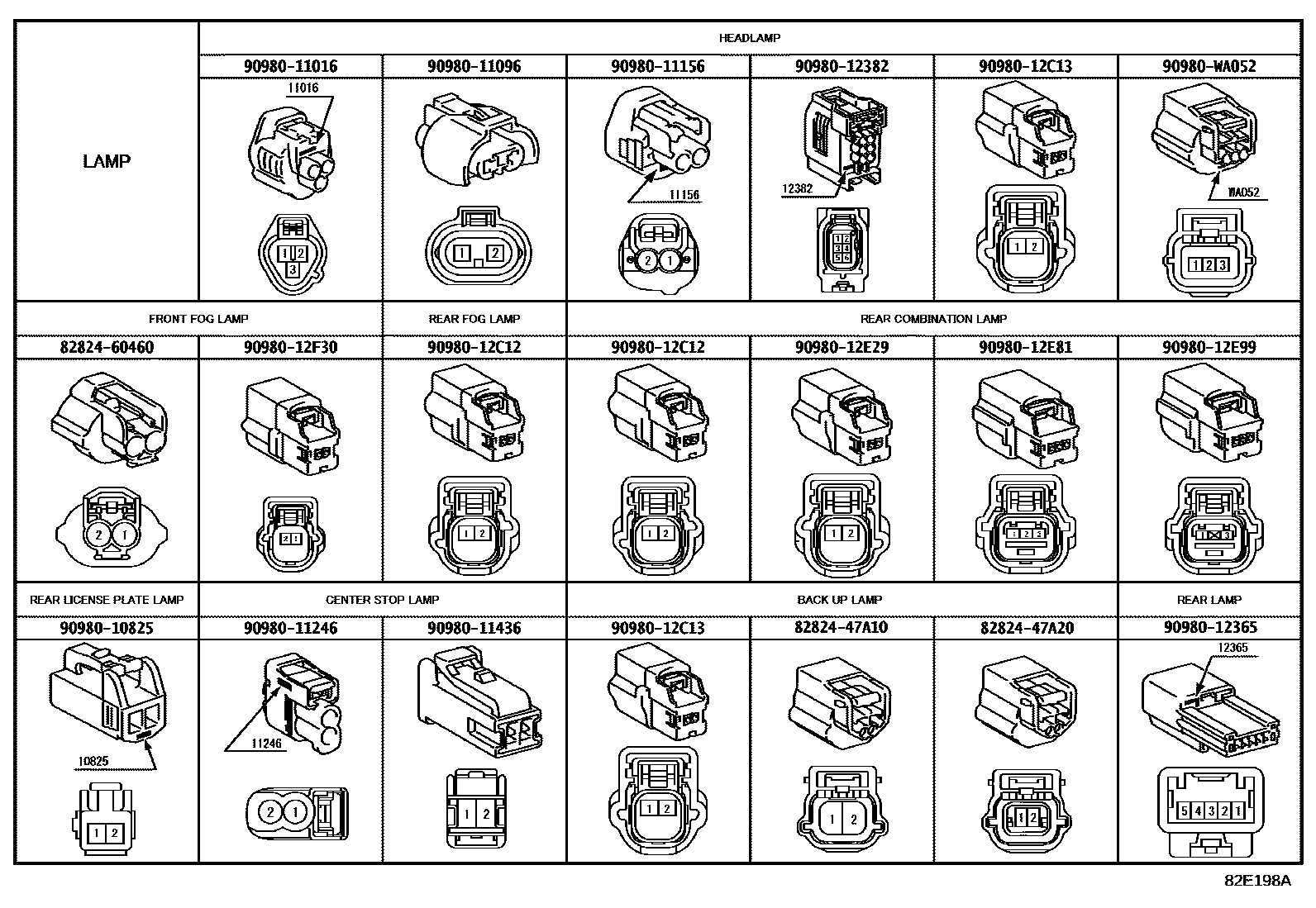

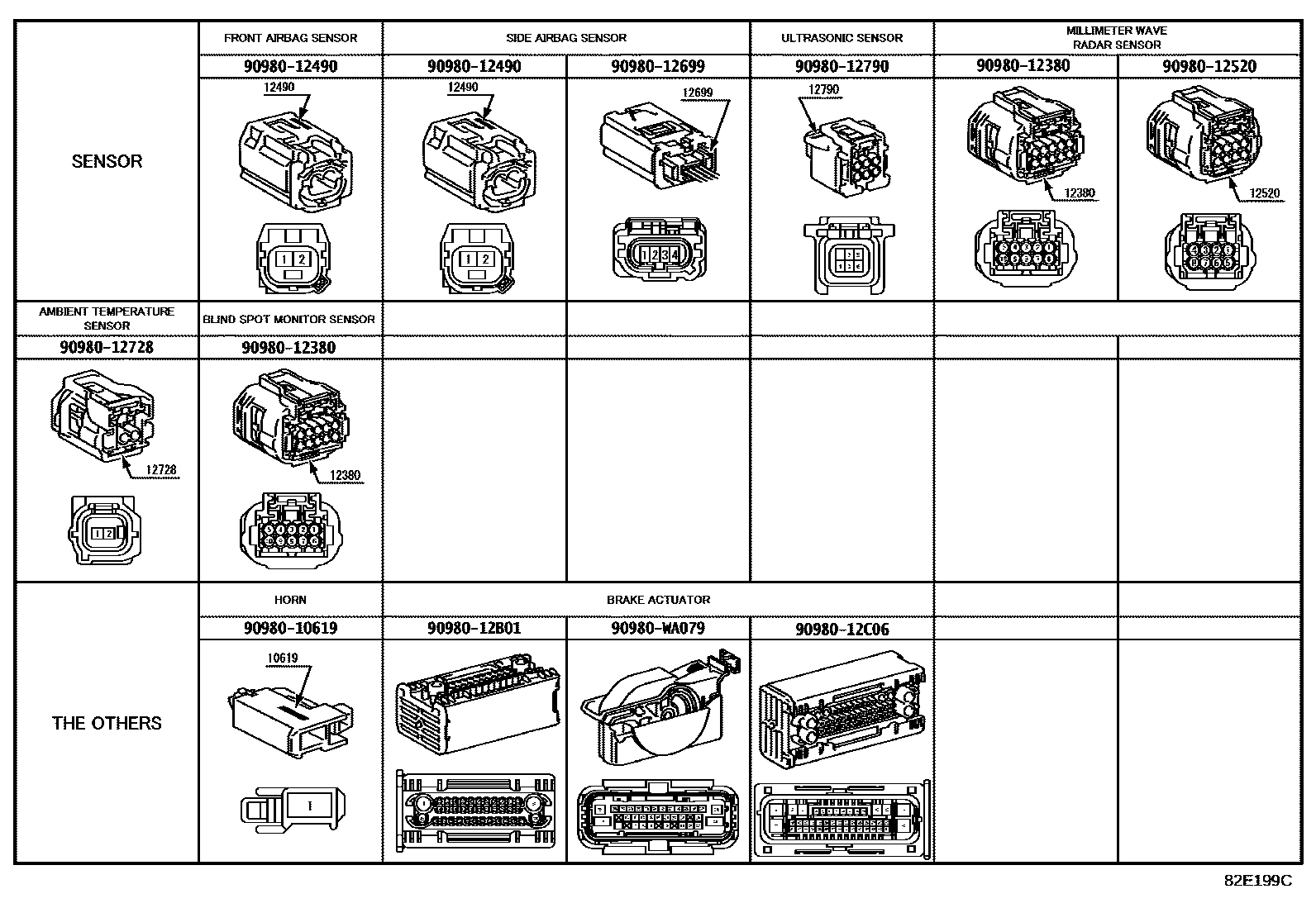

| 82824 | Harness connector | 90980-12373 |
| 89348Y | Rear corner ultrasonic sensor clip | 89348-30A00 · 89348-50050 |
