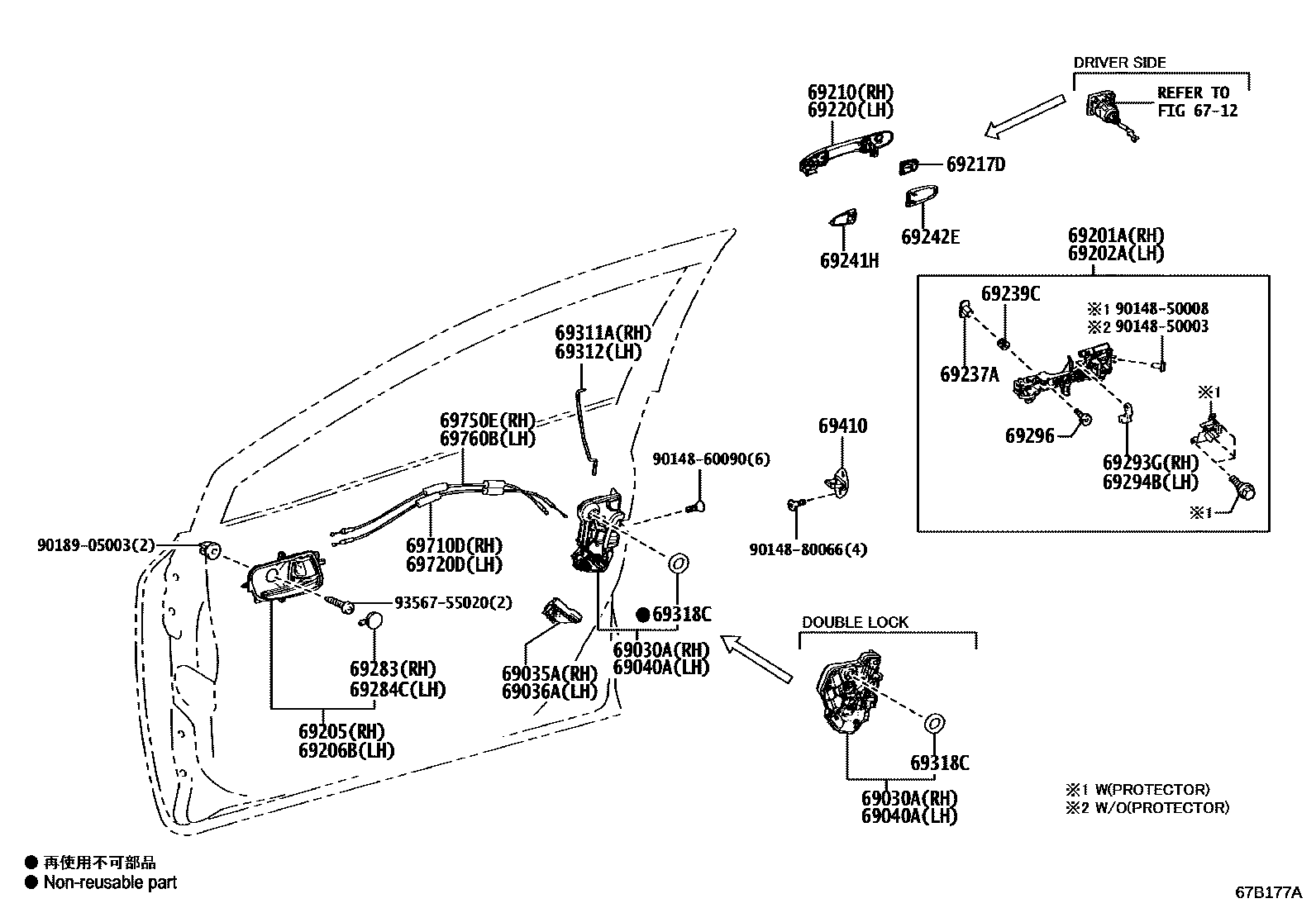

Toyota YARIS 前门锁和车门把手 — Figure 6703
Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-52540 · 69030-60290 · 69030-76011 · 69030-76021 |
| 69035A | Right front door lock cover sub-assembly | 69035-30010 |
| 69036A | Left front door lock cover sub-assembly | 69036-30010 |
| 69040A | Left front door door lock assembly with motor | 69040-52450 · 69040-52460 · 69040-52470 · 69040-76021 · 69040-76031 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-47070 · 69201-52190 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-47040 |
| 69217D | Front door outer handle cover | 69217-47020 |
| 69237A | Front door handle nut | 69237-62010 |
| 69239C | Front door handle bushing | 69239-47010 |
| 69241H | Front door exterior handle pad | 69241-52030 |
| 69242E | Front door rear outer handle pad | 69242-52040 |
| 69293G | Right front door outer handle buckle | 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-12040 |
| 69296 | Car door inner handle screws | 69296-30010 · 90148-50006 |
| 69311A | Right front door lock opening lever | 69311-52270 |
| 69312 | Left front door lock opening lever | 69312-52240 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-60030 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-52250 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-52250 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-52180 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-52180 |
