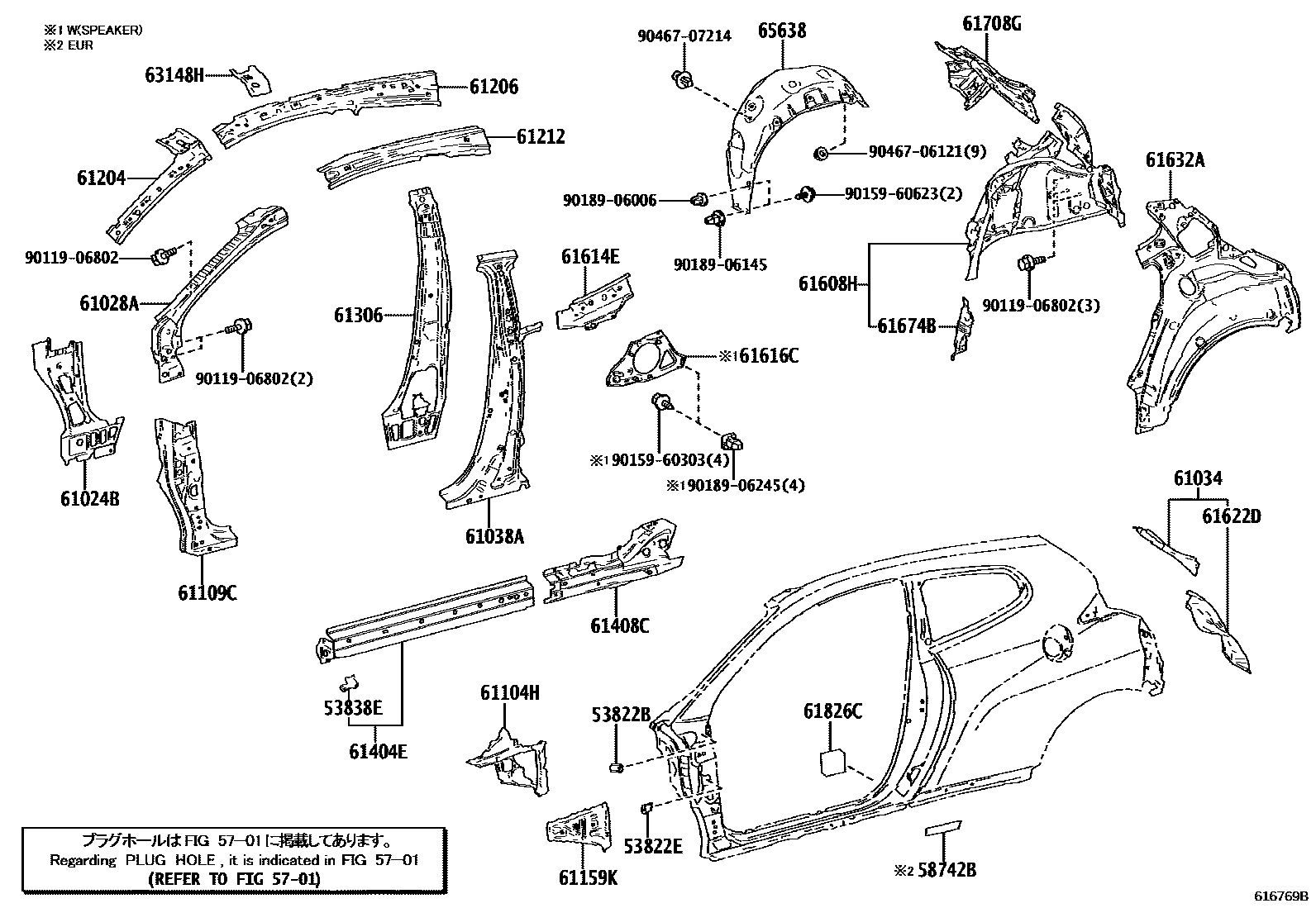

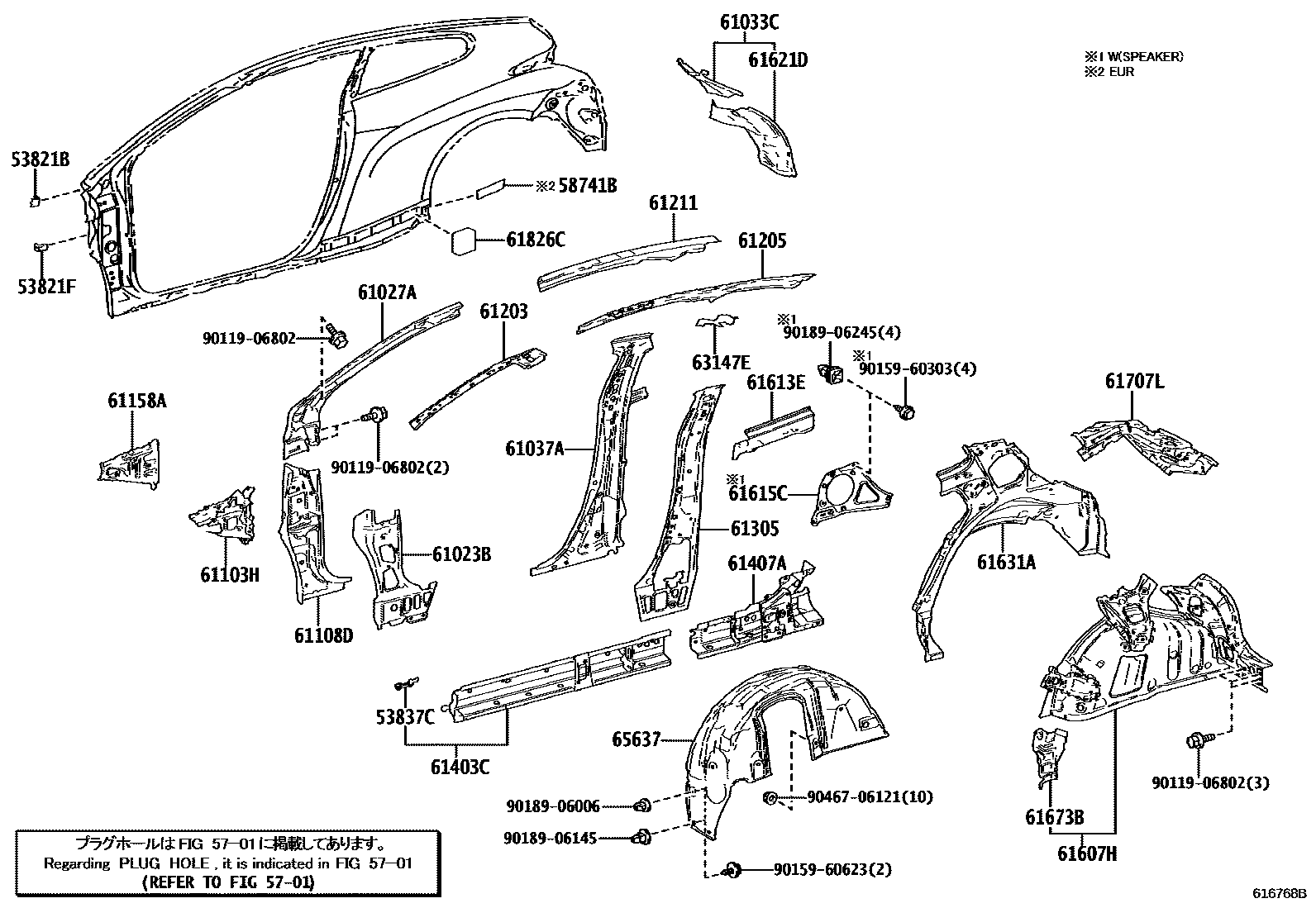

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 3 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-52030 |
| 53821F | No. 2 right front fender rear support | 53821-75020 |
| 53822B | Left front fender rear support | 53821-52030 |
| 53822E | No. 2 left front fender rear support | 53821-75020 |
| 53837C | No. 2 right front side panel bracket | 53837-K0010 |
| 53838E | No. 2 left front side panel bracket | 53838-K0010 |
| 58741B | Right side enclosure protection panel | 58741-52420 |
| 58742B | Left side enclosure protection panel | 58742-52430 |
| 61013C | Right inner panel sub-assembly | 61013-52090 |
| 61014C | Left inner panel sub-assembly | 61014-52080 |
| 61023B | Right body inner front pillar sub-assembly | 61023-K0010 |
| 61024B | Left body inner front pillar sub-assembly | 61024-K0010 |
| 61027A | Right body outer front pillar sub-assembly | 61027-52901 |
| 61028A | Left body outer front pillar sub-assembly | 61028-52901 |
| 61033C | Back door opening right side reinforcement sub-assembly | 61033-52100 |
| 61034 | Rear door opening left reinforcement sub-assembly | 61034-52100 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-52330 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-52330 |
| 61103H | No. 2 right side plate sub-assembly | 61103-52020 |
| 61104H | No. 2 left side panel sub-assembly | 61104-52020 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-52200 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-52230 |
| 61158A | Extension section under right front pillar | 61158-52040 |
| 61159K | Extension section under left front pillar | 61159-52040 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-52080 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-52080 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-52030 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-52060 |
| 61210A | Roof right side longitudinal beam assembly | 61210-52010 |
| 61211 | Roof right outer longitudinal beam | 61211-52230 |
| 61212 | Roof left outer longitudinal beam | 61212-52230 |
| 61220A | Roof left side rail assembly | 61220-52010 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-52110 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-52110 |
| 61311B | Right body outer center pillar | 61311-52110 |
| 61312B | Left body outer center pillar | 61312-52090 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-52902 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-52902 |
| 61407A | Lower right step plate sub-assembly | 61407-52900 |
| 61408C | Lower left step plate sub-assembly | 61408-52900 |
| 61601B | Right side enclosure sub-assembly | 61601-52720 · 61601-52730 |
| 61602C | Left side enclosure sub-assembly | 61602-52860 · 61602-52870 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-52440 · 61607-52580 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-52500 · 61608-52520 · 61608-52610 |
| 61613E | Right side inner panel | 61613-52070 |
| 61614E | Left side inner panel | 61614-52060 |
| 61615C | Right side panel center inner panel | 61615-52040 |
| 61616C | Left side enclosure center inner panel | 61616-52020 |
| 61621D | Back door right opening slot | 61621-52210 |
| 61622D | Rear door left opening slot | 61622-52220 |
| 61631A | Right wheel cover outer panel | 61631-52220 |
| 61632A | Left side wheel cover outer panel | 61632-52220 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-52030 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-52030 |
| 61707L | Right front roof inner panel sub-assembly | 61707-52090 |
| 61708G | Left front roof inner panel sub-assembly | 61708-52110 |
| 61826C | No. 3 silencer panel gasket | 61826-52040 |
| 63147E | Roof panel reinforcement bracket | 63147-K0010 |
| 63148H | Roof panel reinforcement bracket | 63148-K0010 |
| 65565 | Right side panel rear end lining | 65565-50010 |
| 65566 | Left side panel rear end lining | 65565-50010 |
| 65637 | Right rear wheel house lining | 65637-52030 · 65637-52040 · 65637-52090 |
| 65638 | Left rear wheel house lining | 65638-52030 · 65638-52040 · 65638-52090 |
