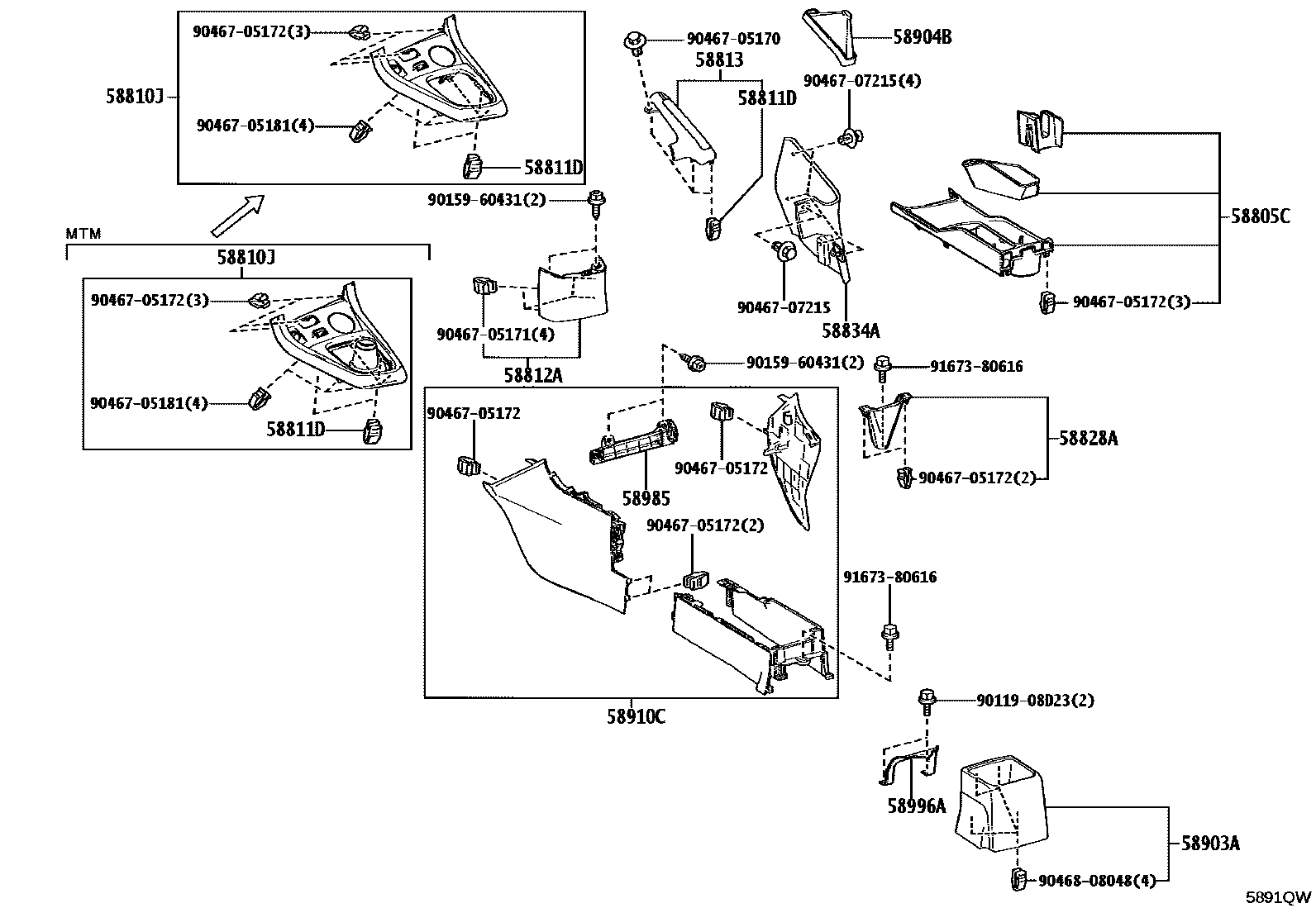

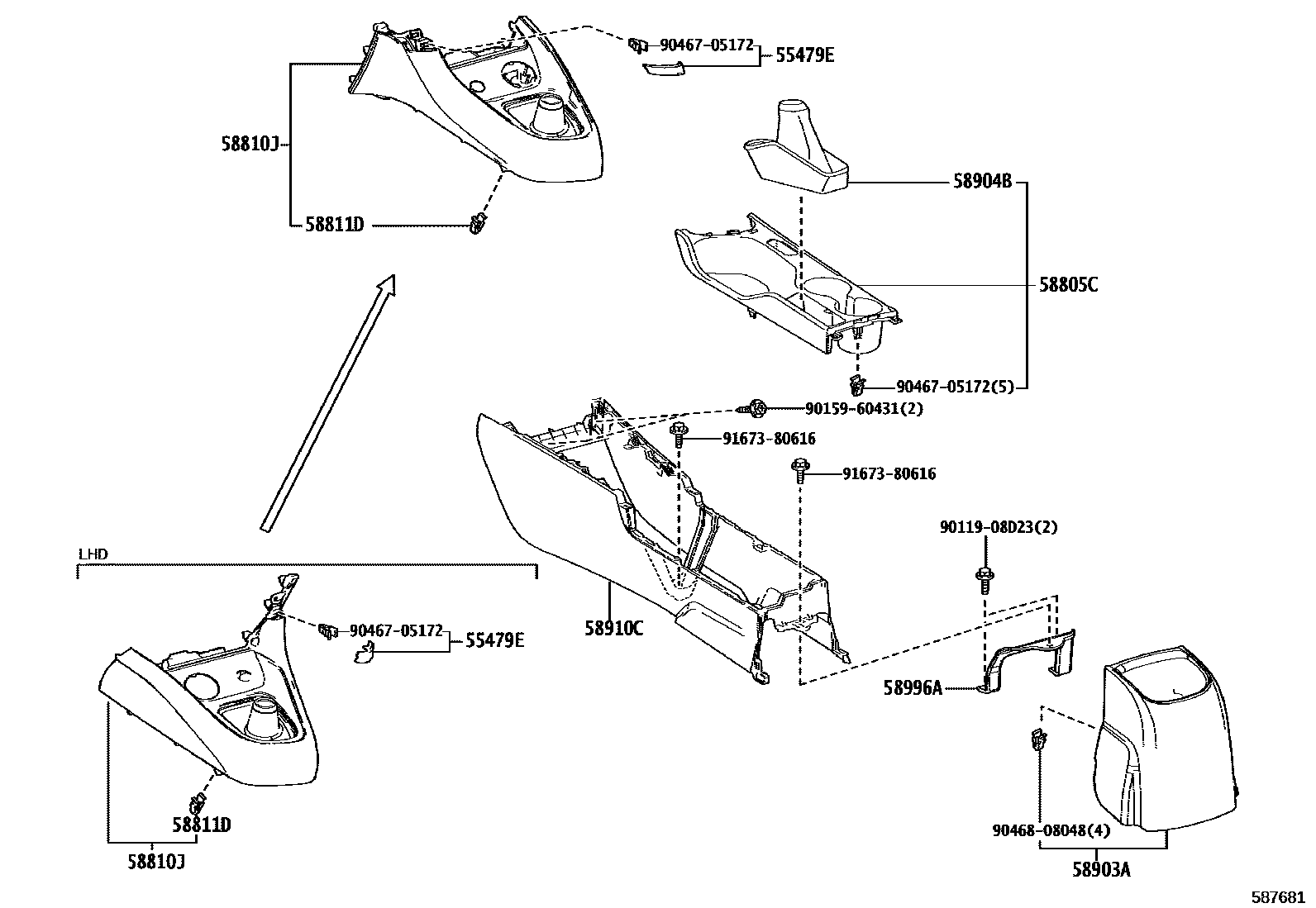

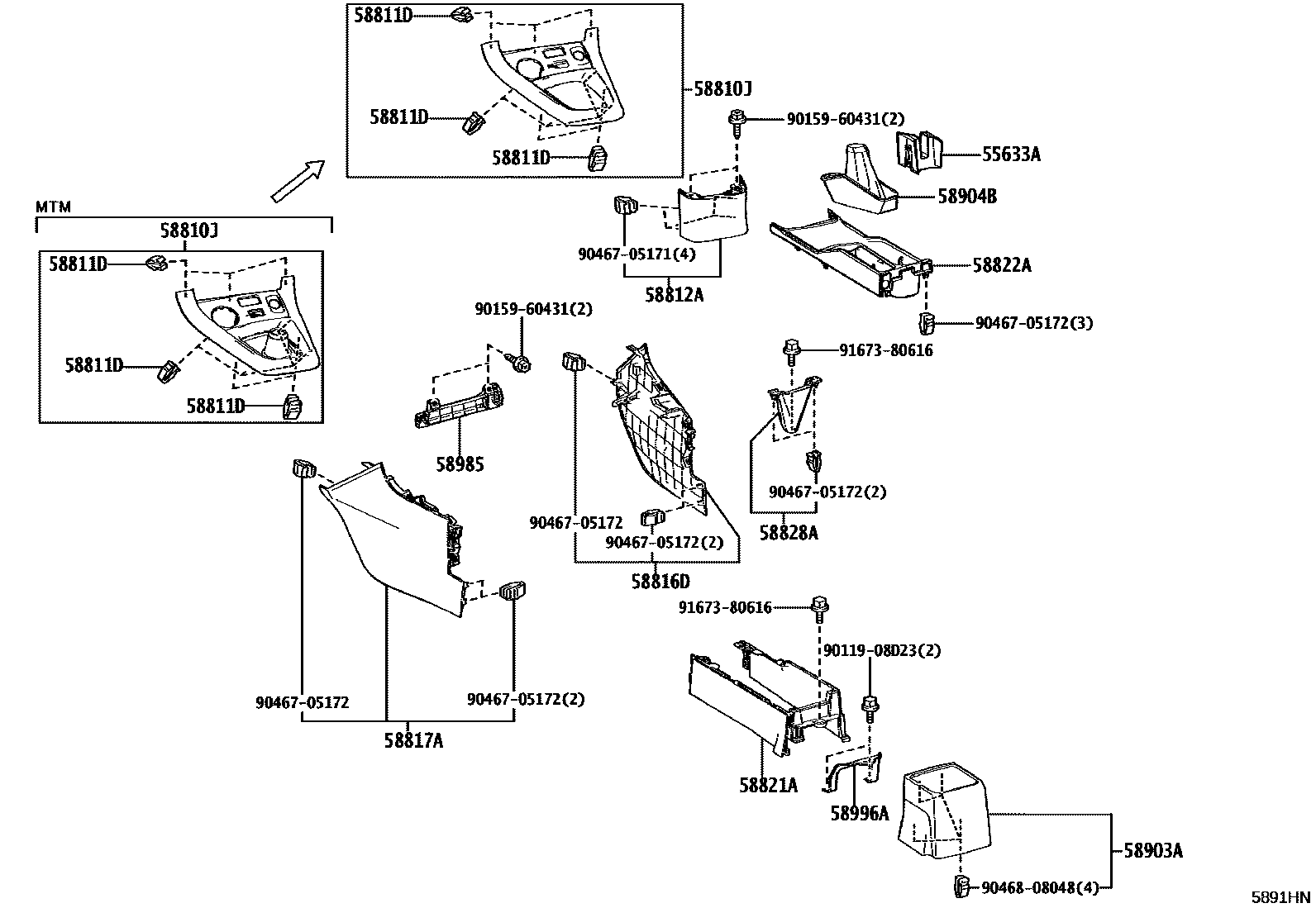

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55479E | Center instrument panel lower cover | 55479-K0040 |
| 58811D | Clip (for armrest box) | 90467-05172 |
| 58813 | Upper armrest box | 58813-52050 · 58813-52060 |
| 58828A | Armrest box lower bracket | 58828-52050 |
| 58834A | Armrest box lower cover | 58834-52190 · 58834-52250 |
| 58904B | Parking brake hole cover sub-assembly | 58904-52030 · 58904-52070 |
| 58985 | Armrest box fixing bracket | 58985-52080 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-K0020 |
