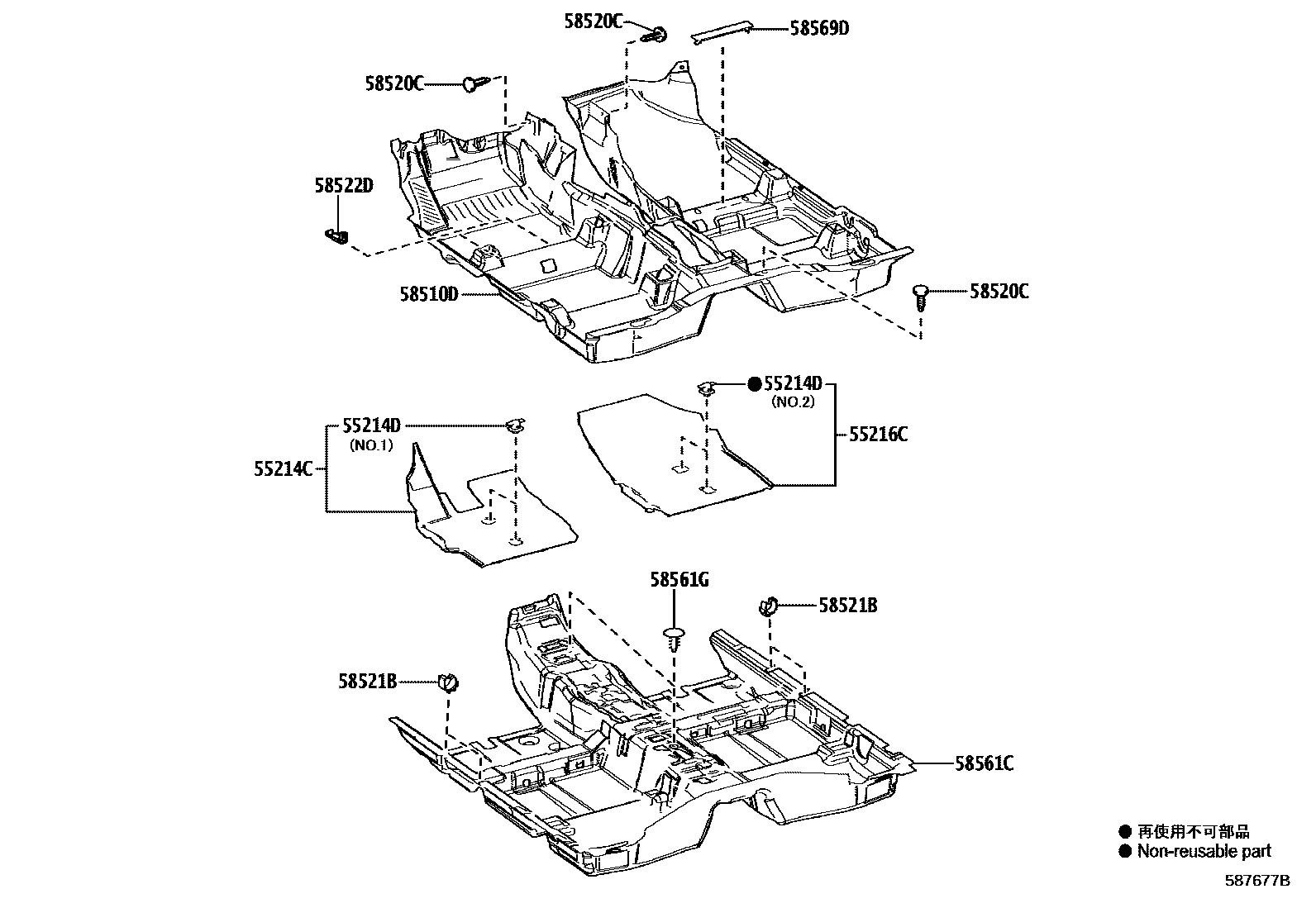

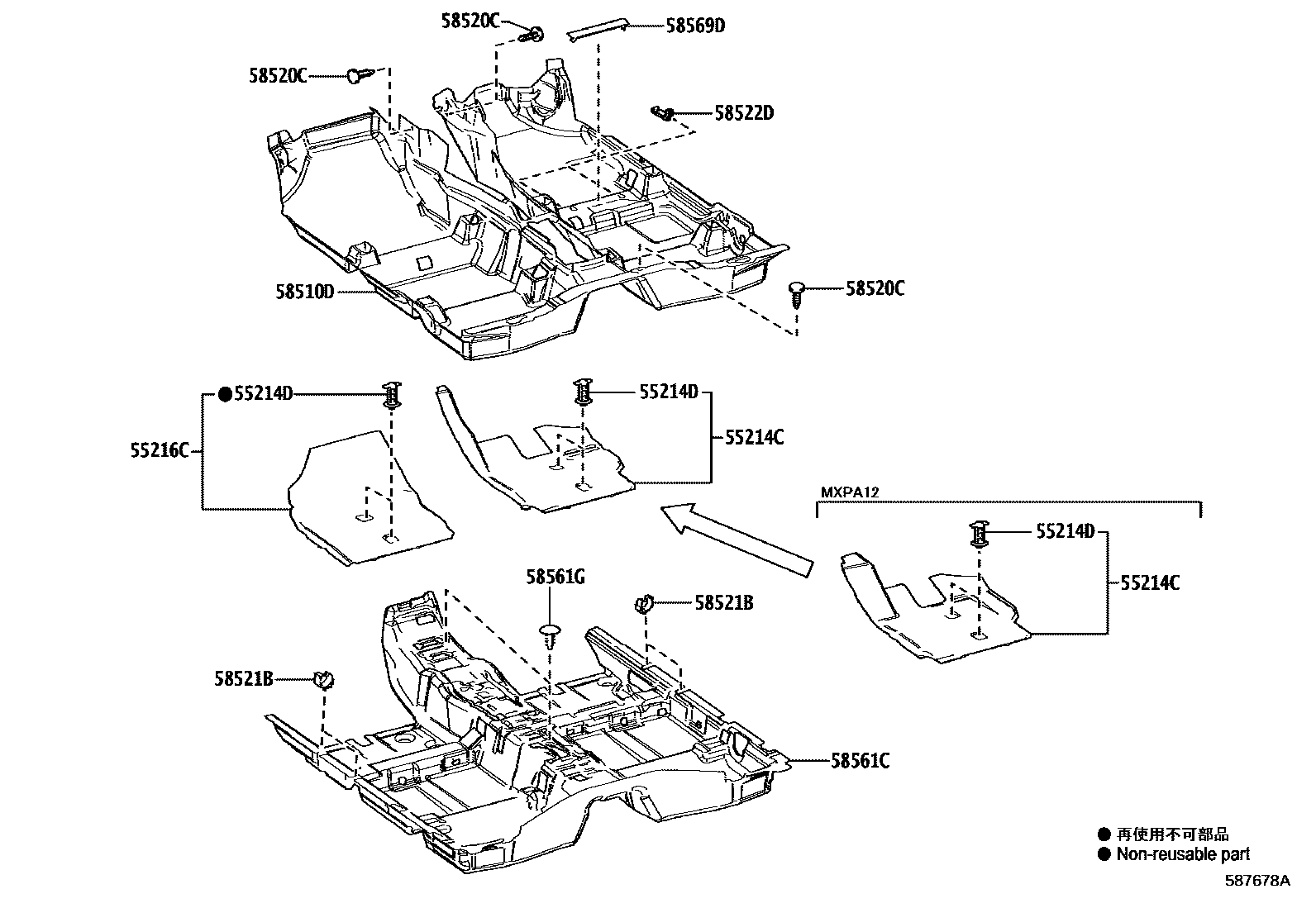

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-52250 · 55214-52260 · 55214-52360 · 55214-52370 |
| 55214D | Clip (for cowl insulation pad) | 58198-52020 · 58198-52040 |
| 55216C | No. 4 heat insulation pad for front wall | 55216-52100 · 55216-K0020 |
| 58521B | carpet hook | 58521-33060 |
| 58522D | Carpet hook number 2 | 58522-52030 |
| 58561C | Front floor silencer No. 1 | 58561-52420 · 58561-52430 · 58561-52470 · 58561-52480 |
