Toyota YARIS 仪表板和手套箱 — Figure 5501

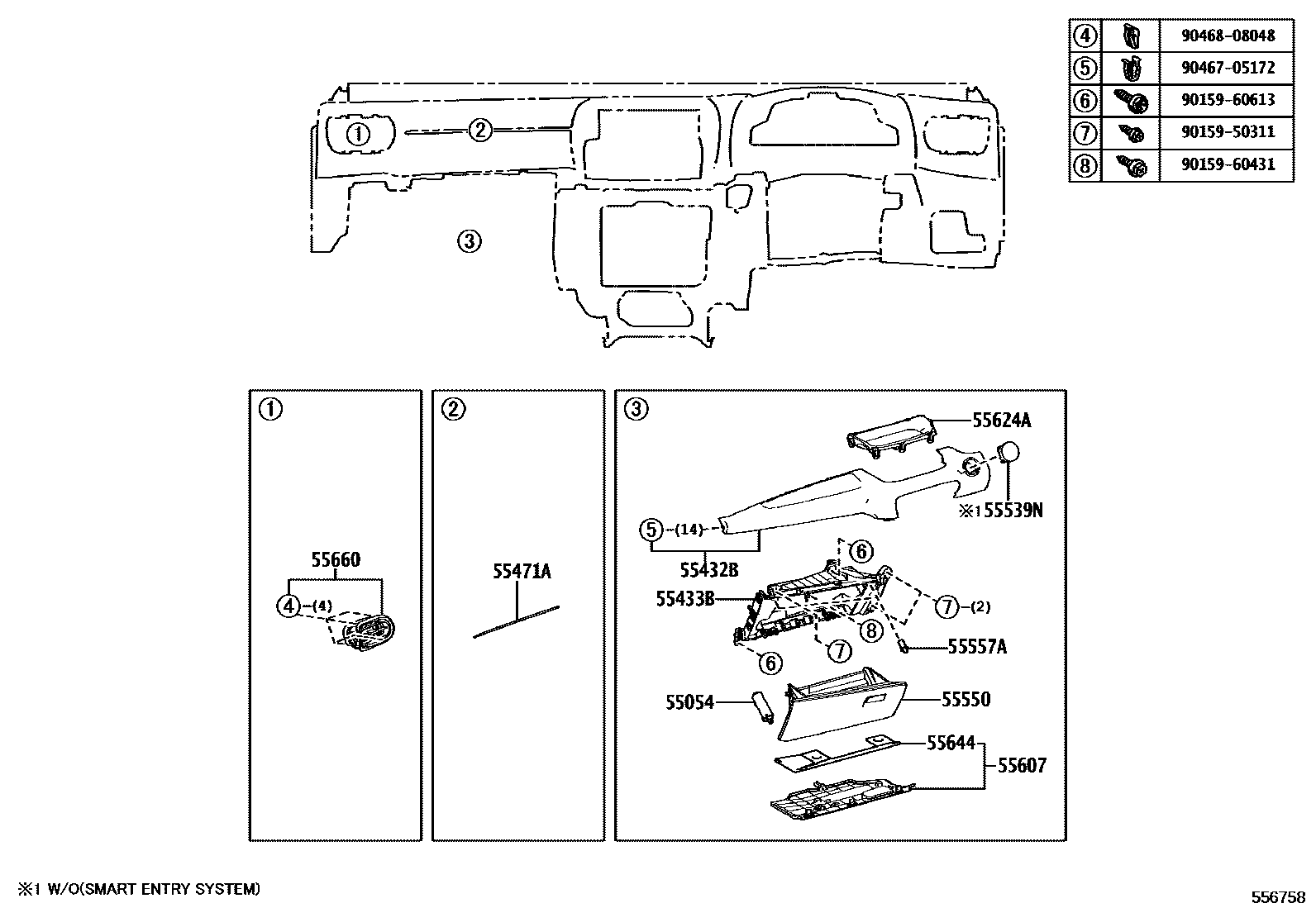

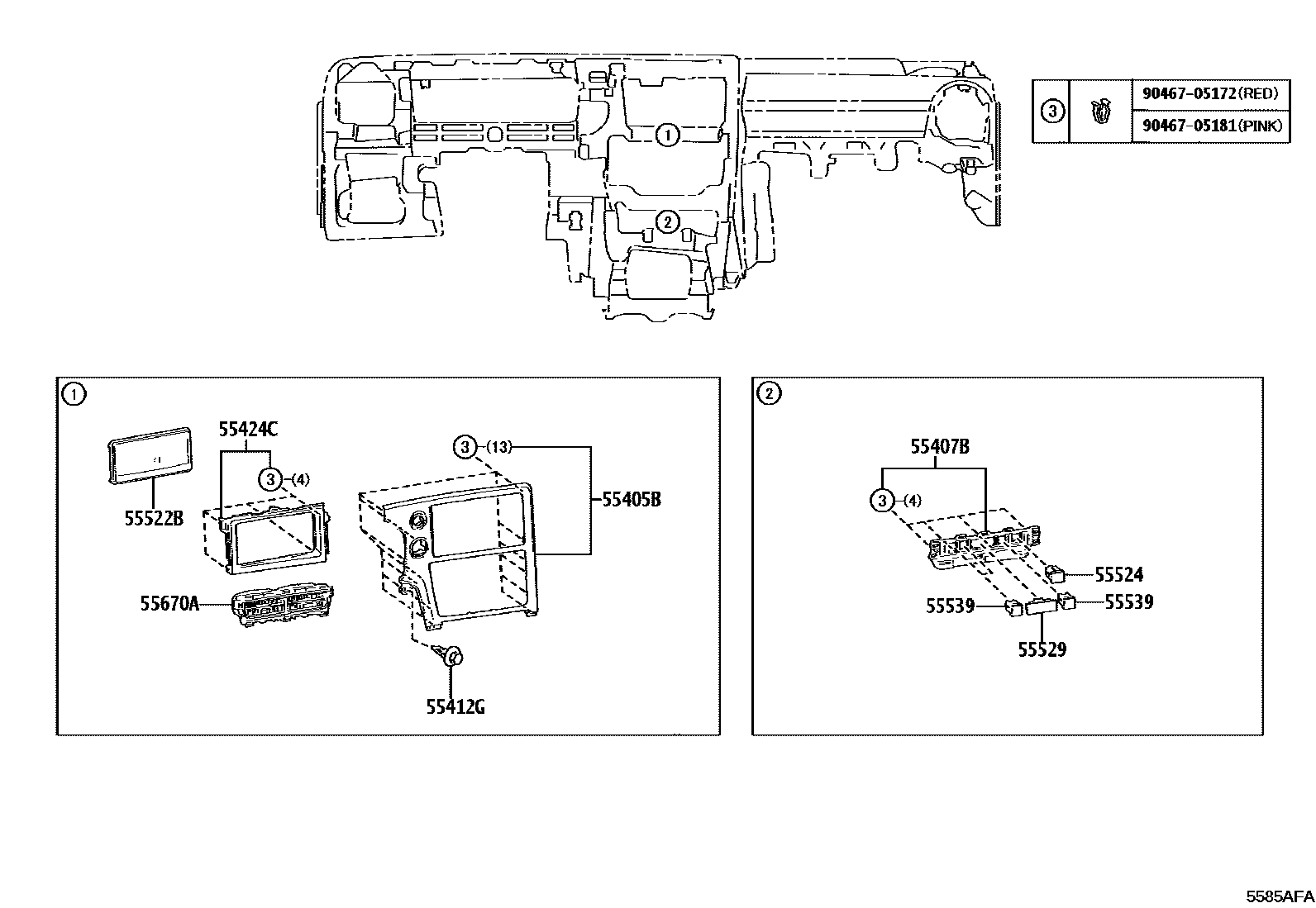

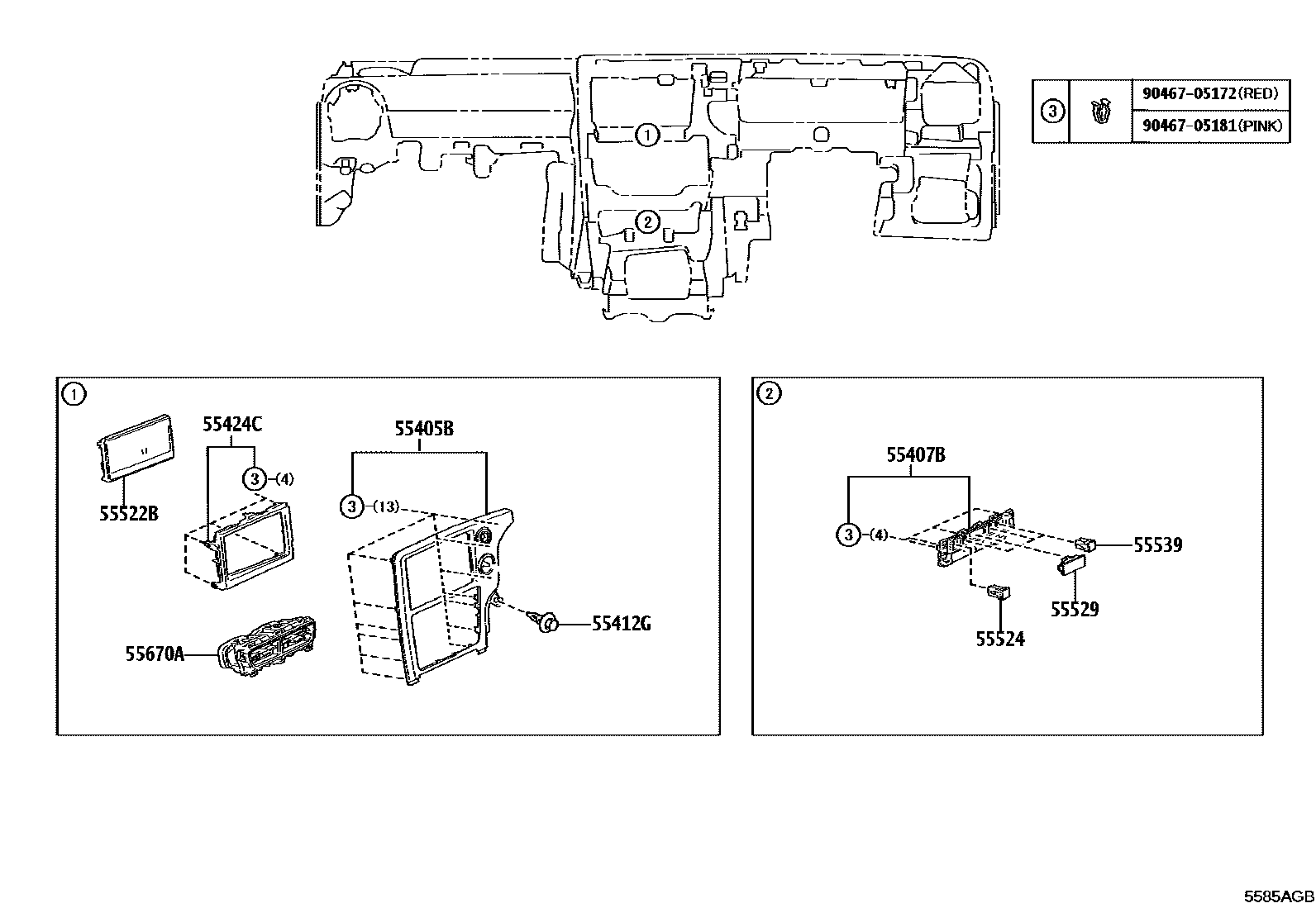

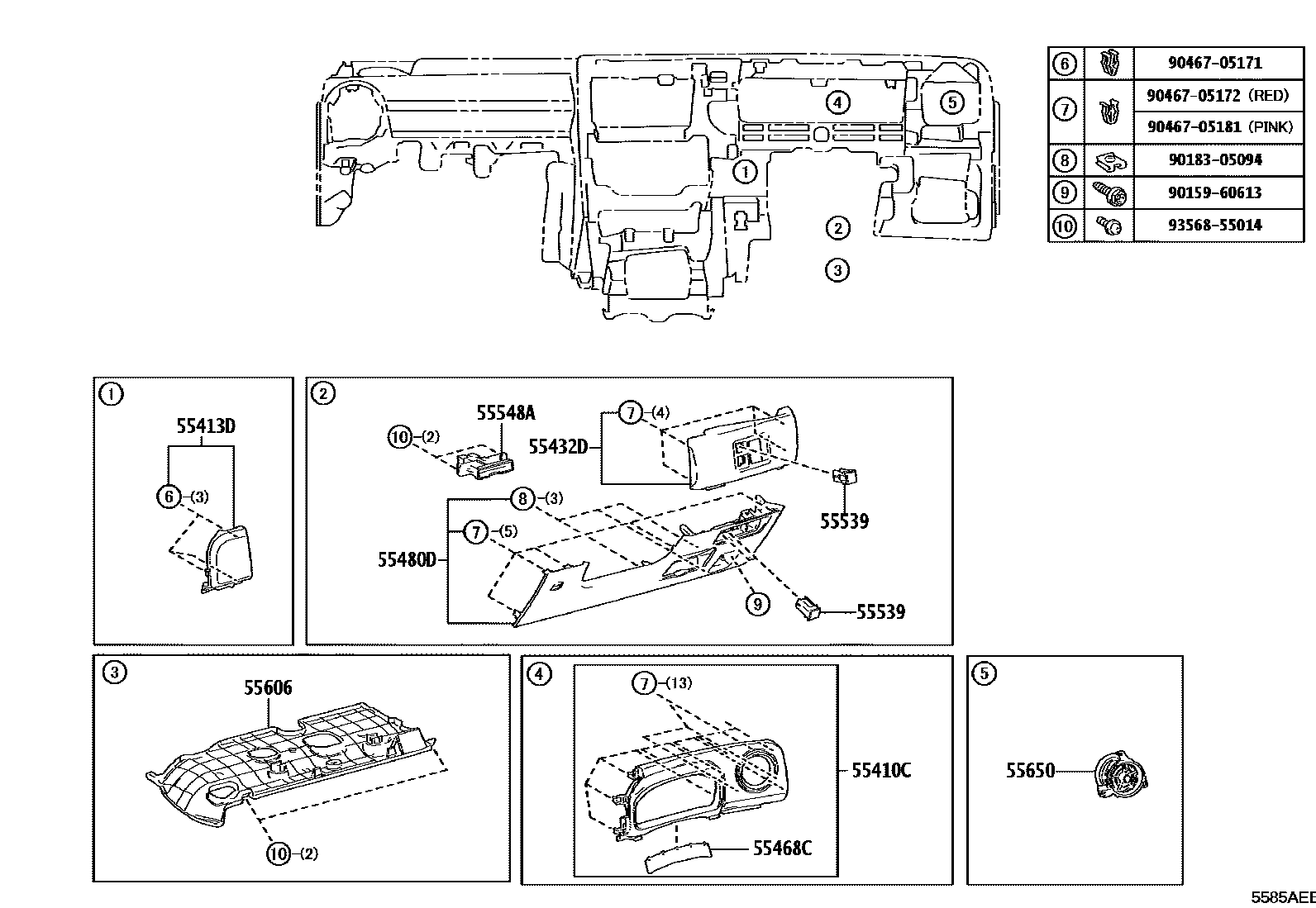

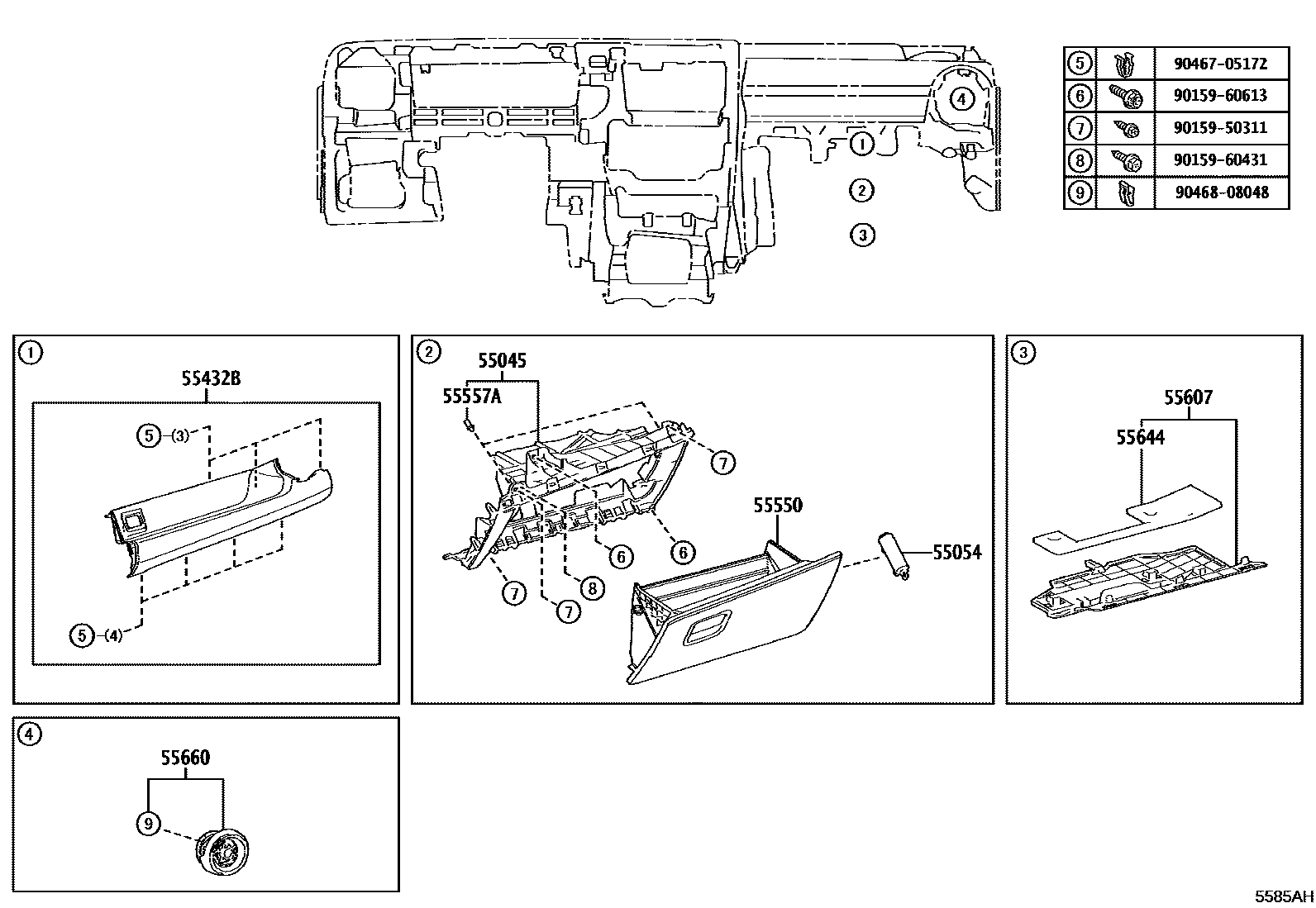

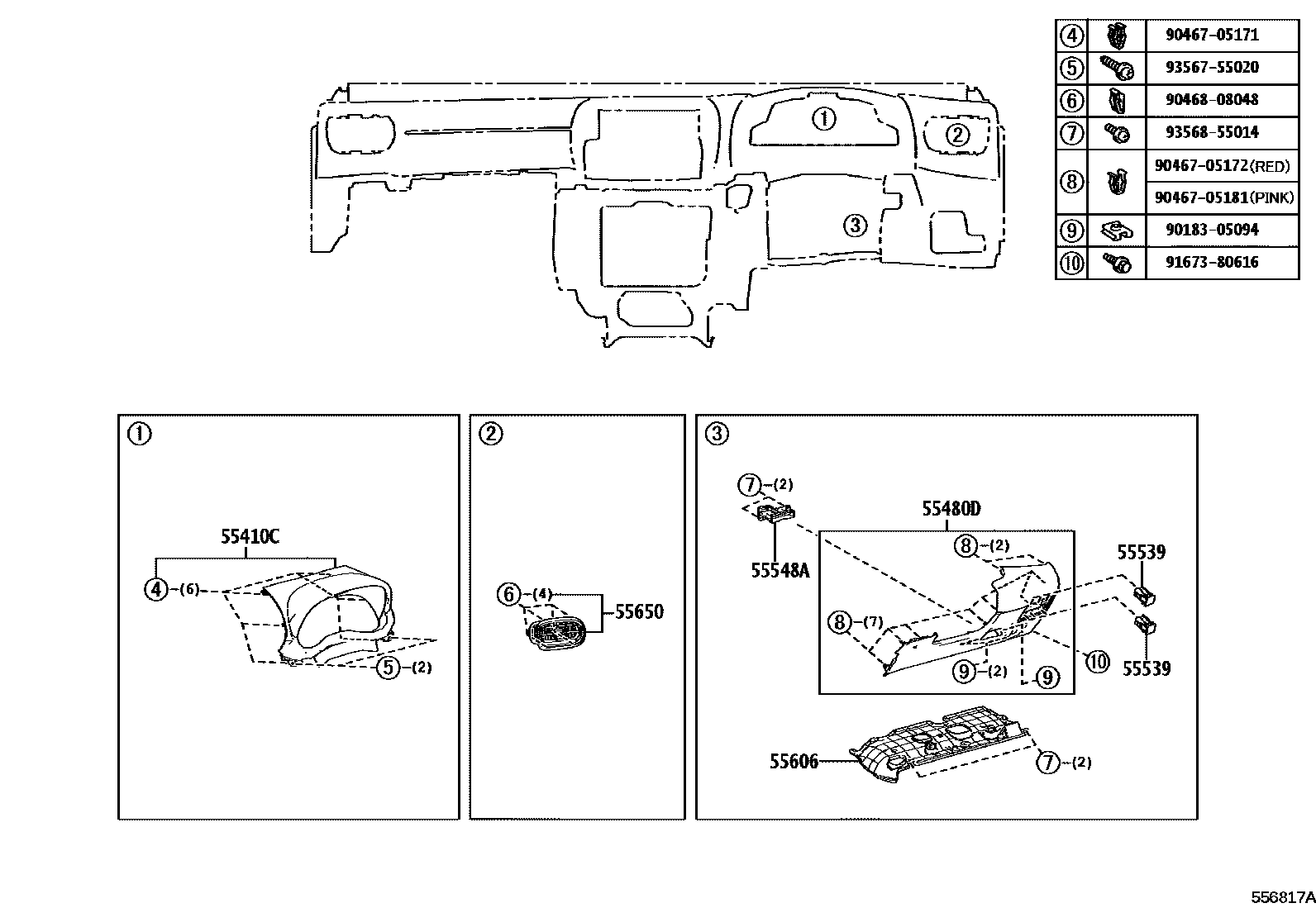

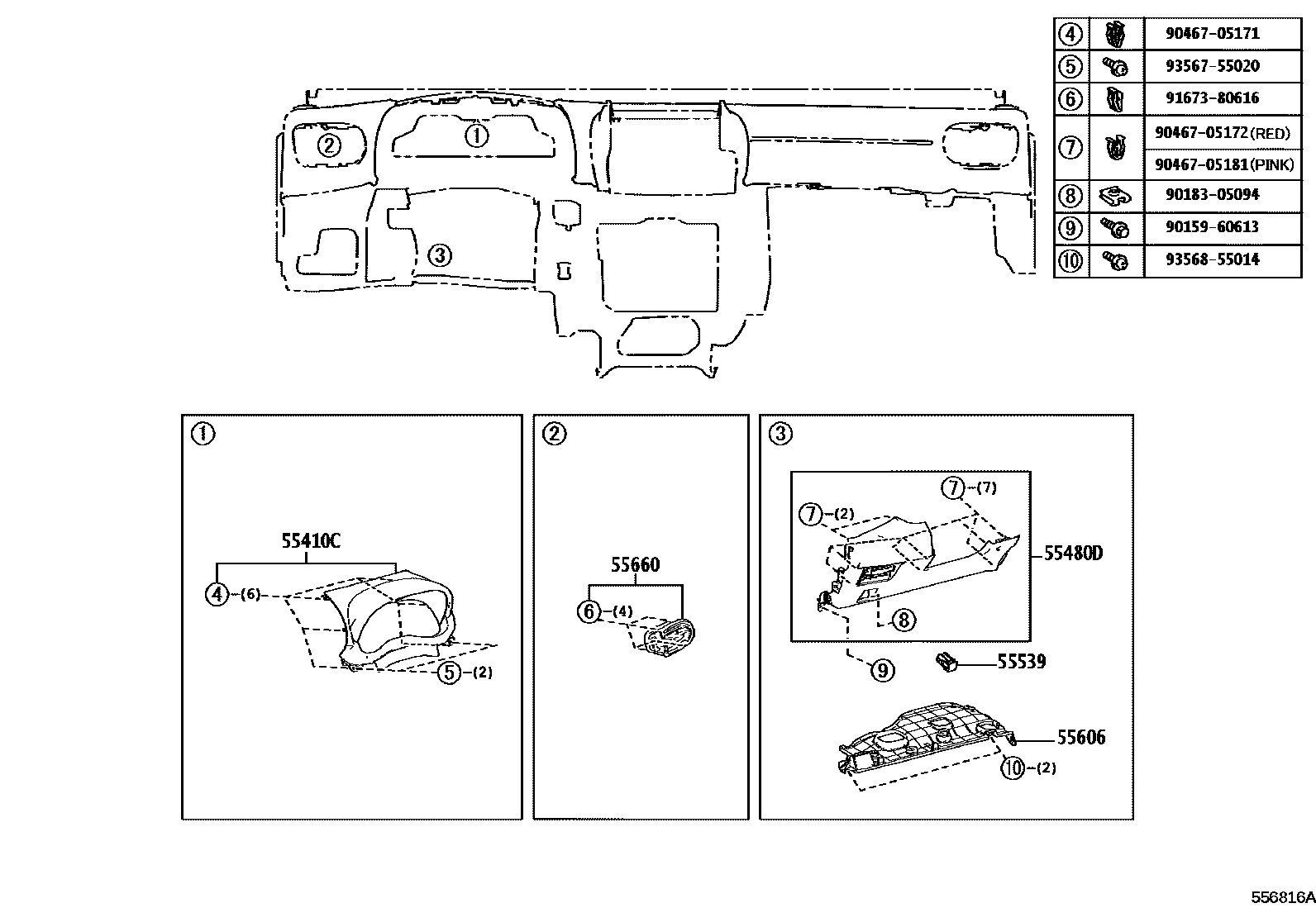

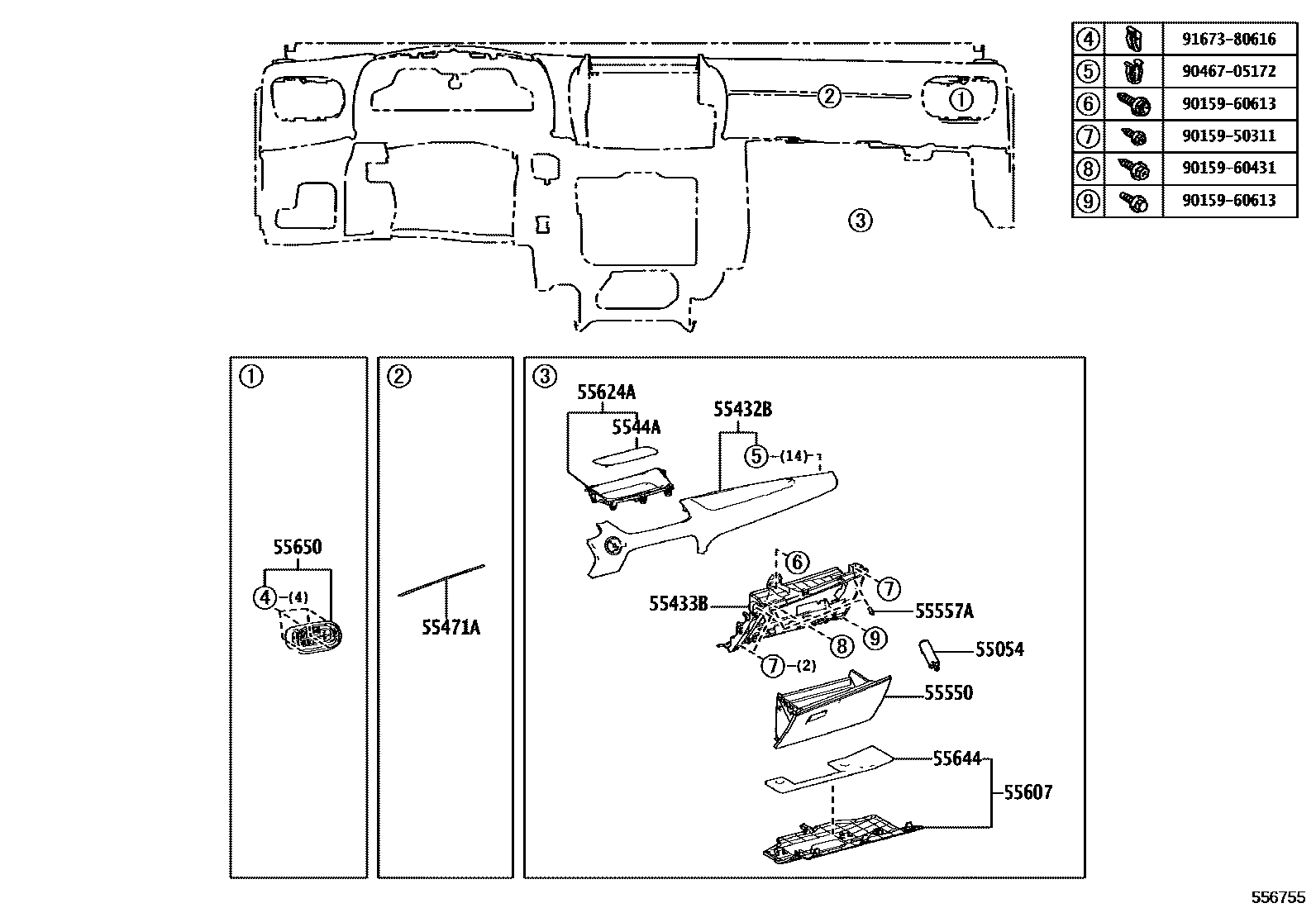

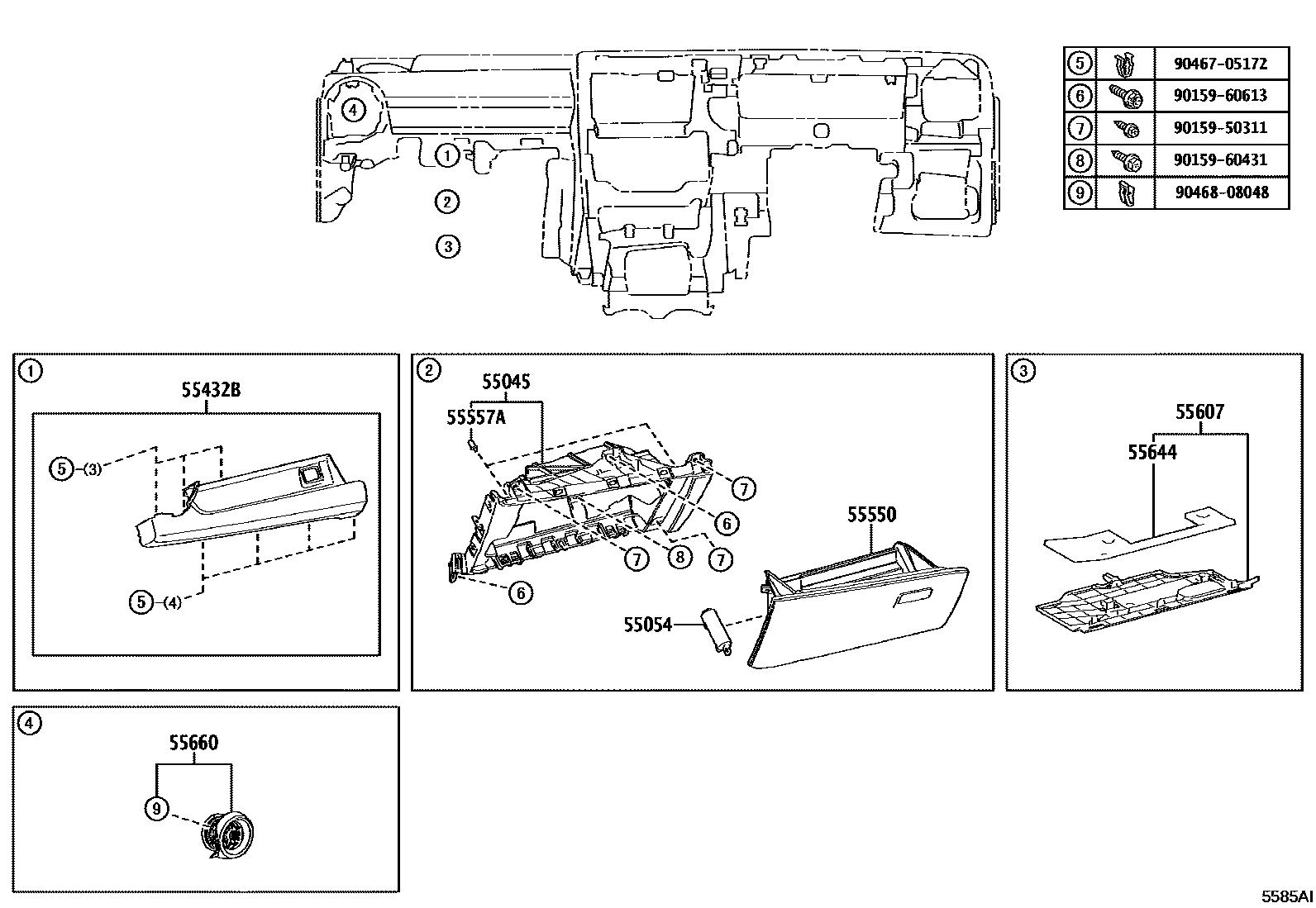

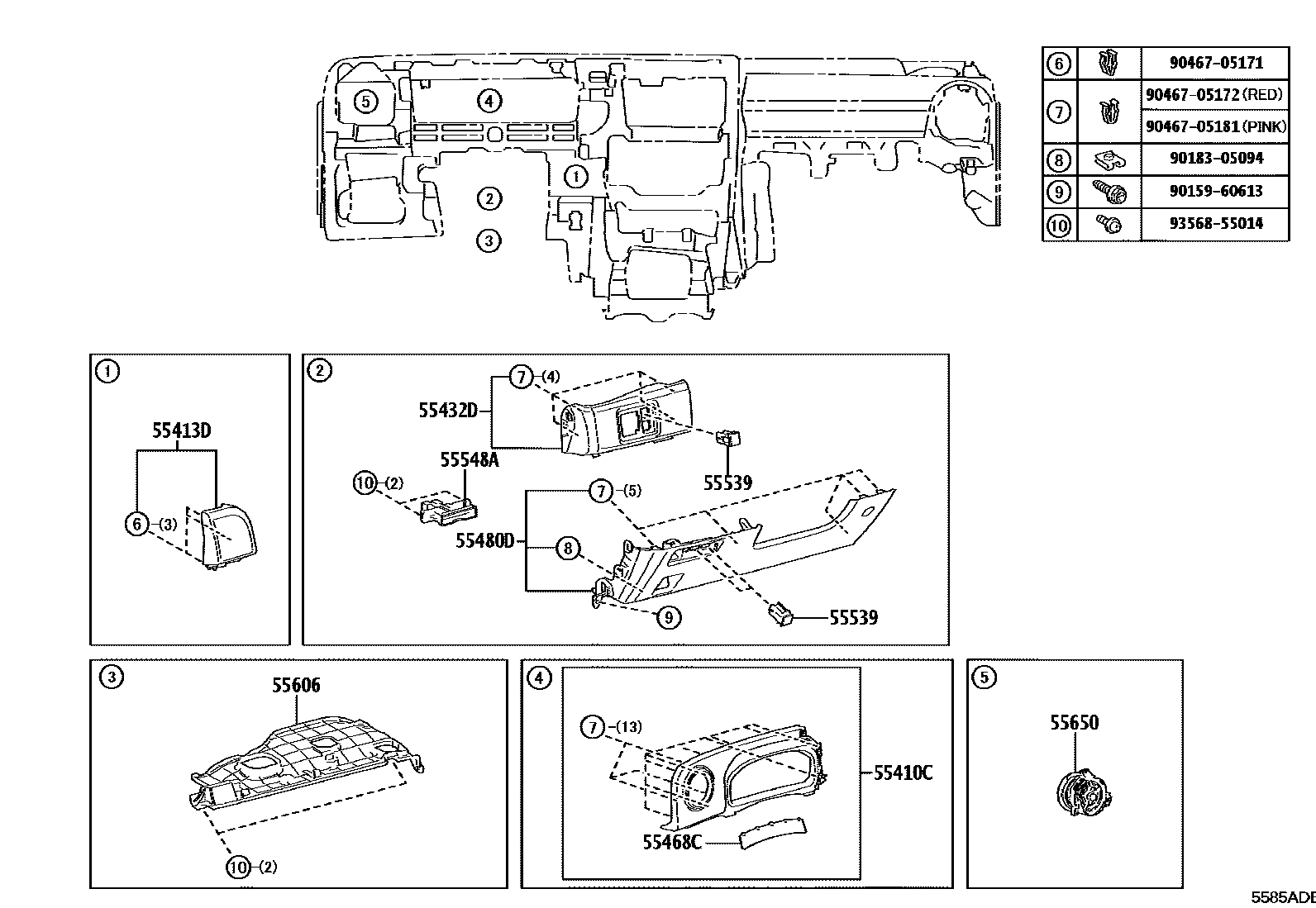

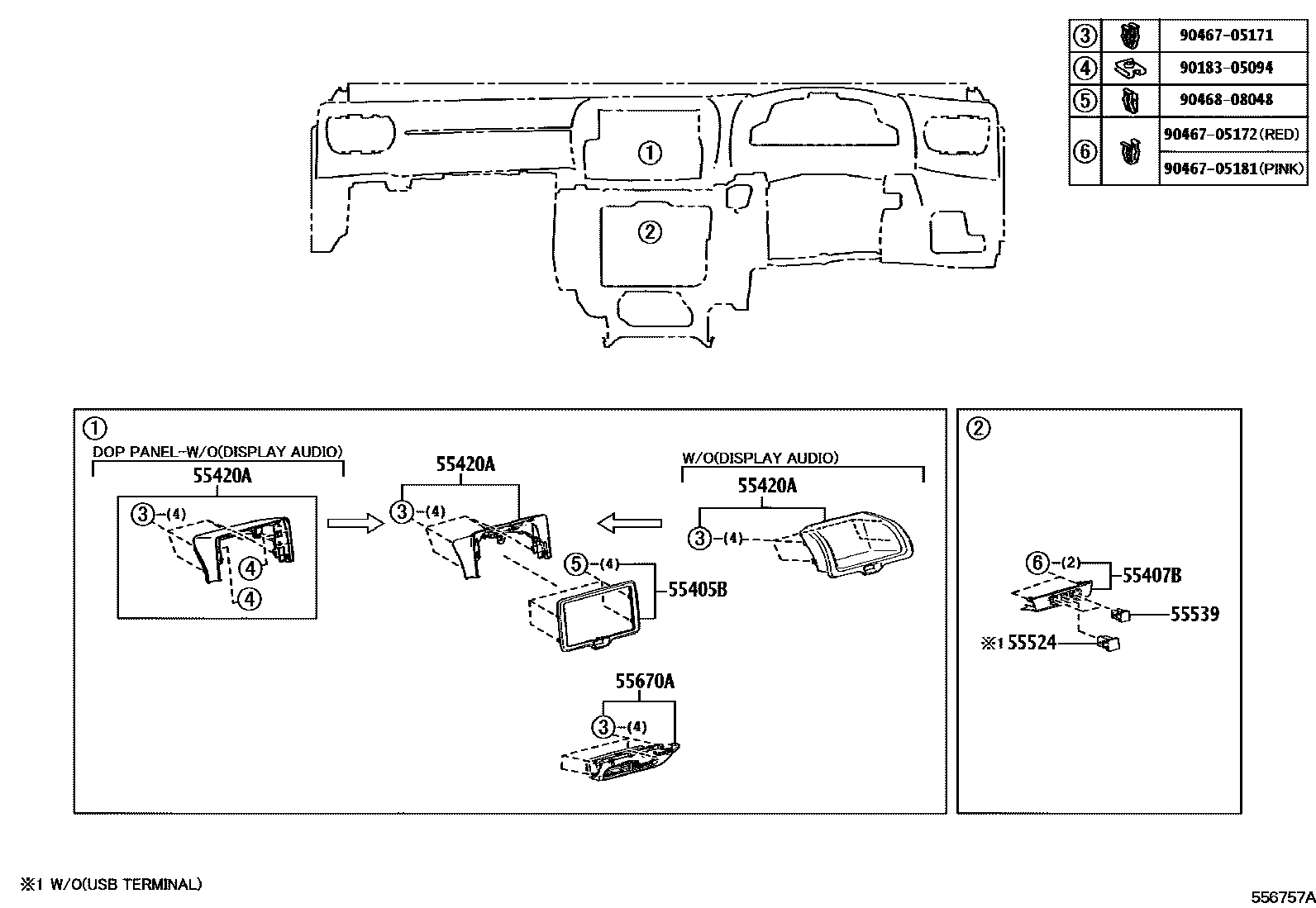

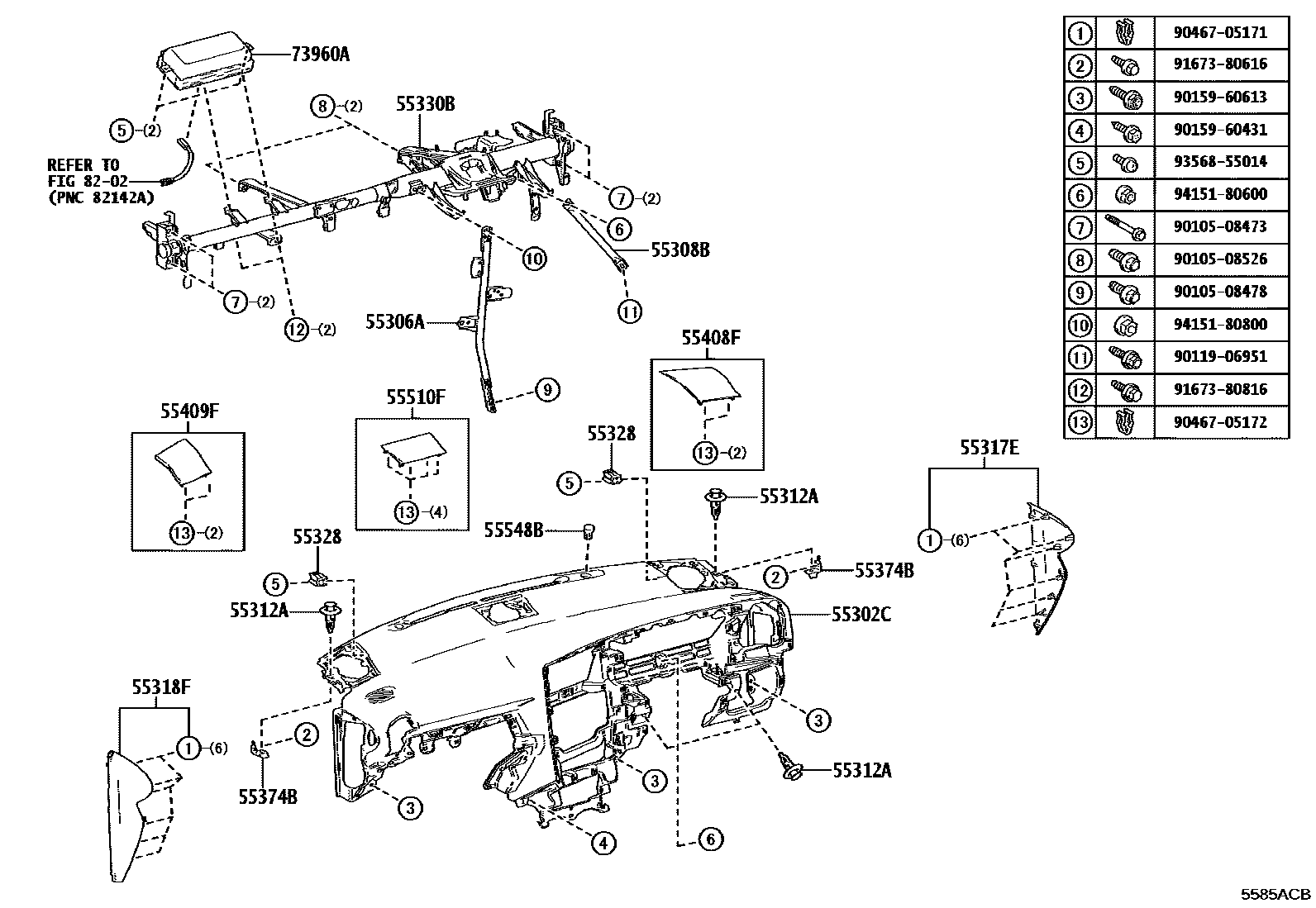

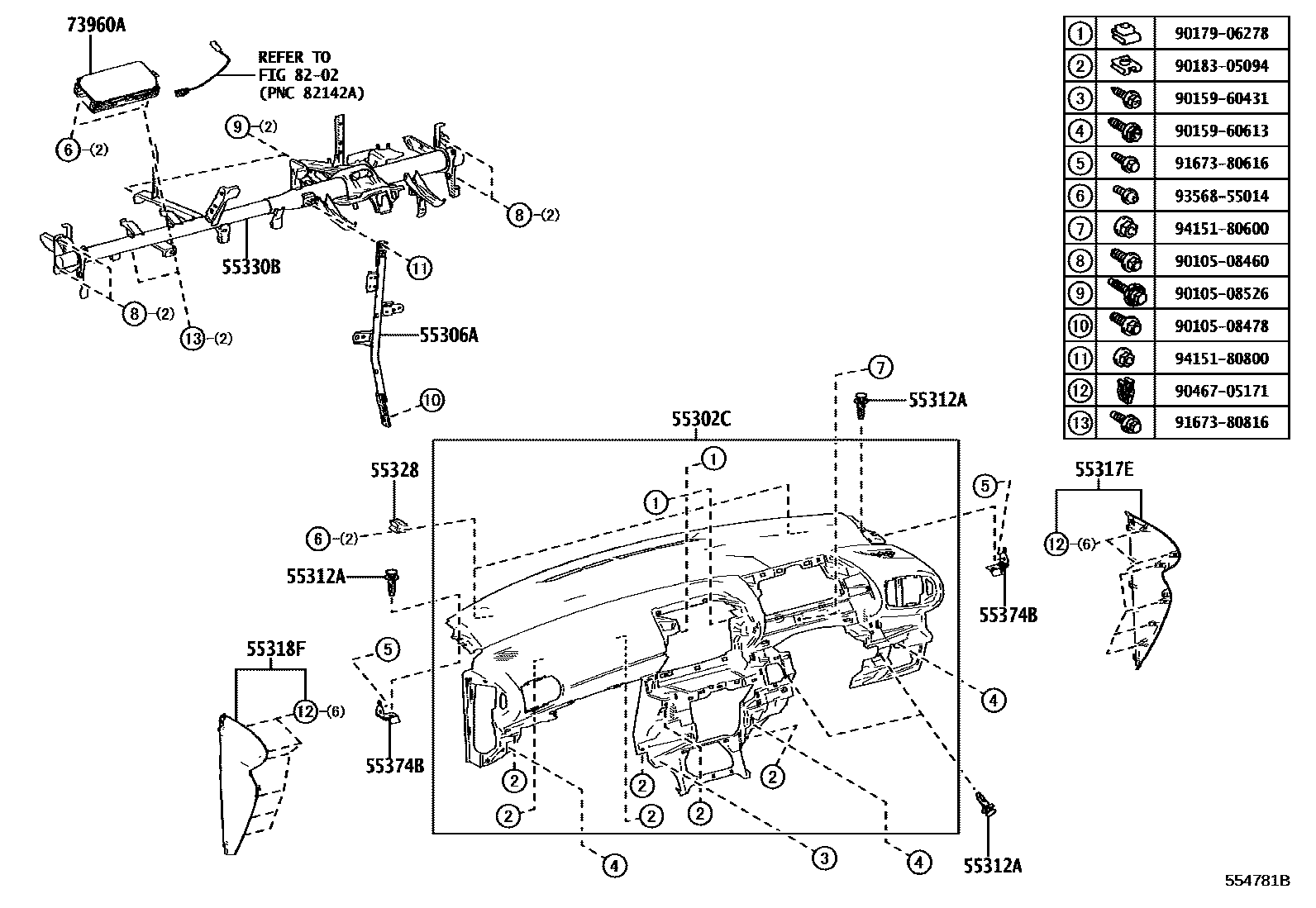

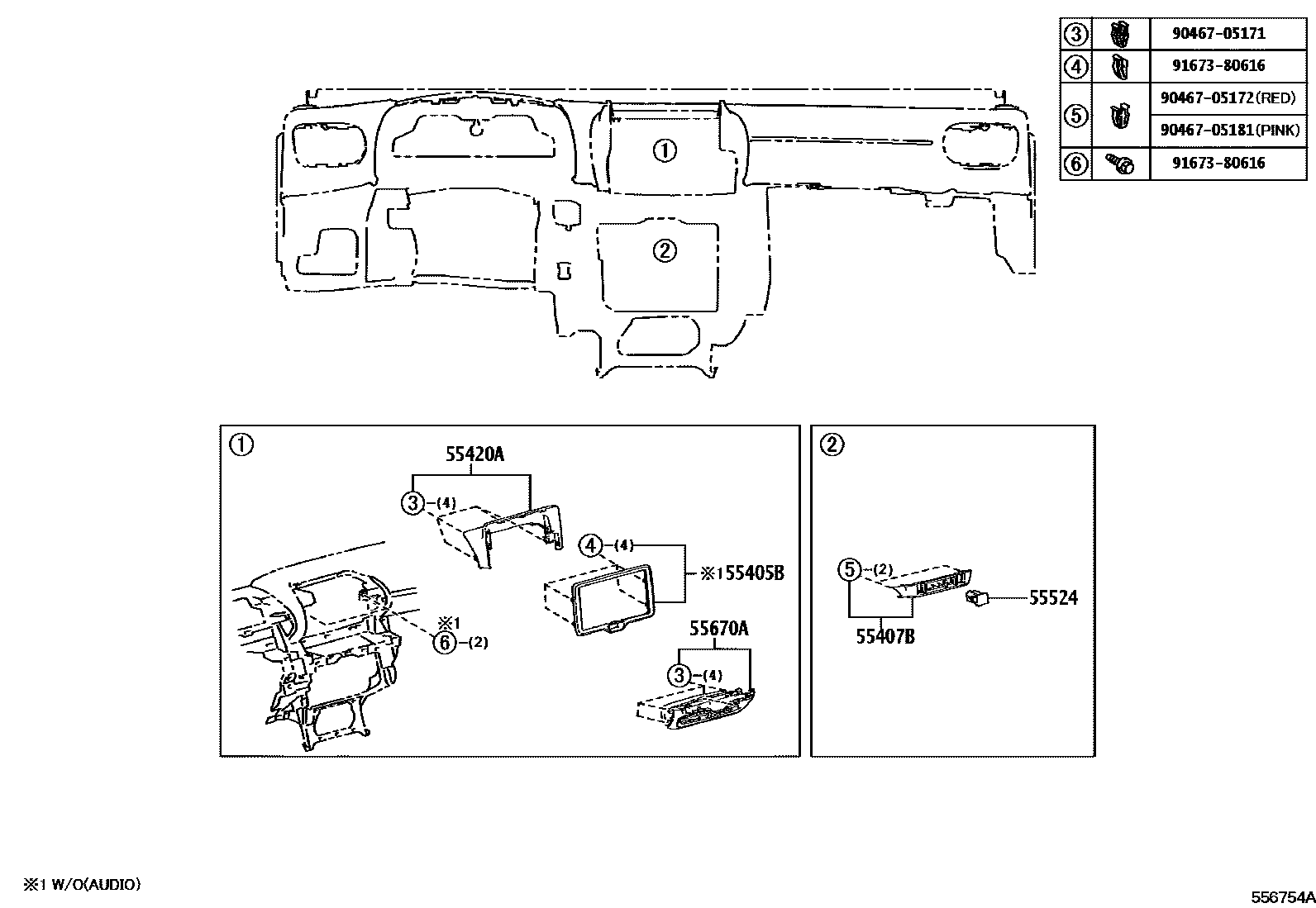

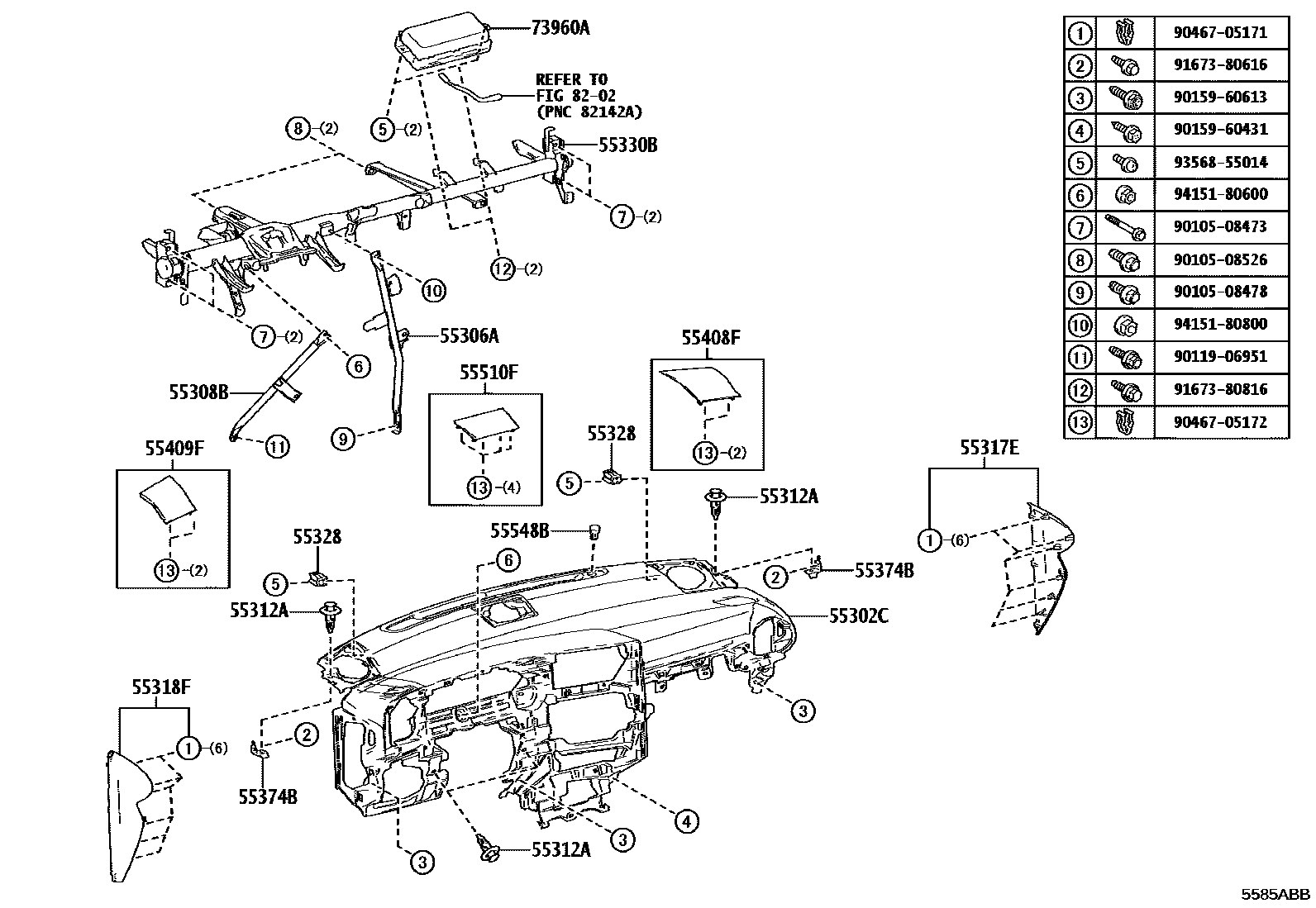

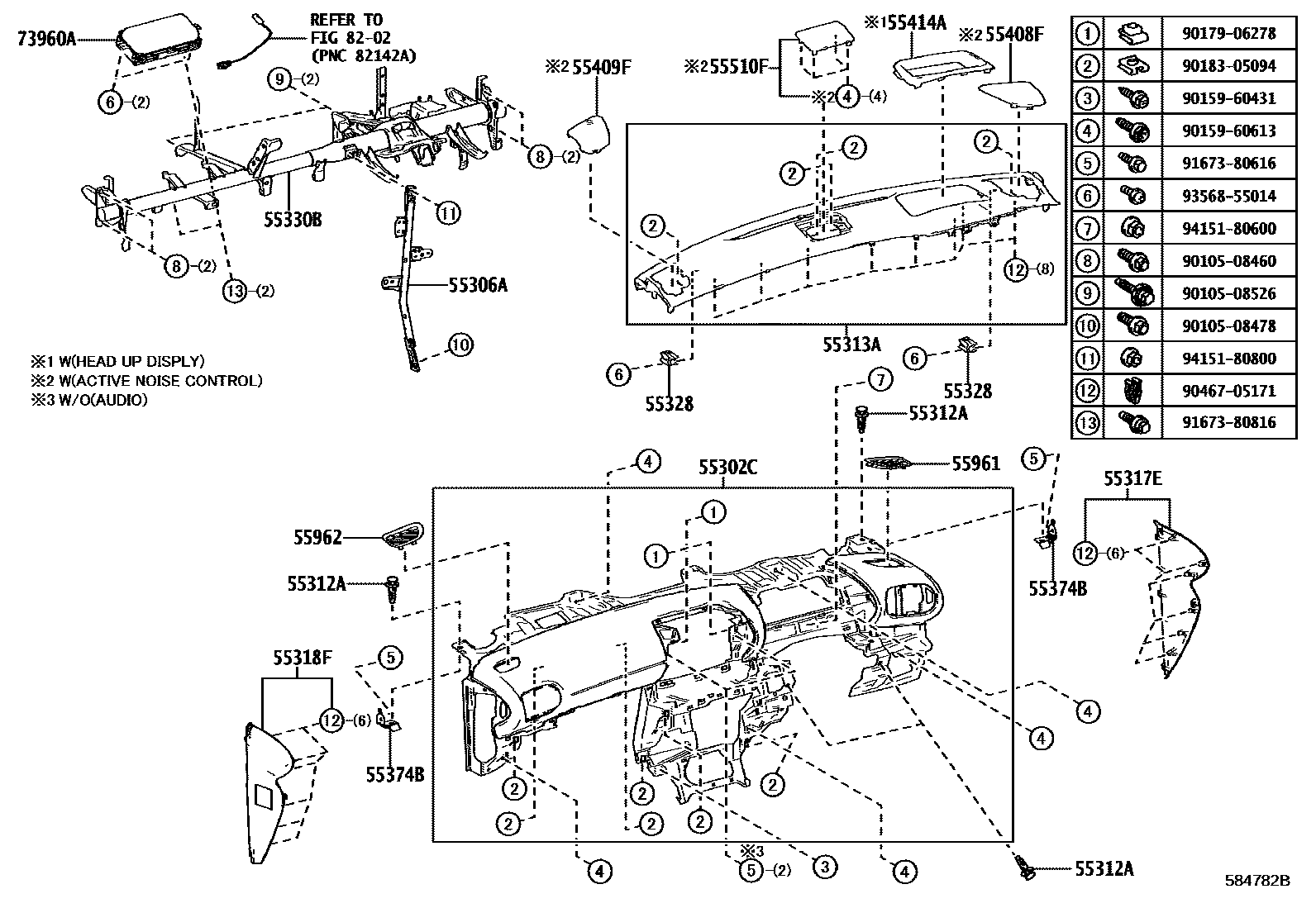

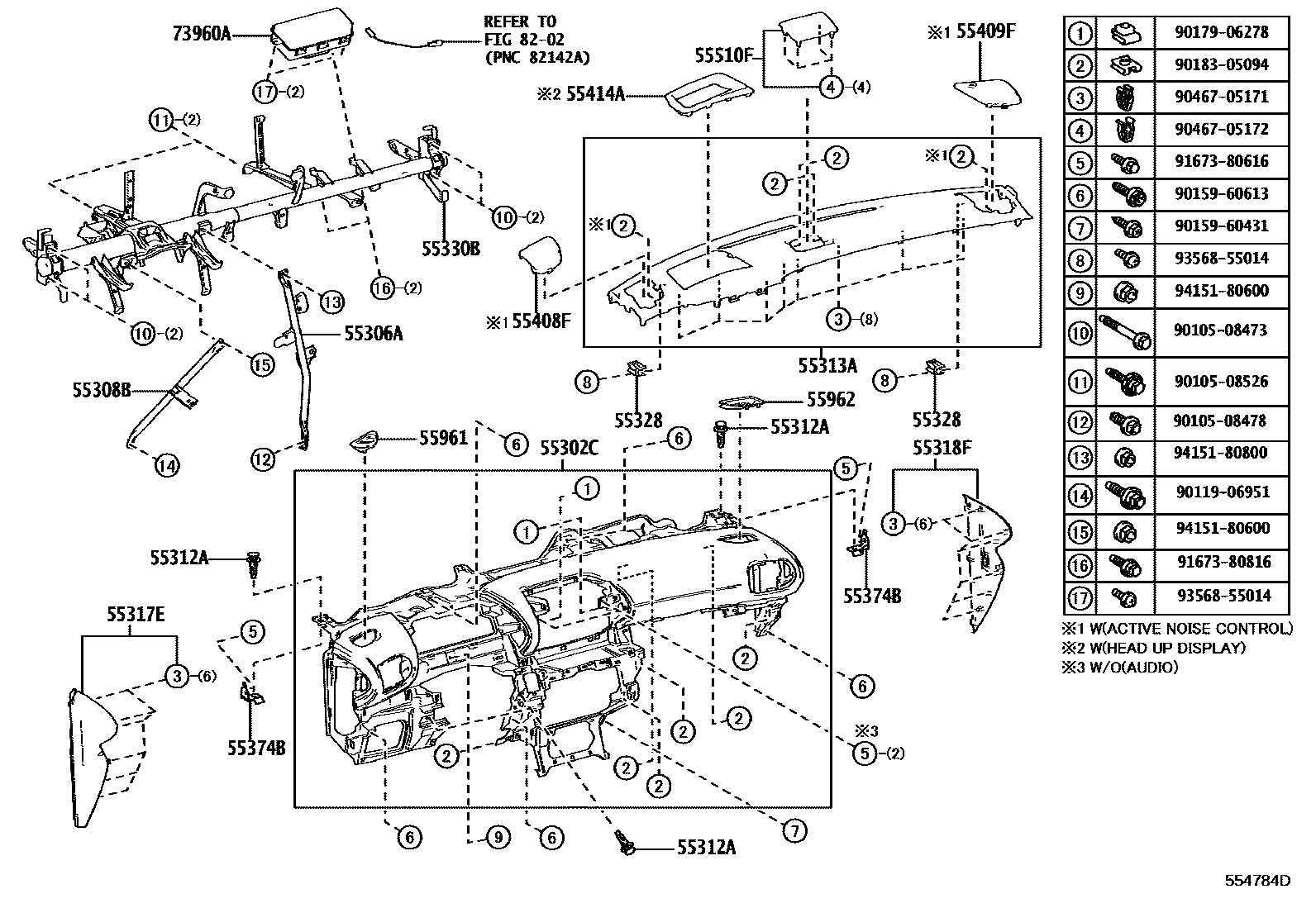

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 17 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D490 · 55306-0W030 · 55306-52490 · 55306-K0010 · 55306-K0030 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-K0030 · 55308-K0040 |
| 55312A | Dashboard clip | 52161-16010 |
| 55328 | Instrument panel pin 1 | 55328-12430 · 55328-60090 |
| 55330B | Instrument panel reinforcement assembly | 55330-0DA31 · 55330-52A80 · 55330-52A90 · 55330-K0010 · 55330-K0040 · 55330-K0041 |
| 55374B | Dashboard bracket | 55363-52010 · 55363-52020 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-52E00 · 55405-K0010 · 55405-K0020 |
| 55407B | Switch hole seat sub-assembly | 55407-0D070 · 55407-52080 · 55407-52110 · 55407-K0010 · 55407-K0020 · 55407-K0030 |
| 55410C | Instrument cluster decorative panel assembly | 55410-K0010 |
| 55412G | Clip (for center instrument cluster trim panel) | 52161-16010 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-52160 · 55420-52220 · 55420-52230 · 55420-52250 · 55420-K0010 · 55420-K0040 · 55420-K0100 |
| 55424C | radio tuner decorative panel | 55424-52040 · 55424-52050 |
| 5544A | Dashboard tray mat | 5544A-K0020 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-52190 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55529 | Warning light hole cover | 55529-52040 |
| 55548B | Dashboard hole cover | 55548-26030 |
| 55557A | Glove box cover limit pad | 55557-10040 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-K0010 · 55606-K0030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-K0010 · 55607-K0030 |
| 55644 | No. 2 lower instrument panel muffler pad | 55644-K0020 · 55644-K0030 |
| 55670A | Instrument panel central air register assembly | 55670-K0010 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-K0010 |
