Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

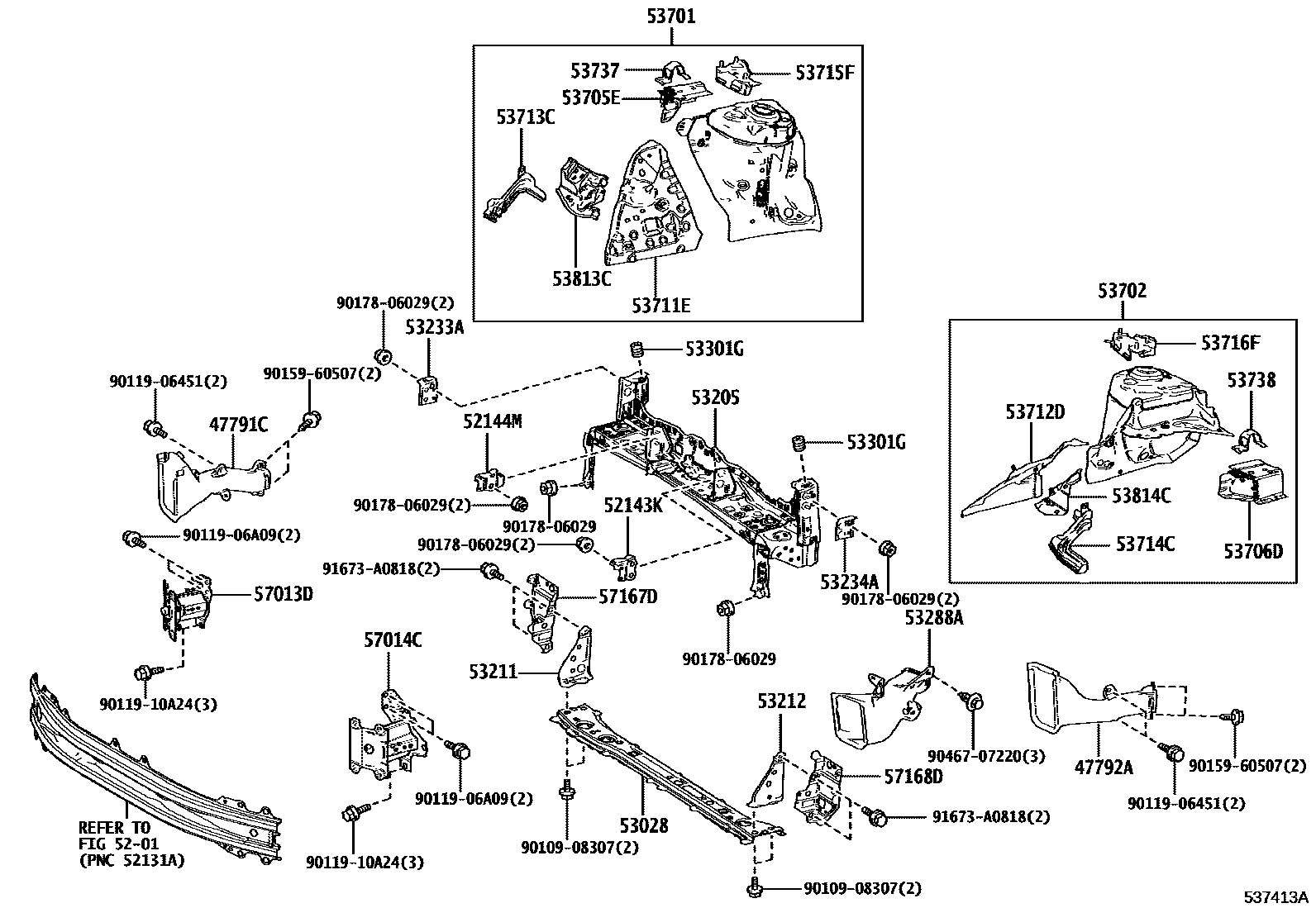

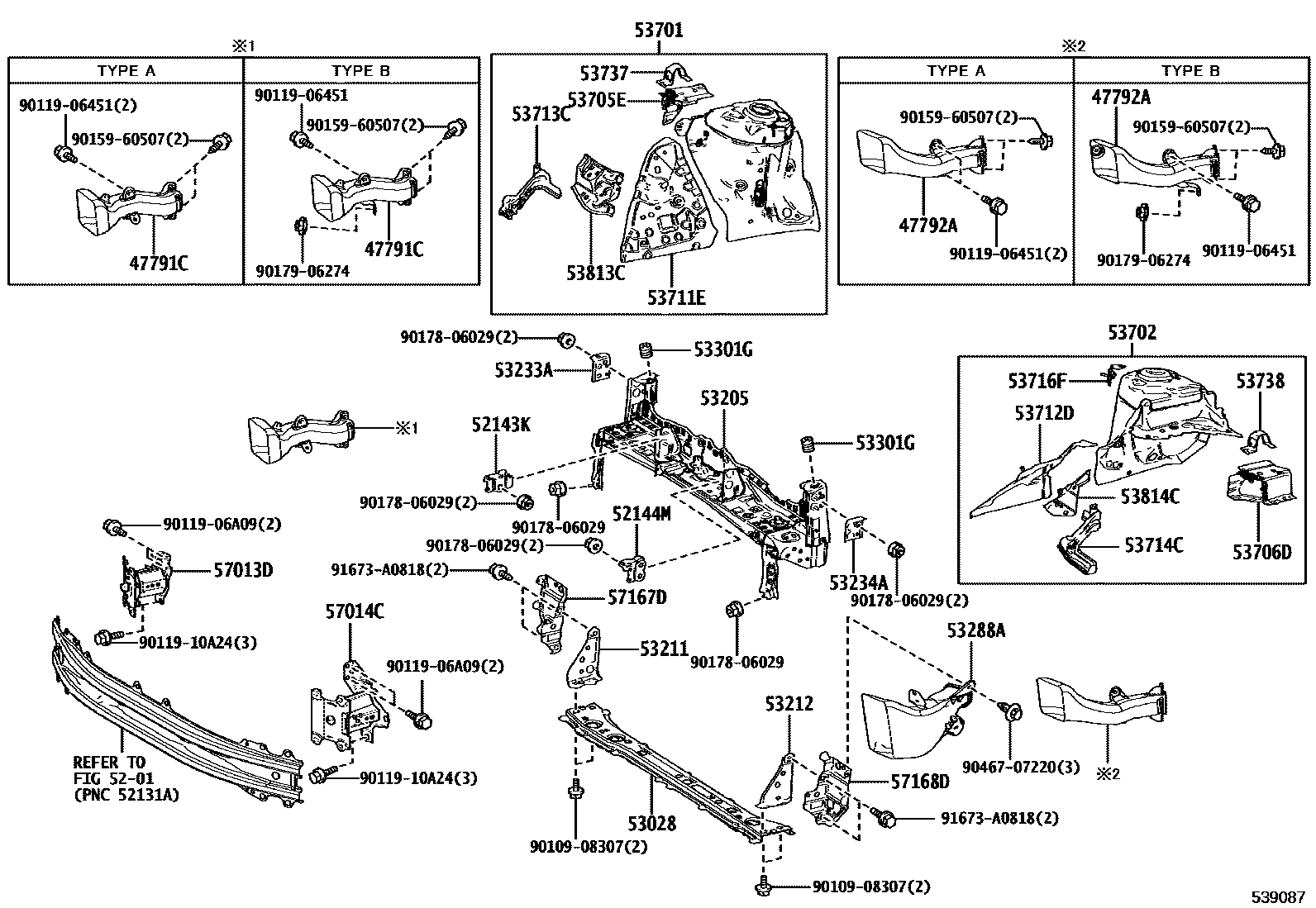

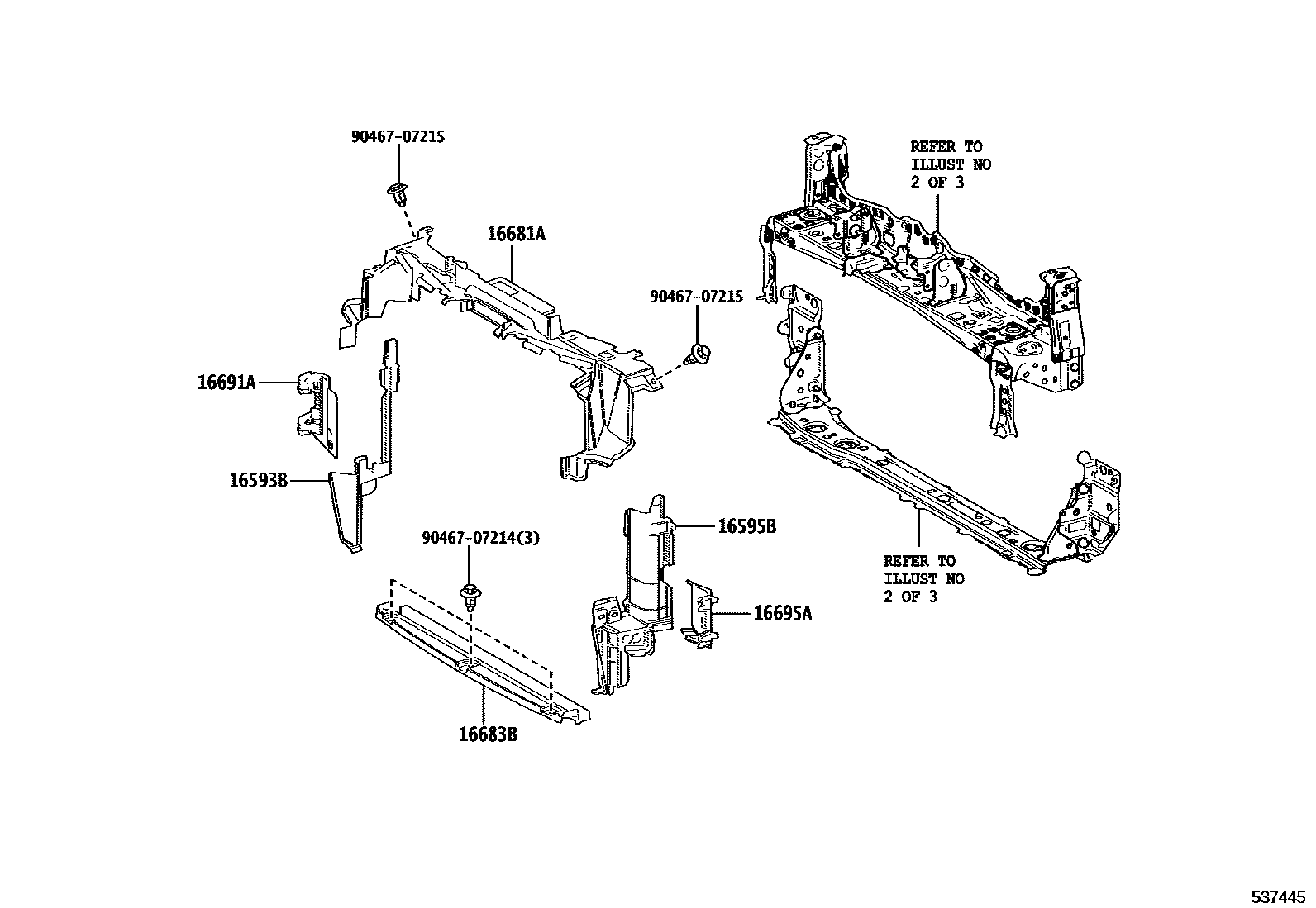

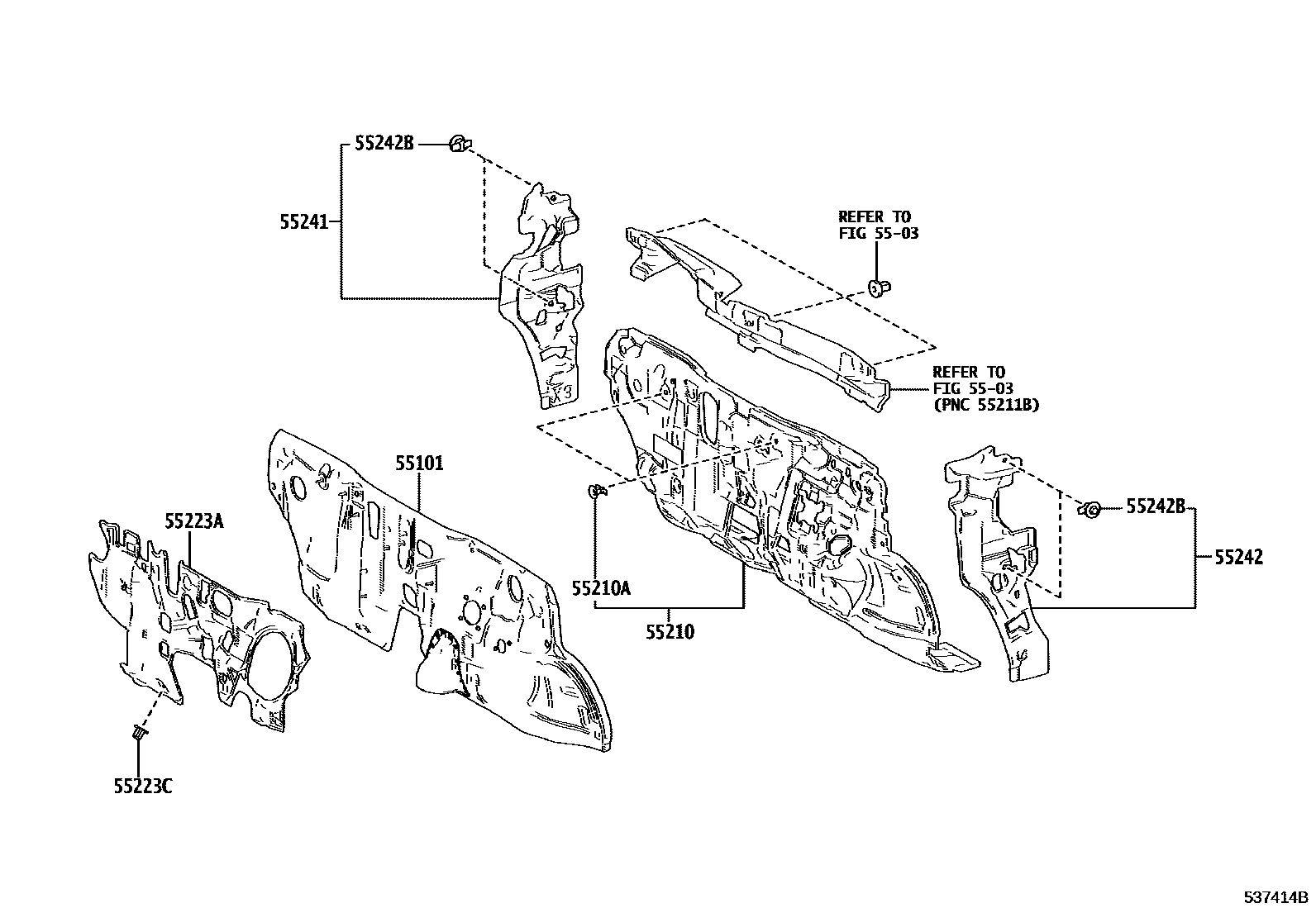

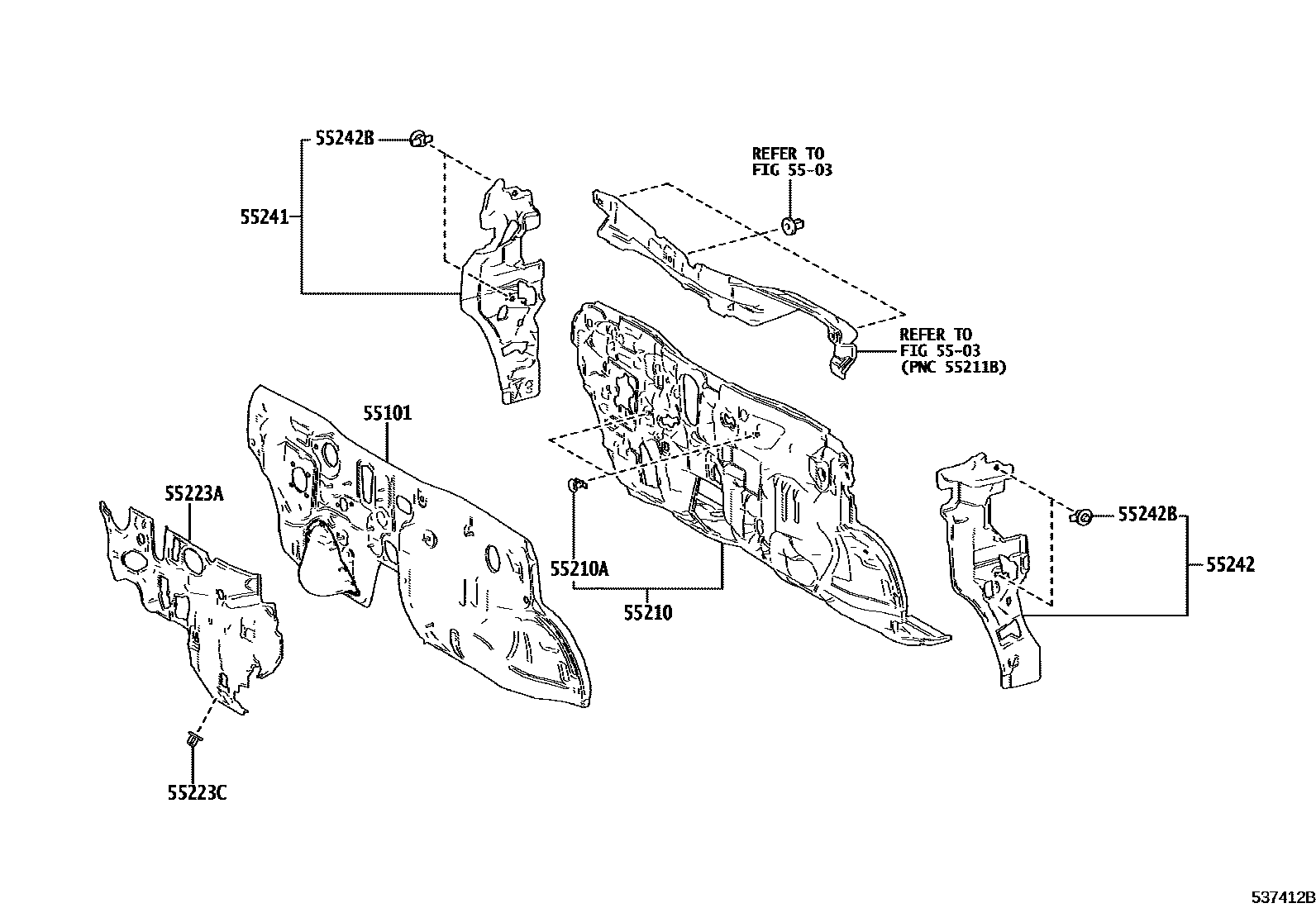

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 5 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16593B | No. 1 radiator right deflector | 16593-18020 · 16593-18040 |
| 16595B | No. 1 radiator left deflector | 16595-18020 · 16595-18040 |
| 16681A | Radiator upper deflector | 16681-18010 · 16681-18030 |
| 16683B | No. 2 radiator lower deflector | 16683-18010 · 16683-18020 |
| 16691A | Radiator right front side deflector | 16691-18010 |
| 16695A | Radiator left front deflector | 16695-18010 |
| 47791C | Right disc brake air duct | 47791-52010 · 47791-52020 · 47791-52040 |
| 47792A | Left disc brake air duct | 47792-52010 · 47792-52020 · 47792-52040 |
| 52143K | Front bumper right lower arm | 52143-K0030 |
| 52144M | Front bumper left lower arm | 52144-K0030 |
| 53028 | Radiator lower bracket sub-assembly | 53028-52110 · 53028-52180 |
| 53205 | Radiator upper bracket sub-assembly | 53205-52200 · 53205-52201 · 53205-52240 |
| 53211 | Radiator right side support | 53211-K0010 |
| 53212 | Radiator left support | 53212-K0010 |
| 53233A | No. 1 right headlight bracket | 53233-52100 |
| 53234A | No. 1 left headlight bracket | 53234-52110 |
| 53288A | cold air intake pipe | 53285-52590 · 53285-52600 |
| 53301G | engine cover cushion | 90541-15034 |
| 53701 | Right front fender fender sub-assembly | 53701-52260 · 53701-52360 |
| 53702 | Left front fender fender sub-assembly | 53702-52230 · 53702-52330 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-K0010 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-K0010 |
| 53711E | Right front fender fender | 53711-K0010 |
| 53712D | Left front fender fender | 53712-K0010 |
| 53713C | Right front fender fender front extension | 53713-52120 |
| 53714C | Left front fender fender front extension | 53714-52150 |
| 53715F | Right fender fender | 53715-52060 |
| 53716F | Left fender fender | 53716-52060 · 53716-52100 |
| 53737 | Right front fender to front wall side sill | 53737-K0010 |
| 53738 | Left front fender to front wall side sill | 53738-K0010 |
| 53813C | Right front fender extension | 53813-K0010 |
| 53814C | Left front fender extension | 53814-K0010 |
| 55101 | Front apron sub-assembly | 55101-52700 · 55101-52710 · 55101-52800 · 55101-52810 |
| 55210 | Front wall insulation pad assembly | 55210-52450 · 55210-52460 · 55210-52590 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-52150 · 55223-52160 |
| 55223C | clip | 90467-06197 |
| 55241 | Front panel No. 1 right side silencer | 55241-K0030 |
| 55242 | Front panel No. 1 left side silencer | 55242-52050 · 55242-K0030 |
| 55242B | Front panel side muffler clip | 90467-13079 |
| 57013D | Right front longitudinal beam bracket sub-assembly | 57013-K0010 |
| 57014C | Left front longitudinal beam bracket sub-assembly | 57014-K0010 |
| 57167D | Front cross member right side reinforcement | 57167-52020 |
| 57168D | Front cross member left reinforcement | 57168-52020 |
