Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

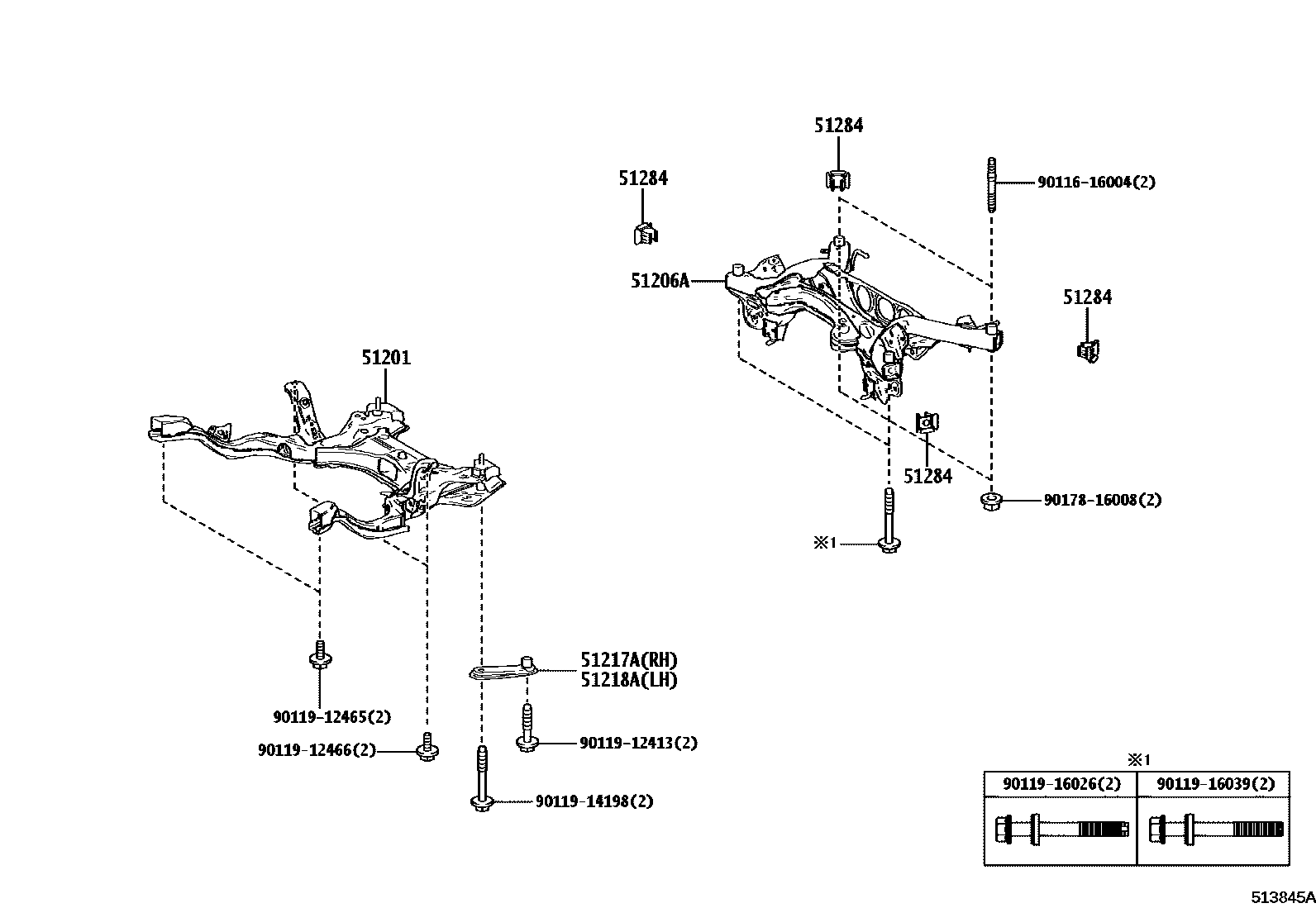

| 51201 | Front suspension cross member sub-assembly | 51201-52140 · 51201-52141 |
| 51206A | Rear suspension cross member sub-assembly | 51206-52020 |
| 51217A | Right front suspension cross member reinforcement | 51210-52010 |
| 51218A | Left front suspension cross member reinforcement | 51210-52010 |
| 51284 | Rear suspension cross member hole cover | 51284-47010 |

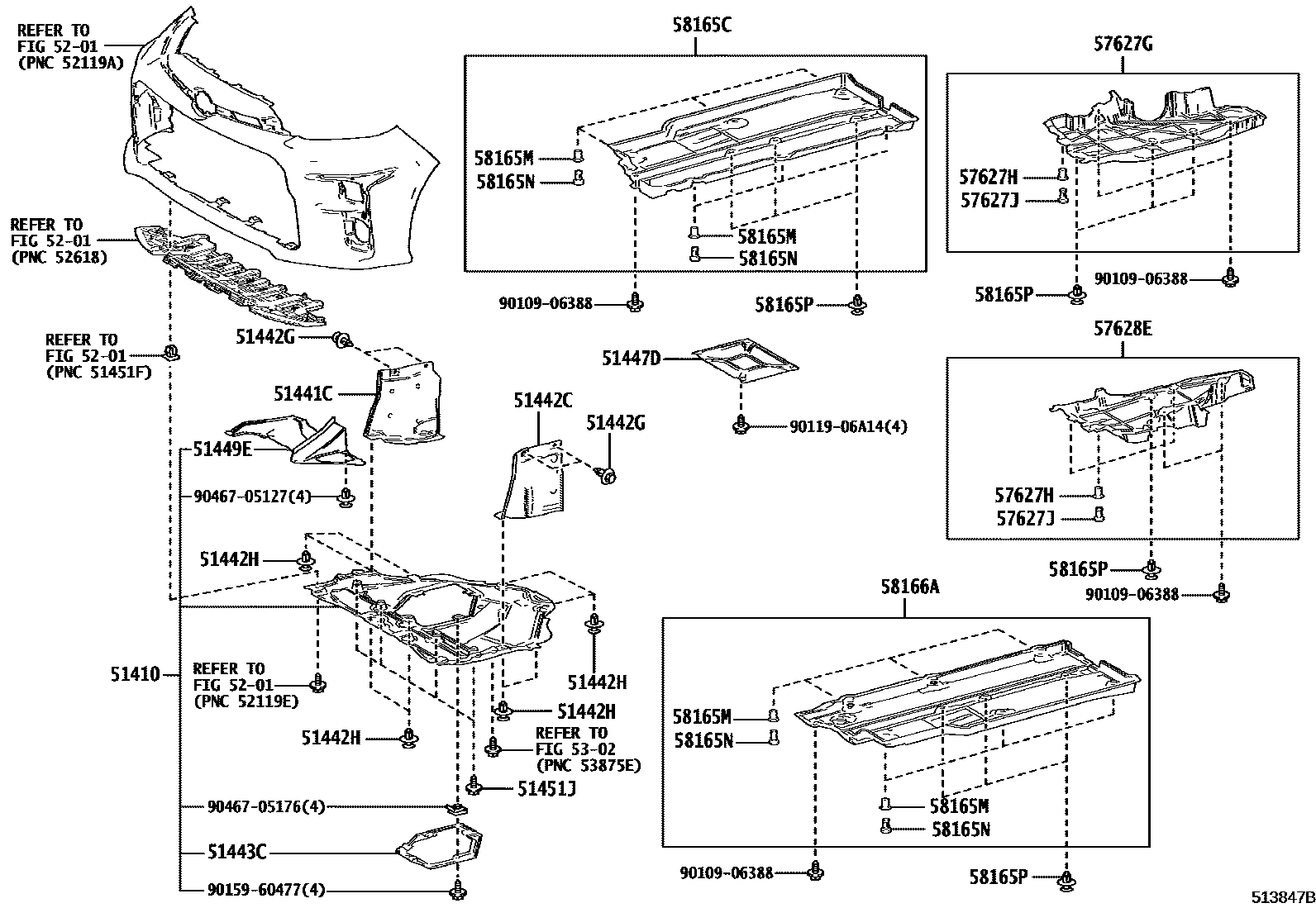

| 51410 | Engine No. 1 bottom cover assembly | 51410-52130 · 51410-52200 |
| 51441C | Engine right bottom cover | 51441-52360 |
| 51442C | Engine left bottom cover | 51442-52200 |
| 51442G | No. 1 engine bottom cover clip | 90467-07220 |
| 51442H | No. 2 engine bottom cover clip | 90467-07215 |
| 51443C | Engine right rear bottom cover | 51443-52040 |
| 51447D | No. 4 engine center bottom cover | 51447-K0010 |
| 51449E | Engine underhood deflector bracket | 51449-52050 |
| 51451J | Bolt No. 1 | 90119-06A13 |
| 57627G | Rear floor right longitudinal member cover | 57627-52010 |
| 57628E | Rear floor left longitudinal member cover | 57628-52050 |
| 58165C | Front floor right cover | 58165-52060 · 58165-52110 |
| 58165P | Front floor cover No. 3 clip | 90467-07220 |
| 58166A | Front floor left cover | 58166-52050 · 58166-52100 |
