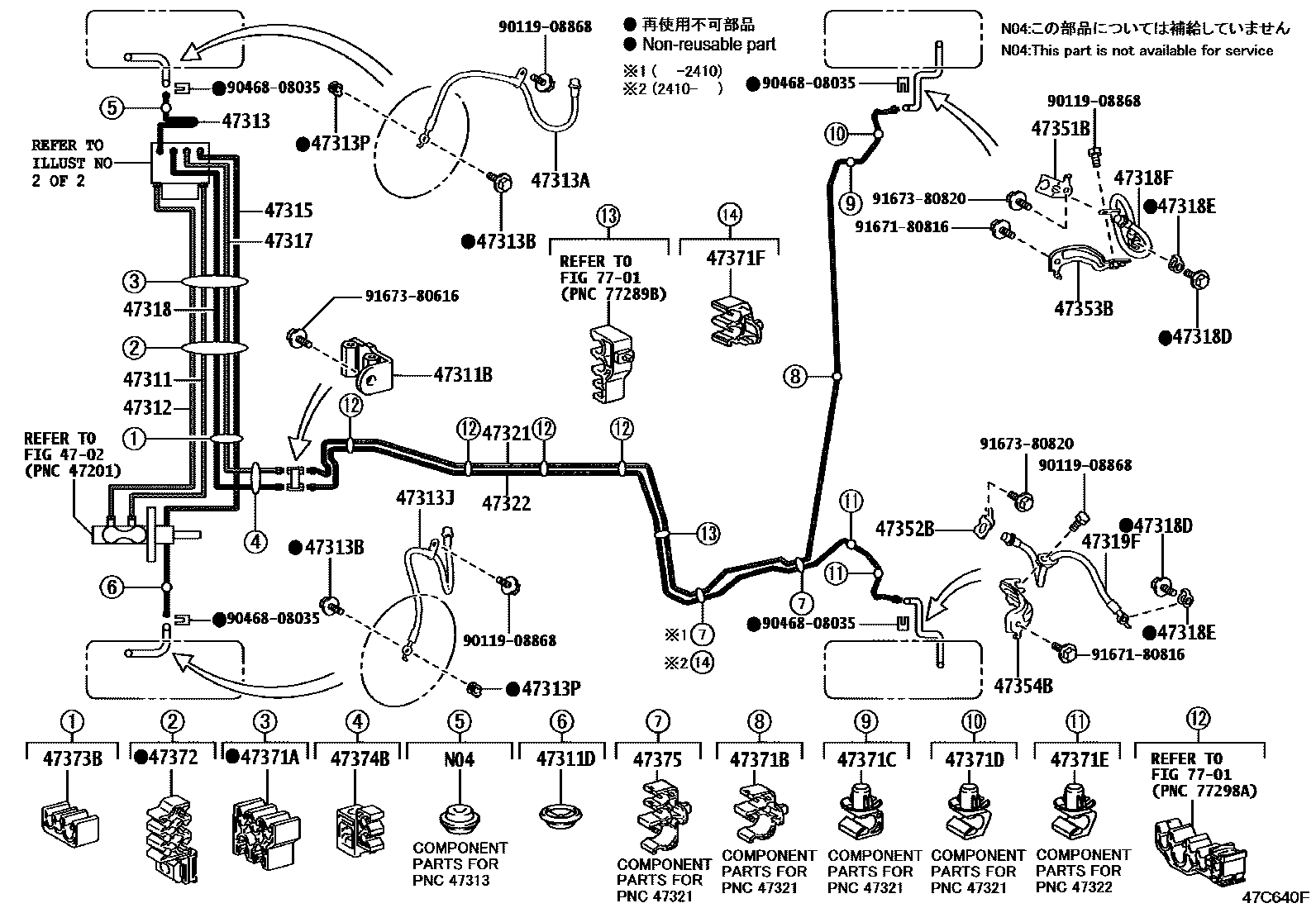

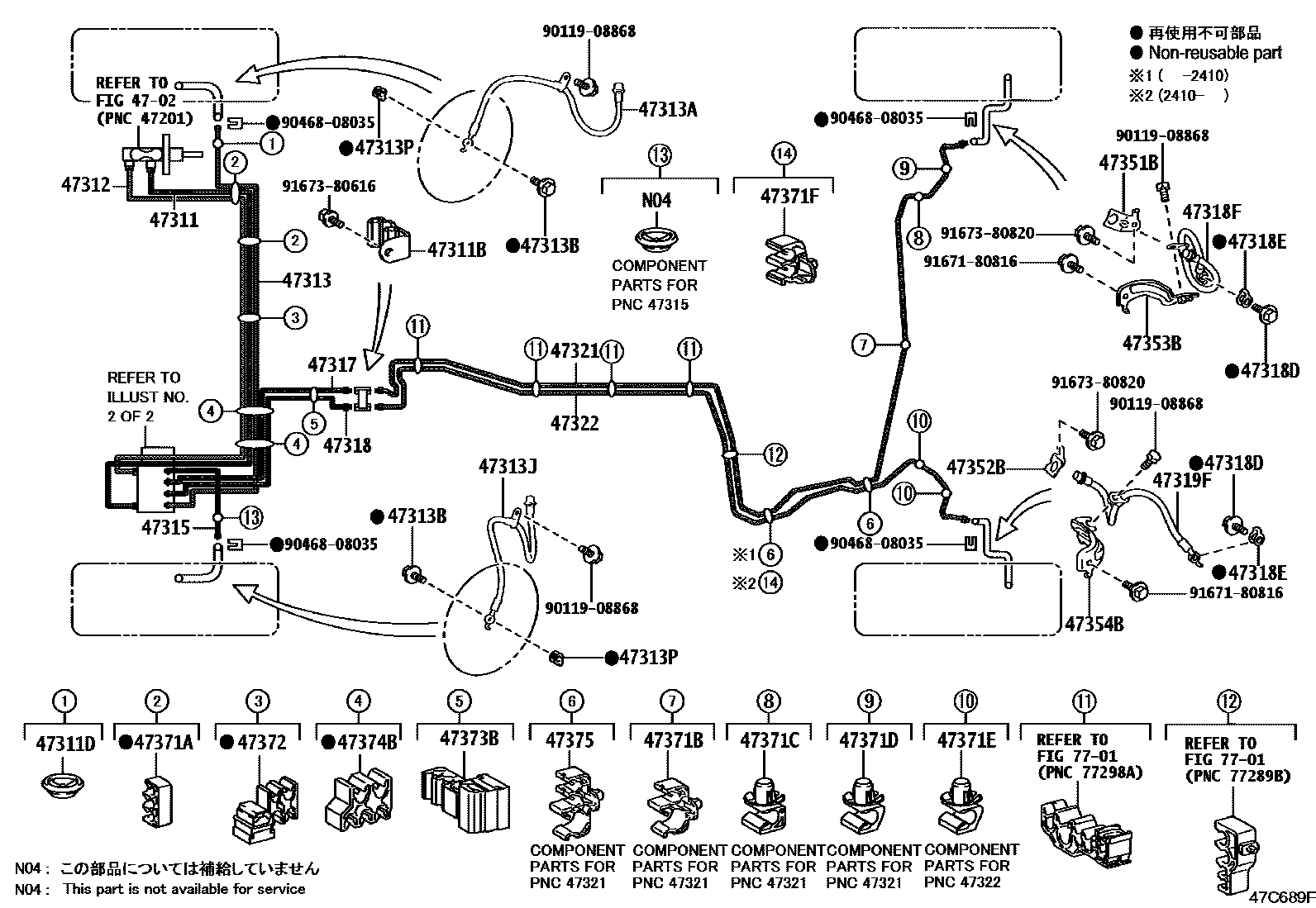

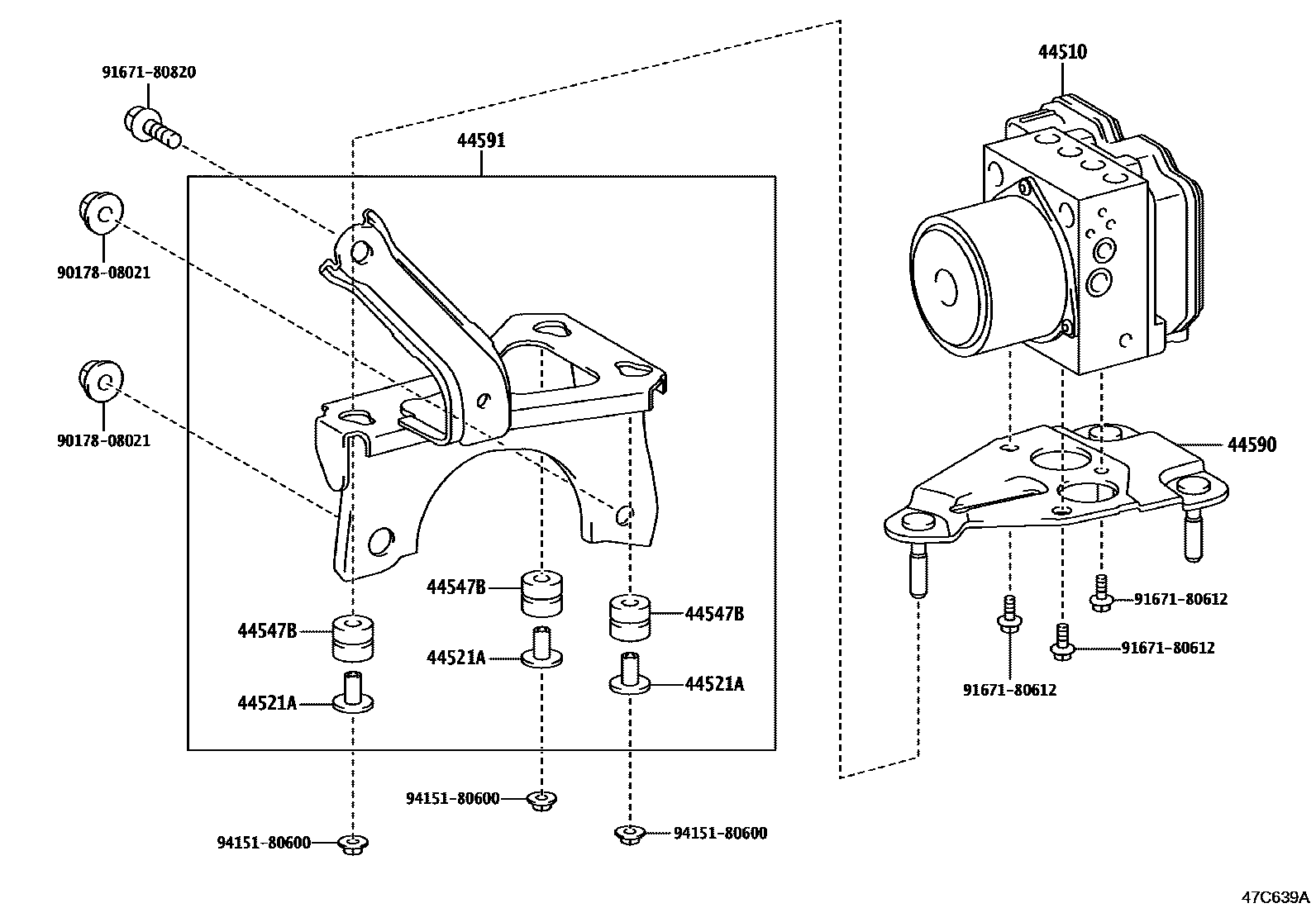

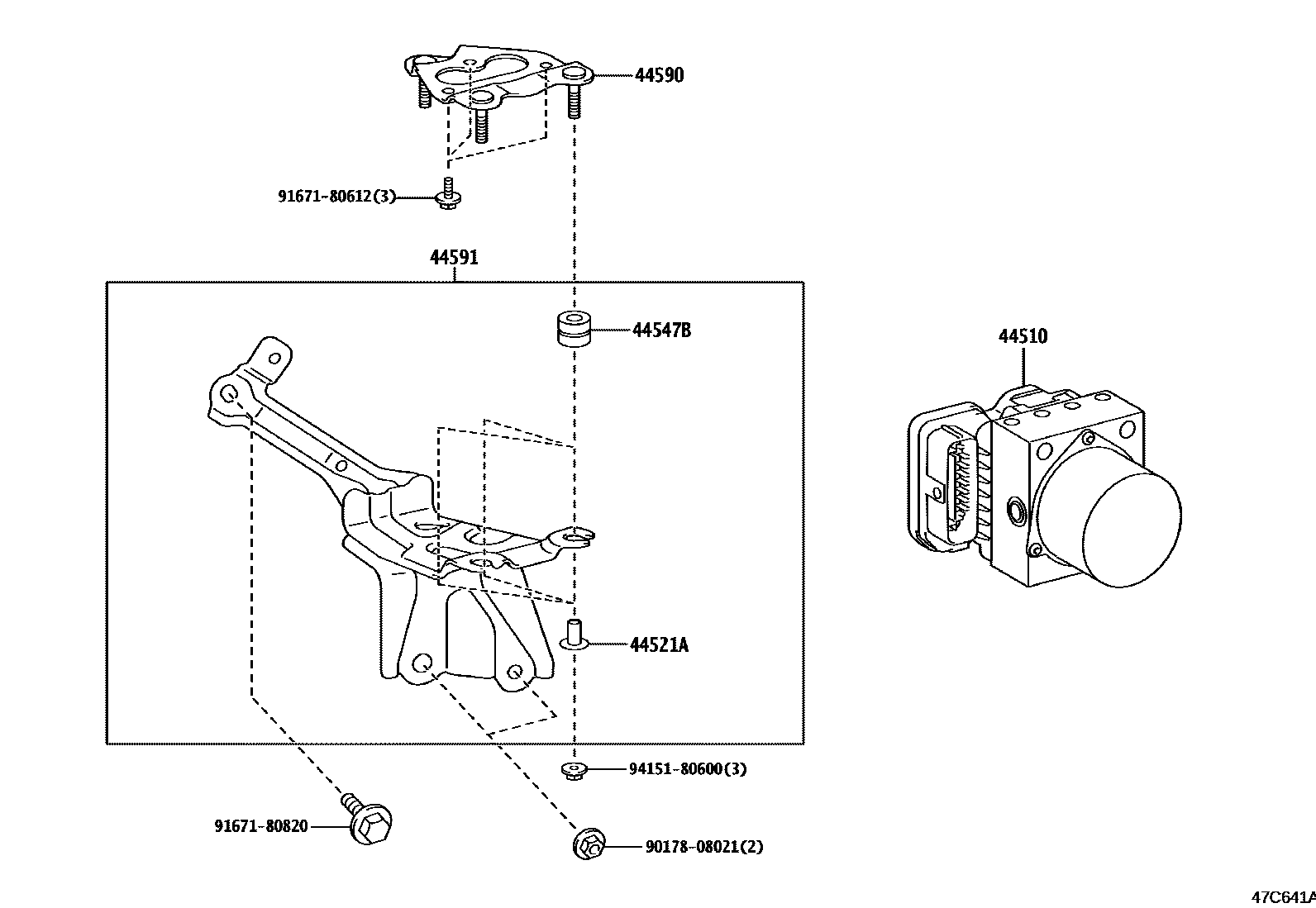

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-52T40 · 44050-52T50 · 44050-52T60 · 44050-52T61 · 44050-52T70 · 44050-52T71 · 44050-52V80 · 44050-52V90 · 44050-52X20 · 44050-52X30 · 44050-52X50 · 44050-52Y30 · 44050-52Y40 · 44050-52Y50 |
| 44521A | No. 1 brake actuator housing collar | 44521-12050 |
| 44547B | brake actuator bracket cushion | 44547-K0010 |
| 44590 | Brake actuator bracket assembly | 44590-52260 · 44590-K0020 |
| 44591 | No. 1 brake actuator bracket | 44591-52160 · 44591-K0070 |
| 47311 | No. 1 front brake pipe | 47311-52820 · 47311-52830 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10317 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-52820 · 47312-52830 |
| 47313 | No. 3 front brake pipe | 47313-52380 · 47313-52390 |
| 47313A | No. 1 front flexible hose | 90947-02J60 · 90947-02K62 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02J61 · 90947-02K63 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-52380 · 47315-52390 |
| 47317 | No. 7 front brake pipe | 47317-52380 · 47317-52390 |
| 47318 | No. 8 front brake pipe | 47318-52380 · 47318-52390 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02J62 |
| 47319F | Left rear flexible hose | 90947-02J62 |
| 47321 | No. 1 rear brake pipe | 47321-52500 |
| 47322 | No. 2 rear brake pipe | 47322-52500 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-47030 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-47030 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-47040 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-47040 |
| 47371A | No. 1 brake pipe clamp | 90949-01E40 · 90949-01E43 |
| 47371B | No. 6 brake pipe clamp | 77285-47110 |
| 47371C | No. 7 brake pipe clamp | 90949-01D17 |
| 47371D | No. 8 brake pipe clamp | 90949-01E10 |
| 47371E | No. 9 brake pipe clamp | 90949-01E10 |
| 47371F | No. 10 brake pipe clamp | 77286-52280 |
| 47372 | No. 2 brake pipe clamp | 90949-01E30 · 90949-01E31 |
| 47373B | No. 3 brake pipe clamp | 90949-01D92 · 90949-01E62 |
| 47374B | No. 4 brake pipe clamp | 90949-01E40 · 90949-01E75 |
| 47375 | No. 5 brake pipe clamp | 77286-47050 |
