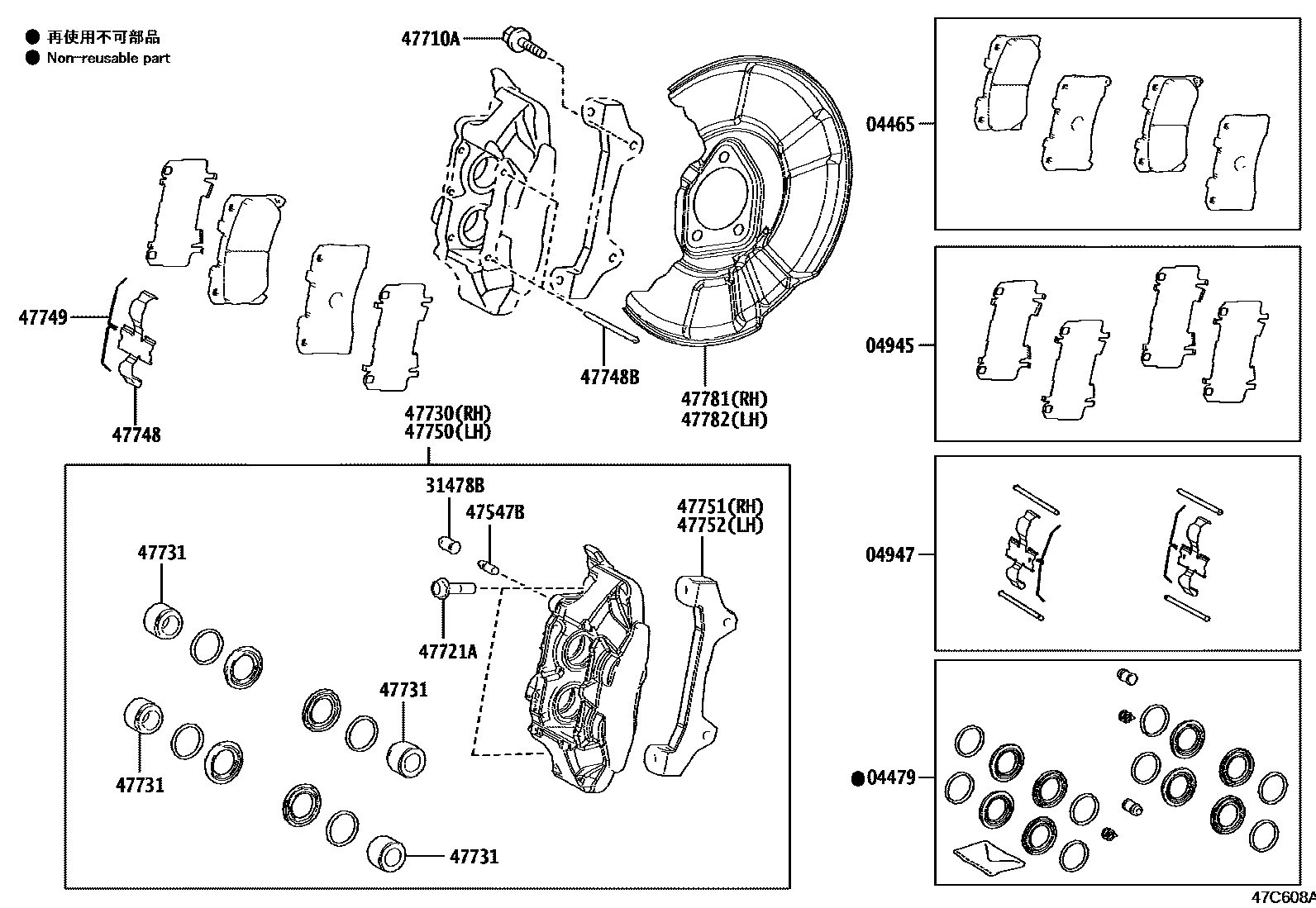

Toyota YARIS 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota YARIS EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-52370 |
| 04479 | Front disc brake cylinder assembly | 04479-52270 |
| 04945 | Front silencer gasket assembly | 04945-52210 |
| 04947 | Front disc brake mounting kit | 04947-52080 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-14010 |
| 47547B | Bleed plug (for front disc brake) | 47547-50010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90015-AA604 |
| 47730 | Right front disc brake cylinder assembly | 47730-52350 · 47730-52370 · 47730-52450 |
| 47731 | Front disc brake piston | 47731-52350 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-52350 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 47735-60300 |
| 47749 | pin fixing clip | 90468-12015 |
| 47750 | Left disc brake cylinder assembly | 47750-52400 · 47750-52420 · 47750-52500 |
| 47751 | Right brake caliper bracket | 47751-52010 |
| 47752 | Left brake caliper bracket | 47751-52010 |
| 47781 | Right front disc brake dust cover | 47781-52060 |
| 47782 | Left front disc brake dust cover | 47782-52060 |
