Toyota YARIS 制动助力器和真空管 — Figure 4703

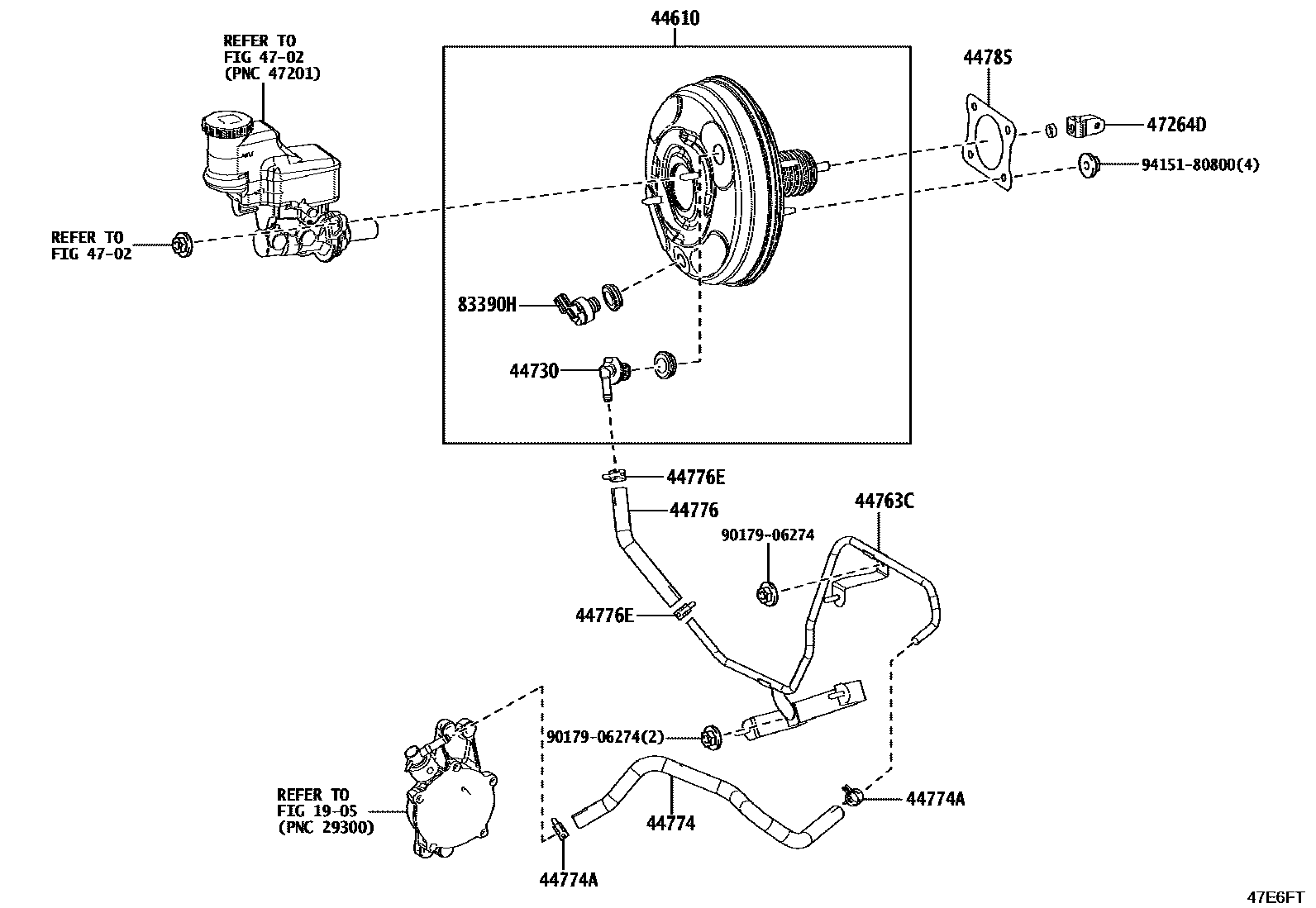

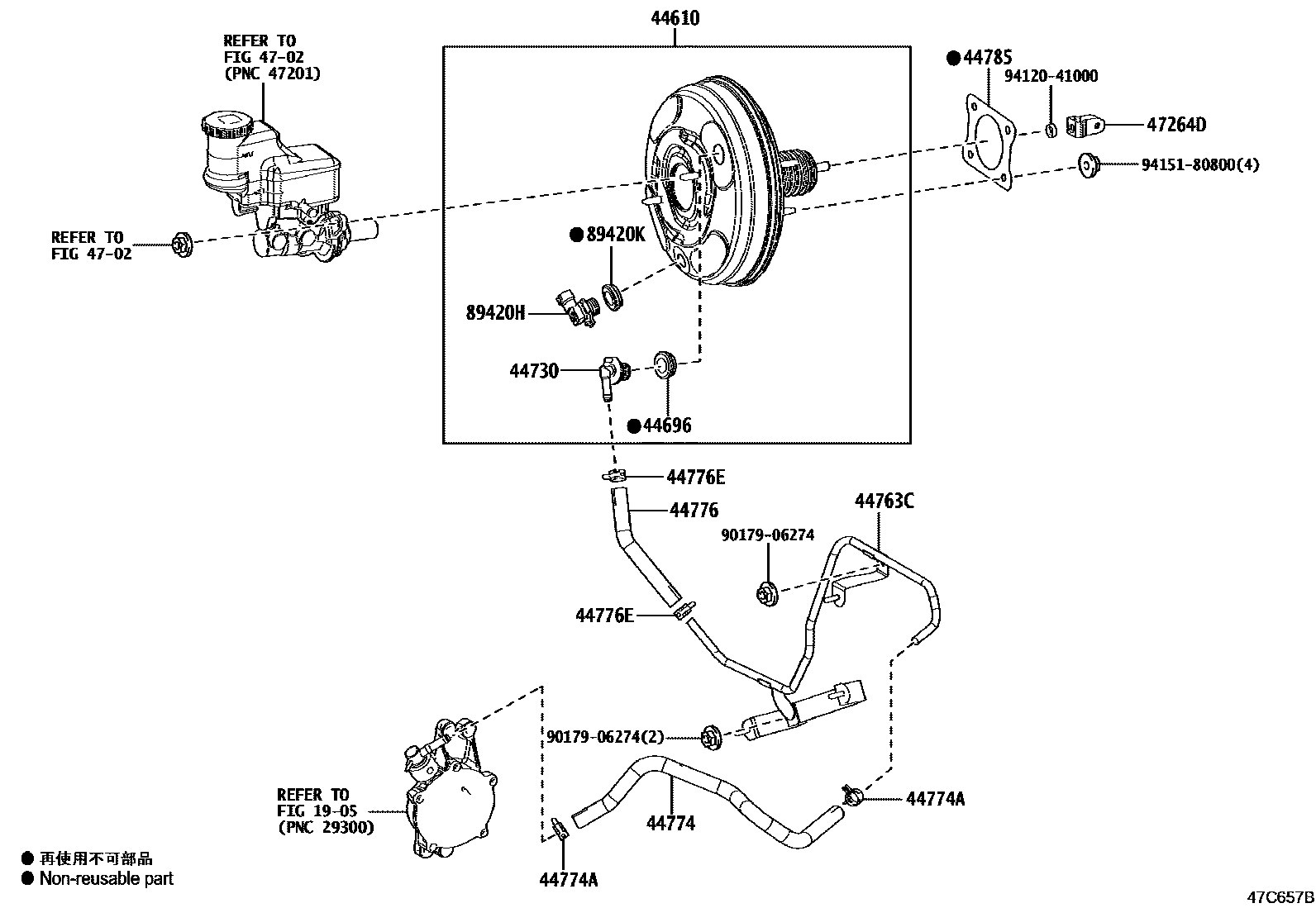

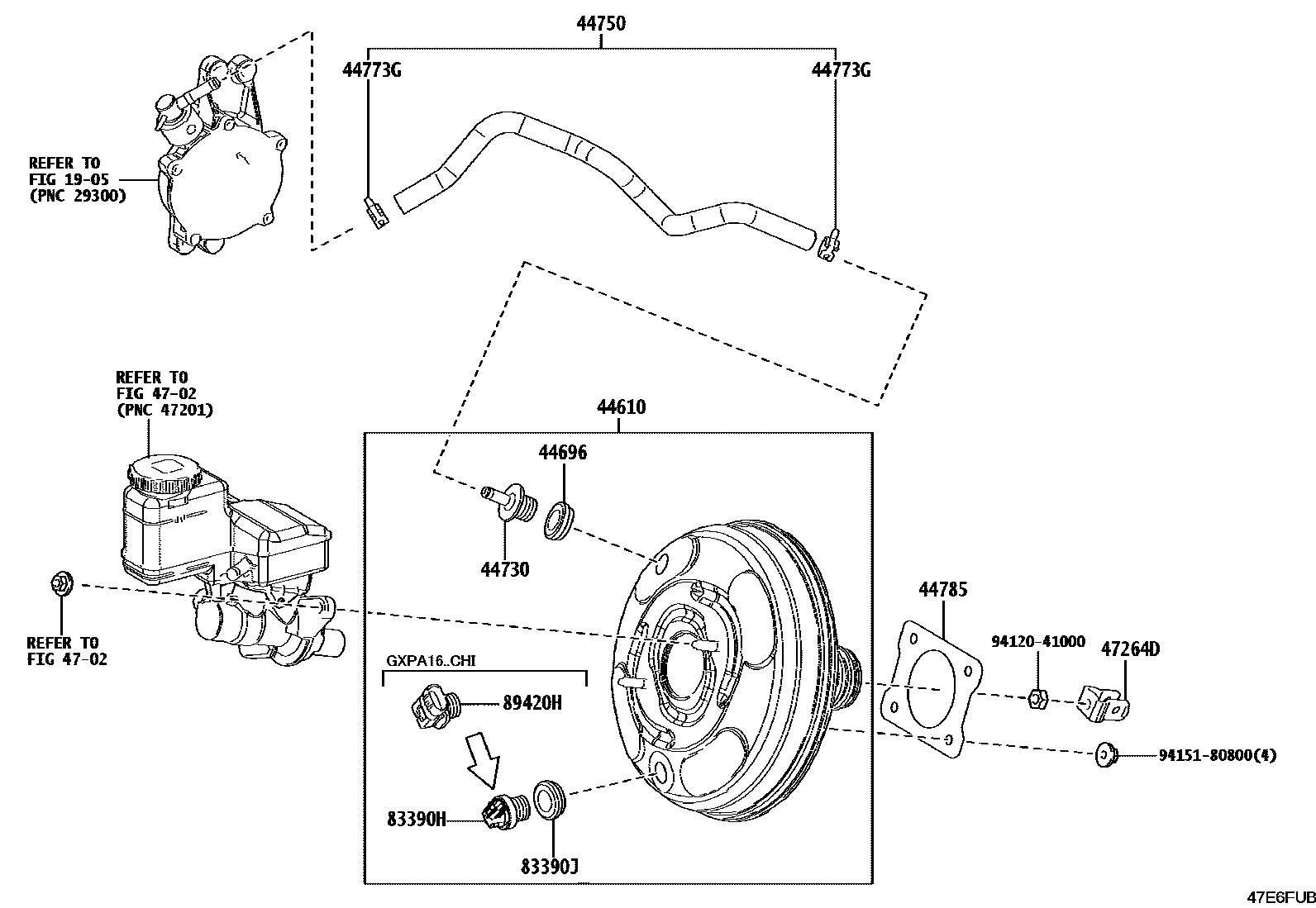

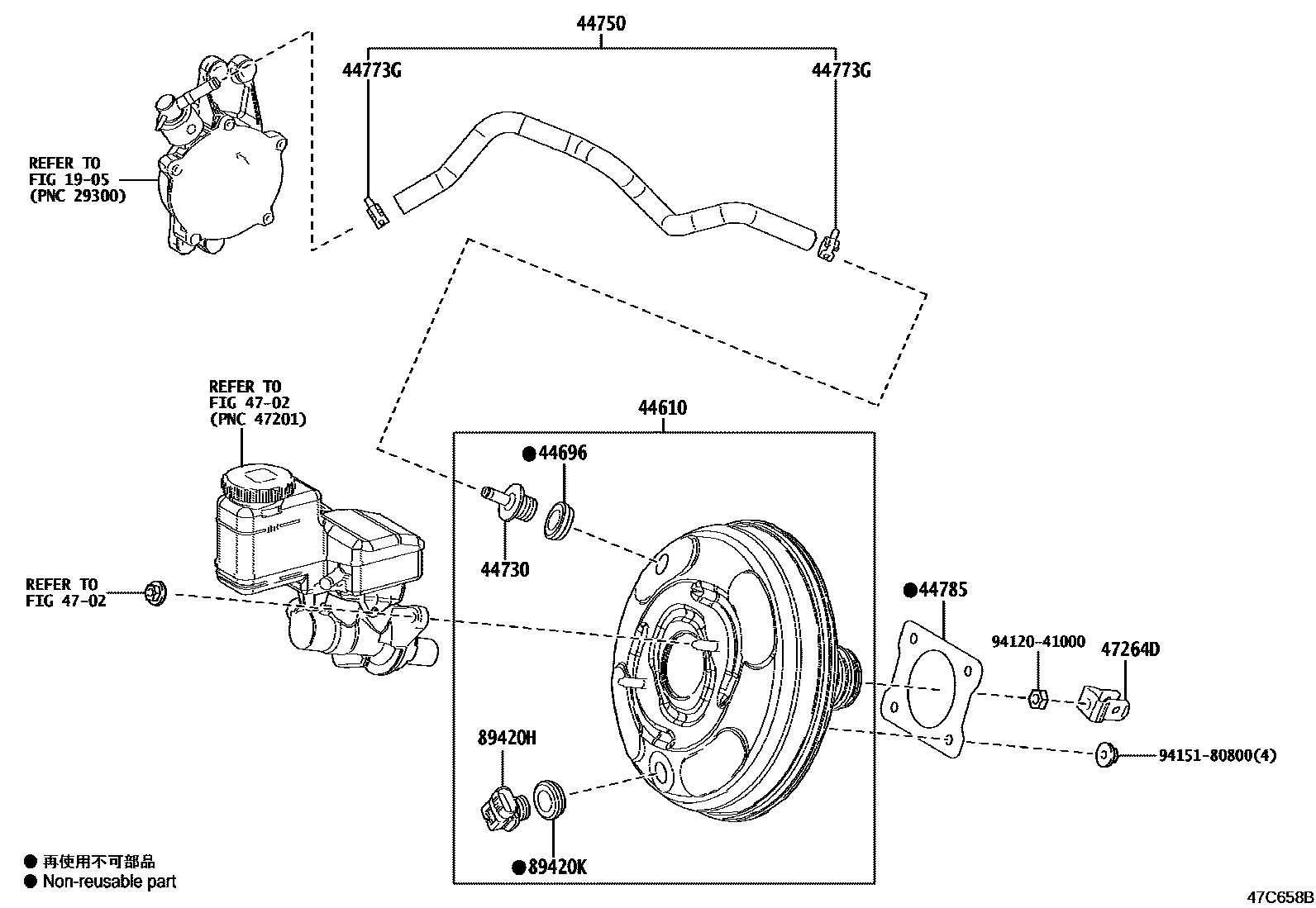

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-52J60 · 44610-52J70 · 44610-52J80 · 44610-52J90 · 44610-52K30 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-30060 · 44730-52010 |
| 44750 | Vacuum hose assembly | 44750-52680 · 44750-52720 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-52220 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-52230 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44776 | brake booster hose | 44776-52100 |
| 44776E | Clip (for brake booster hose) | 90467-16014 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390J | Vacuum warning switch seal | 90480-24439 |
| 89420H | Vacuum sensor assembly | 89421-52020 · 89421-71040 |
| 89420K | Vacuum sensor seal | 90480-24439 |
