Toyota YARIS 制动总泵 — Figure 4702

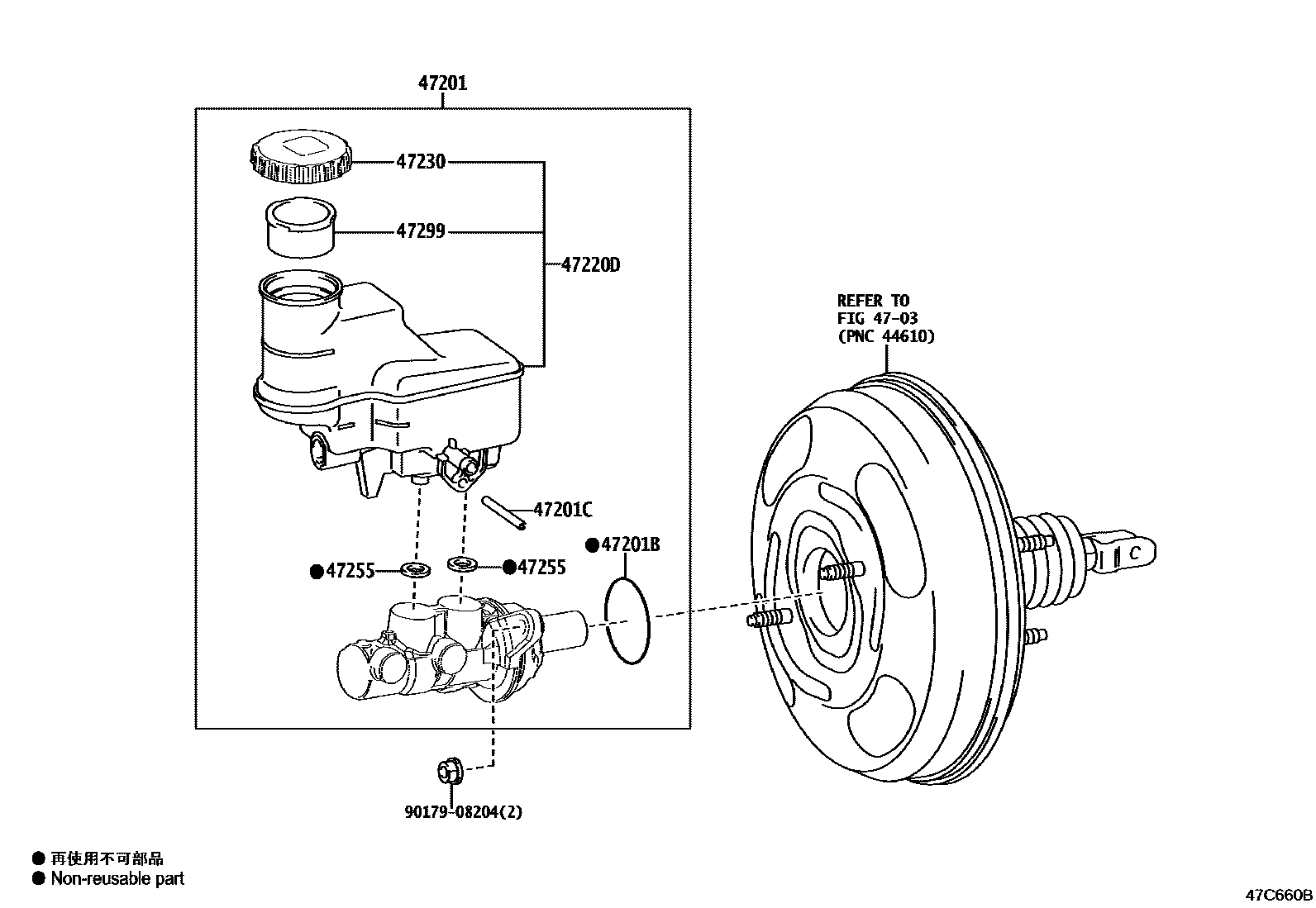

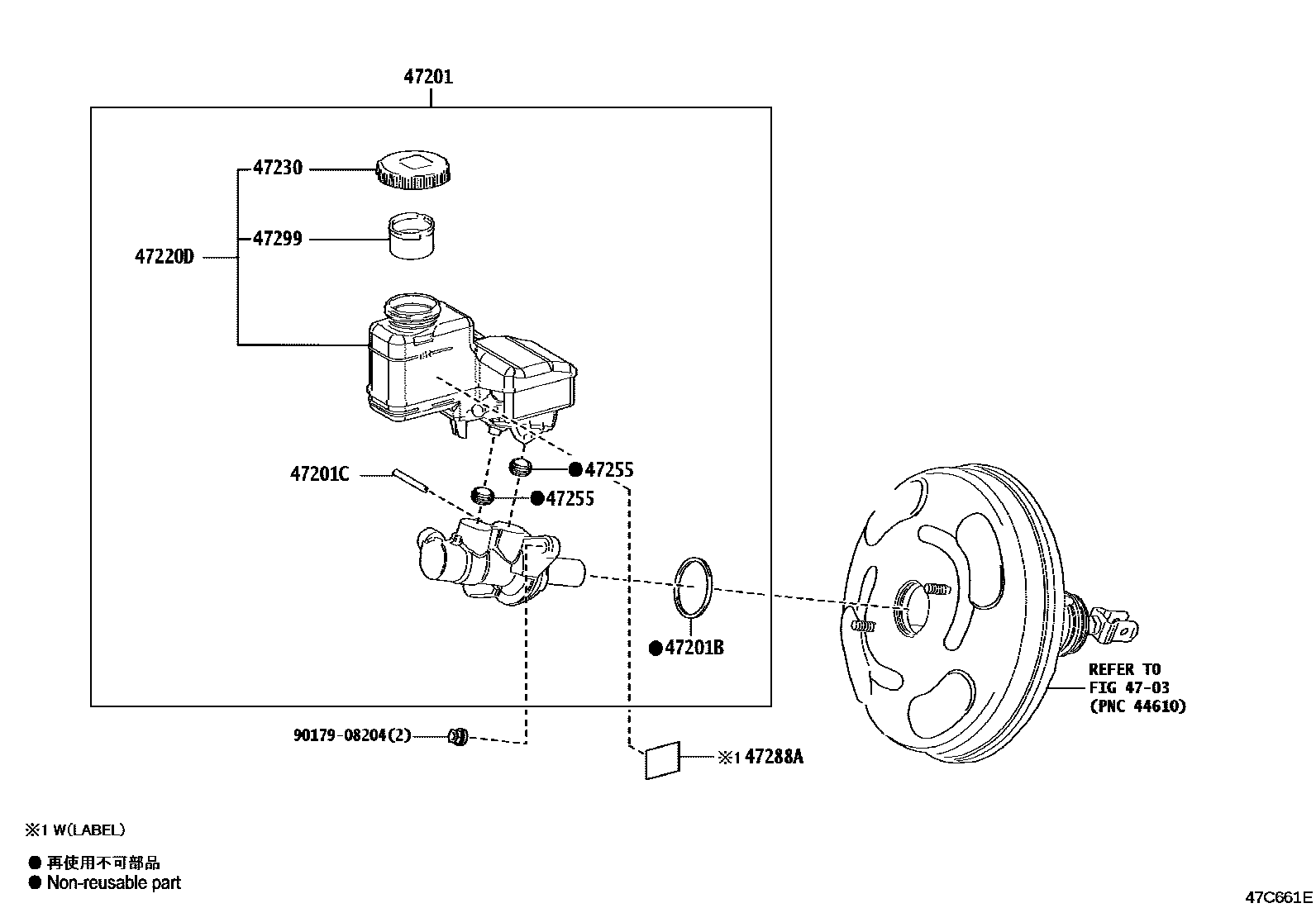

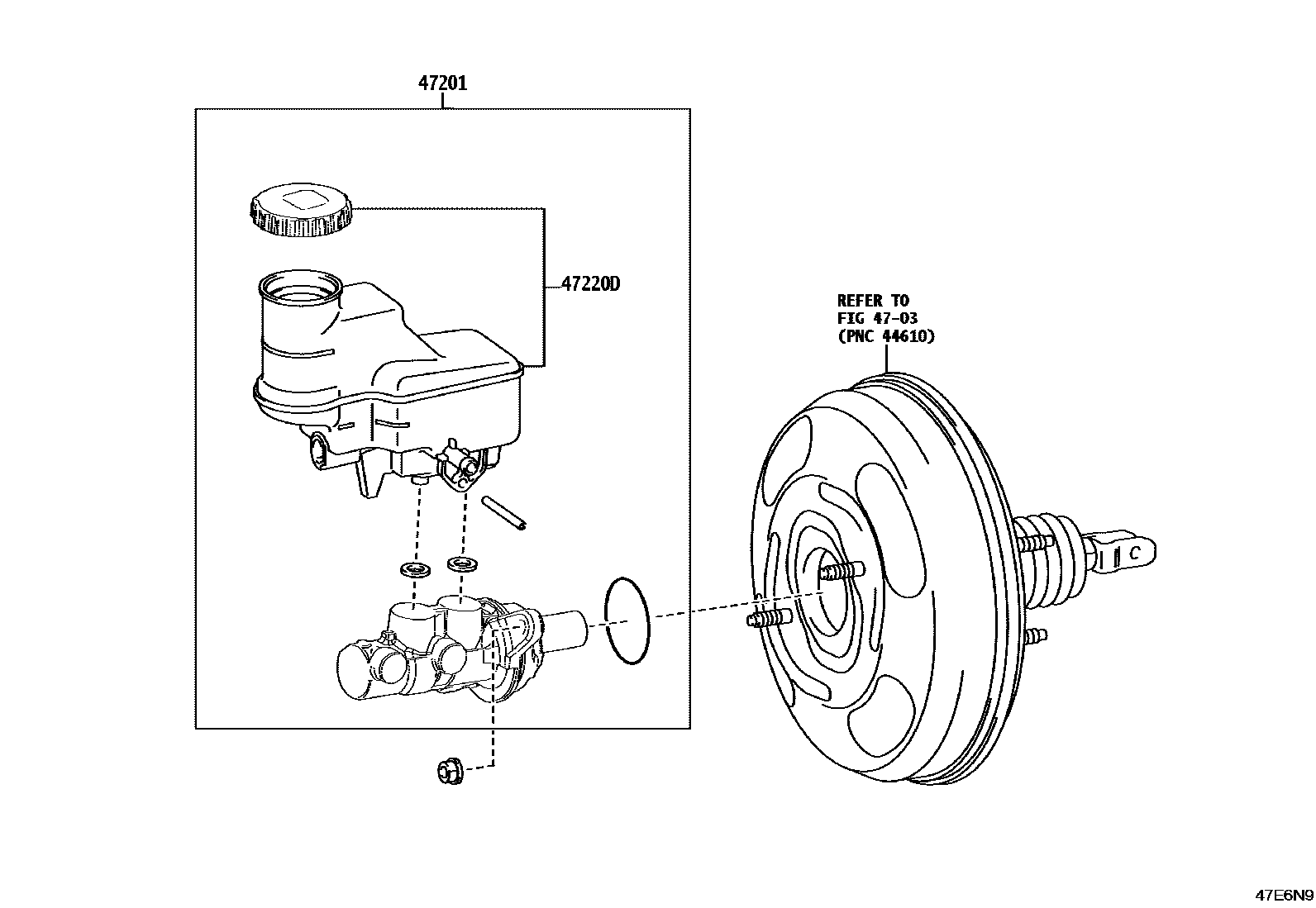

Toyota YARIS EPC diagram 4702, 制动总泵, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-52830 · 47201-52850 · 47201-K0050 · 47201-K0060 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-52340 · 47220-52380 · 47220-K0060 · 47220-K0070 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47288A | Brake Fluid Caution Label | 47288-71010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
