Toyota YARIS 前桥壳和差速器 — Figure 4301

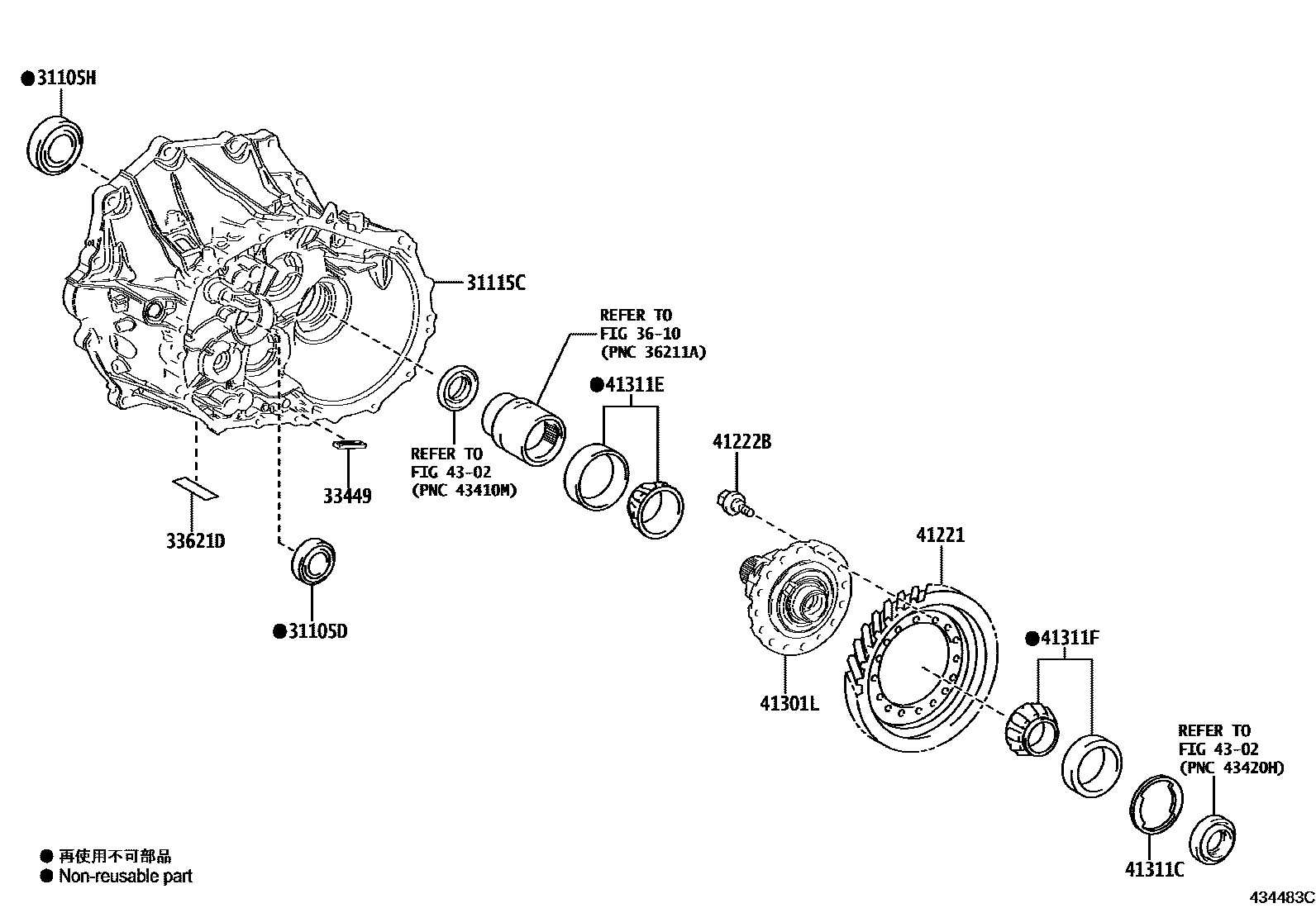

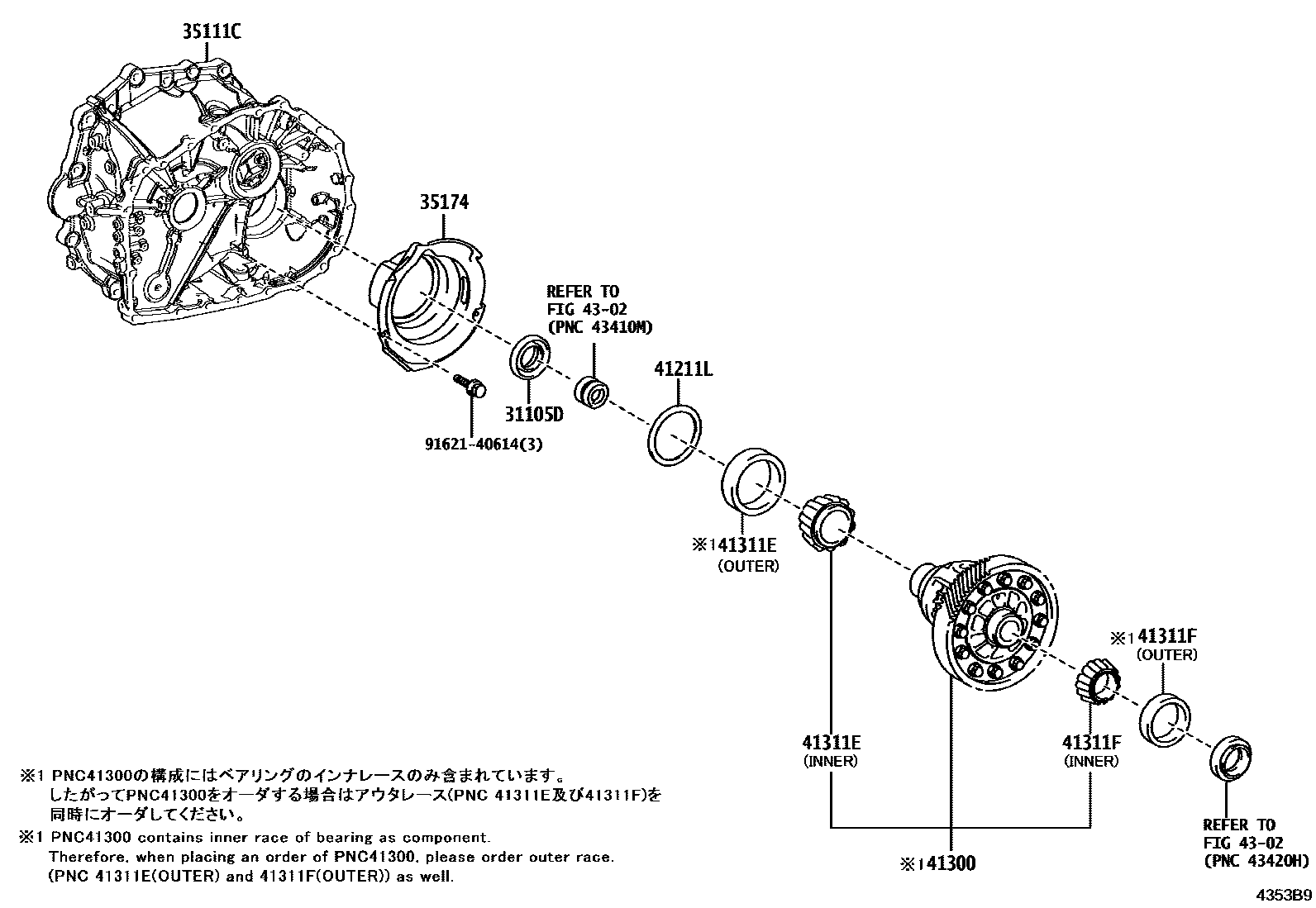

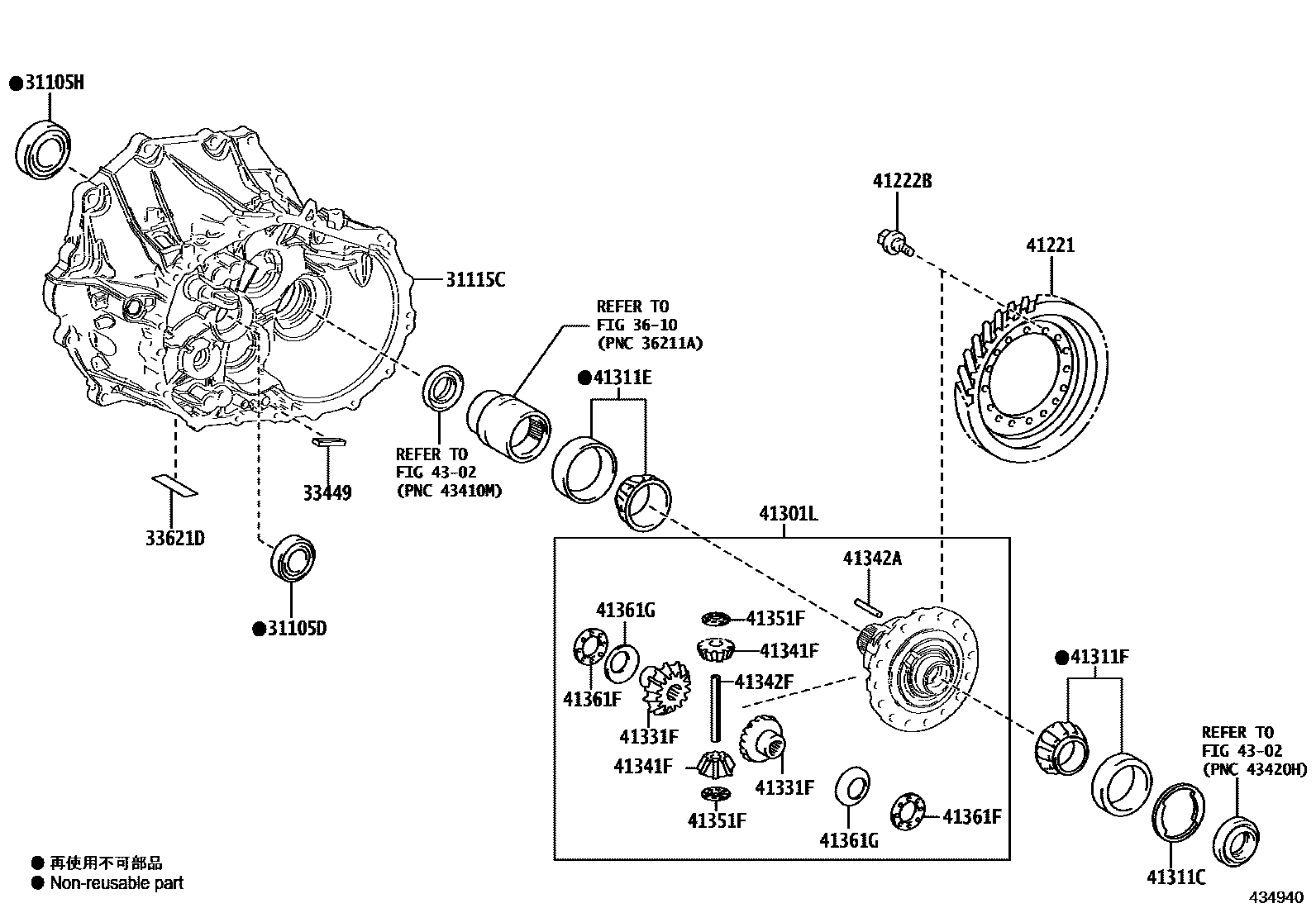

Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30017 · 90311-55005 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-55004 |
| 31115C | Front transmission axle housing (MTM) | 31115-52160 |
| 33449 | derailleur magnet | 33449-60010 |
| 33621D | Transaxle oil information label | 33621-12150 · 33621-28021 |
| 35111C | Transmission axle housing | 35105-52250 |
| 35174 | Transmission axle housing oil separator | 35174-48060 |
| 41211L | Spacer (for differential drive pinion) | 90564-75002 · 90564-75003 · 90564-75004 · 90564-75005 · 90564-75006 · 90564-75007 · 90564-75008 · 90564-75009 · 90564-75010 · 90564-75011 · 90564-75012 · 90564-75013 · 90564-75014 · 90564-75015 · 90564-75016 · 90564-75017 · 90564-75018 · 90564-75019 · 90564-75023 · 90564-75024 · 90564-75025 · 90564-75026 · 90564-75027 · 90564-75028 · 90564-75029 · 90564-75030 · 90564-75031 · 90564-75032 · 90564-75033 · 90564-75034 · 90564-75035 |
| 41221 | Front differential ring gear | 41221-52570 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12319 |
| 41300 | Front differential case assembly with ring gear | 41300-52240 · 41300-78030 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-52330 · 41301-52340 |
| 41311C | Rear gasket (for front differential case) | 90564-62078 · 90564-62079 · 90564-62080 · 90564-62081 · 90564-62082 · 90564-62083 · 90564-62084 · 90564-62085 · 90564-62086 · 90564-62087 · 90564-62088 · 90564-62089 · 90564-62090 · 90564-62091 · 90564-62092 · 90564-62093 · 90564-62094 · 90564-62095 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-50197 · 90366-57039 · 90366-57054 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-55080 · 90366-55094 · 90366-55104 |
| 41331F | Front differential side gear | 41331-12170 |
| 41341F | Front differential planetary gear | 41341-35050 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-20070 |
| 41351F | Front differential planetary gear thrust washer | 41351-20050 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-20240 · 41361-20310 · 41361-20320 · 41361-20330 · 41361-20340 · 41361-20350 · 41361-20360 · 41361-20370 · 41361-20380 · 41361-20390 · 41361-20400 · 41361-20410 · 41361-20420 · 41361-20430 · 41361-20440 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-45001 |
