Toyota YARIS 车轮和车轮盖 — Figure 4103

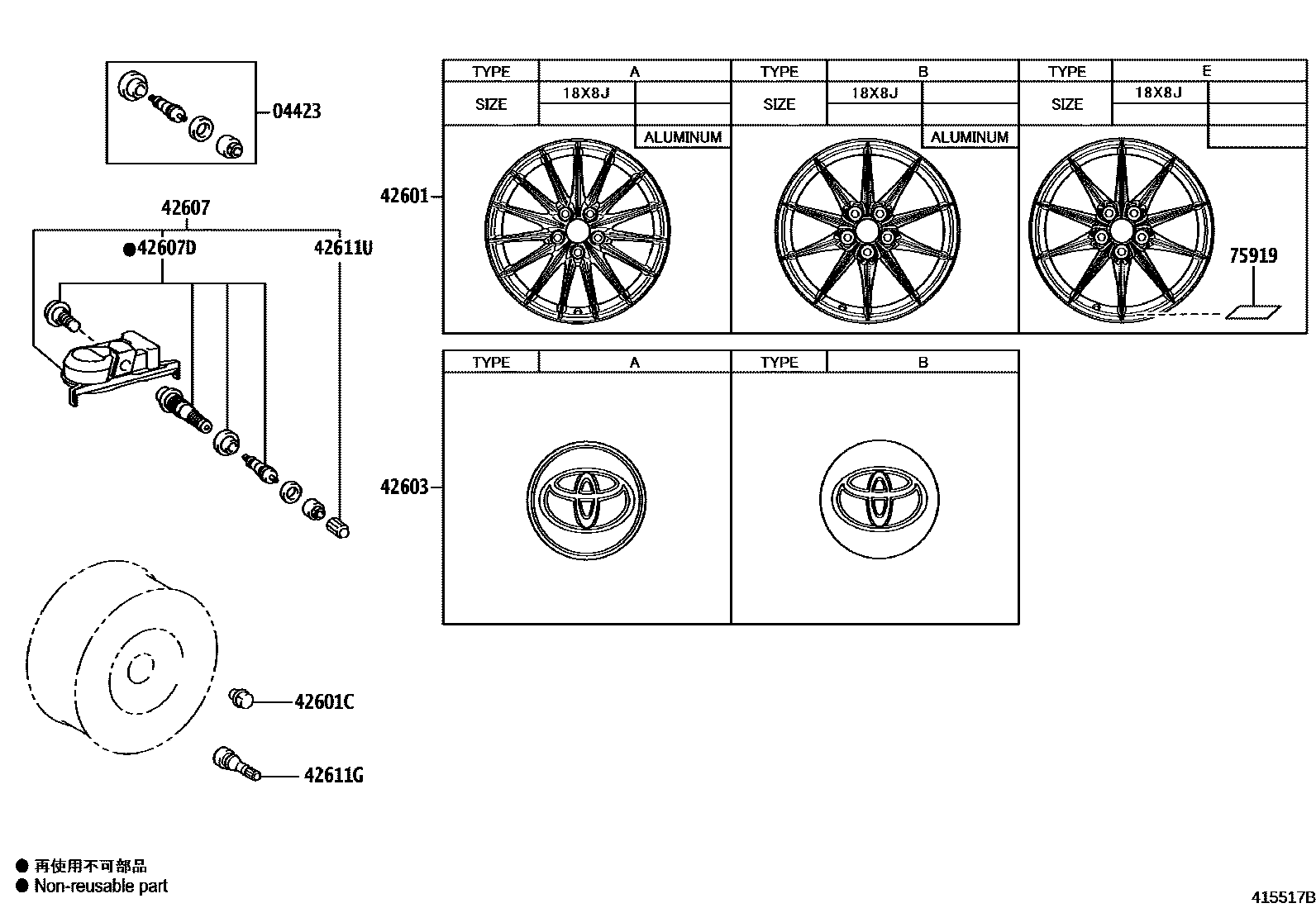

Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 · 04423-48010 |
| 42601 | spoke wheel | 42611-52C90 · 42611-52D00 · 42611-52E80 · 42611-52E90 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-01115 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-48150 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12020 · 42607-12040 · 42607-48060 · 42607-48070 |
| 42607D | tire pressure monitoring valve | 90942-05044 · 90942-05050 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 · 90942-05048 |
| 75919 | wheel decorative label | 75919-52010 |
