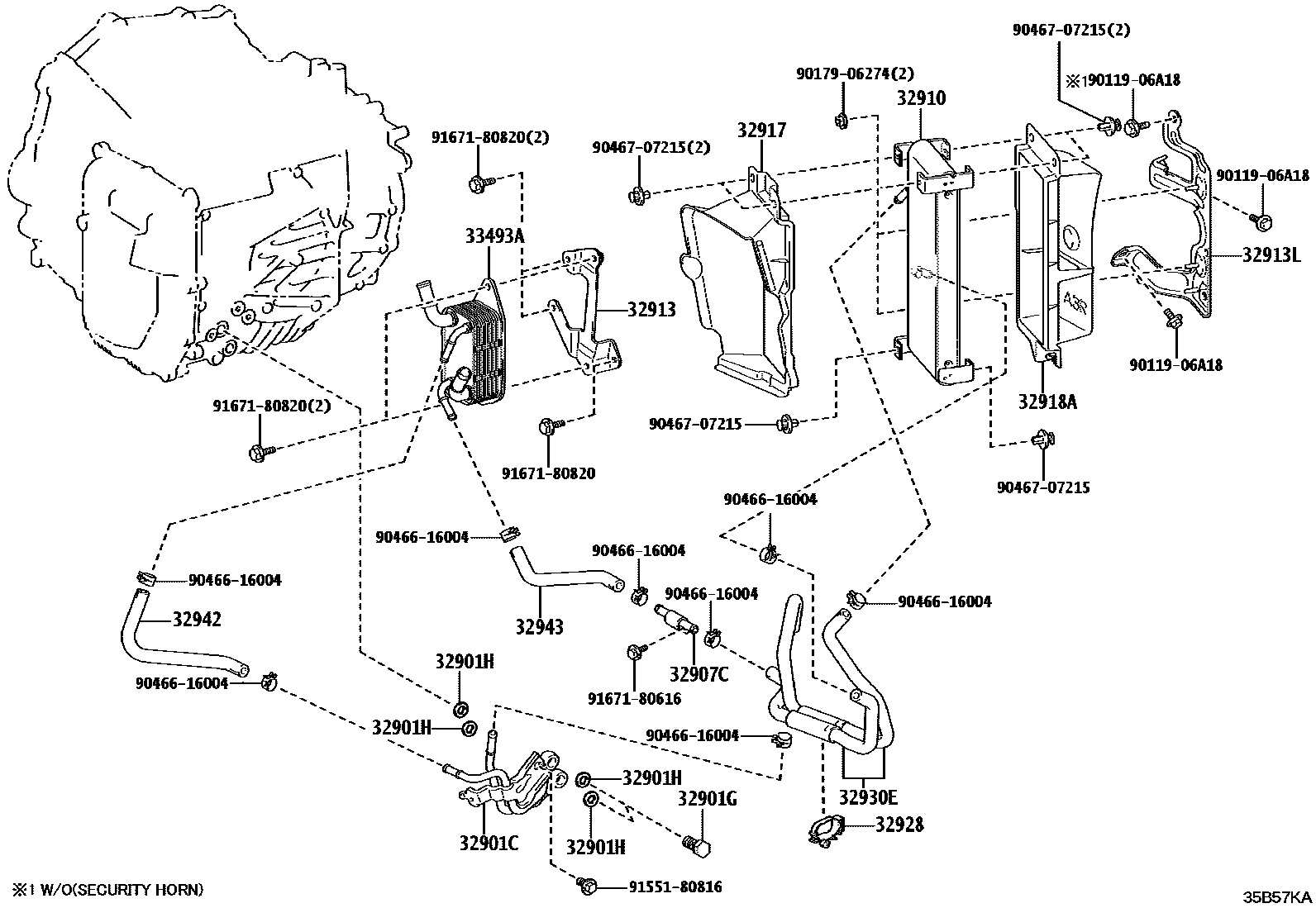

Toyota YARIS 变速器油冷却器和配管(ATM) — Figure 3514
Toyota YARIS EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32901C | Transmission oil cooler joint sub-assembly | 32901-52020 |
| 32901G | Connector bolt (for oil cooler) | 90401-14003 |
| 32901H | Gasket (for transmission oil cooler connector) | 90430-14016 |
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-60350 |
| 32910 | Oil cooler assembly | 32910-52010 |
| 32913 | Transmission oil cooler bracket | 32913-52020 |
| 32913L | SUPPORT, REFROIDISSEUR HUILE TRANSMISSION, NO.2 | 32913-52010 |
| 32917 | Transmission oil cooler air duct | 32917-52010 |
| 32918A | Transmission oil cooler air inlet pipe | 32918-52010 |
| 32928 | No. 1 Flexible Hose Clamp | 32928-42040 |
| 32930E | No. 1 transmission oil cooler hose assembly | 32930-52010 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32942-52040 |
| 32943 | No. 1 transmission oil cooler hose | 32943-52020 |
| 33493A | Transmission oil cooler | 33493-52080 |
