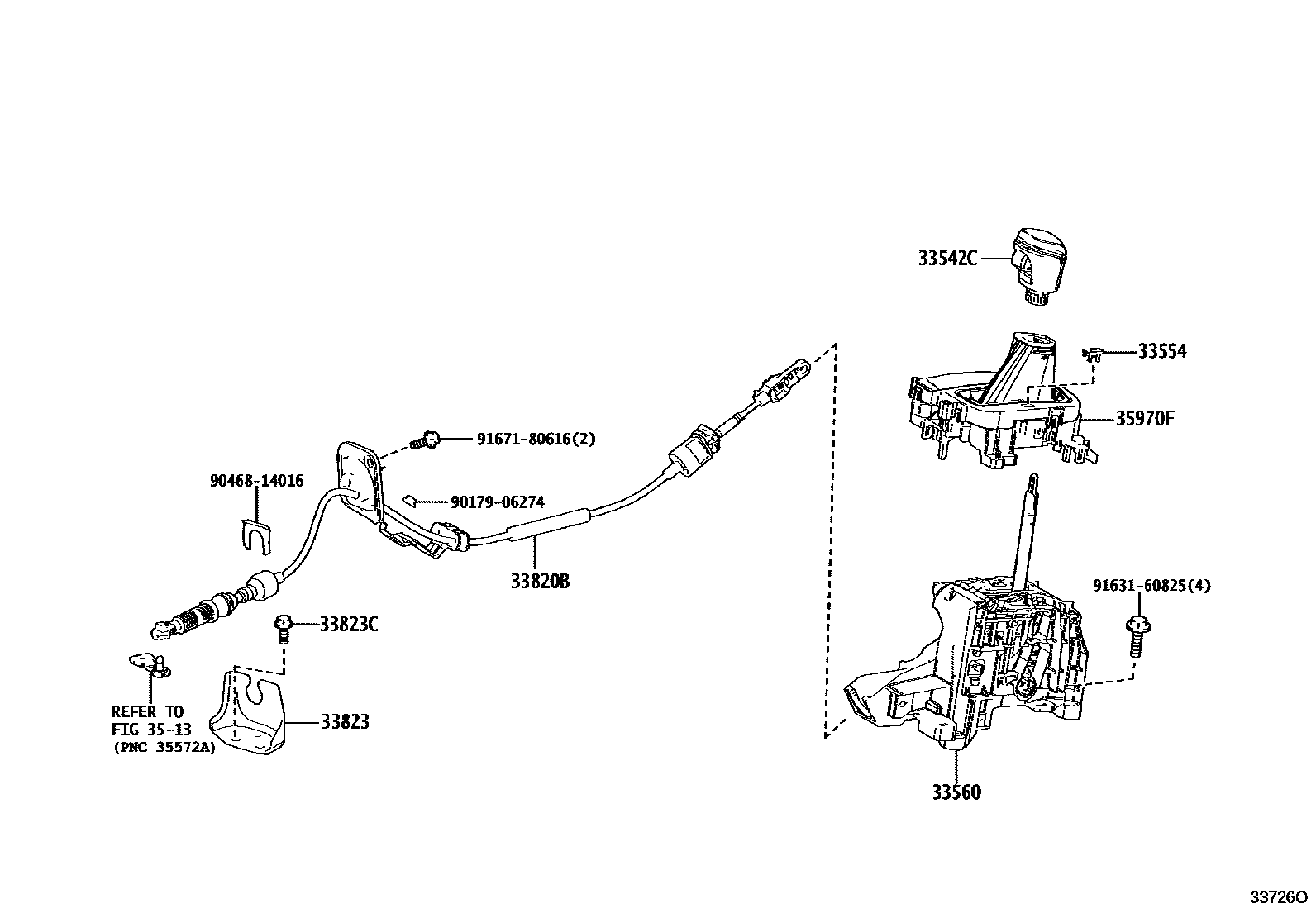

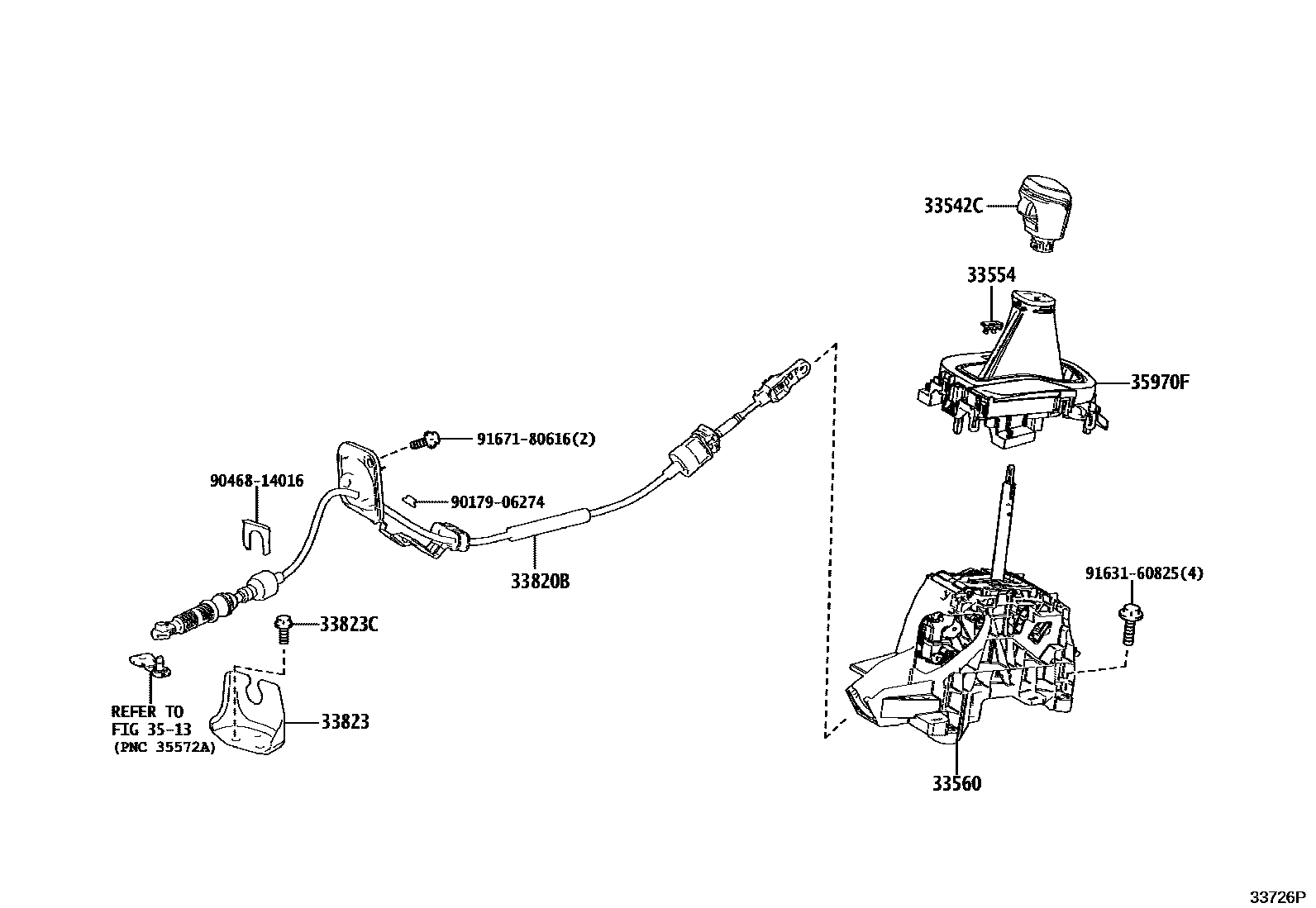

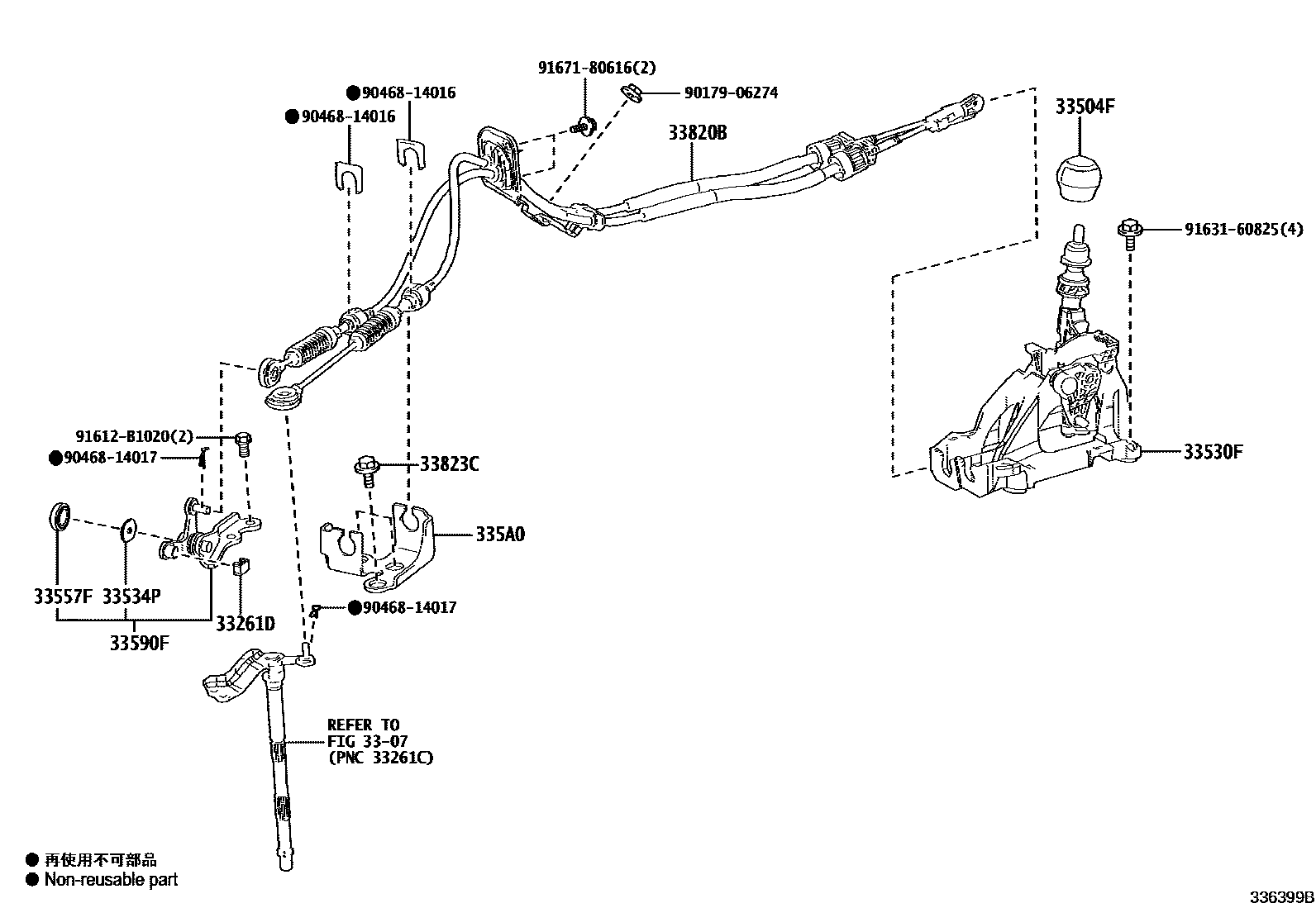

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-52340 · 33530-52341 · 33530-52350 |
| 33534P | Flat washer (for No. 1 gear selector right-angle lever) | 90201-08028 |
| 33554 | shift lever cover | 33554-K0010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33560 | Shift lock control unit assembly | 33560-12650 · 33560-52800 · 33560-52820 · 33560-52840 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-20040 |
| 335A0 | Control cable bracket assembly | 335A0-52060 |
| 33820B | Transmission control cable assembly | 33820-52A70 · 33820-52A80 |
| 33823 | No. 1 transmission control cable bracket | 33823-52160 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 91671-80820 |
