Toyota YARIS 换档拨叉和换档杆轴(MTM) — Figure 3307

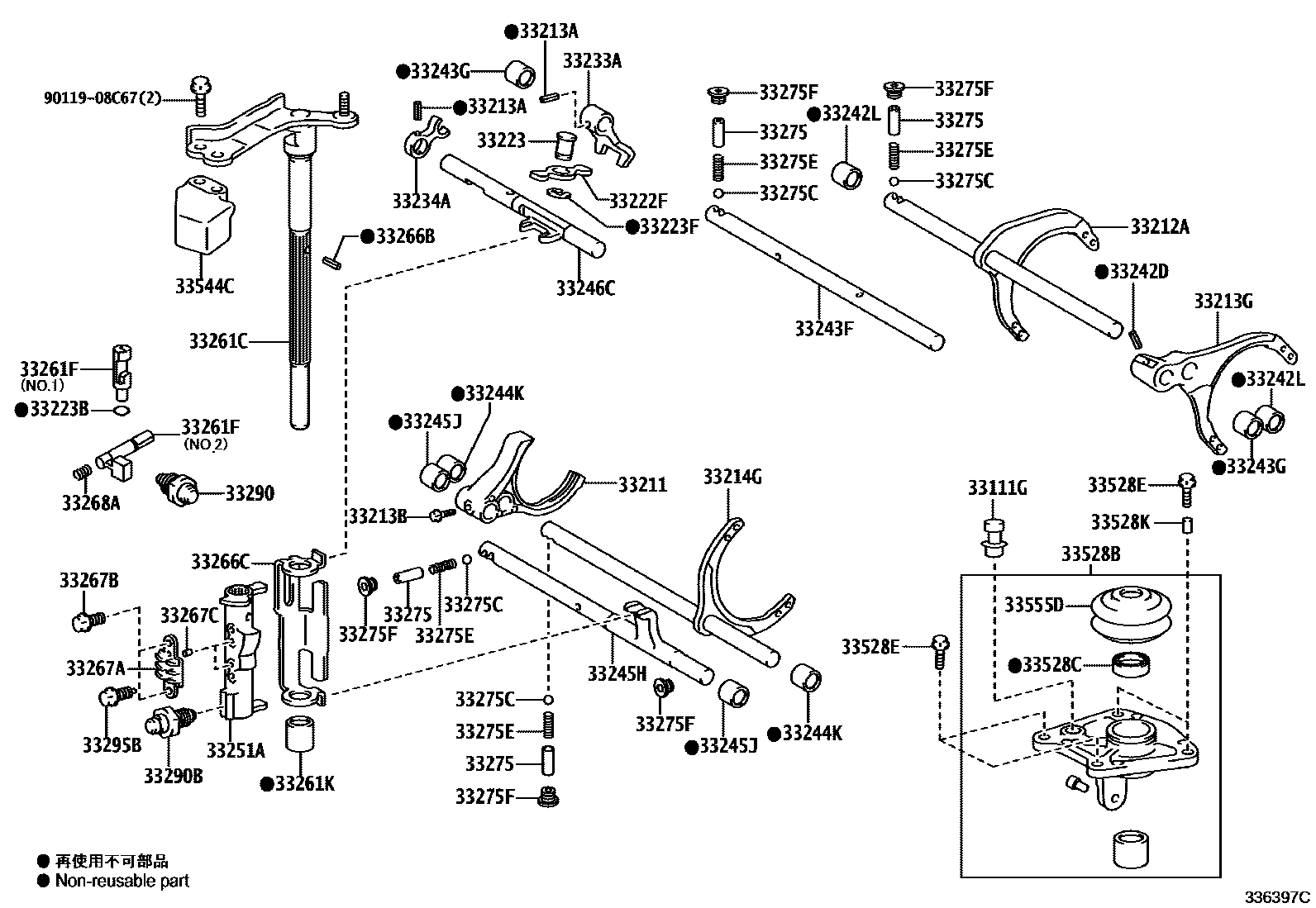

Toyota YARIS EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 1 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03241 |
| 33211 | Reverse Shift Fork | 33211-20030 |
| 33212A | No. 1 shift fork | 33210-52010 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 |
| 33213B | Bolt (for securing shift fork) | 90105-06077 |
| 33213G | No. 2 shift fork | 33220-52010 |
| 33214G | No. 3 shift fork | 33230-52010 |
| 33222F | shift arm | 33222-20010 |
| 33223 | shift arm pivot | 33223-20020 |
| 33223B | O-ring (for shift arm pivot) | 96721-19008 |
| 33223F | E-ring (locking plate pivot with shift fork) | 96160-01200 |
| 33233A | No. 2 speed change guide block | 33233-20010 |
| 33234A | No. 3 speed change guide block | 33234-20010 |
| 33242D | Slotted spring pin (for shift fork shaft) | 90254-05016 |
| 33242L | Bearings (for shift fork shaft) | 90369-14001 |
| 33243F | Third and fourth gear shift fork shaft | 33243-52050 |
| 33243G | Bearings (for shift fork shaft) | 90369-14001 |
| 33244K | Bearings (for shift fork shaft) | 90369-14001 |
| 33245H | Reverse shift fork shaft | 33245-20010 |
| 33245J | Bearings (for shift fork shaft) | 90369-14001 |
| 33246C | No. 5 shift fork shaft | 33246-52010 |
| 33251A | Internal shift lever No. 1 | 33251-52100 |
| 33261C | shift lever shaft | 33261-52170 |
| 33261F | Direct sales (for shift lever shaft) | 33267-20020 · 33267-20030 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90369-15002 |
| 33266B | No. 3 shift interlock pin | 90254-05016 |
| 33266C | shift interlock plate | 33266-52060 |
| 33267A | Shift positioning plate | 33267-52010 |
| 33267B | Bolt (for shift retainer plate) | 90105-06310 |
| 33267C | Direct sales (for shift positioning plate) | 90250-06024 |
| 33268A | Torsion spring (bolt secured with shift interlock plate) | 90501-10248 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-12173 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33290 | No. 1 locking steel ball assembly | 33290-20020 |
| 33290B | No. 2 locking steel ball assembly | 33290-64010 |
| 33295B | Shift positioning plate pin | 33295-20010 |
| 33528B | control shaft cover | 33506-52090 |
| 33528C | Oil seal (for control shaft cover) | 90310-18003 |
| 33528E | Bolt (for control shaft cover) | 91611-60830 |
| 33528K | Ring pin (for controlling shaft housing retaining bolts) | 90253-11021 |
| 33544C | Gear shifter damper | 33544-52100 |
| 33555D | Gear shift lever dust cover | 33555-20080 |
