Toyota YARIS 离合器壳和变速器壳(MTM) — Figure 3302

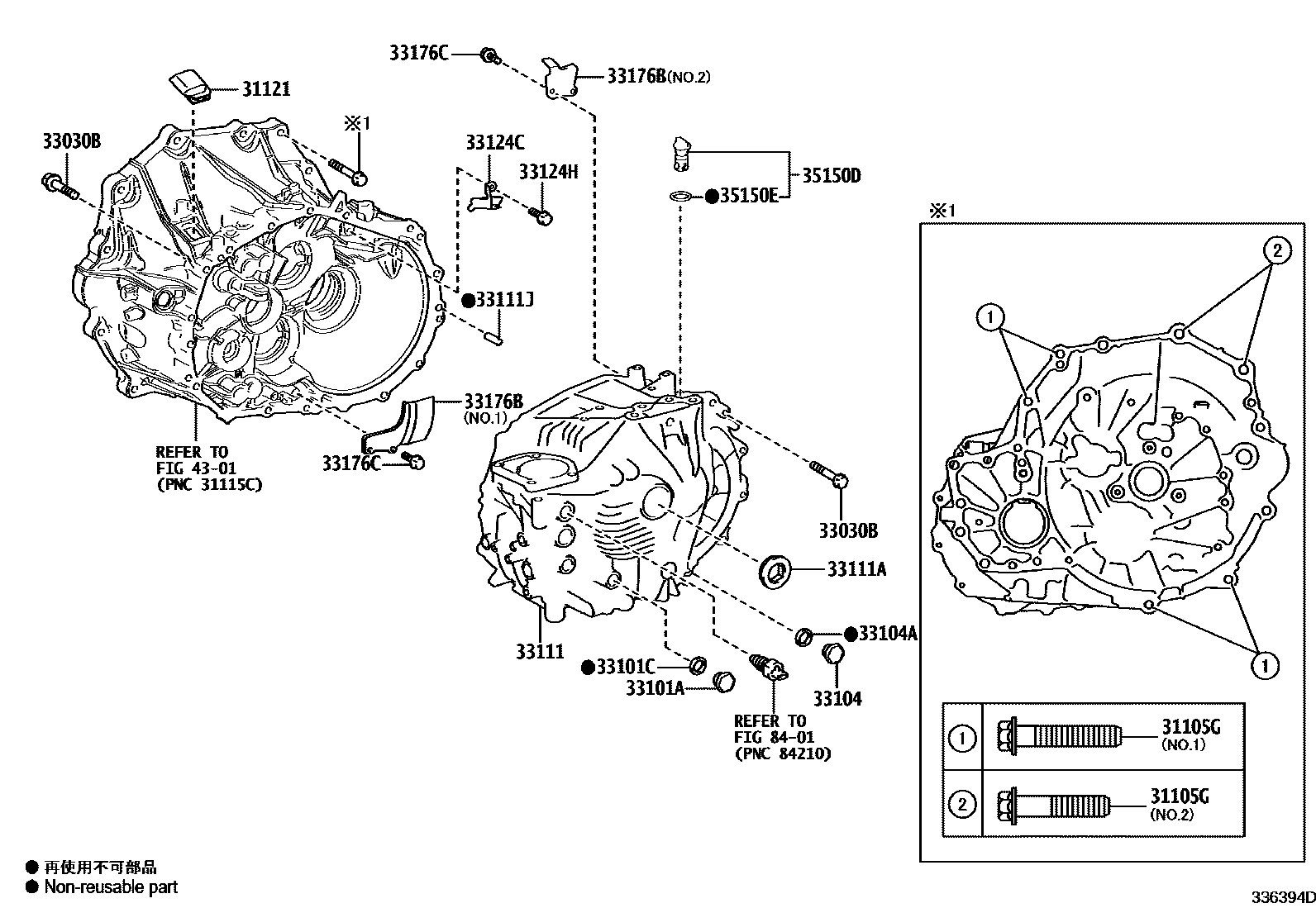

Toyota YARIS EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-10591 · 91552-81250 |
| 31121 | No. 1 clutch housing cover | 31121-52020 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08086 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 · 90341-18033 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18085 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33111-52080 |
| 33111A | Manual transmission plug | 90341-42002 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-52040 |
| 33124H | Bolt (for oil collection pipe) | 91611-B0616 |
| 33176B | Transmission oil separator (MTM) | 33176-20010 · 33176-52030 |
| 33176C | Bolt (for transmission oil separator) | 91611-B0616 |
| 35150D | gearbox plug assembly | 35150-44010 |
| 35150E | O-ring (for gearbox plug) | 90301-09173 |
