Toyota YARIS Alternator — Figure 1903

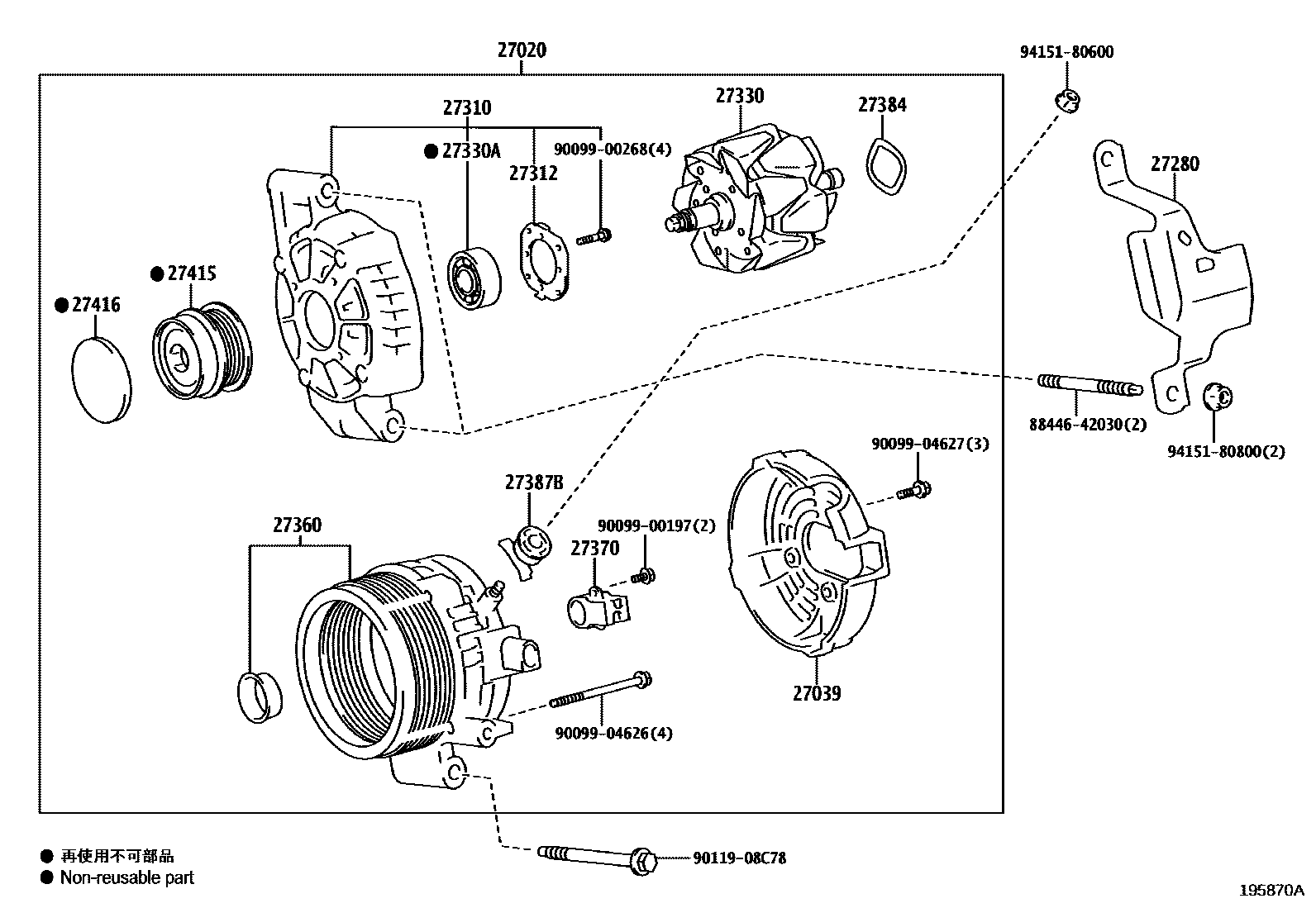

Toyota YARIS EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-18010 · 27060-18020 |
| 27039 | Alternator Rear End Cover | 27039-37220 |
| 27280 | Generator splash guard assembly | 27281-18010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-24130 · 27310-24150 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-37220 · 27330-47330 |
| 27330A | Bearings (for generator rotor) | 90099-10223 |
| 27360 | Alternator Stator Coil Assembly | 27360-18030 · 27360-18040 |
| 27370 | Alternator Brush Holder Assembly | 27370-31220 |
| 27384 | Washer | 27384-38130 |
| 27387B | Generator terminal insulation pad | 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W280 |
| 27416 | Generator pulley cover | 27416-0W050 |
