Toyota YARIS Manifold — Figure 1701

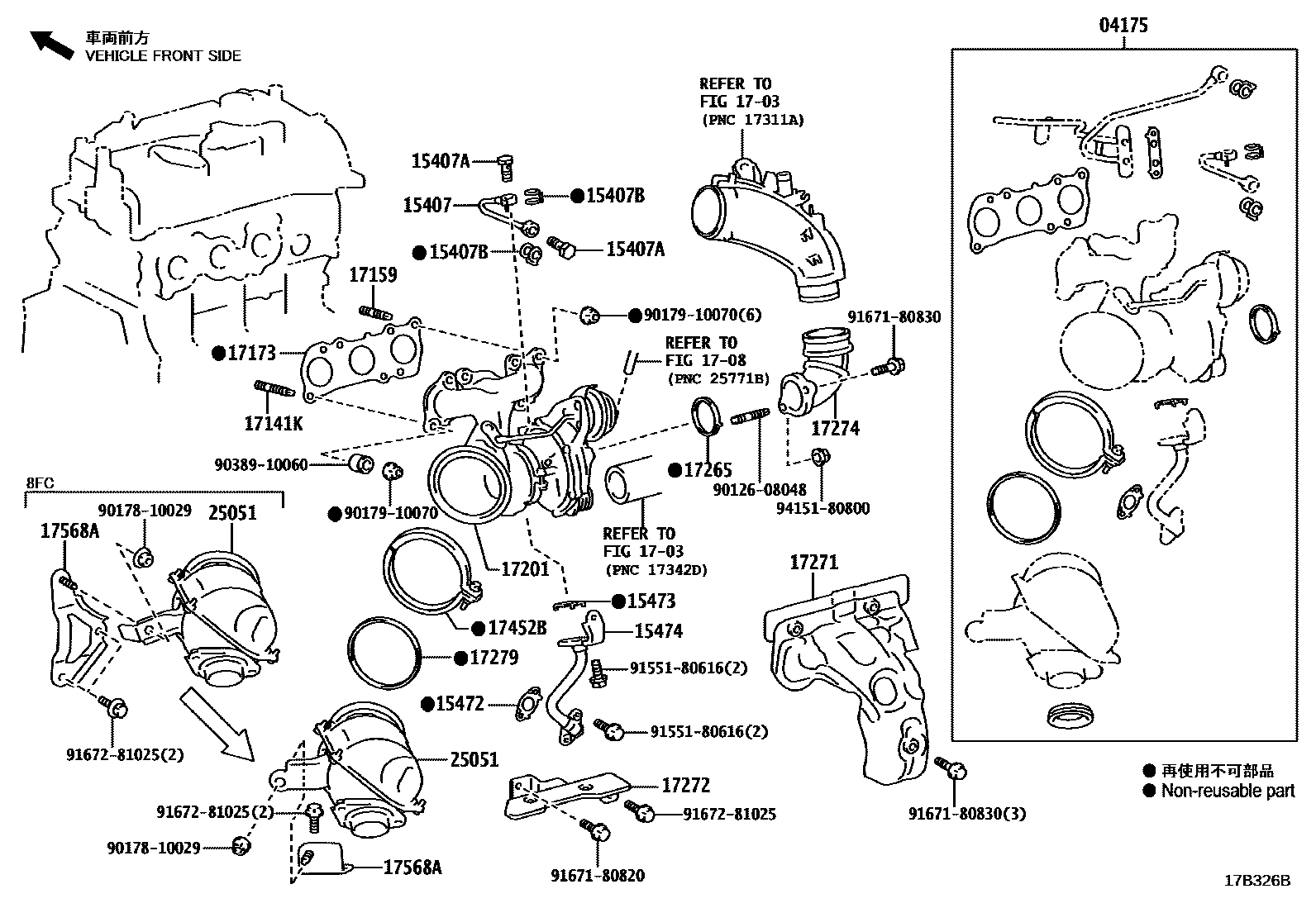

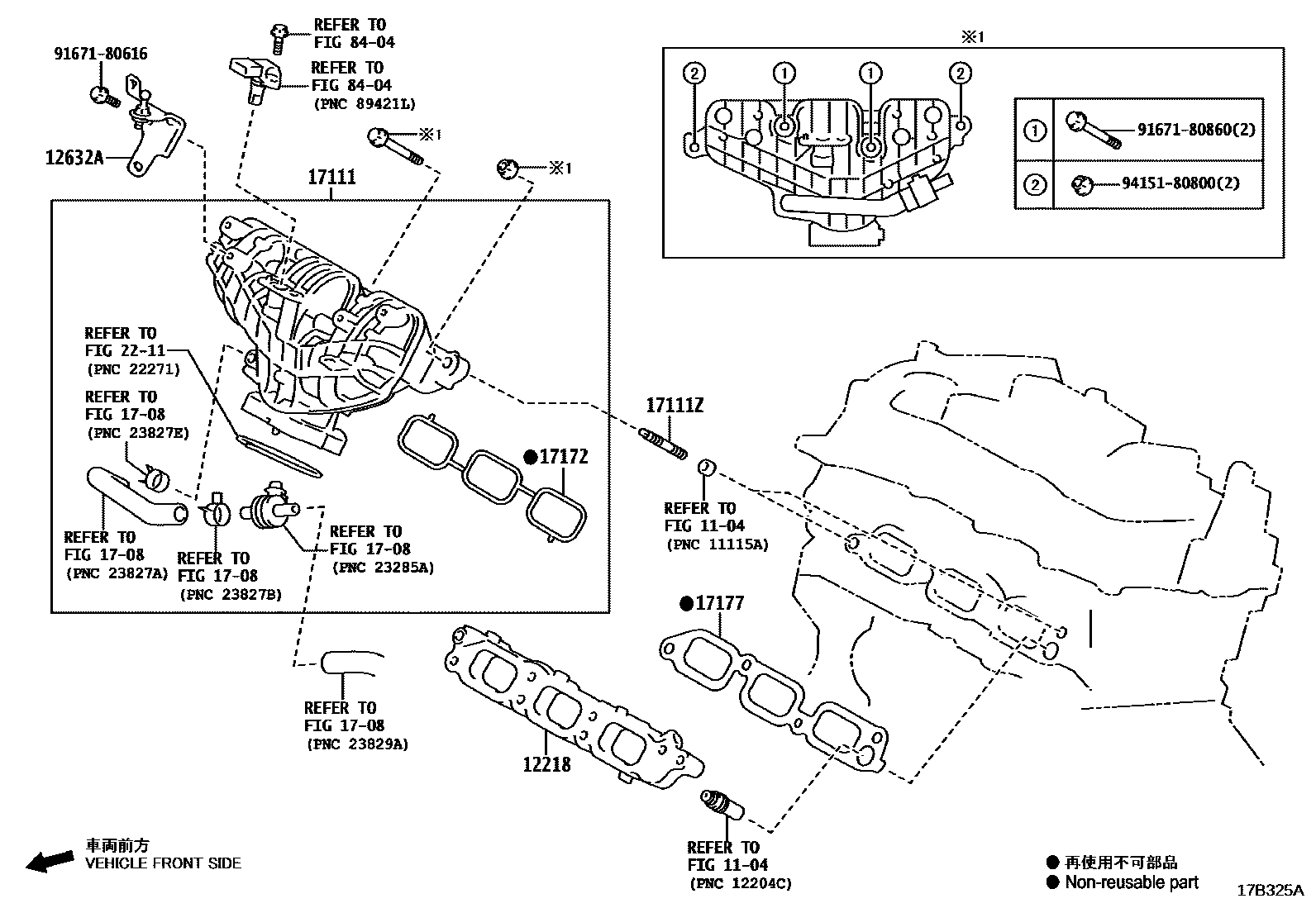

Toyota YARIS EPC diagram 1701, Manifold, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-18010 · 04175-18011 |
| 12218 | Ventilation flange No. 1 divider | 12218-18010 |
| 12632A | No. 2 engine hood bracket | 12632-18010 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-18010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-12097 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90904-30004 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-18010 |
| 15473 | No. 2 turbine oil outlet pipe gasket | 15473-18010 |
| 15474 | Turbine oil outlet pipe | 15474-18010 |
| 17111 | Intake Manifold | 17120-18010 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08056 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-10024 |
| 17159 | Studs (for manifold to cylinder head) | 90126-10048 |
| 17172 | Gasket (manifold to cylinder head) | 17171-18010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-18010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-18010 |
| 17201 | Turbocharger sub-assembly | 17201-18010 · 17201-18030 |
| 17265 | Turbocharger gasket | 22271-47060 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-18010 |
| 17272 | No. 2 turbine vibration isolation pad | 17272-18010 |
| 17274 | Compressor oil inlet elbow pipe | 17274-18010 |
| 17279 | Turbine outlet elbow gasket | 17279-0W010 |
| 17452B | Exhaust pipe clamp | 17452-36020 |
| 17568A | Exhaust pipe bracket stay | 17568-18010 · 17568-18020 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-18010 · 25051-18020 · 25051-18040 · 25051-18050 · 25051-18060 · 25051-18100 · 25051-18110 · 25051-18120 · 25051-18130 |
