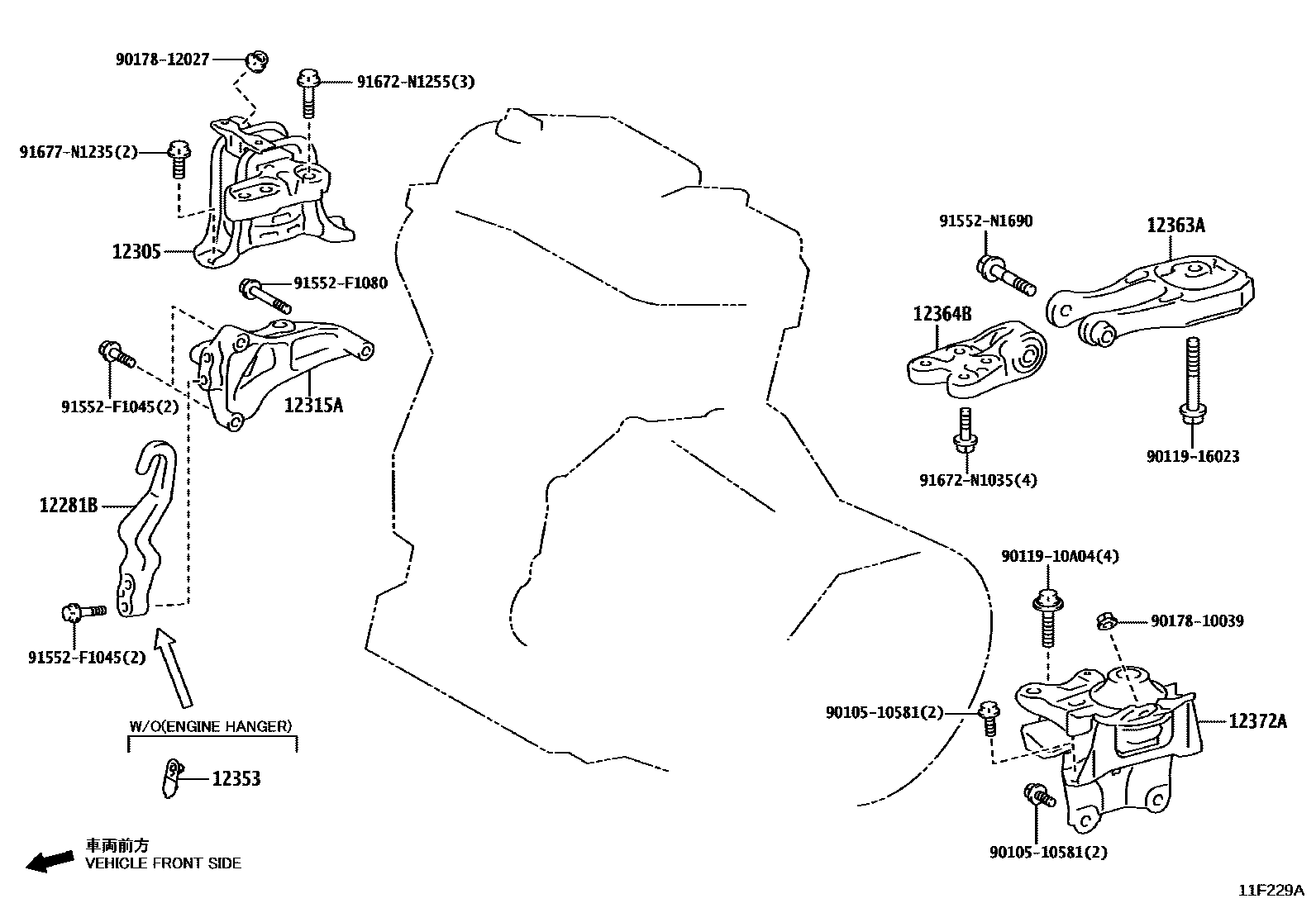

Toyota YARIS Engine Mounting — Figure 1107
Toyota YARIS EPC diagram 1107, Engine Mounting, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | Engine No. 1 hanger | 12281-25030 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-18050 · 12305-18070 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-18010 |
| 12353 | Engine mounting bracket cover | 12353-15010 |
| 12363A | Engine movement control lever | 12363-18010 · 12363-18030 |
| 12364B | Engine No. 2 motion control lever | 12364-18010 · 12364-18030 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-18010 · 12372-18011 · 12372-18030 |
