Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

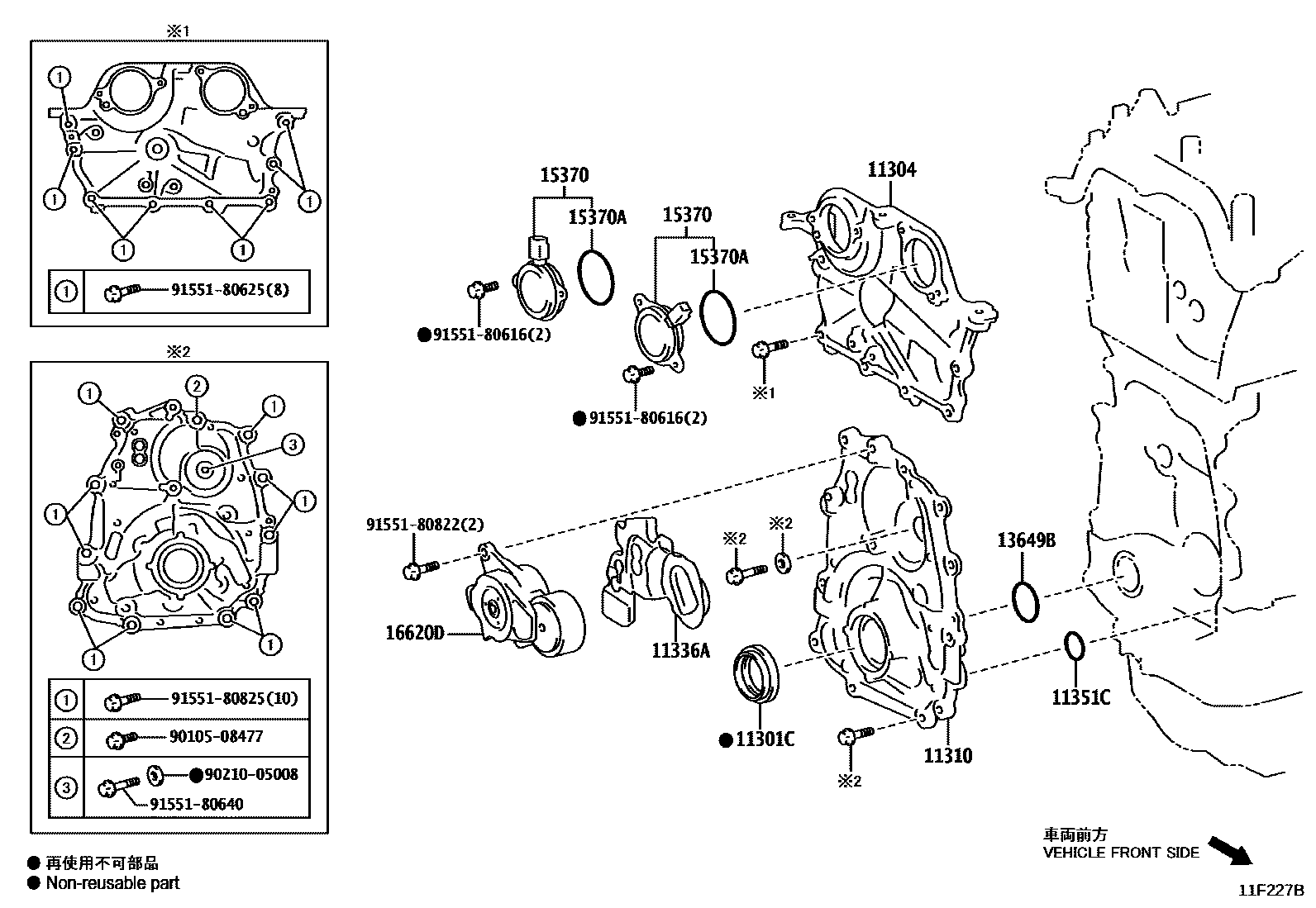

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-40044 |
| 11304 | No. 2 timing chain or timing belt cover | 11322-18010 |
| 11310 | Timing chain cover assembly | 11310-18020 |
| 11336A | Timing gear cover vibration isolation pad | 11336-18010 |
| 11351C | O-ring | 90301-20012 |
| 13649B | O-ring | 96723-35028 |
| 15370 | Camshaft timing oil control solenoid valve assembly | 15370-25020 |
| 15370A | O-ring (for camshaft timing oil control solenoid valve) | 90301-44006 |
| 16620D | Poly V-belt tensioner assembly | 16620-18010 |
