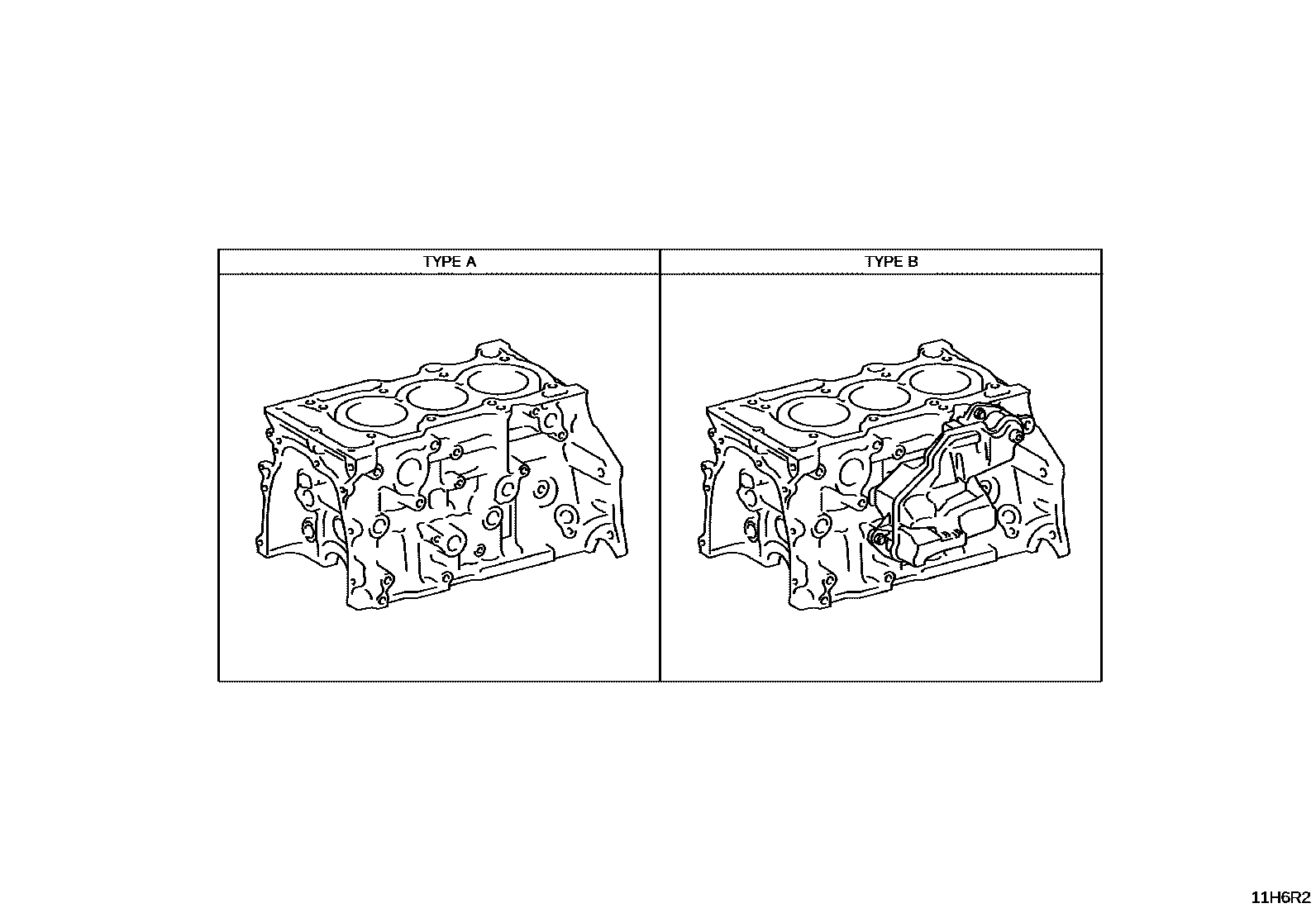

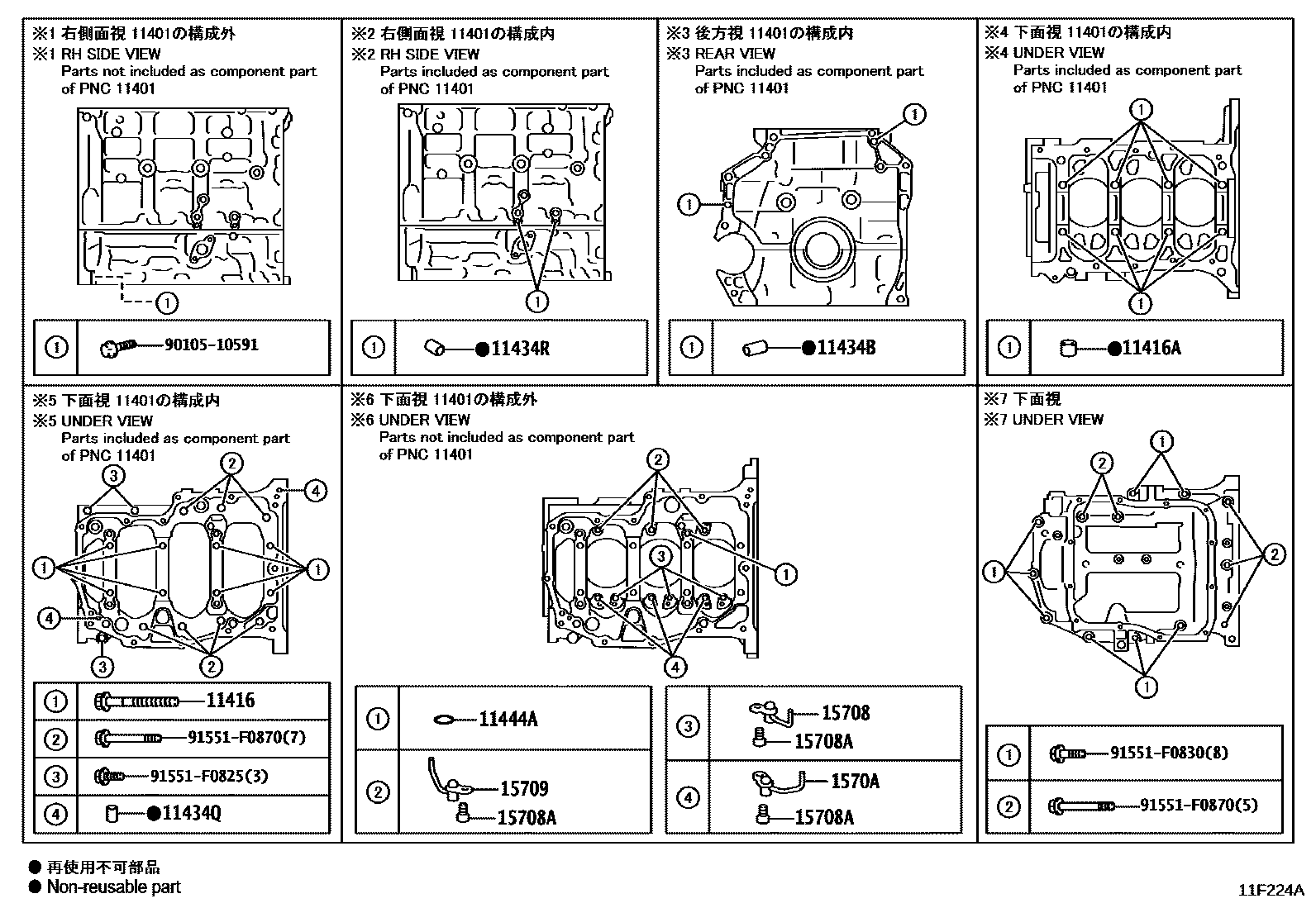

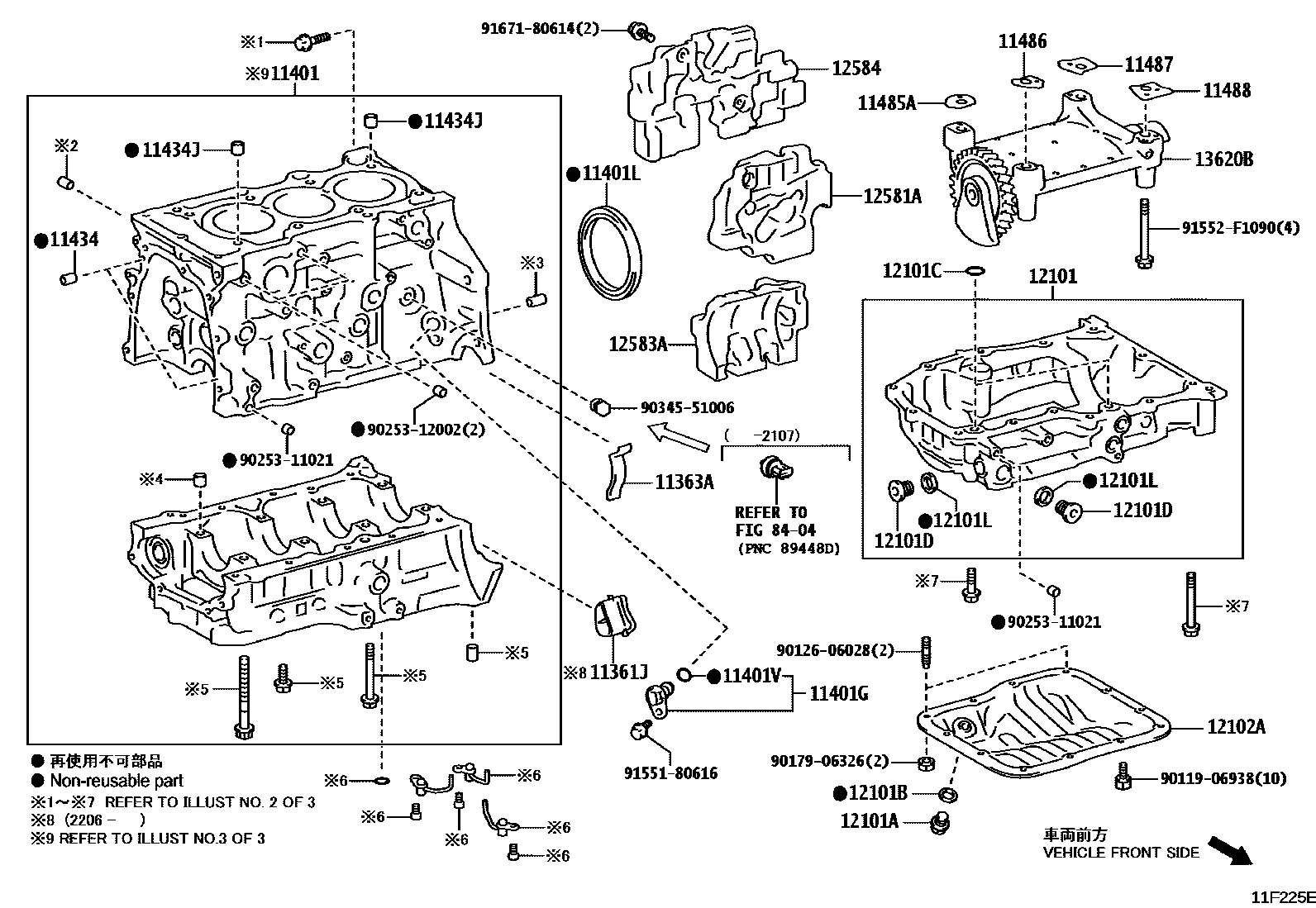

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-18010 |
| 11363A | Flywheel housing side cover | 11363-18010 |
| 11401 | Cylinder block sub-assembly | 11410-19015 · 11410-19025 · 11410-19027 · 11410-19047 |
| 11401G | crankshaft position sensor | 90919-05094 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-90010 |
| 11401V | Crankshaft position sensor O-ring | 90301-11039 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02208 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-14003 |
| 11434 | Direct sales (for timing chain cover) | 90250-06003 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-14003 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11444A | O-ring | 90301-08015 |
| 12101 | Oil pan sub-assembly | 12101-18040 · 12101-18050 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 96723-24016 |
| 12101D | No. 1 screw plug (for oil pan) | 90341-18088 |
| 12101L | Gasket No. 1 (for oil pan) | 90430-18008 |
| 12102A | No. 2 oil pan sub-assembly | 12102-18010 |
| 12581A | No. 1 cylinder block vibration isolation pad | 12581-18010 |
| 12583A | No. 3 cylinder block vibration isolation pad | 12583-18010 |
| 12584 | No. 4 cylinder block vibration isolation pad | 12584-18020 |
| 13620B | Engine balancer assembly | 13620-18010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-18010 |
| 15708A | Oil nozzle bolt | 90110-06040 |
| 15709 | No. 2 oil nozzle sub-assembly | 15709-18010 |
| 1570A | No. 3 oil nozzle sub-assembly | 1570A-18010 |
