Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719

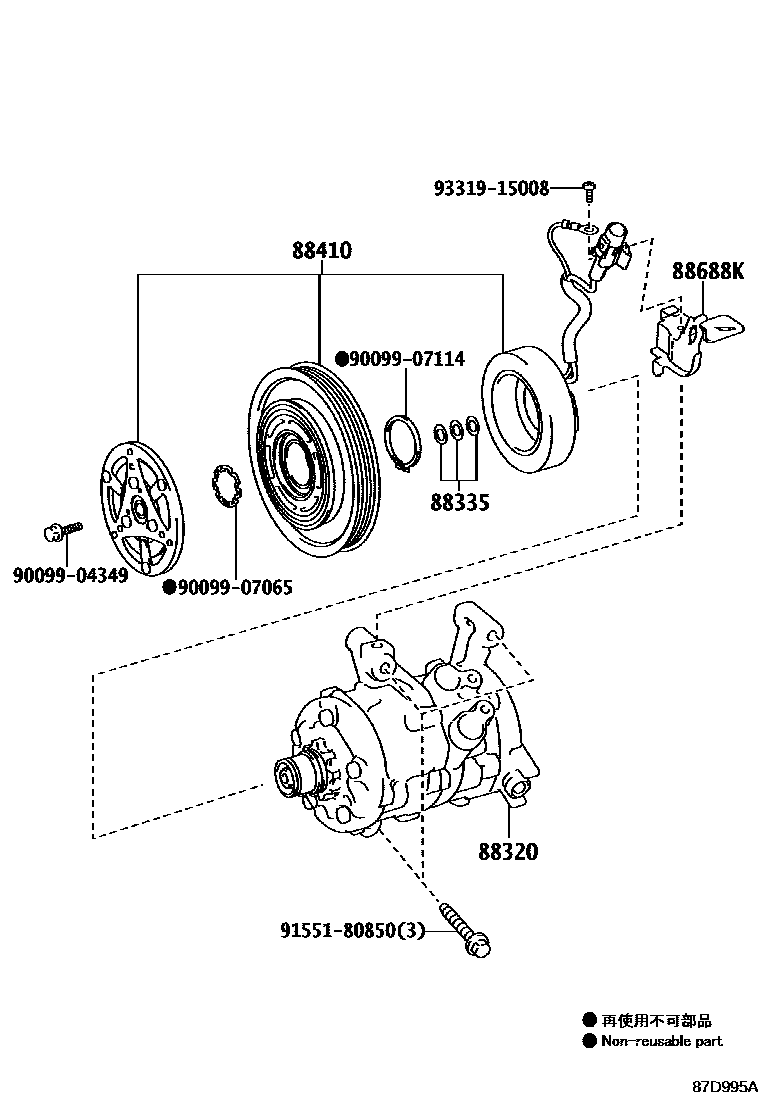

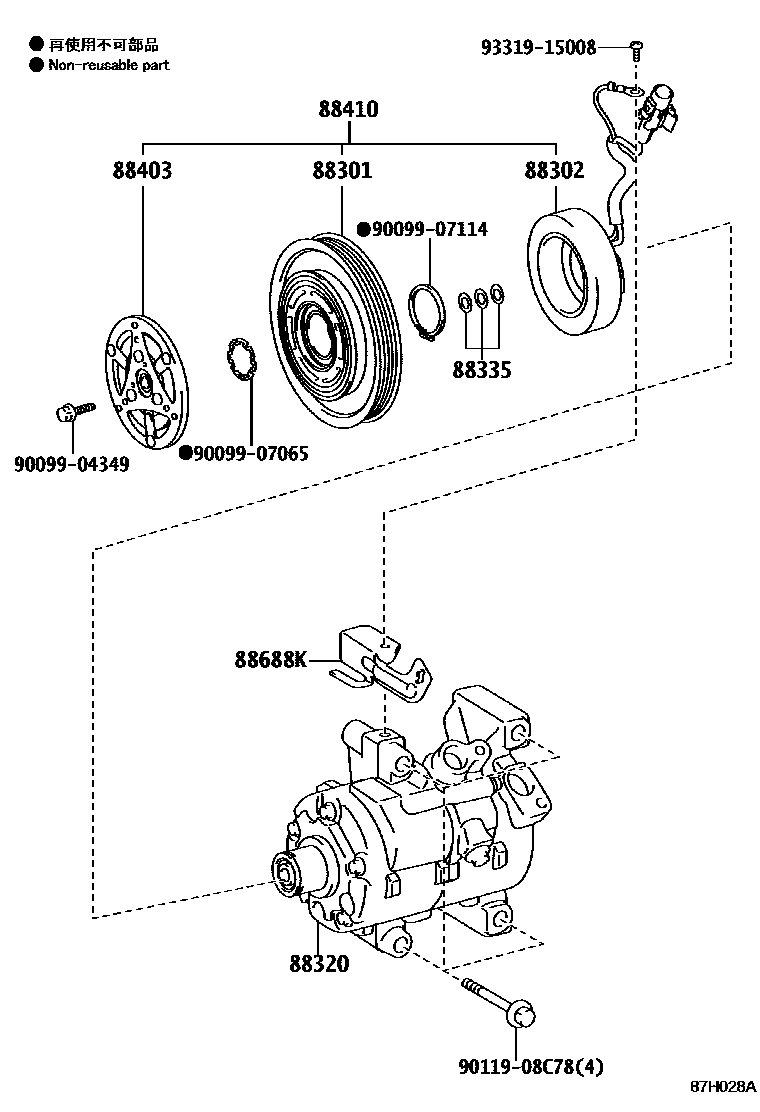

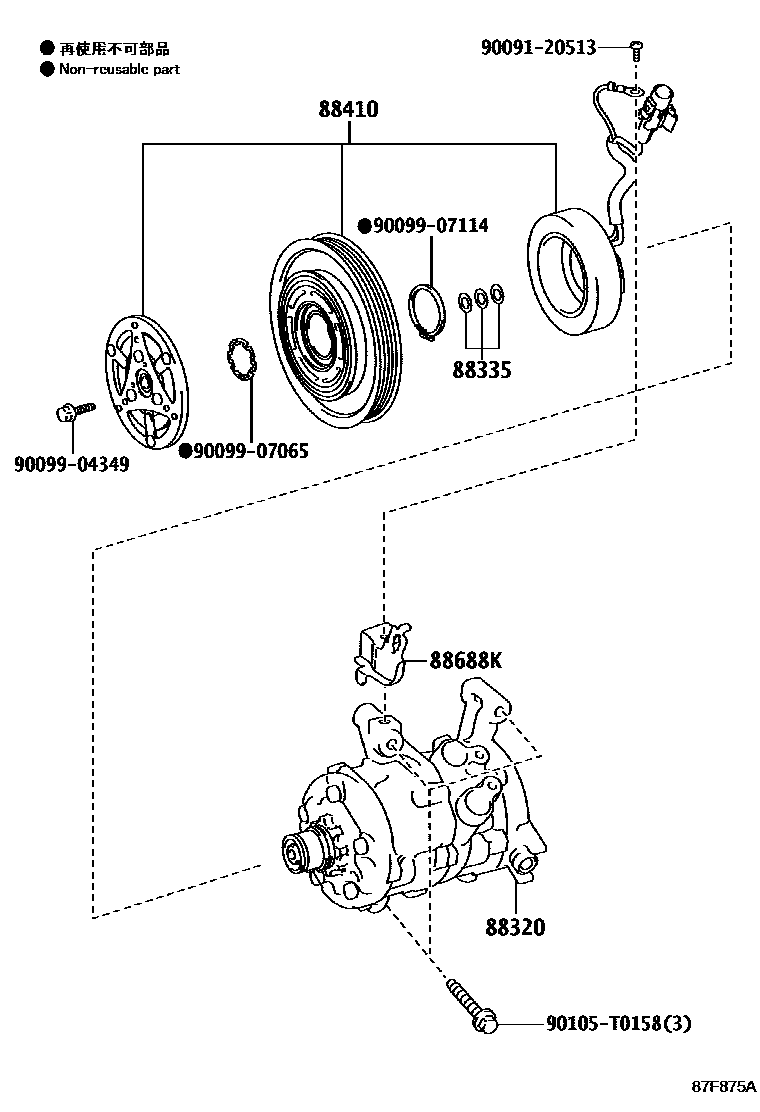

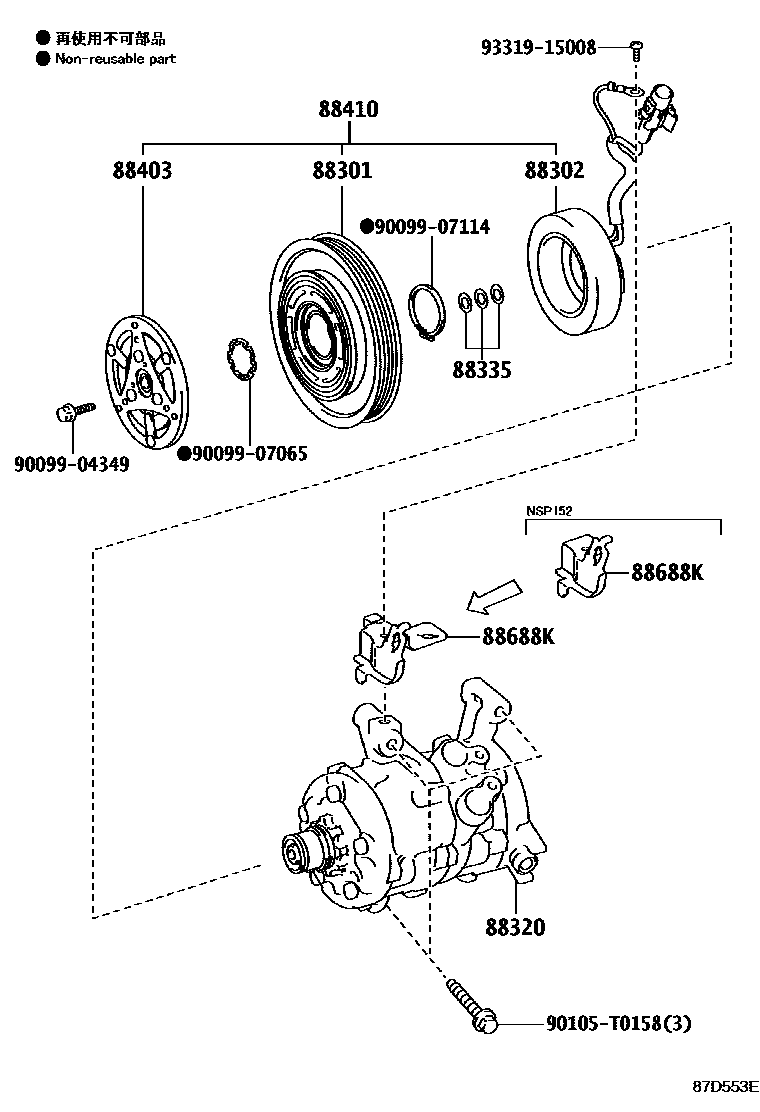

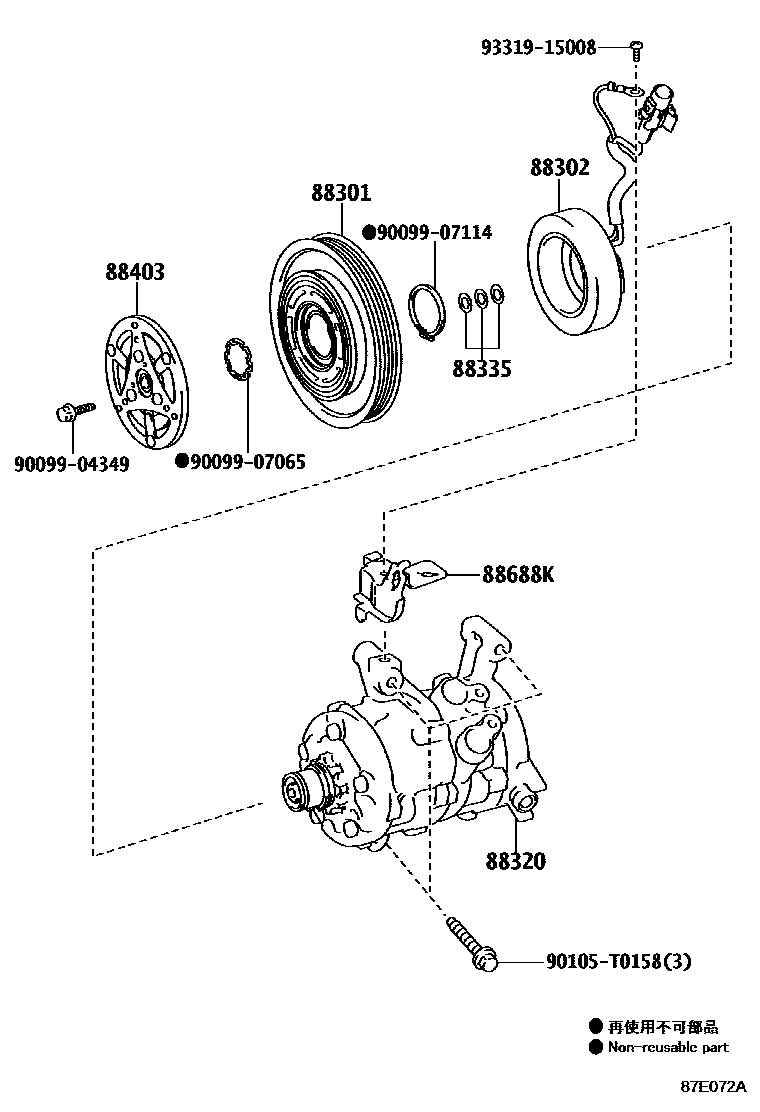

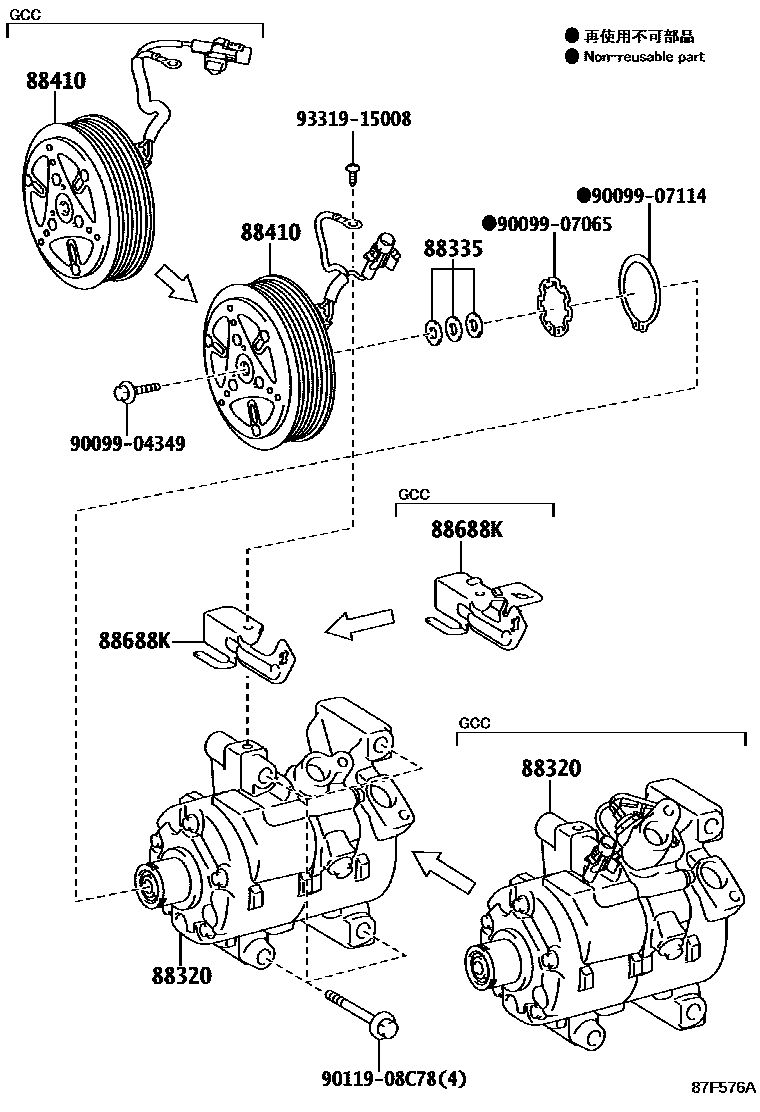

Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 6 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-0D160 · 88412-0D170 · 88412-0D230 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-0D110 · 88411-0D130 · 88411-0D240 |
| 88320 | Cooler Compressor Assembly | 88320-0D060 · 88320-0D070 · 88320-0D090 · 88320-0D130 · 88320-0D140 · 88320-0D150 · 88320-0D160 |
| 88335 | Overhaul gasket assembly | 88335-14020 · 88335-30420 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-0K080 |
| 88410 | Magnetic Clutch Assembly | 88410-0D280 · 88410-0D290 · 88410-0D310 · 88410-0D360 · 88410-0D370 · 88410-0D380 · 88410-0D390 · 88410-0D420 · 88410-0D440 |
| 88688K | Cooler compressor bracket | 88849-0D010 · 88849-0D020 · 88849-0D050 · 88849-0D070 · 88849-0D090 · 88849-0D110 |
