Toyota YARIS 后清洗器 — Figure 8504

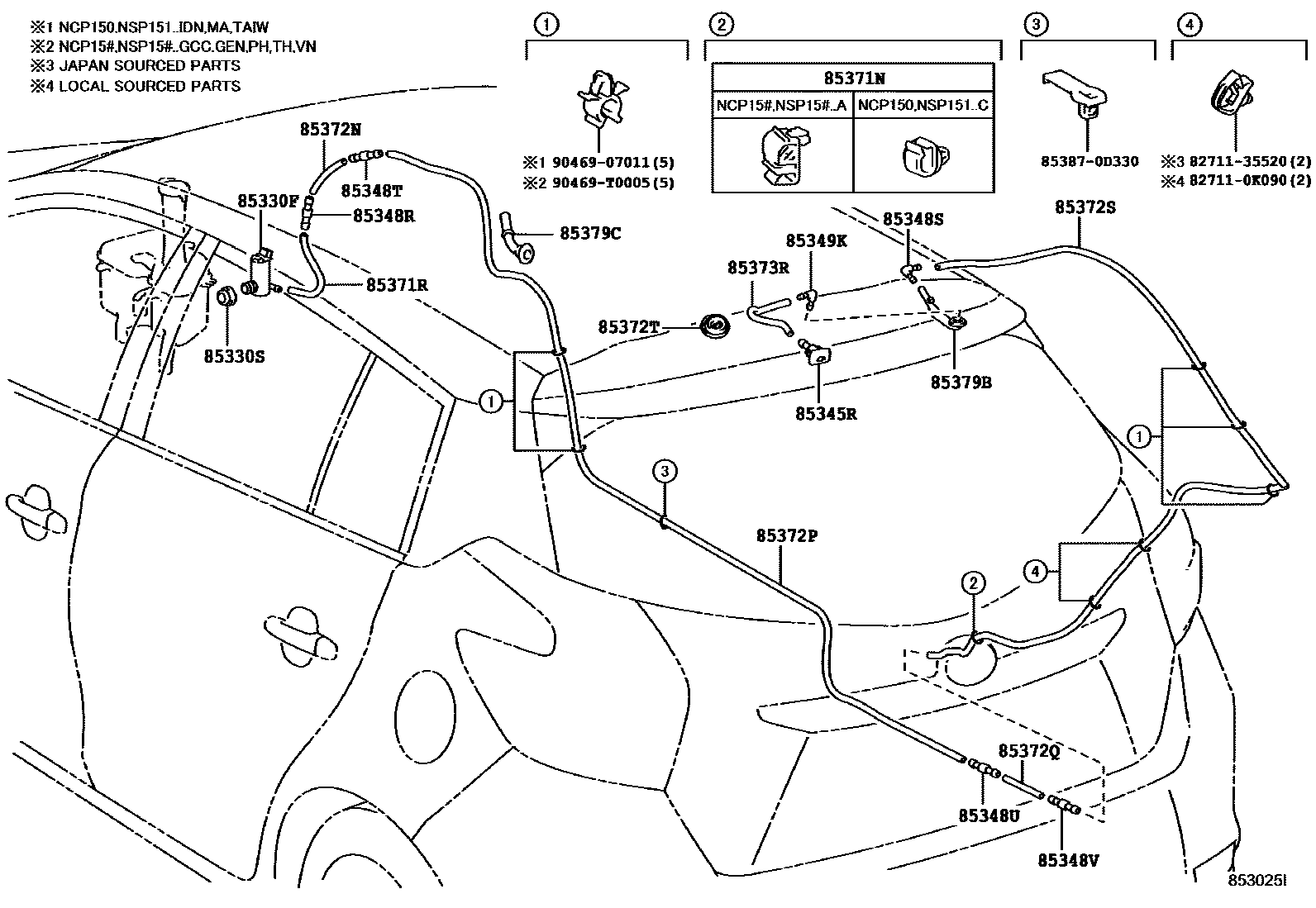

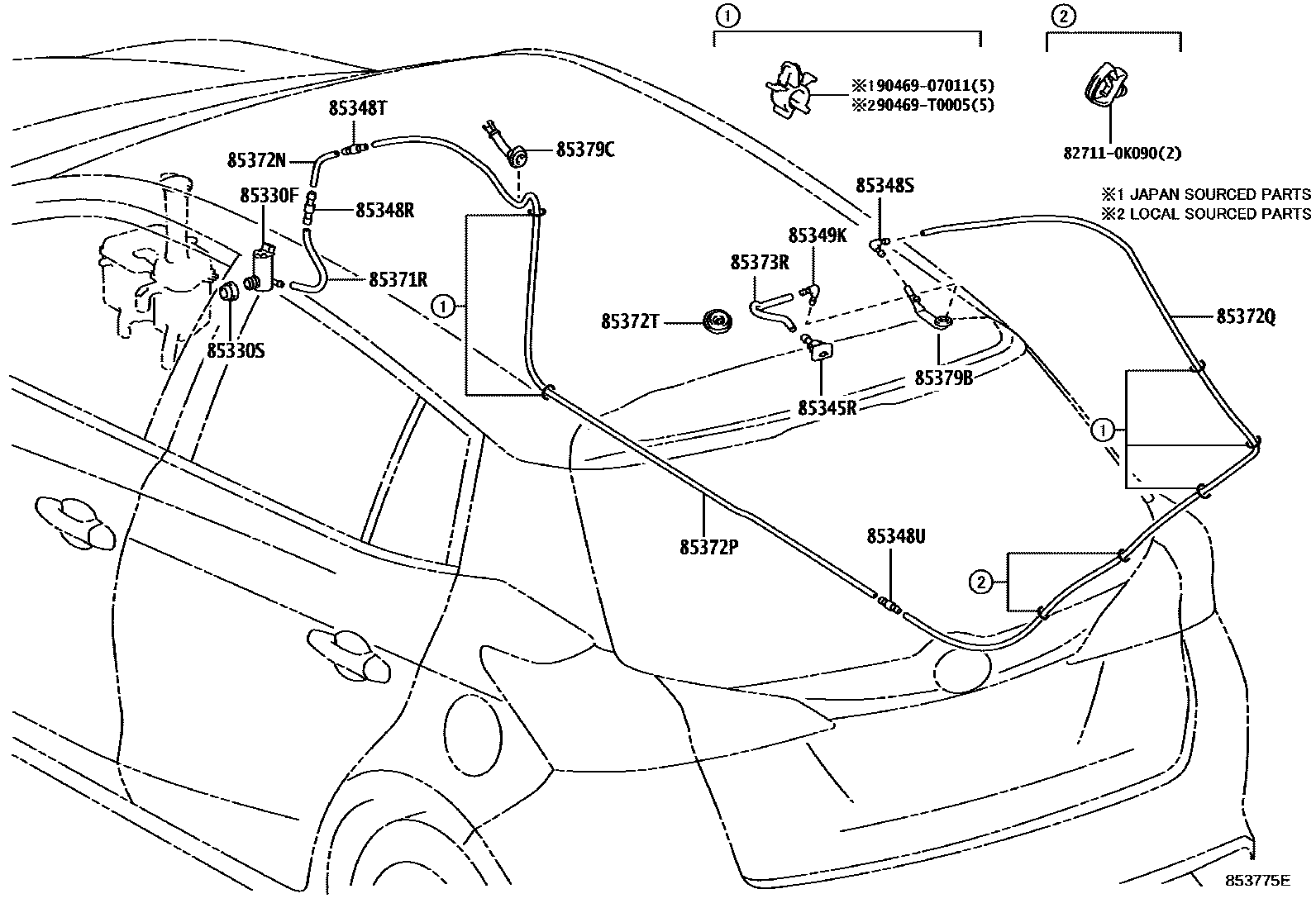

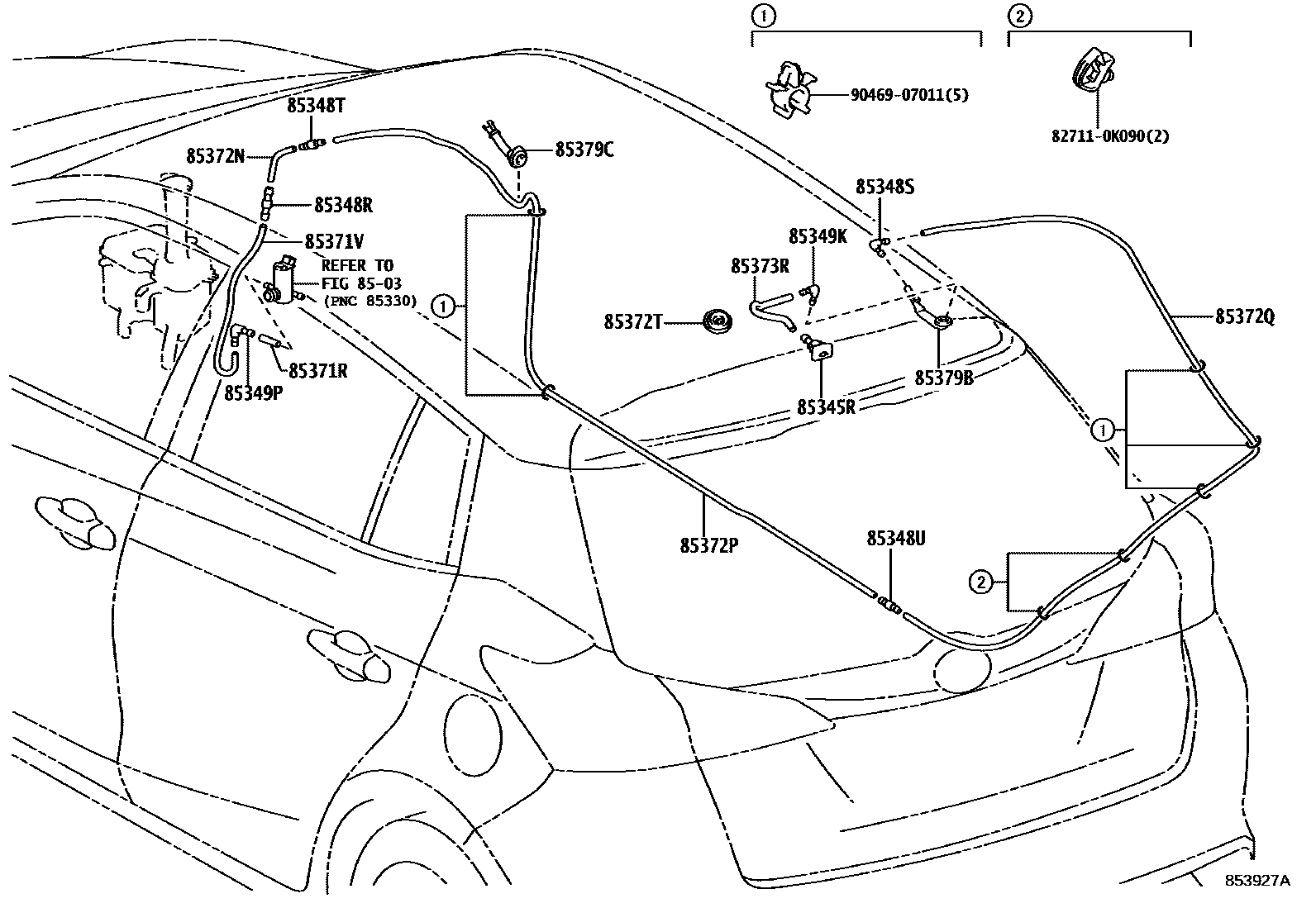

Toyota YARIS EPC diagram 8504, 后清洗器, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85330F | Rear washer motor and pump assembly | 85330-0D170 · 85330-0D171 · 85330-0D201 · 85330-0D202 |
| 85330S | Rear washer fluid tank bushing | 90068-32006 · 90099-32089 |
| 85345R | Rear washer nozzle | 85391-0D060 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 · 85375-02330 · 85375-0E140 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 · 85377-0D040 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 · 85375-02330 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 · 85375-02330 |
| 85348V | No. 4 rear washer hose connector | 85349-89122 · 85375-02330 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 · 85377-0D040 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 |
| 85371N | Rear washer hose clamp | 85371-52120 · 85371-52130 |
| 85371R | Rear washer hose (from motor to connector) | 90068-59110 · 90068-59129 · 90068-59137 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90068-33107 · 90068-33120 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90068-59127 · 90068-59135 · 90068-59154 · 90068-59165 |
| 85372Q | No. 3 rear washer hose (from connector to connector) | 90068-33107 · 90068-33120 · 90068-59164 · 90068-59168 |
| 85372S | No. 4 rear washer hose (from connector to connector) | 90068-59100 · 90068-59136 |
| 85372T | Cleaner seal | 85372-20020 · 85373-0D090 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33256 |
| 85379B | Cleaner seal A | 85373-0D080 · 85373-12030 |
| 85379C | No. 1 rear washer hose seal | 85379-52530 |
