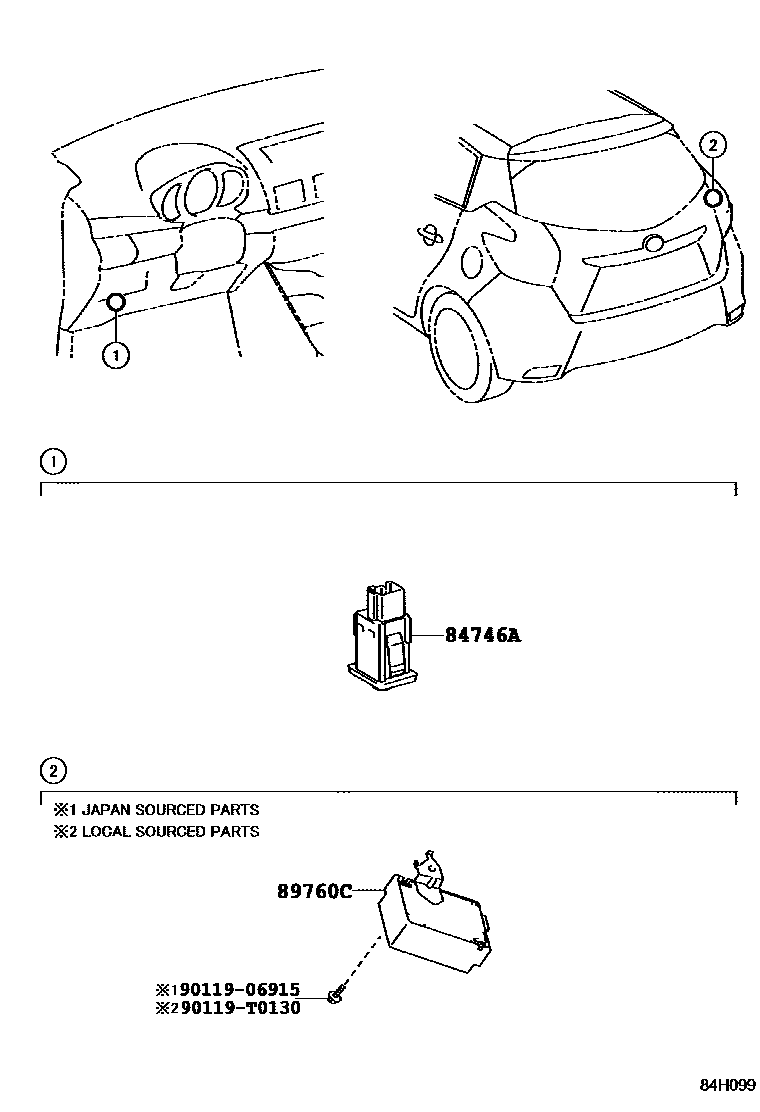

Toyota YARIS 轮胎压力警告系统 — Figure 8435
Toyota YARIS EPC diagram 8435, 轮胎压力警告系统, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84746A | Tire pressure warning switch No. 1 | 84746-0D020 · 84746-50010 |
| 89760C | Tire pressure monitoring receiver assembly | 89760-52060 · 89760-52100 · 89760-52101 · 89760-52130 |
