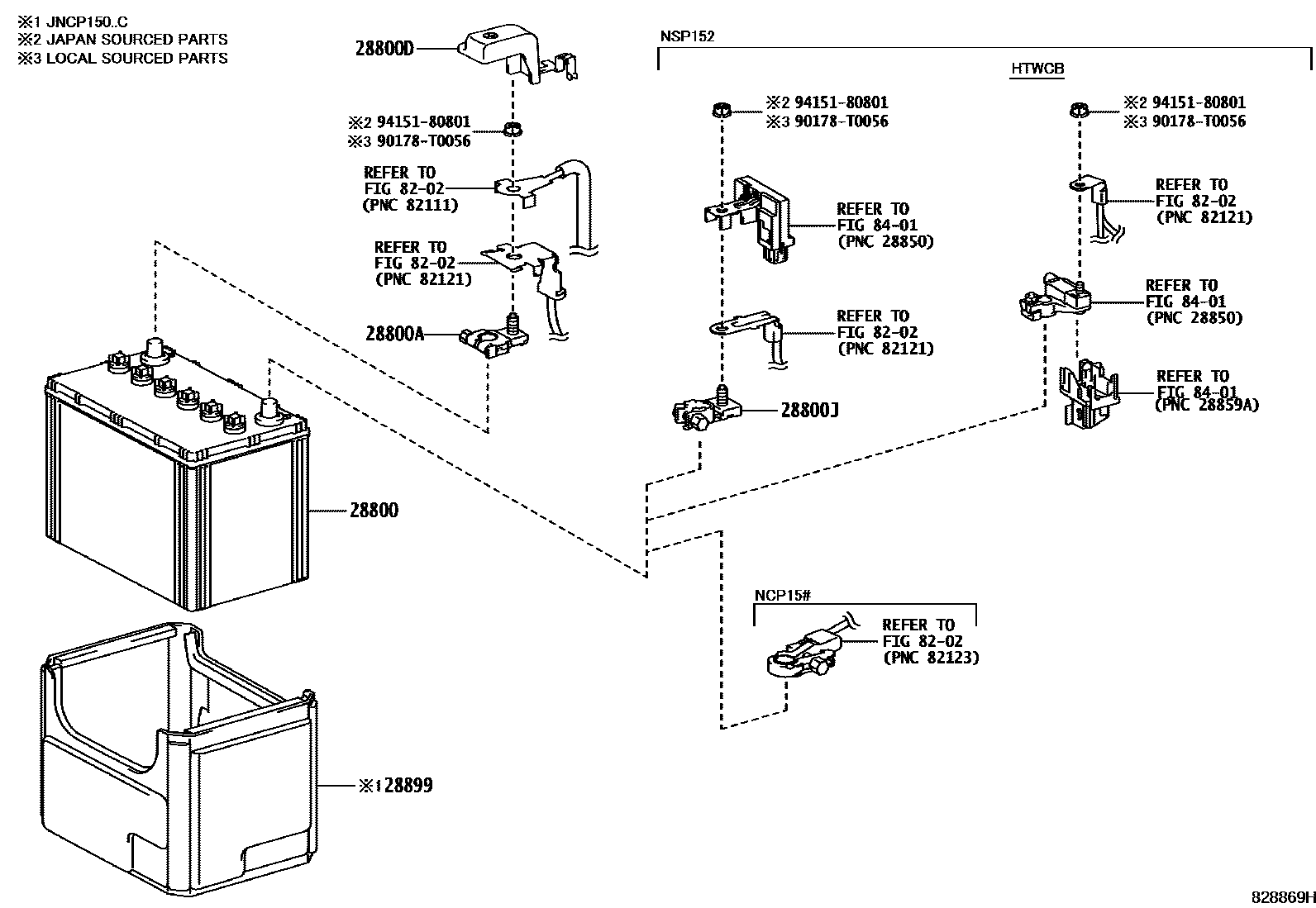

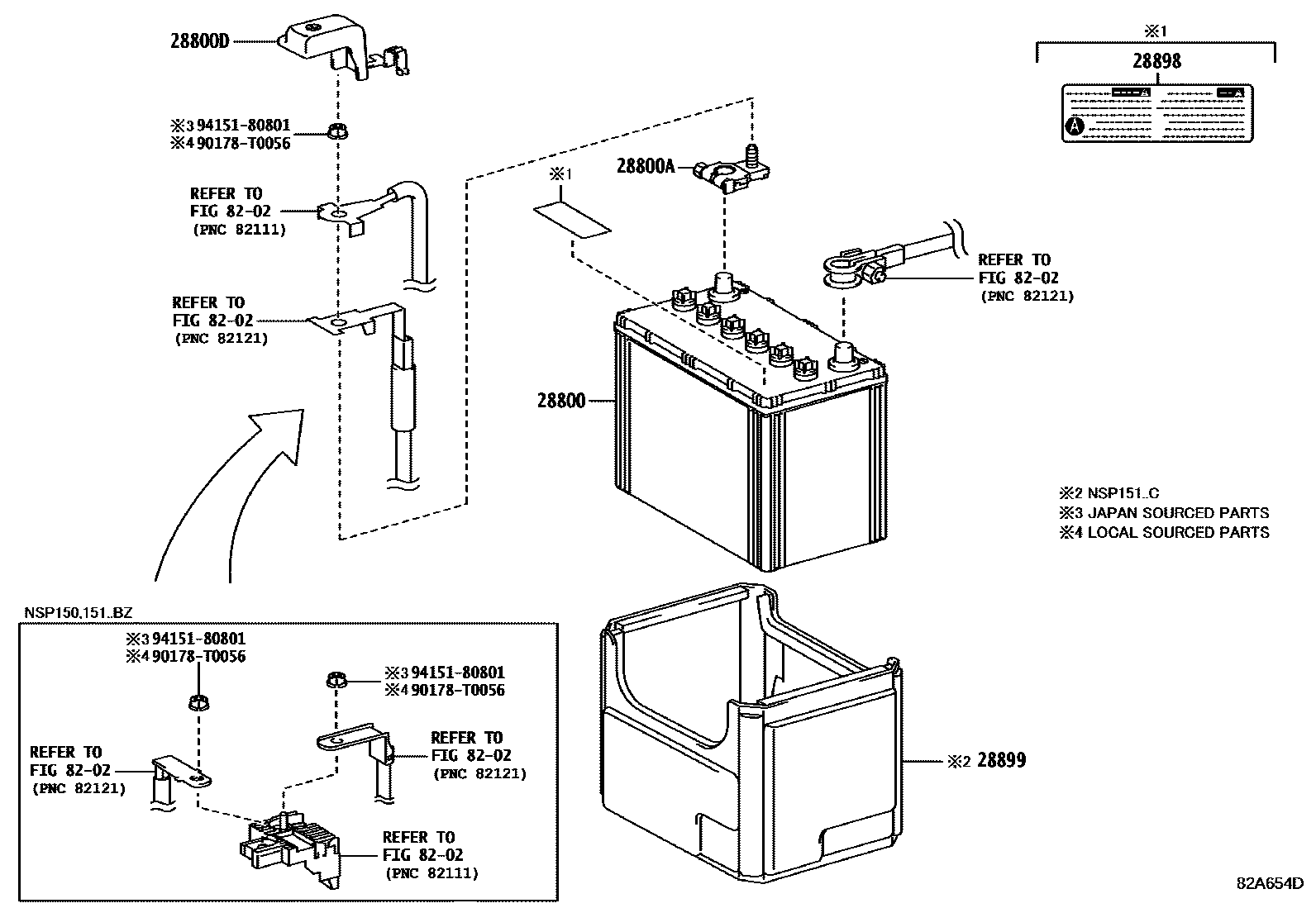

Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201
Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0M060 · 28800-0M061 · 28800-0M150 · 28800-0M151 · 28800-0M160 · 28800-0M190 · 28800-0M200 · 28800-0M210 · 28800-0M211 · 28800-0M212 · 28800-0Y140 · 28800-0Y150 · 28800-0Y151 · 28800-0Y161 · 28800-0Y162 · 28800-0Y280 · 28800-0Y290 |
| 28800A | battery positive terminal | 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82621-52160 · 82821-12490 |
| 28800J | battery negative terminal | 90982-06059 |
| 28898 | battery plates | 28897-36030 |
| 28899 | Battery insulation cover | 28899-0M020 · 28899-21020 |
