Toyota YARIS reflector — Figure 8115

Toyota YARIS EPC diagram 8115, reflector, with 1 images and 2 PNC and OE references.

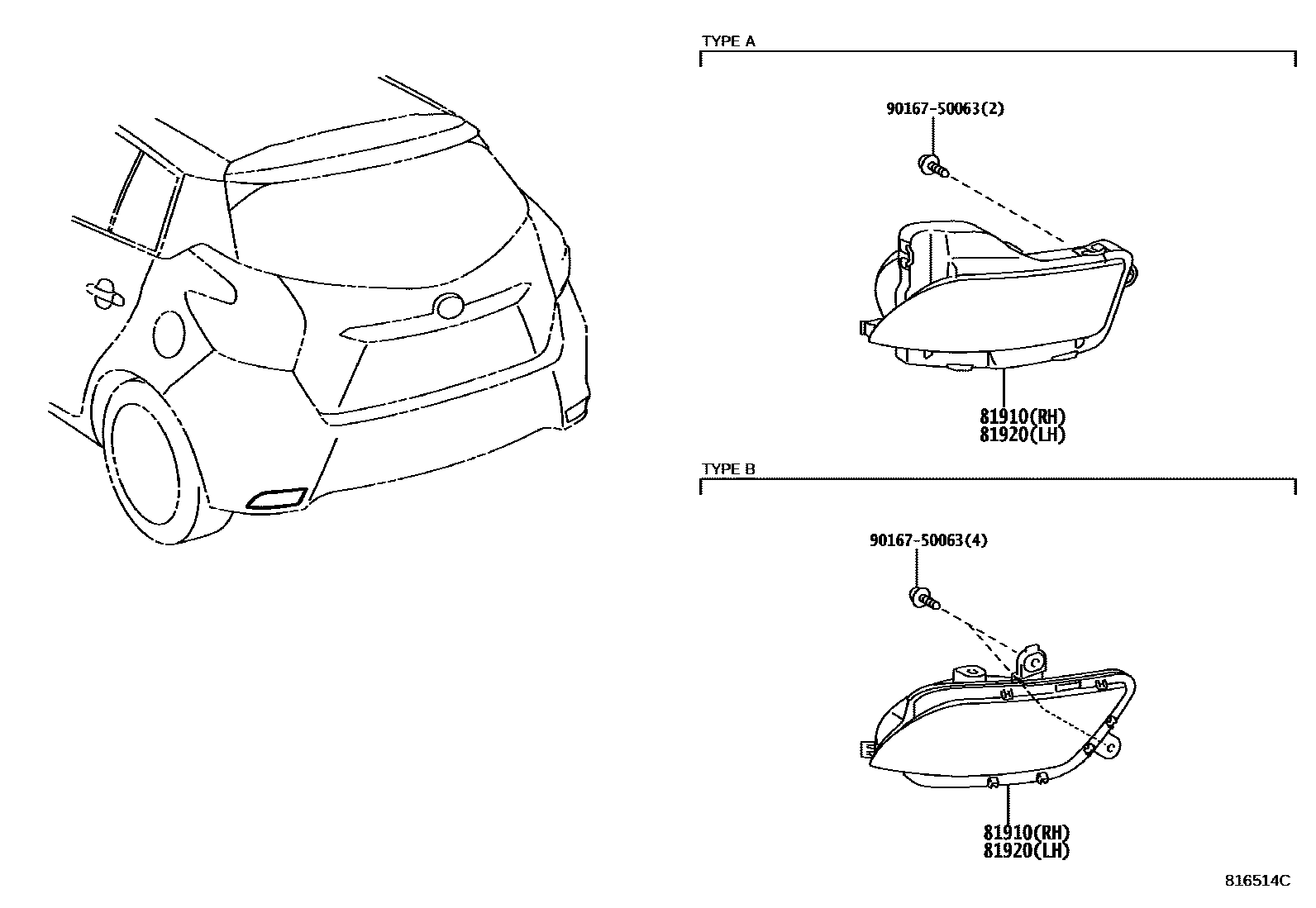

Toyota YARIS reflector EPC diagram — 816514C
reflector — 816514C (201310 – 999999)

PNC and OE references

PNCPart nameOE numbers
81910Right reflector assembly81480-0D040 · 81480-0D060 · 81580-0D120 · 81580-0D200
81920Left reflector assembly81490-0D040 · 81490-0D060 · 81590-0D120 · 81590-0D170
