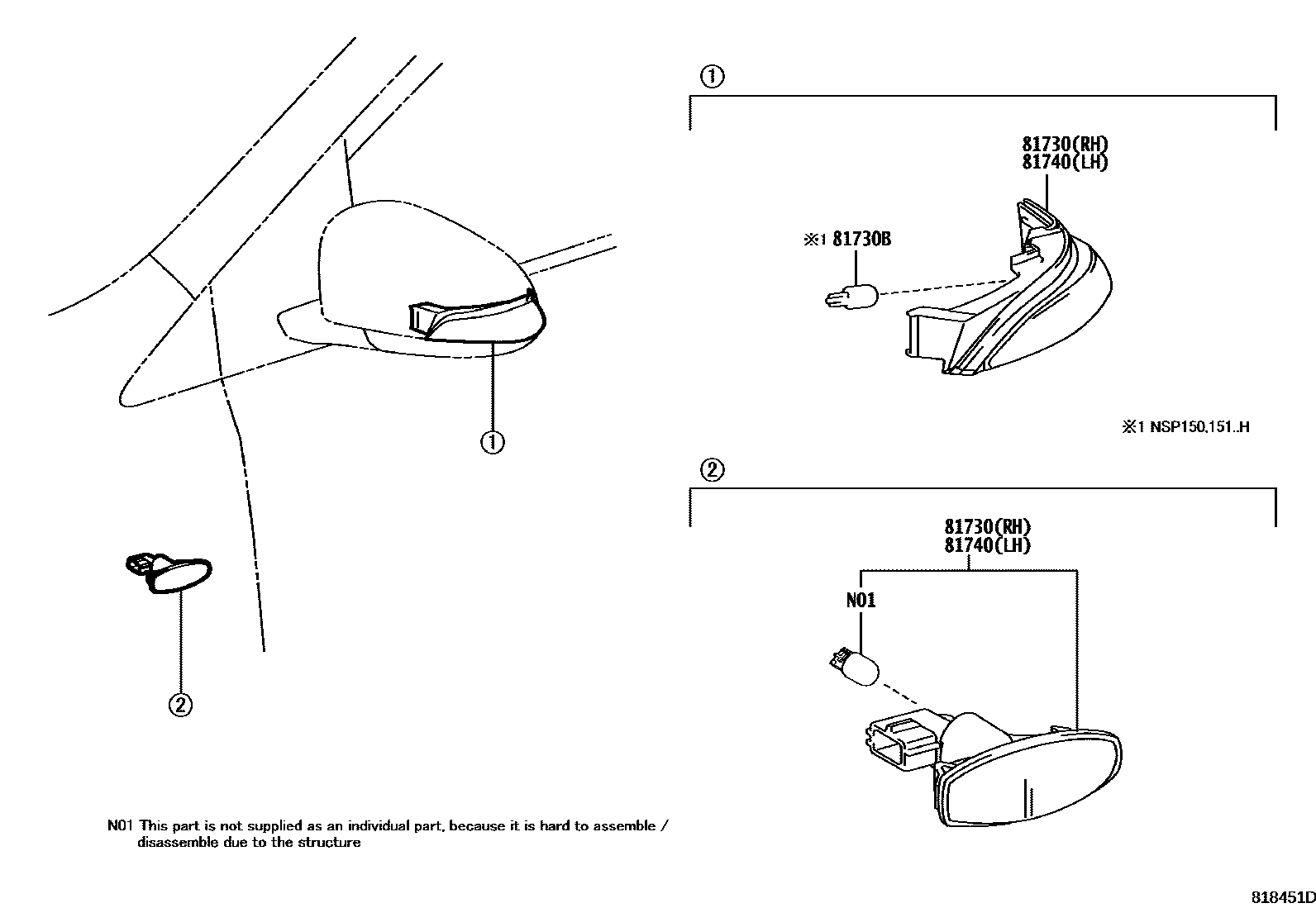

Toyota YARIS Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota YARIS EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-0D120 · 81730-0D121 · 81730-0D180 · 81730-52100 |
| 81730B | Bulb (for side turn signal lights) | 90981-WF011 |
| 81740 | Left side turn signal light assembly | 81730-0D120 · 81730-0D121 · 81740-0D180 · 81740-52050 |
