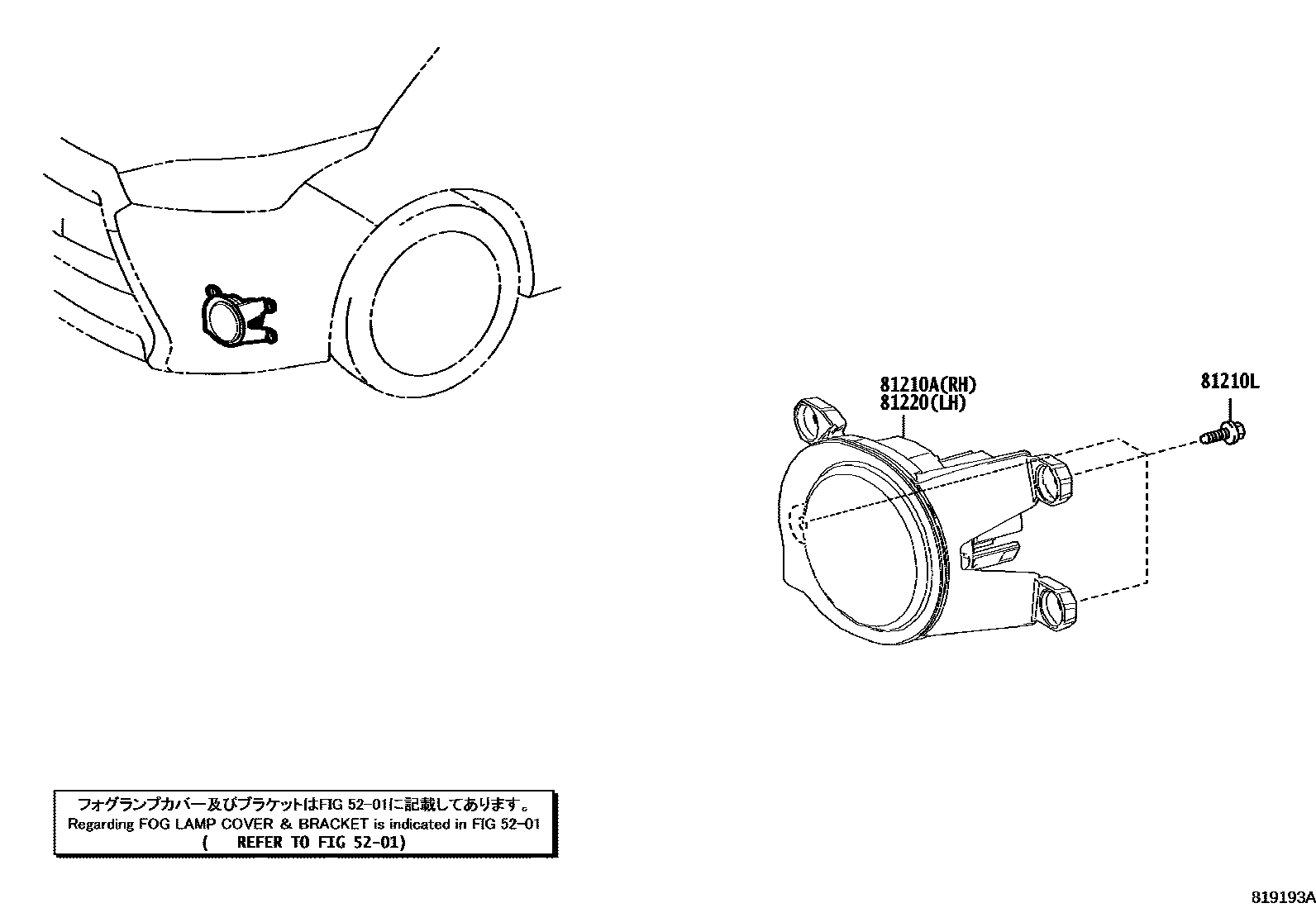

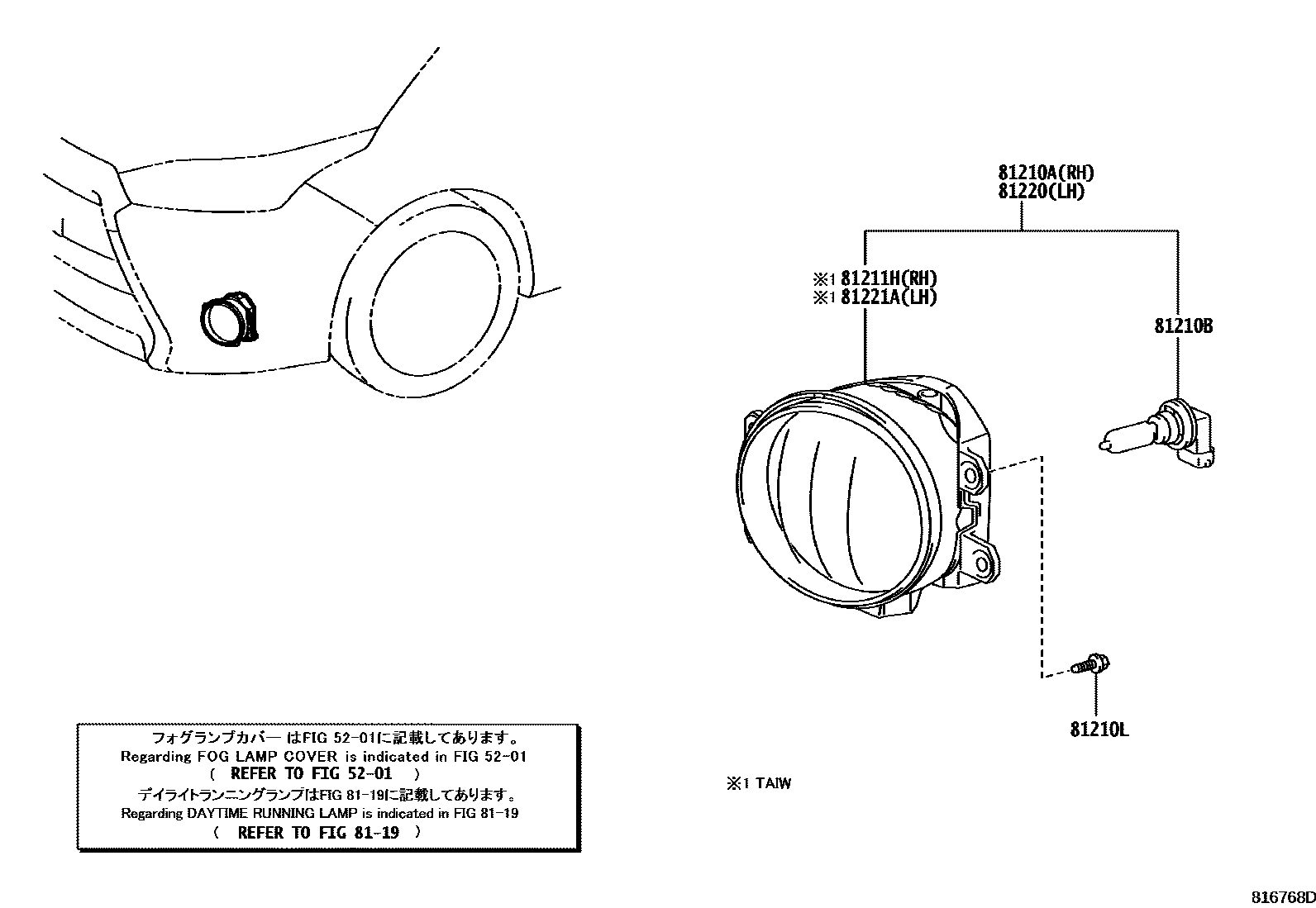

Toyota YARIS Fog Lamp — Figure 8102
Toyota YARIS EPC diagram 8102, Fog Lamp, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210A | Right fog light assembly | 81210-02220 · 81210-0D110 · 81210-0K130 · 81210-0M010 |
| 81210B | fog light bulb | 90981-13090 |
| 81210L | Screws (for front fog lights) | 90167-50063 |
| 81211H | Right fog light cover and body | 81211-0M010 |
| 81220 | Left fog light assembly | 81220-02150 · 81220-0D110 · 81220-0K130 · 81220-0M010 |
| 81221A | Left fog light cover and body | 81221-0M010 |
