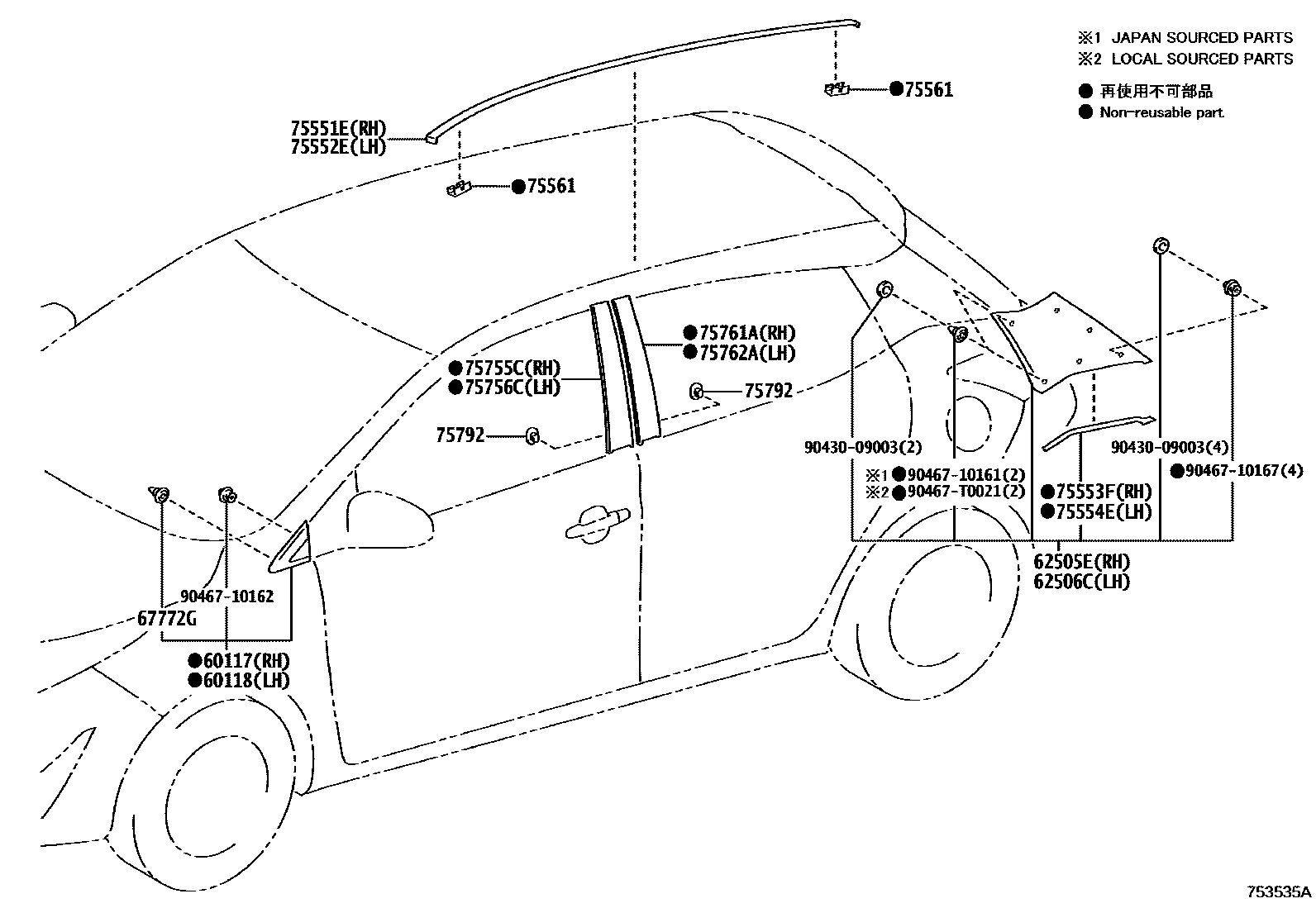

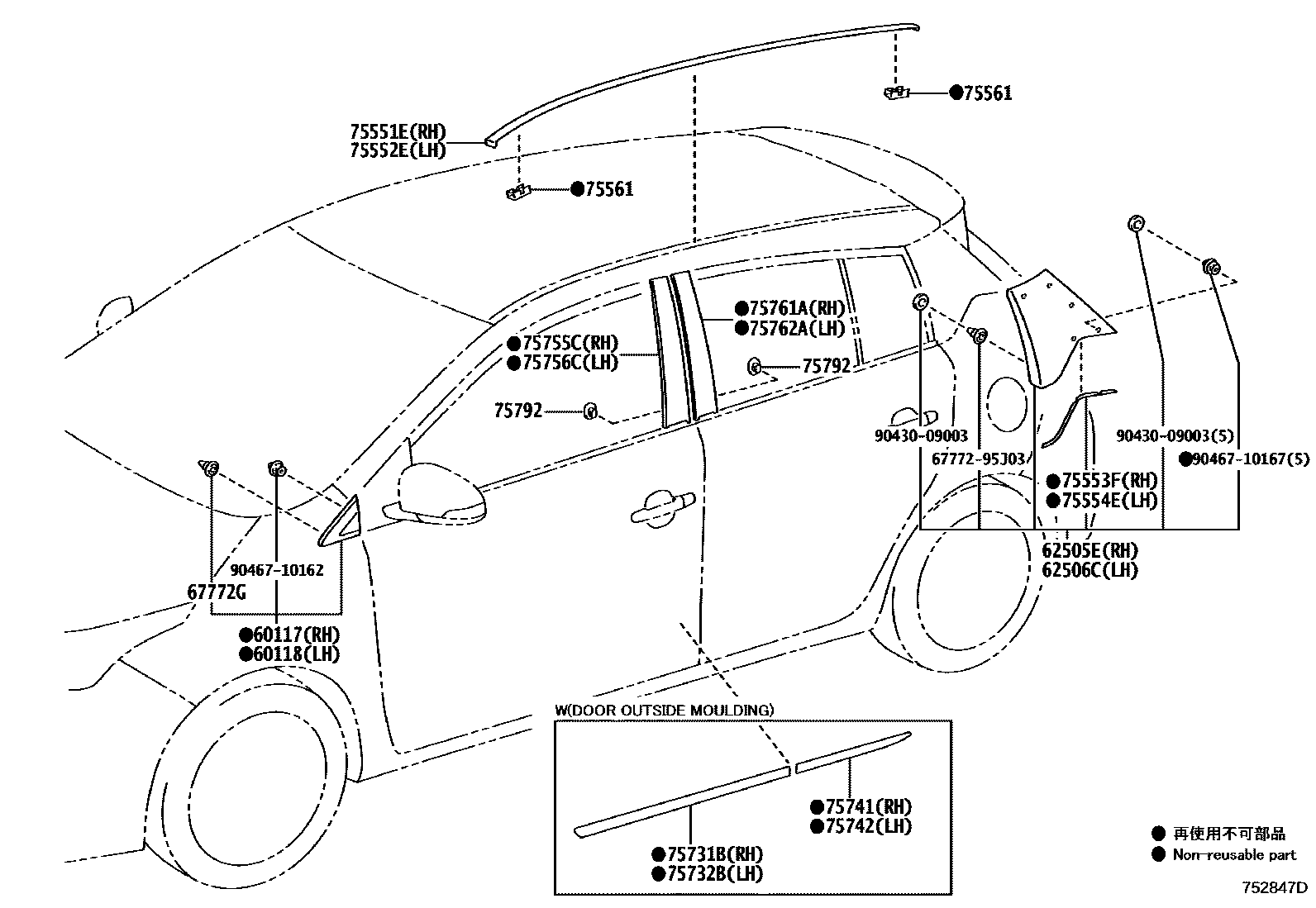

Toyota YARIS 侧防护条 — Figure 7503
Toyota YARIS EPC diagram 7503, 侧防护条, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-0D130 · 60117-0D150 · 60117-0D170 · 60117-0D230 · 60117-0D240 · 60117-0D250 · 60117-0D260 · 60117-0D280 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-0D130 · 60118-0D150 · 60118-0D170 · 60118-0D230 · 60118-0D240 · 60118-0D250 · 60118-0D260 · 60118-0D280 |
| 62505E | Right corner window pillar cover sub-assembly | 62505-0D030 · 62505-0D050 · 62505-0D080 · 62505-0D160 · 62505-0D161 · 62505-0D170 · 62505-0D180 |
| 62506C | Left corner window pillar cover sub-assembly | 62506-0D030 · 62506-0D050 · 62506-0D080 · 62506-0D160 · 62506-0D161 · 62506-0D170 · 62506-0D180 |
| 67772G | front pillar cover | 67772-95J03 |
| 75551E | Drainage groove side decorative strip on the right side of the roof | 75551-0D170 · 75551-0D171 · 75551-0D210 · 75551-0D230 · 75551-0D360 |
| 75552E | Drainage groove side decorative strip on the left side of the roof | 75552-0D120 · 75552-0D121 · 75552-0D160 · 75552-0D180 · 75552-0D320 |
| 75553F | Right side enclosure decorative panel protective strip | 75553-0D010 · 75553-0D030 · 75553-0D040 · 75553-0D060 · 75553-0D070 · 75553-0D080 |
| 75554E | Left side enclosure decorative panel protective strip | 75554-0D010 · 75554-0D030 · 75554-0D040 · 75554-0D060 · 75554-0D070 · 75554-0D080 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75731B | Right front door outer protective strip | 75731-0D918 |
| 75732B | Left front door outer protective strip | 75732-0D972 |
| 75741 | Right rear door outer protective strip | 75741-0D918 |
| 75742 | Left rear door outer protective strip | 75742-0D918 |
| 75755C | Right front door window frame rear protective strip | 75755-0D040 · 75755-0D060 · 75755-0D070 · 75755-0D100 |
| 75756C | Left front door window frame rear protective strip | 75756-0D040 · 75756-0D060 · 75756-0D070 · 75756-0D100 |
| 75761A | Right rear door window frame front protective strip | 75761-0D020 · 75761-0D040 · 75761-0D050 · 75761-0D070 |
| 75762A | Left rear door window frame front protective strip | 75762-0D020 · 75762-0D040 · 75762-0D050 · 75762-0D070 |
| 75792 | Car door window frame protective strip clip | 75792-0D010 · 75792-0D020 · 75792-0D040 · 75792-47010 |
