Toyota YARIS 背门锁和背门把手 — Figure 6709

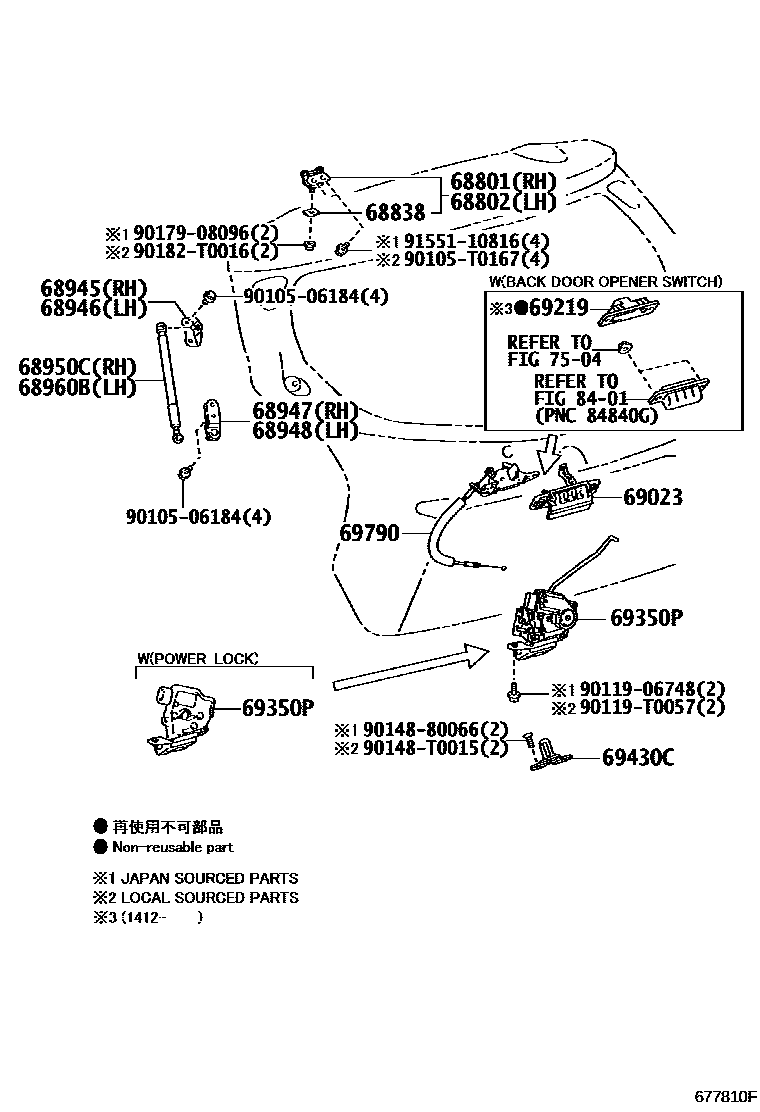

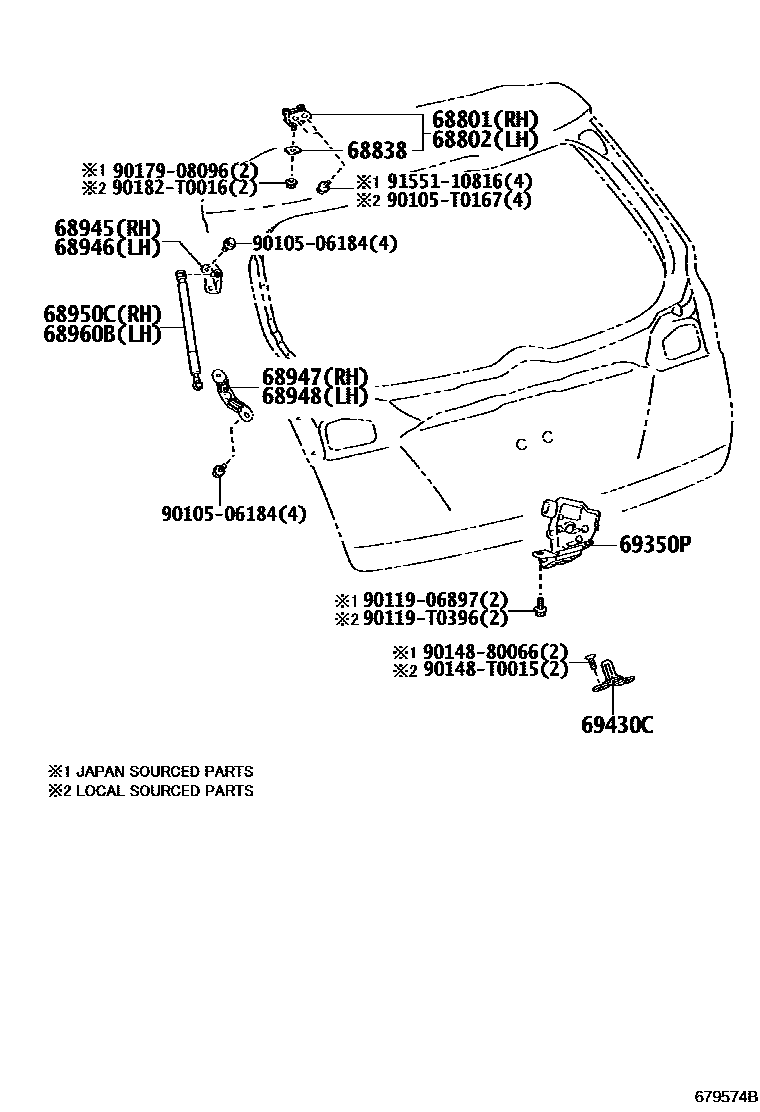

Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801 | Back door upper right hinge sub-assembly | 68801-0D150 · 68801-0D180 · 68801-0D230 · 68801-0D280 |
| 68802 | Back door upper left hinge sub-assembly | 68801-0D150 · 68801-0D180 · 68801-0D230 · 68801-0D280 |
| 68838 | Back door hinge No. 1 gasket | 68838-0D110 · 68838-0D120 · 68838-0D130 · 68838-0D240 · 68838-0D310 · 68838-0D320 · 68838-0D330 |
| 68945 | Back door right damping stay upper bracket | 68945-0D050 · 68945-0D070 · 68945-0D080 · 68945-0D130 |
| 68946 | Rear door left damping strut upper bracket | 68945-0D050 · 68945-0D070 · 68945-0D080 · 68945-0D130 |
| 68947 | Back door right damping strut lower bracket | 68947-0D010 · 68947-0D020 · 68947-0D040 · 68947-0D070 · 68947-0D080 · 68947-0D090 · 68947-0D100 |
| 68948 | Rear door left damping strut lower bracket | 68947-0D010 · 68947-0D020 · 68947-0D040 · 68947-0D070 · 68947-0D080 · 68947-0D090 · 68947-0D100 |
| 68950C | Back door right support rod assembly | 68950-0D090 · 68950-0D190 · 68950-0D250 |
| 68960B | Back door left support rod assembly | 68960-0D030 · 68960-0D150 · 68960-0D210 |
| 69023 | Rear door outer handle sub-assembly | 69023-0D010 |
| 69219 | Rear door outer handle seal | 69219-0D020 |
| 69350P | Back door with door control light switch lock assembly | 69350-0D170 · 69350-0D180 · 69350-0D200 · 69350-0D260 |
| 69430C | Back door lock assembly | 69430-0D090 · 69430-0D110 · 69430-52050 |
| 69790 | Rear door lock control assembly | 69790-0D010 |
