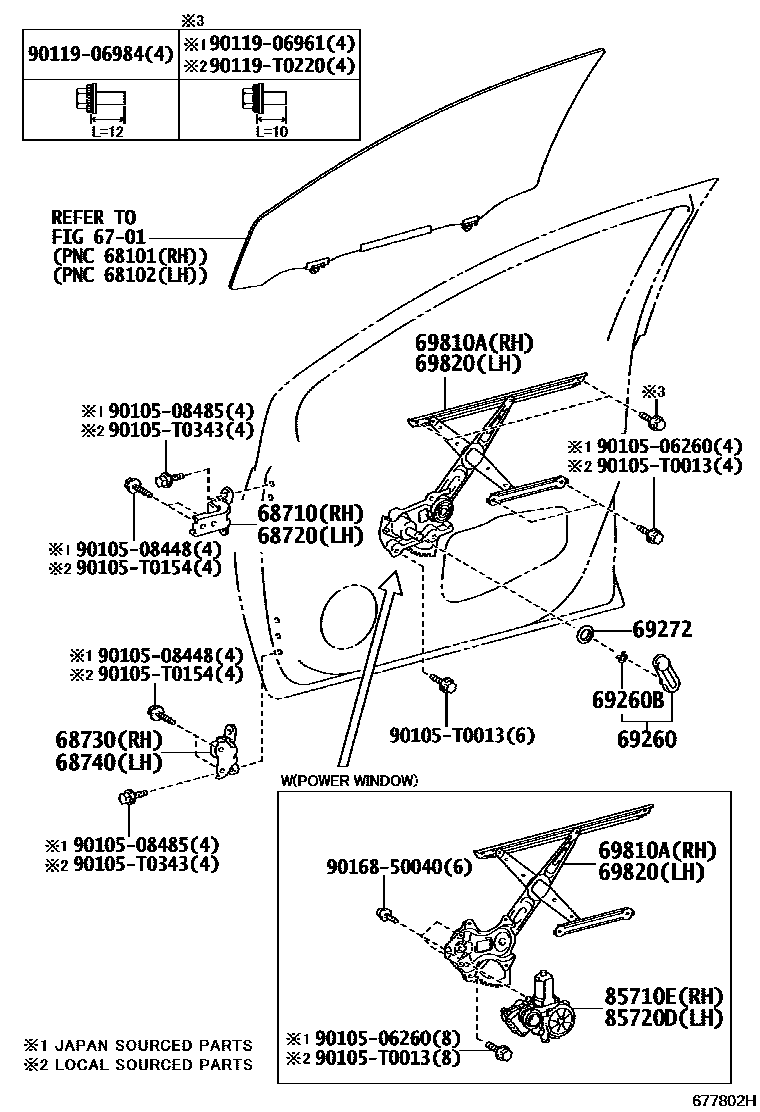

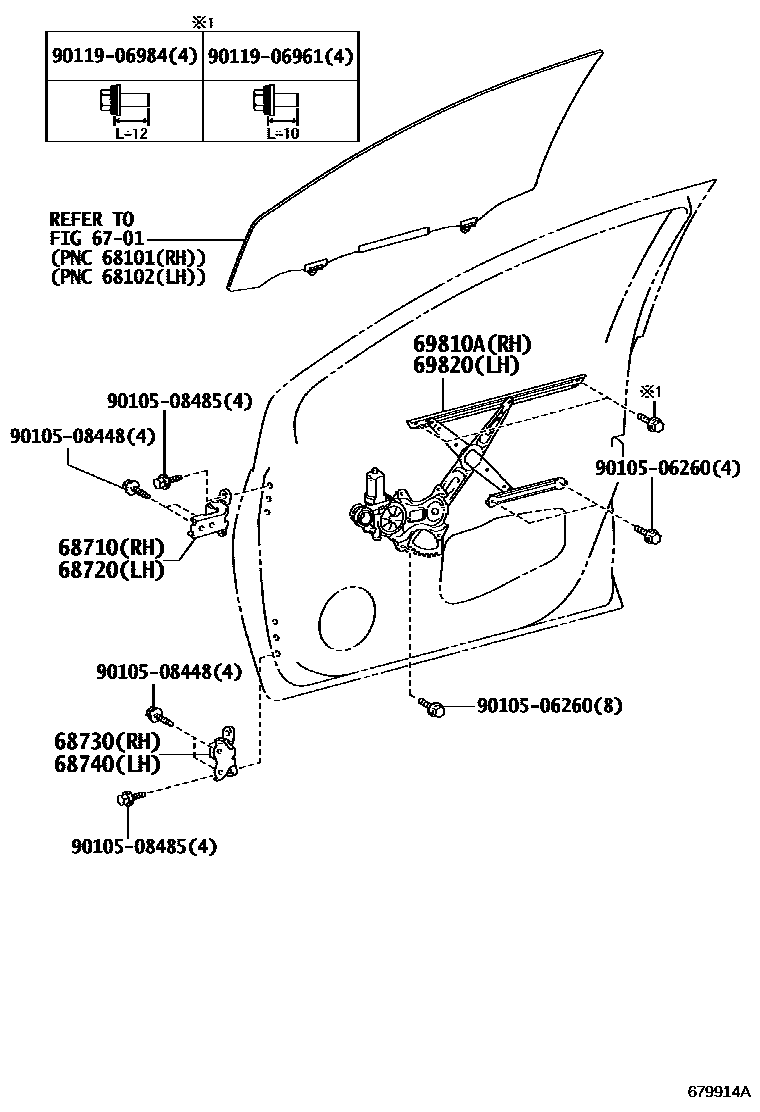

Toyota YARIS 前门车窗升降器和合页 — Figure 6704
Toyota YARIS EPC diagram 6704, 前门车窗升降器和合页, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-0D050 · 68710-0K020 · 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-0D050 · 68720-0K020 · 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-02100 · 68730-02110 |
| 68740 | Left front door lower hinge assembly | 68740-02100 · 68740-02110 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01274 |
| 69272 | Front door window lift inner handle plate | 69268-0D050 |
| 69810A | Right front door window lift assembly | 69801-0D180 · 69801-0D200 · 69801-0D220 · 69801-0D350 · 69801-0D351 · 69801-0K140 · 69801-0K170 · 69810-0D370 · 69810-0D510 · 69810-0D520 |
| 69820 | Left front door window lift assembly | 69802-0D190 · 69802-0D220 · 69802-0D330 · 69802-0D331 · 69802-0K140 · 69802-0K170 · 69820-0D380 · 69820-0D500 · 69820-0D560 |
| 85710E | Right power window lift motor assembly | 85710-0D201 · 85710-0D210 · 85710-0D211 · 85710-0D250 · 85710-0D261 · 85710-0D380 · 85710-0D560 · 85710-0D570 · 85710-0K010 · 85710-0K180 |
| 85720D | Left electric window lift motor assembly | 85720-0D241 · 85720-0D250 · 85720-0D251 · 85720-0D290 · 85720-0D320 · 85720-0D321 · 85720-0D570 · 85720-0D590 · 85720-0D600 · 85720-0K010 · 85720-0K180 |
