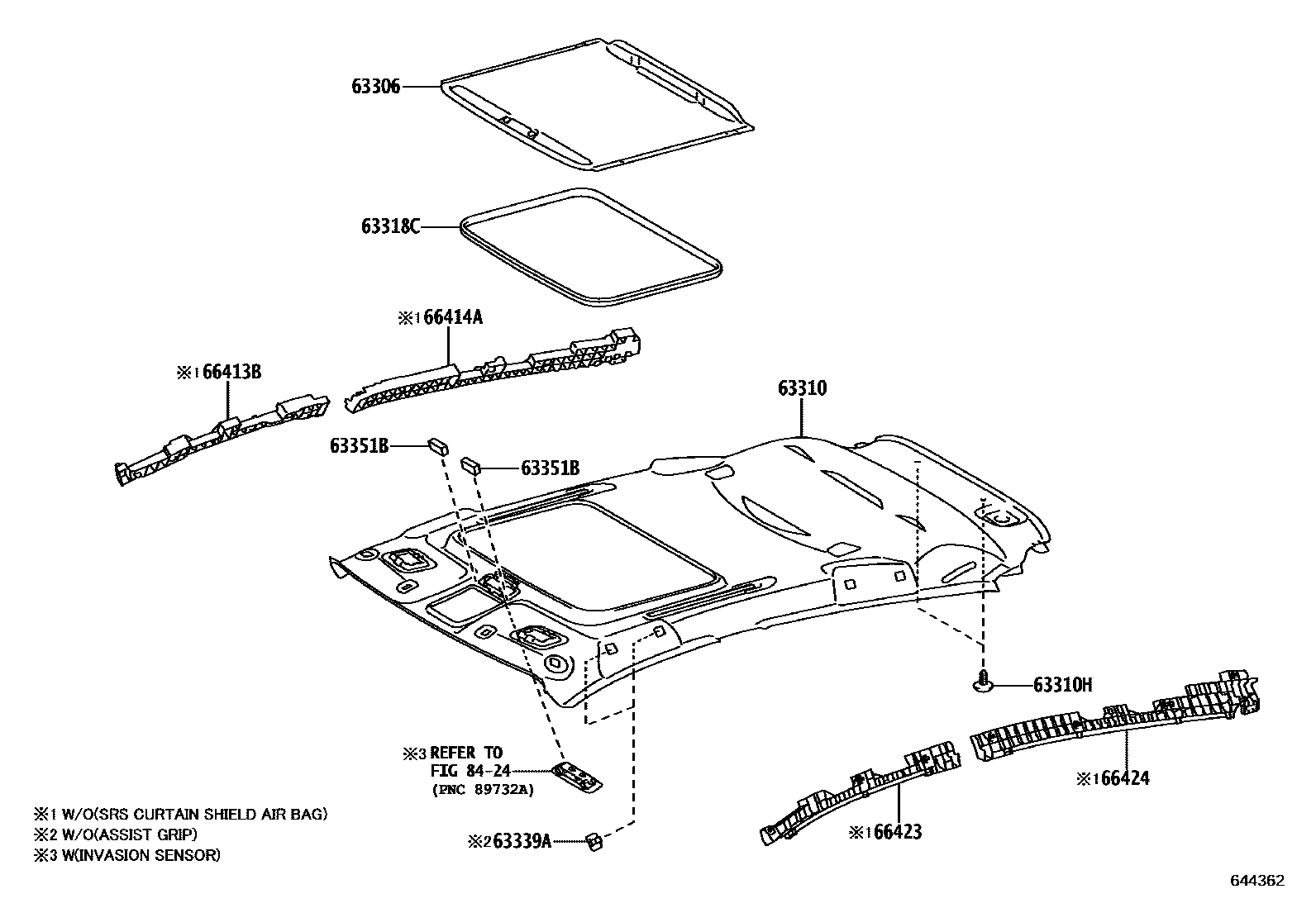

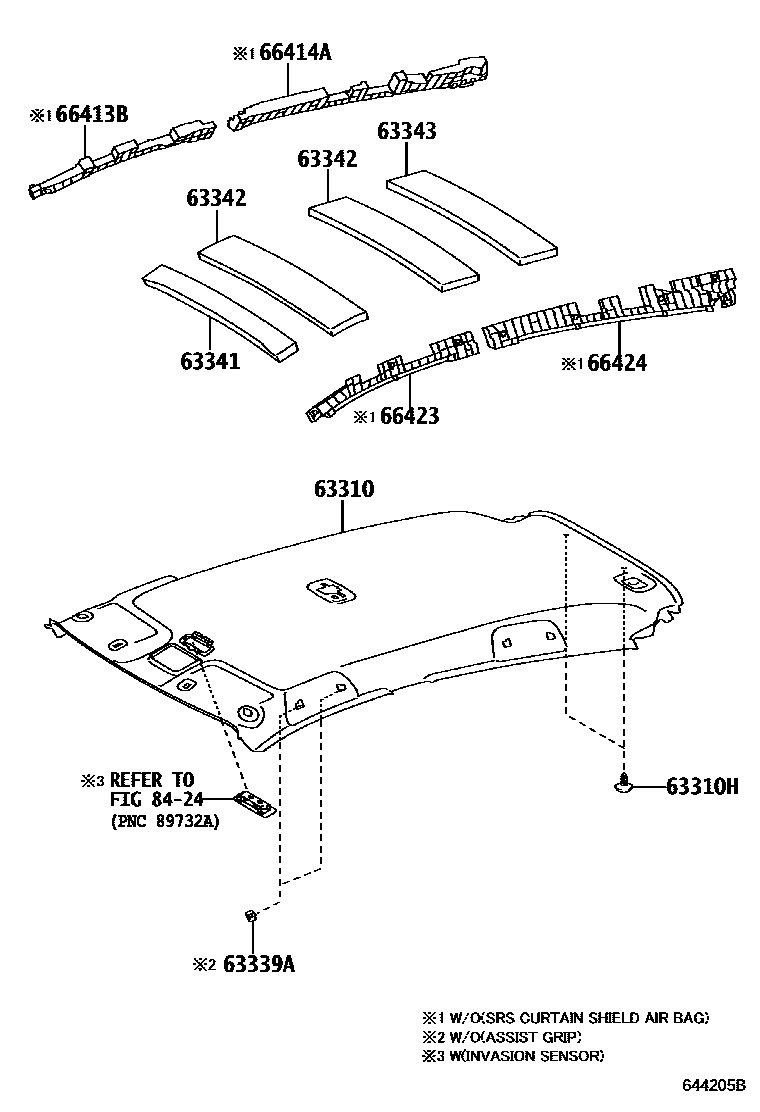

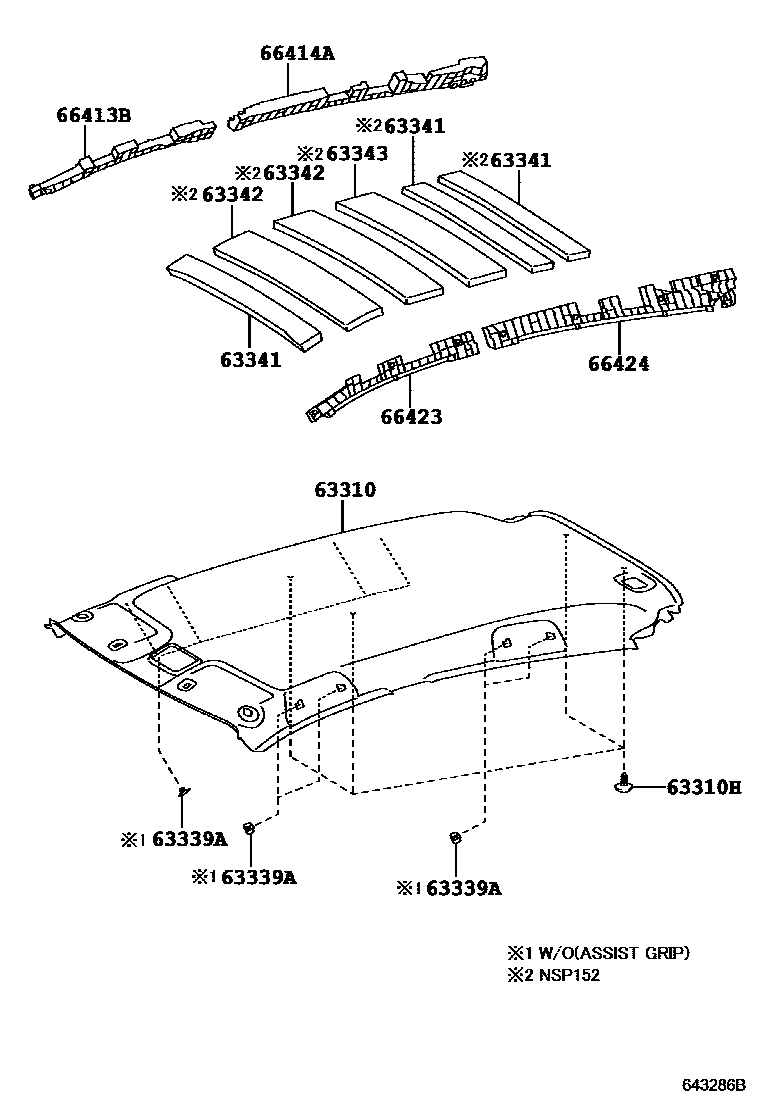

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-0D130 · 63341-0D200 · 63341-0D240 · 63341-0D370 · 63341-0D620 |
| 63342 | No. 2 roof muffler pad | 63343-0D190 · 63343-0D210 · 63343-0D230 · 63343-0D440 · 63343-0D470 · 63343-0D490 |
| 63343 | No. 3 roof muffler pad | 63343-0D190 · 63343-0D230 · 63343-0D490 |
| 63351B | roof lining pads | 63351-0D050 |
| 66413B | Right front longitudinal member spacer | 66413-0D230 · 66413-0D270 · 66413-0D300 · 66413-0D390 · 66413-0D400 · 66413-0D410 |
| 66414A | Right rear longitudinal member spacer | 66414-0D230 · 66414-0D290 · 66414-0D320 · 66414-0D420 · 66414-0D430 · 66414-0D440 |
| 66423 | Left front longitudinal member spacer | 66423-0D220 · 66423-0D260 · 66423-0D290 · 66423-0D350 · 66423-0D370 · 66423-0D380 |
| 66424 | Left rear longitudinal member spacer | 66424-0D230 · 66424-0D290 · 66424-0D320 · 66424-0D420 · 66424-0D430 · 66424-0D440 |
