Toyota YARIS 地板垫和地毯 — Figure 5804

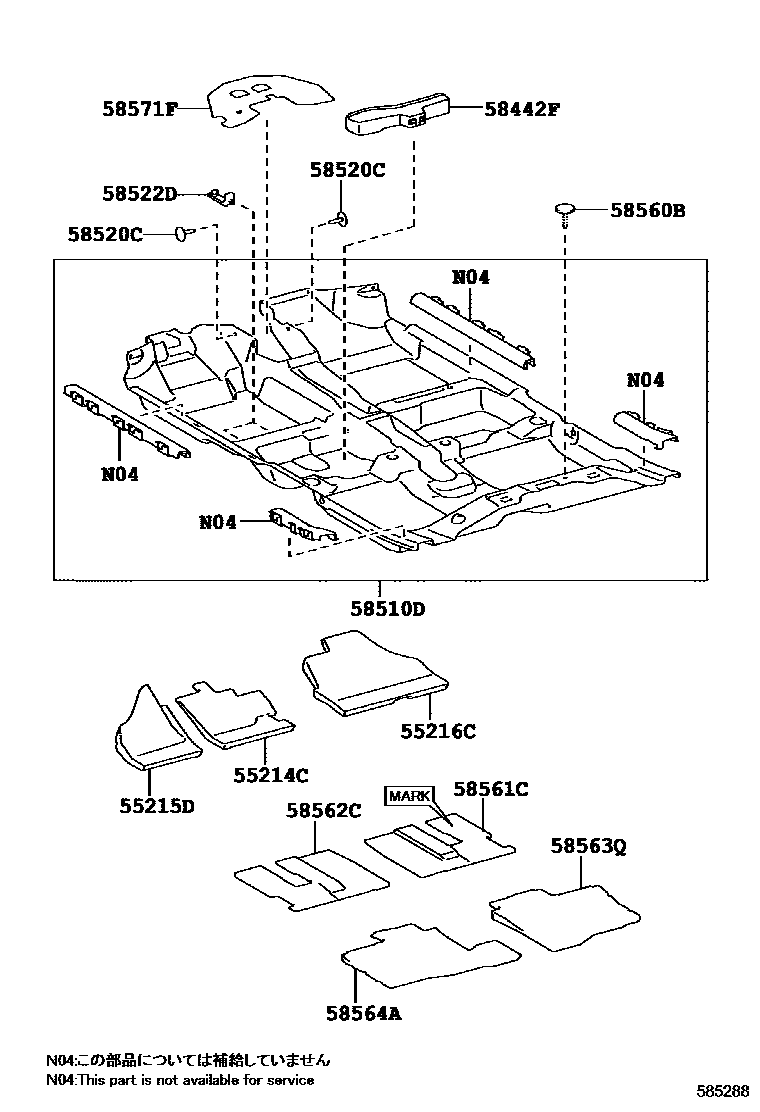

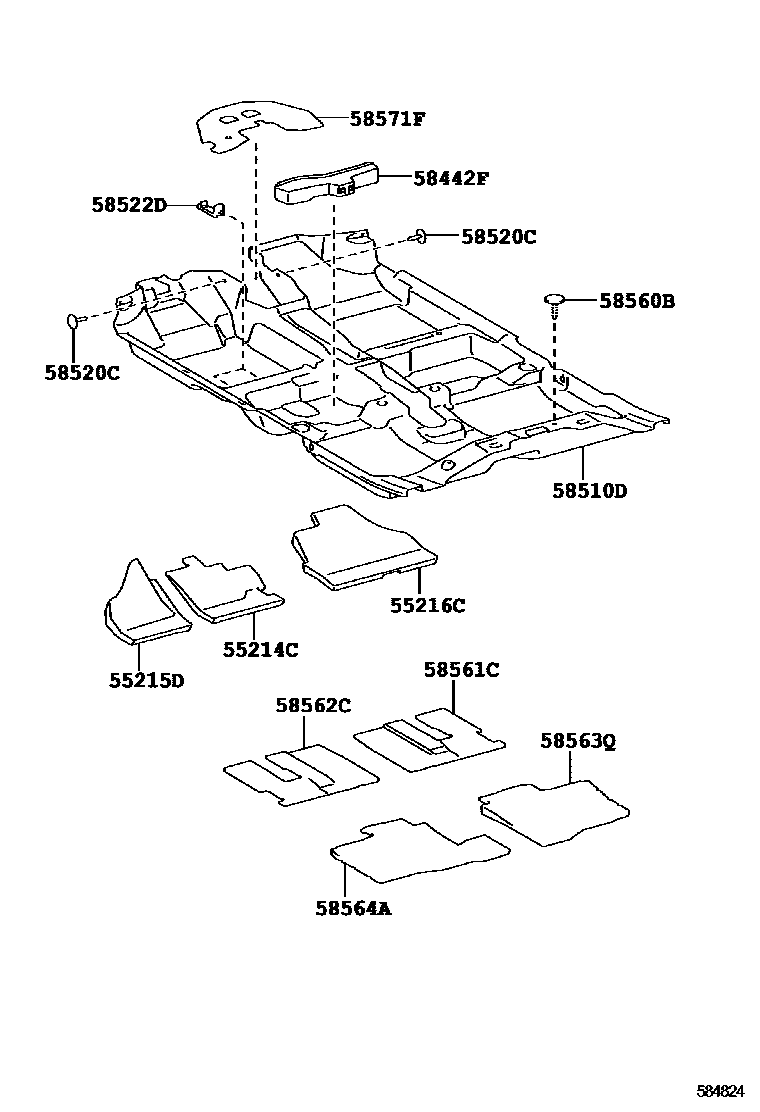

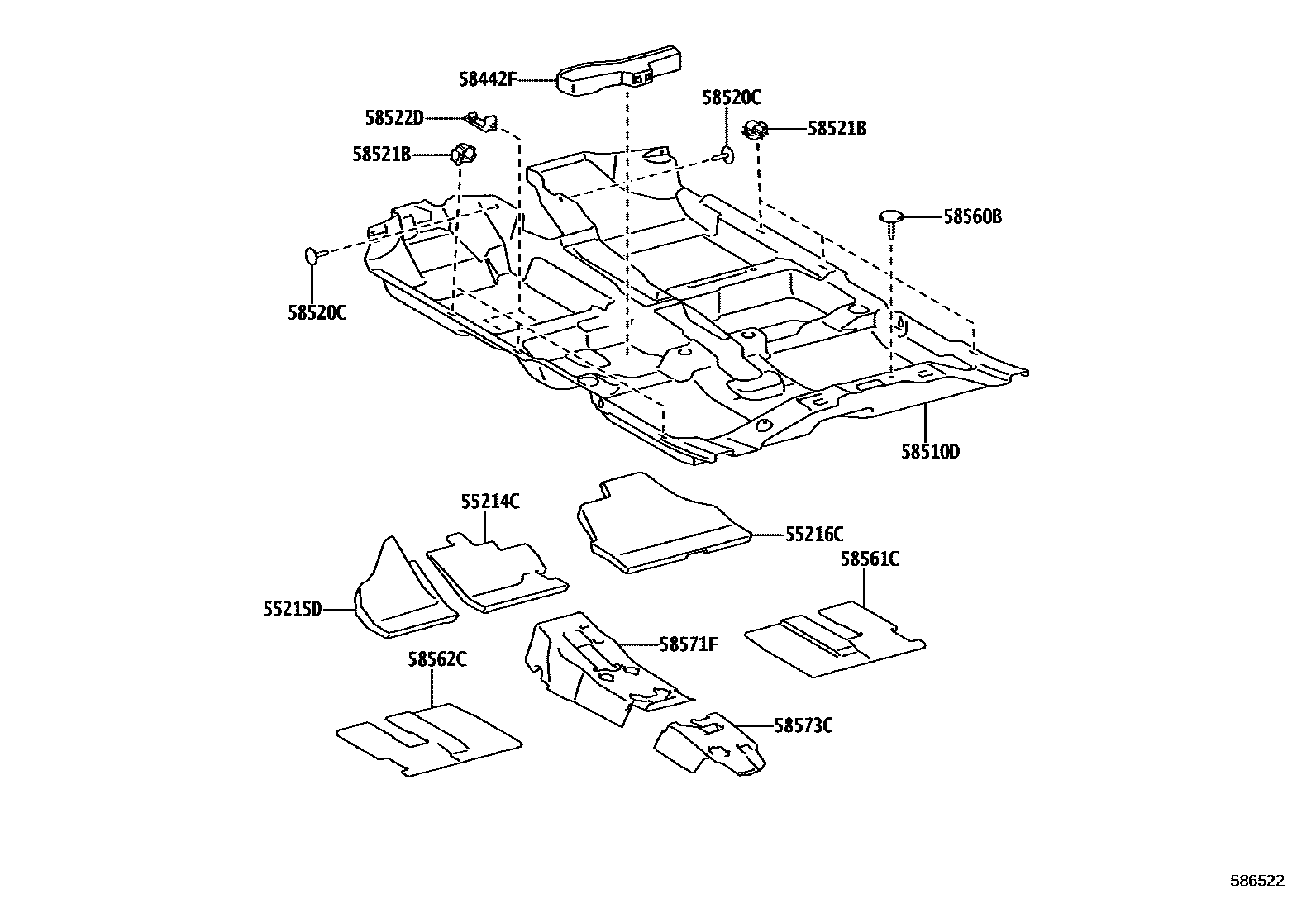

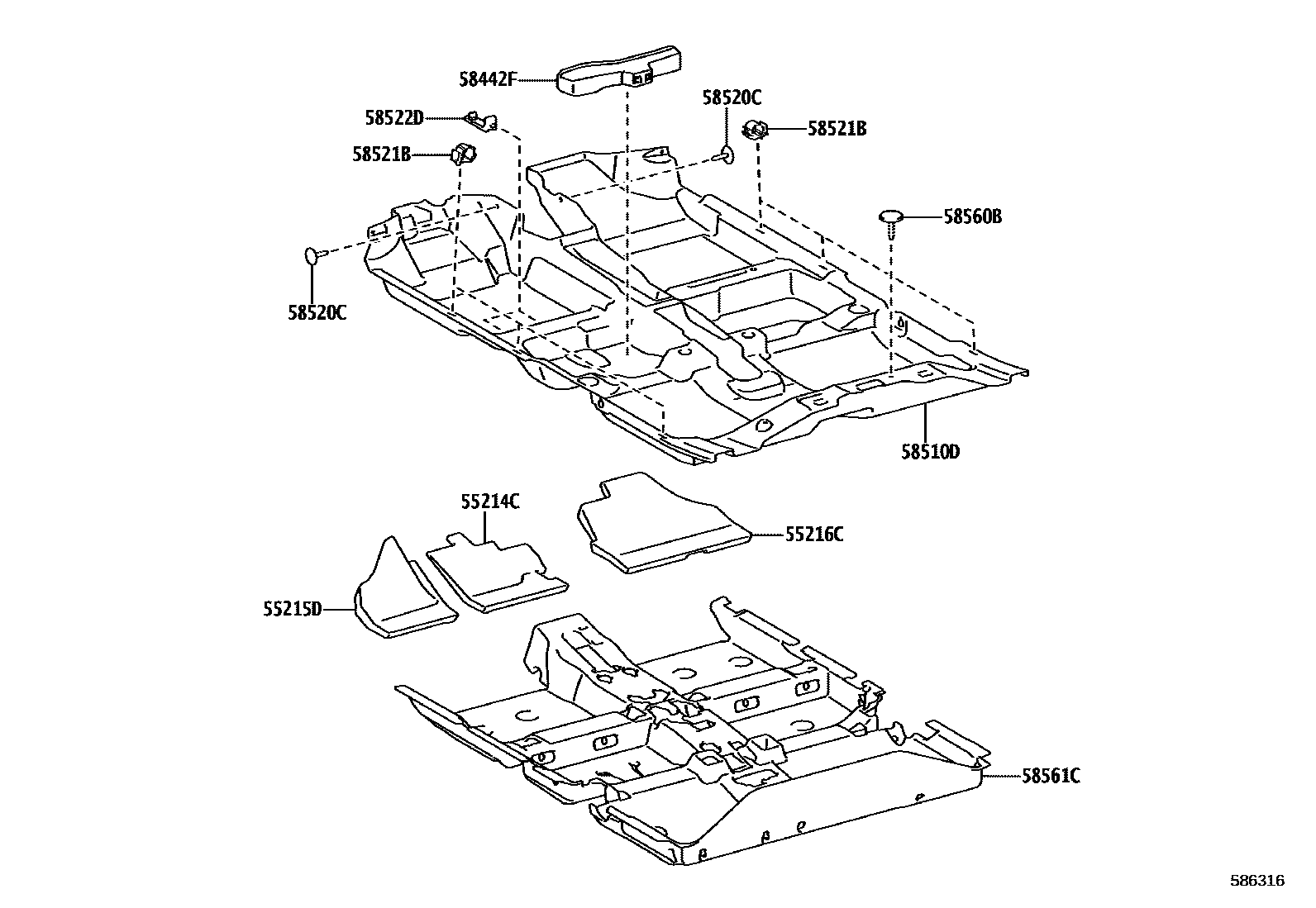

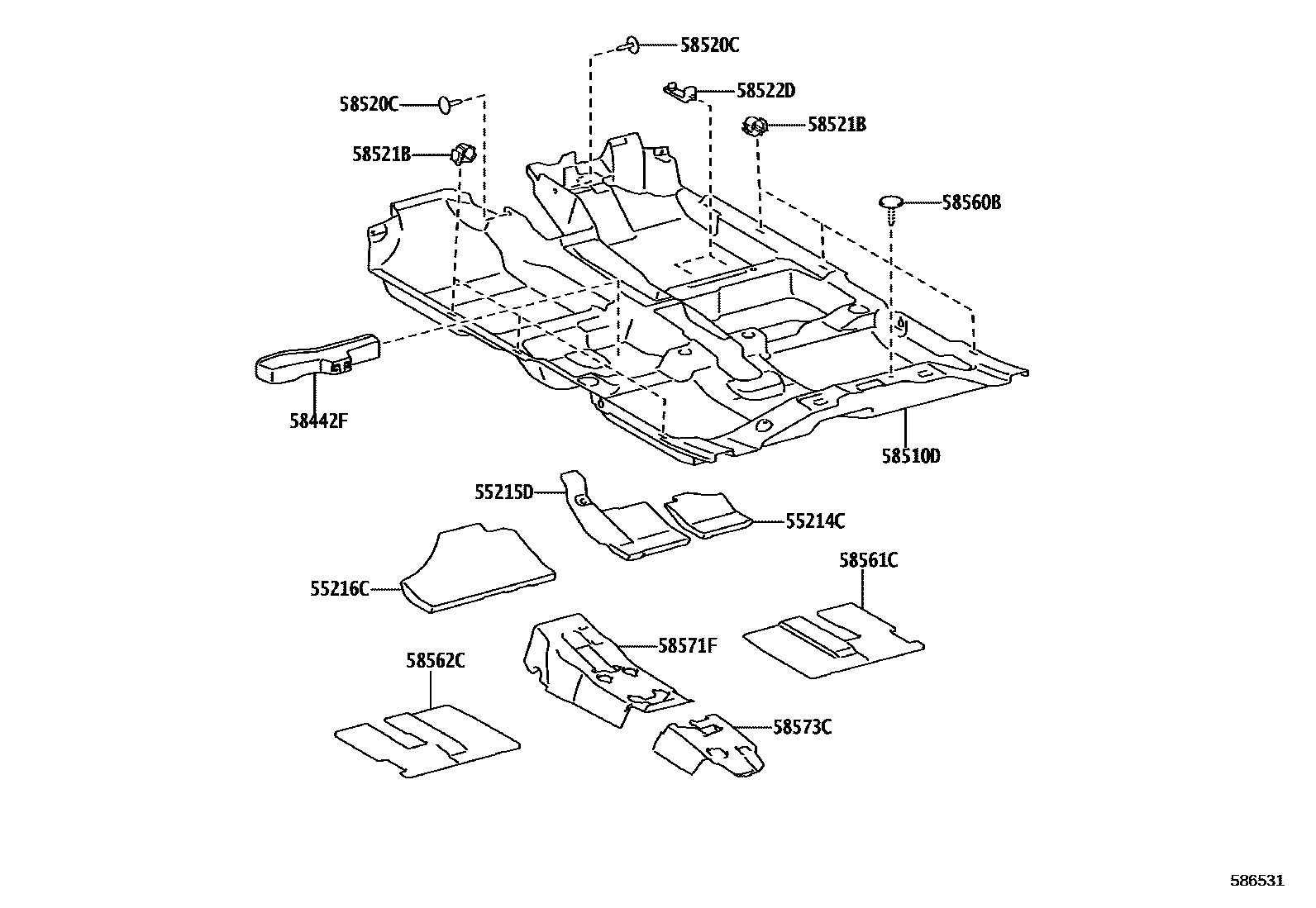

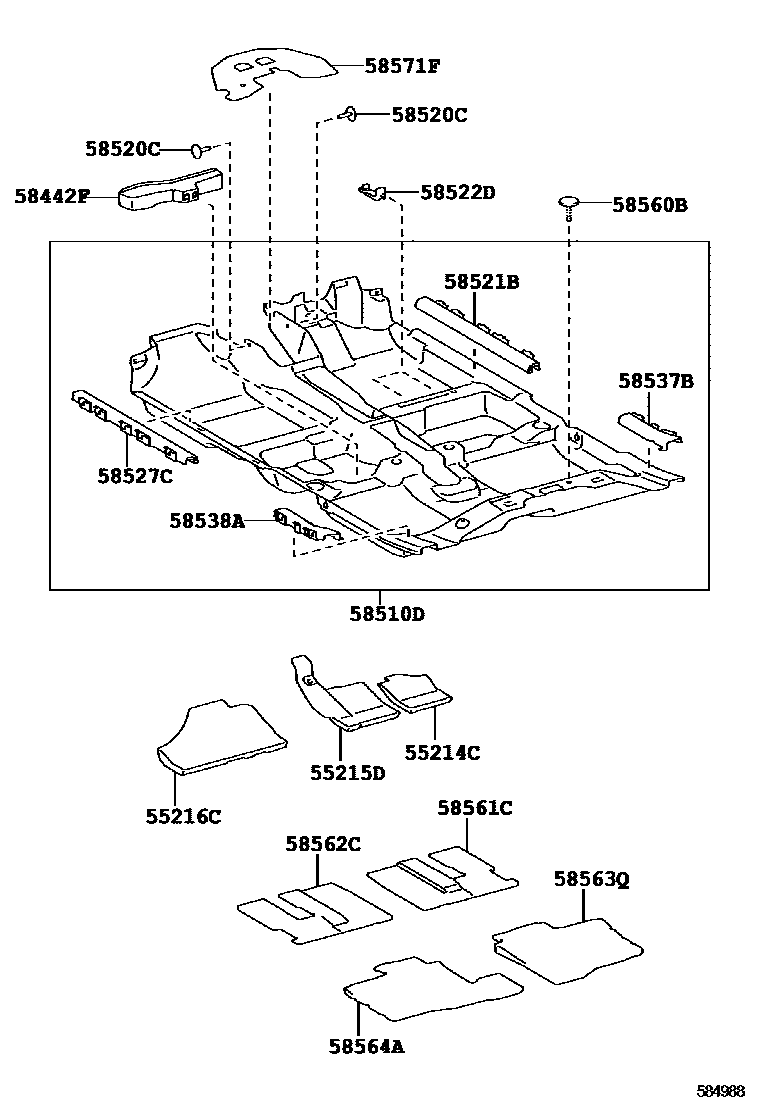

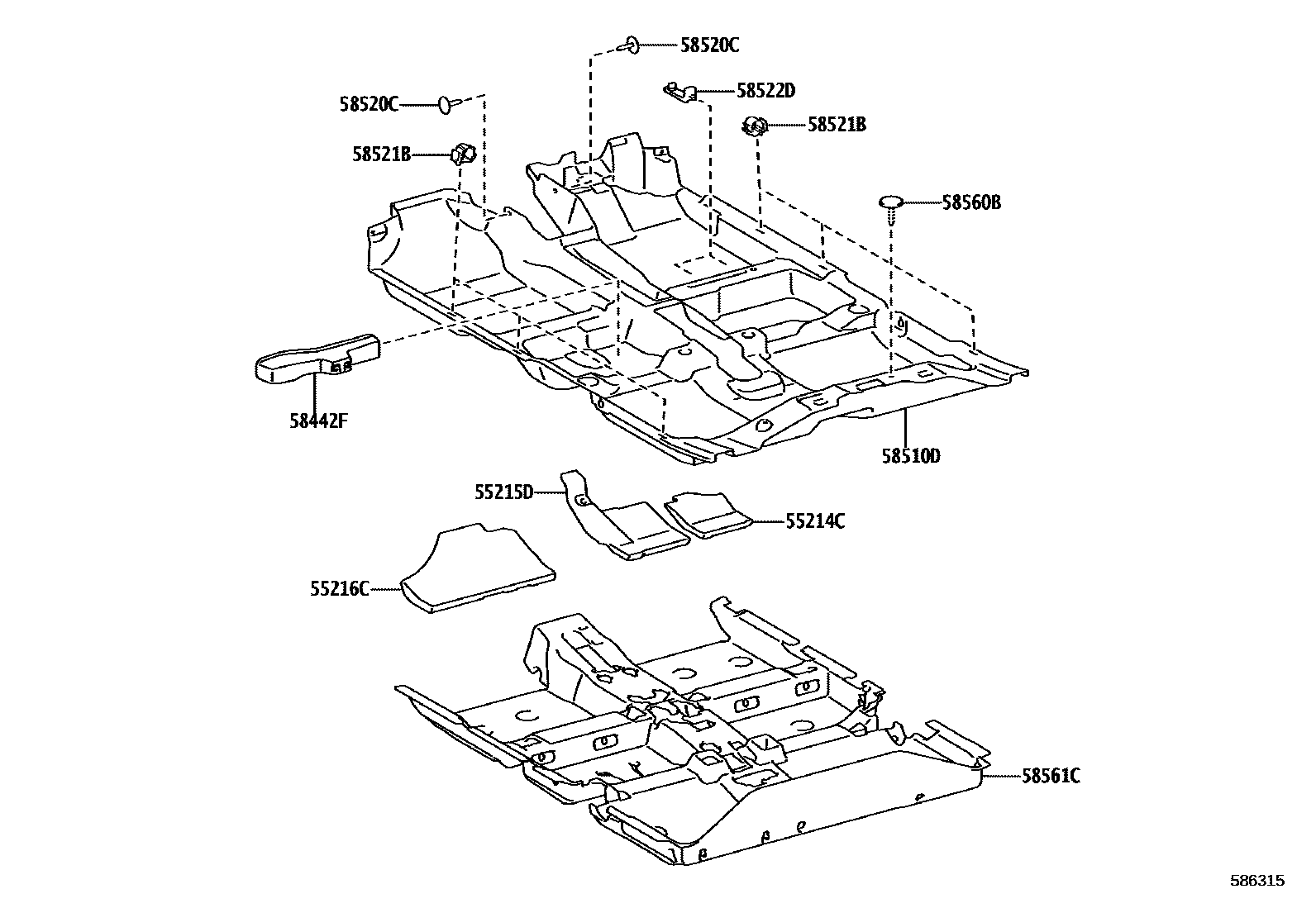

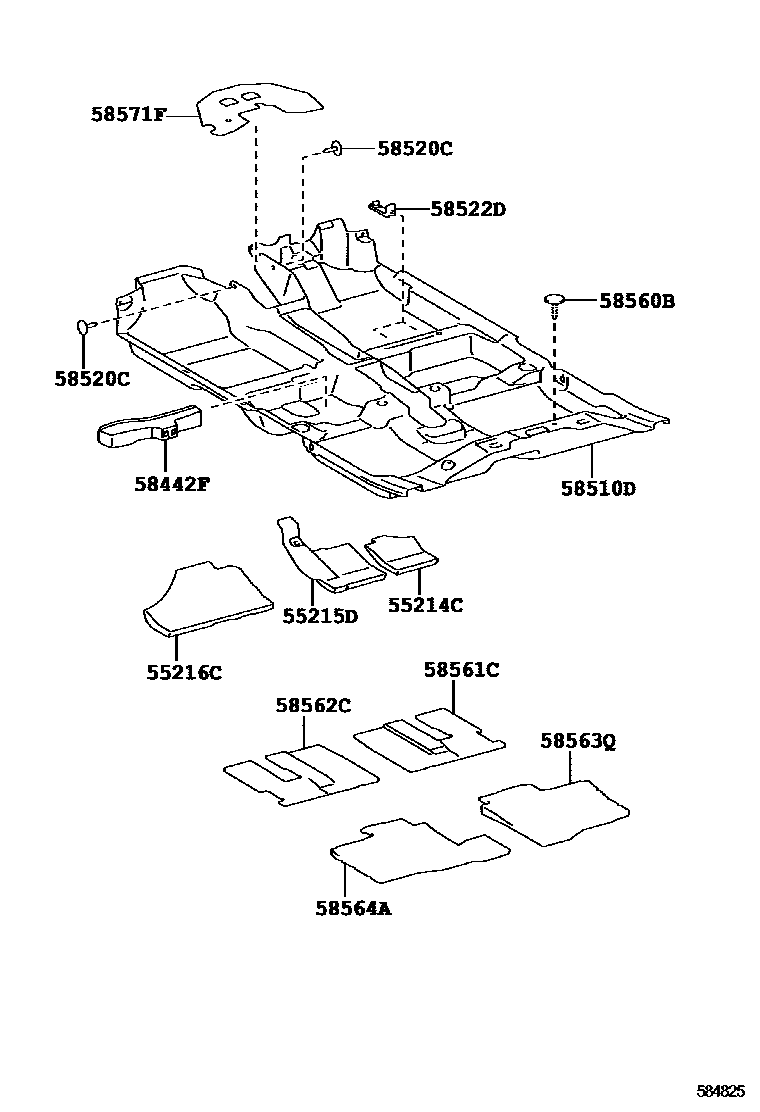

Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 8 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-0D170 · 55214-0D180 · 55214-0D182 · 55214-0D200 · 55214-0D220 · 55214-0D230 · 55214-0D280 · 55214-0D281 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-0D150 · 55215-0D180 · 55215-0D190 · 55215-0D210 · 55215-0D220 · 55215-0D260 |
| 55216C | No. 4 heat insulation pad for front wall | 55216-0D030 · 55216-0D070 · 55216-0D110 · 55216-0D130 · 55216-0D150 · 55216-0D180 · 55216-0D200 · 55216-0D210 |
| 58442F | jack cover | 58442-0D110 · 58442-0D120 · 58442-0D150 · 58442-0D170 · 58442-0D230 |
| 58510D | front carpet assembly | 58510-0DE52 · 58510-0DE62 · 58510-0DF22 |
| 58521B | carpet hook | 58521-0D120 · 58521-52050 · 58521-52070 |
| 58522D | Carpet hook number 2 | 58522-52030 |
| 58527C | No. 1 Left Carpet Hook | 58527-0D040 |
| 58537B | No. 1 right rear carpet hook | 58537-0D080 |
| 58538A | No. 1 left rear carpet hook | 58538-0D070 |
| 58561C | Front floor silencer No. 1 | 58561-0D220 · 58561-0D230 · 58561-0D240 · 58561-0D280 · 58561-0D300 · 58561-0D430 · 58561-0D440 · 58561-0D460 |
| 58562C | Front floor silencer No. 2 | 58562-0D190 · 58562-0D200 · 58562-0D240 · 58562-0D260 |
| 58563Q | Front floor silencer No. 3 | 58563-0D220 · 58563-0D270 · 58563-0D290 |
| 58564A | Front floor silencer No. 4 | 58564-0D110 · 58564-0D180 · 58564-0D230 |
| 58571F | Front floor pad | 58571-0D040 · 58571-0D050 · 58571-0D060 · 58571-0D130 · 58571-0D150 |
| 58573C | Front floor center pad | 58573-0D030 · 58573-0D060 |
