Toyota YARIS 仪表板和手套箱 — Figure 5501

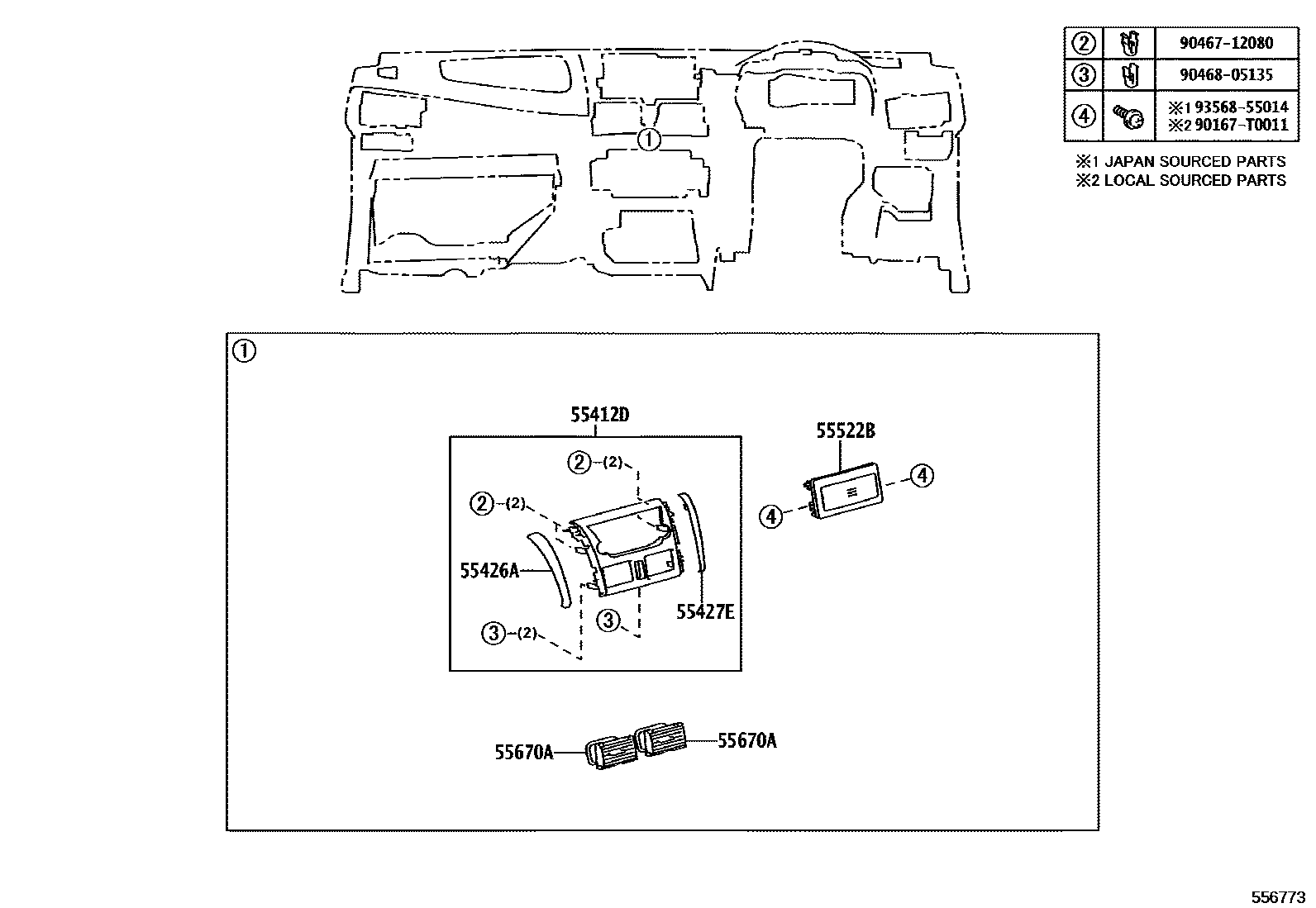

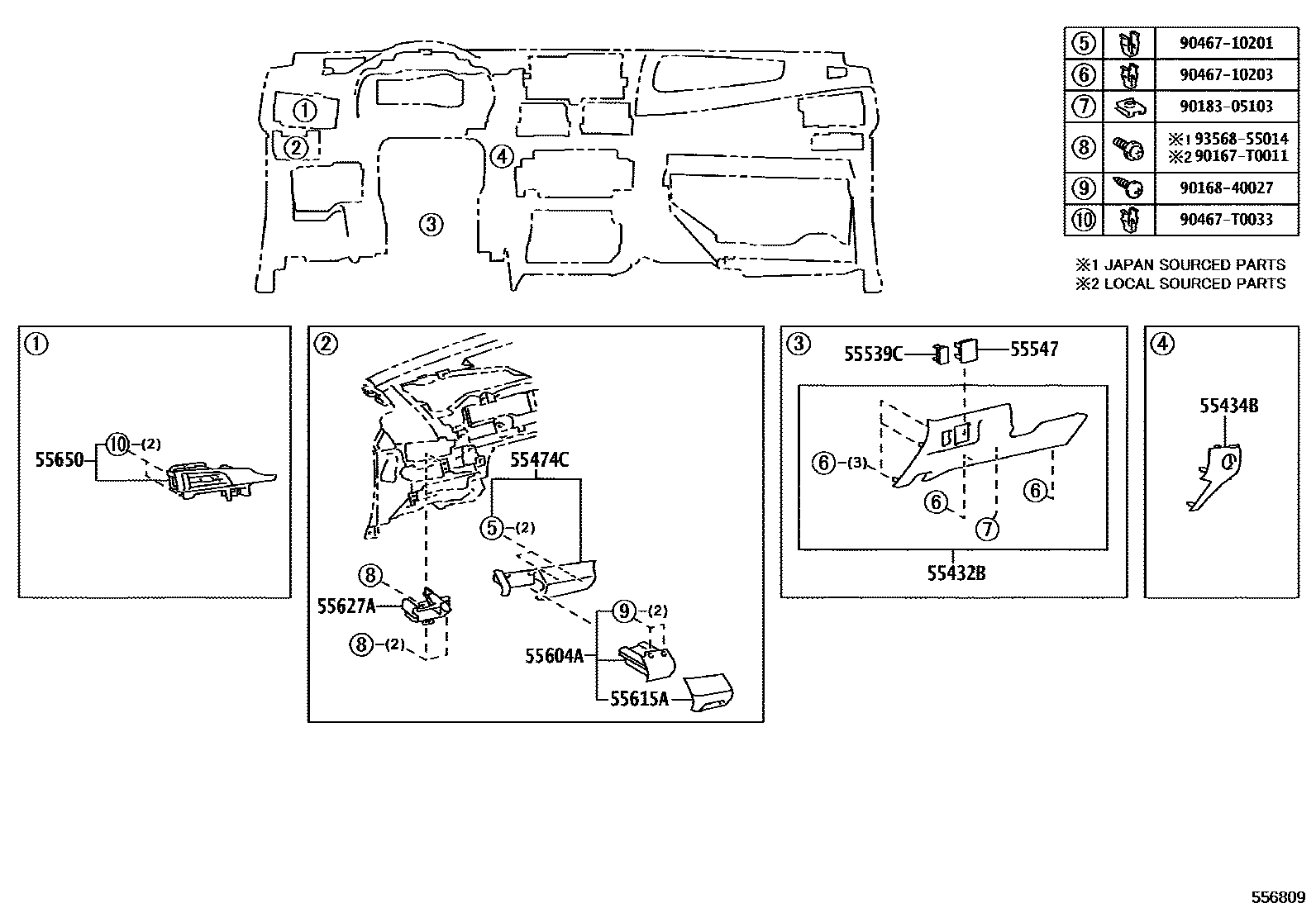

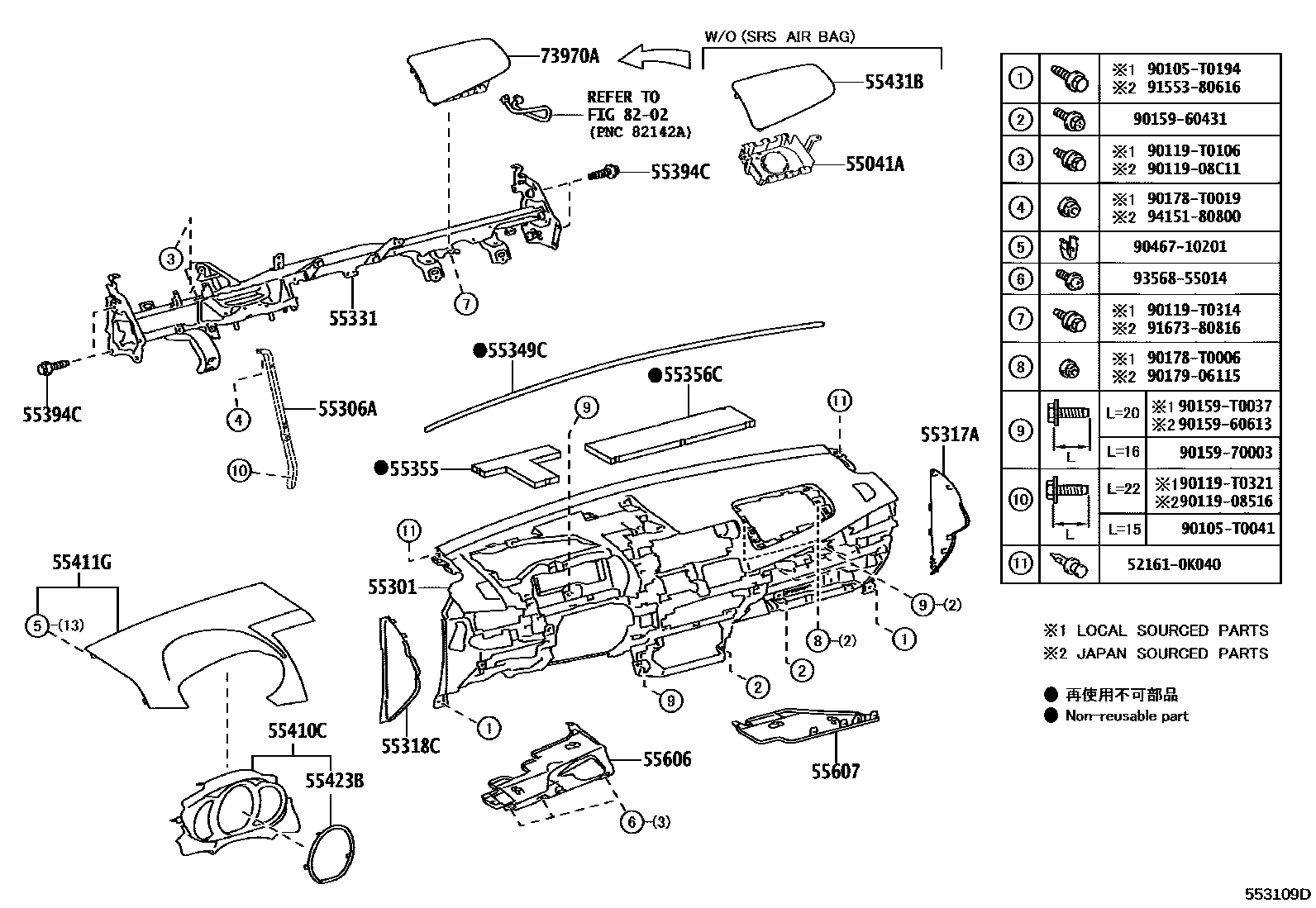

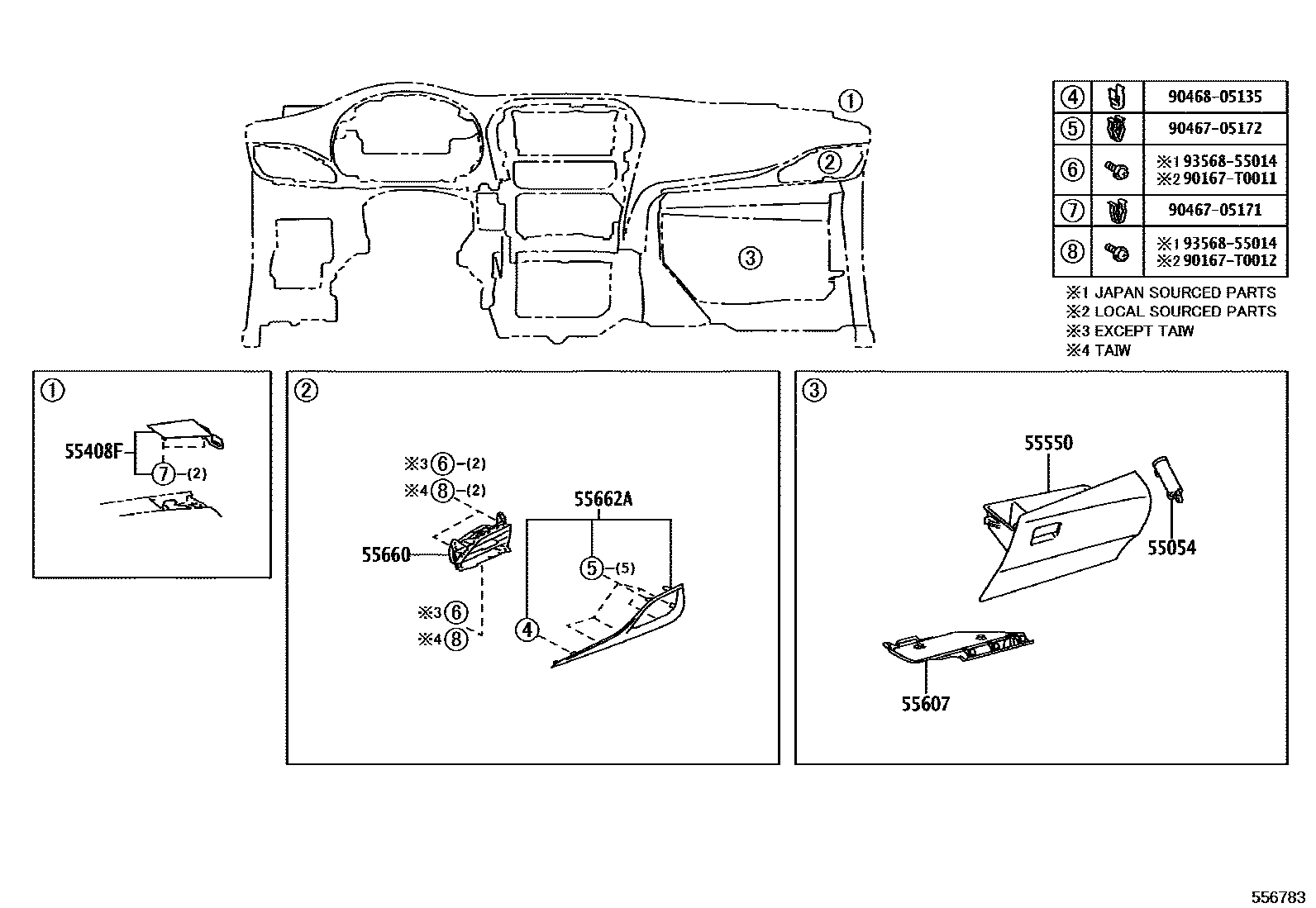

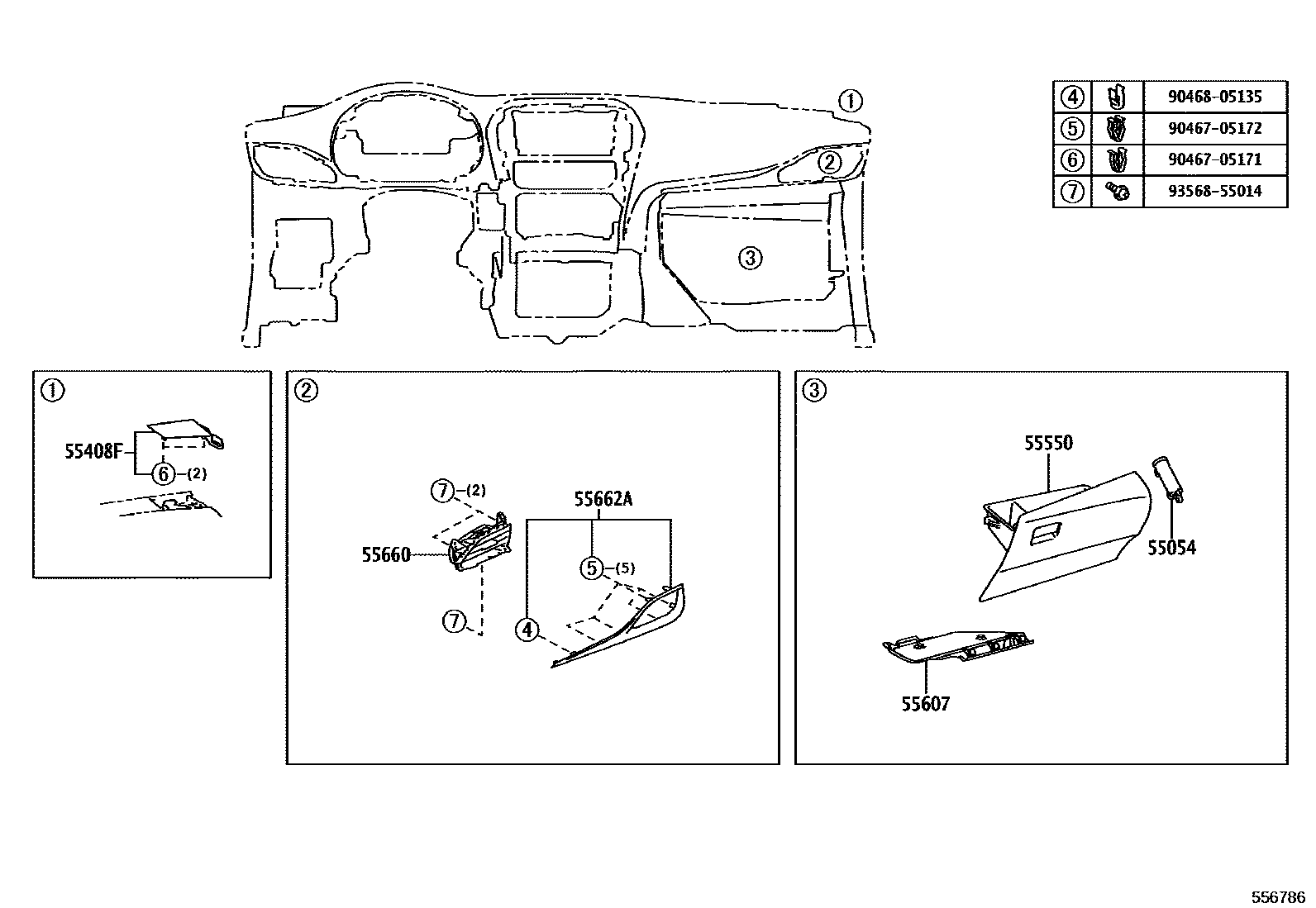

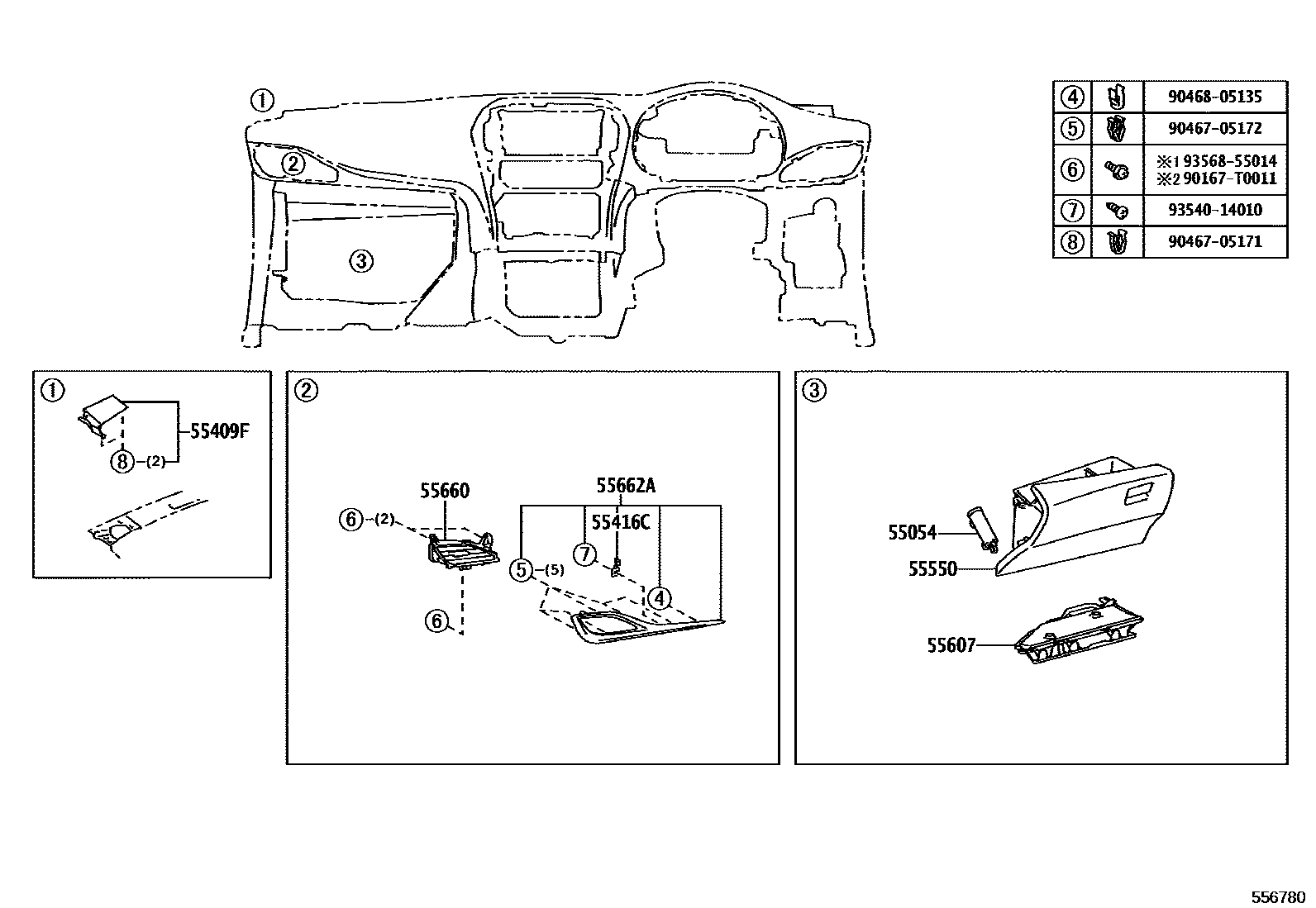

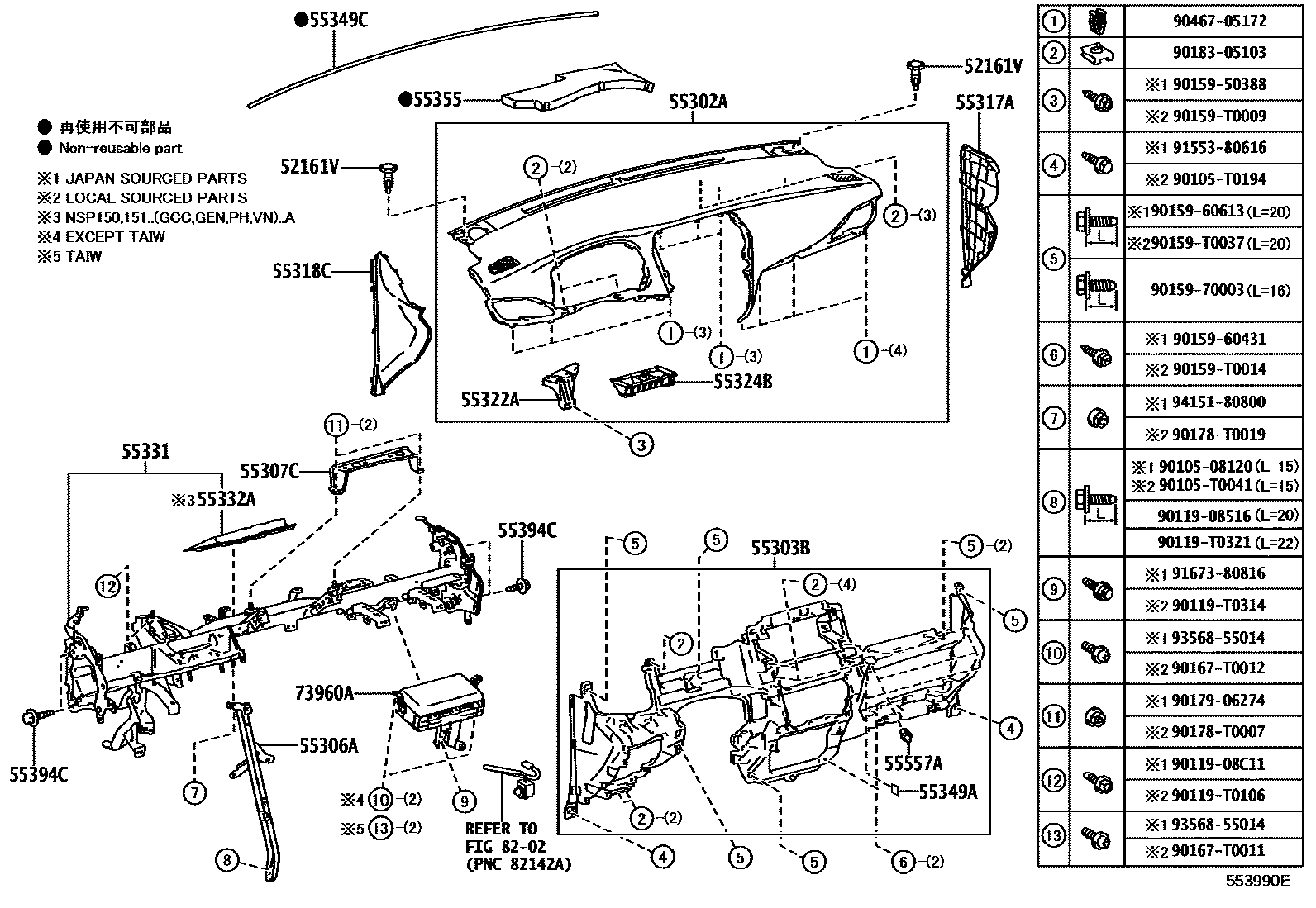

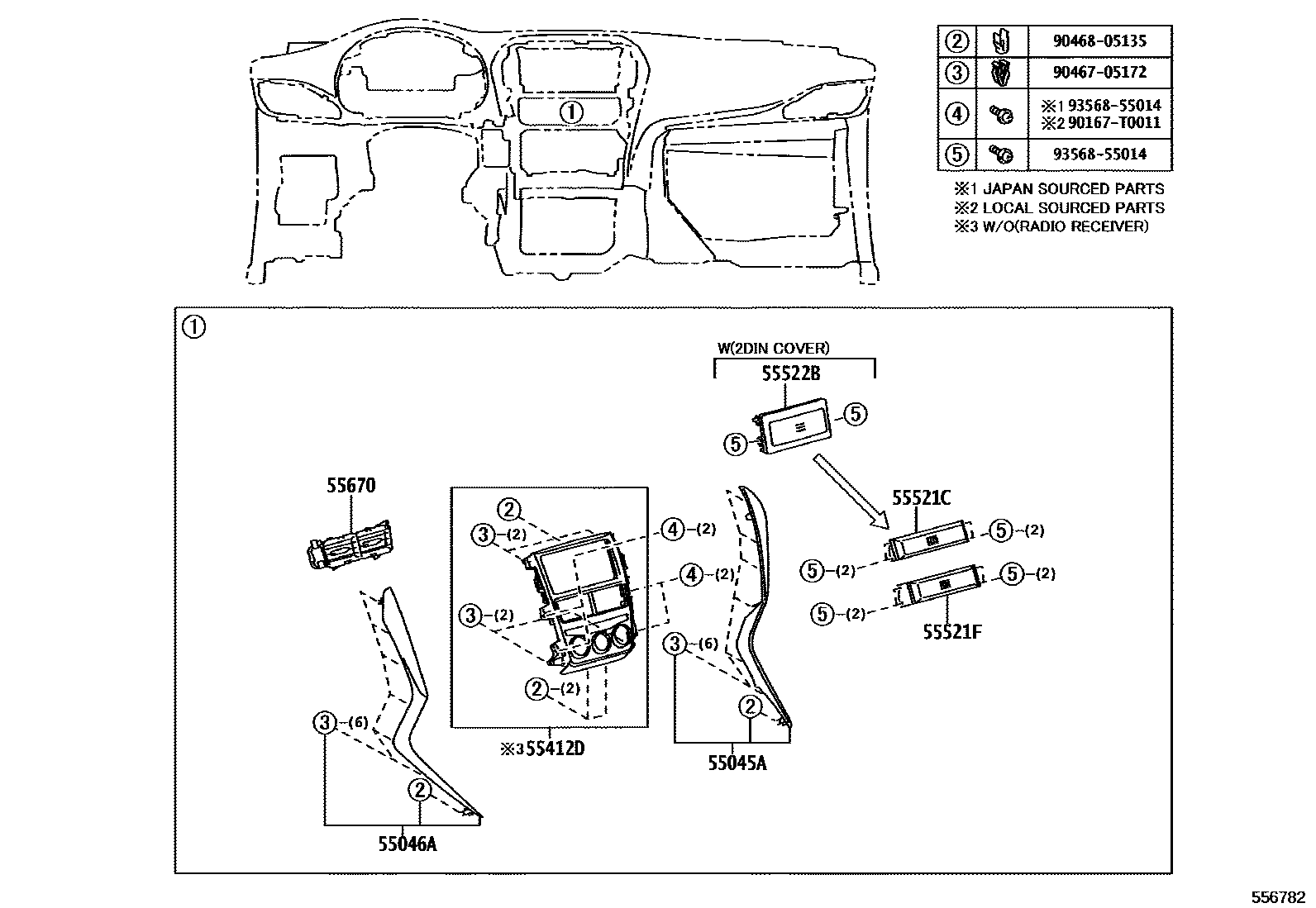

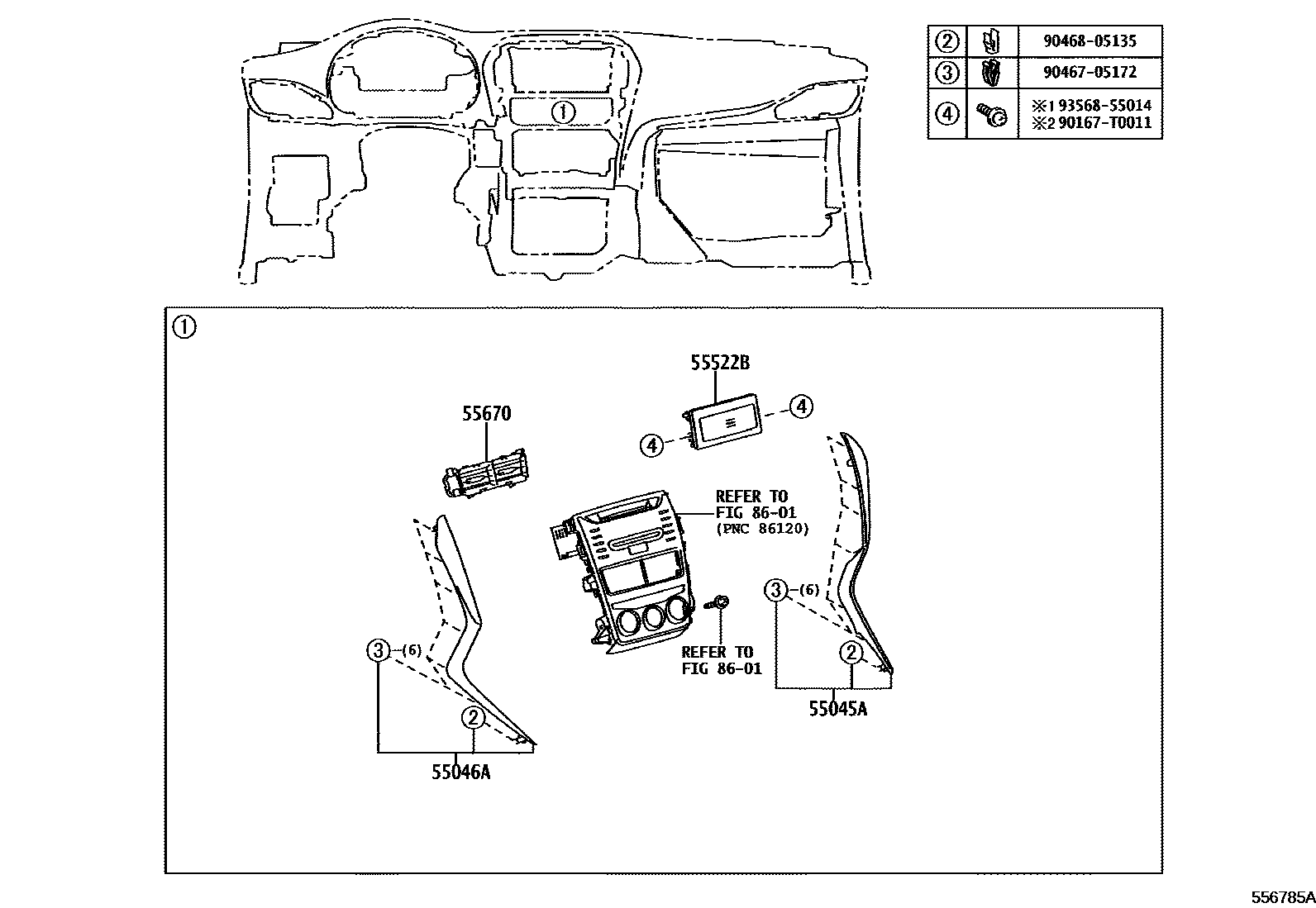

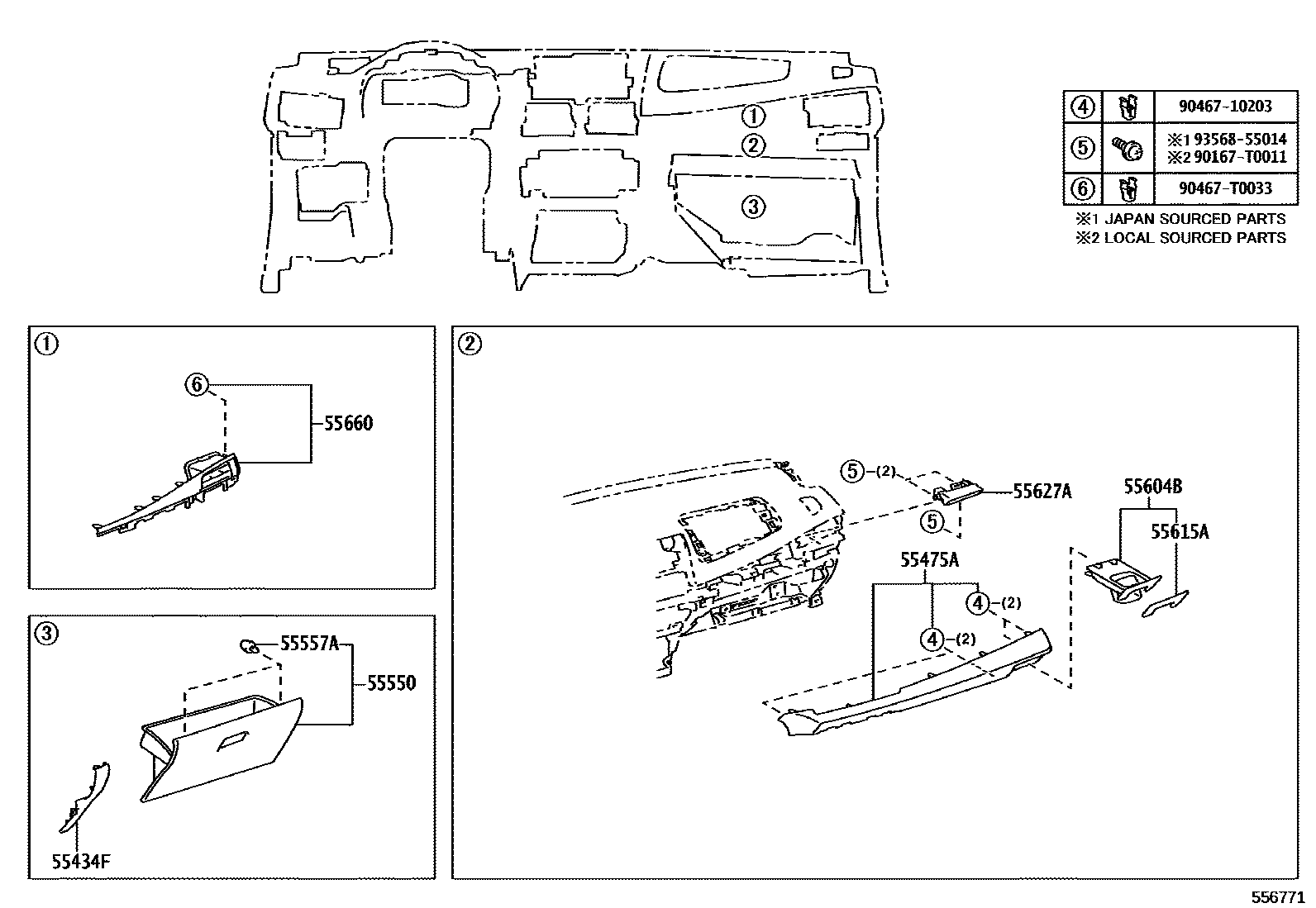

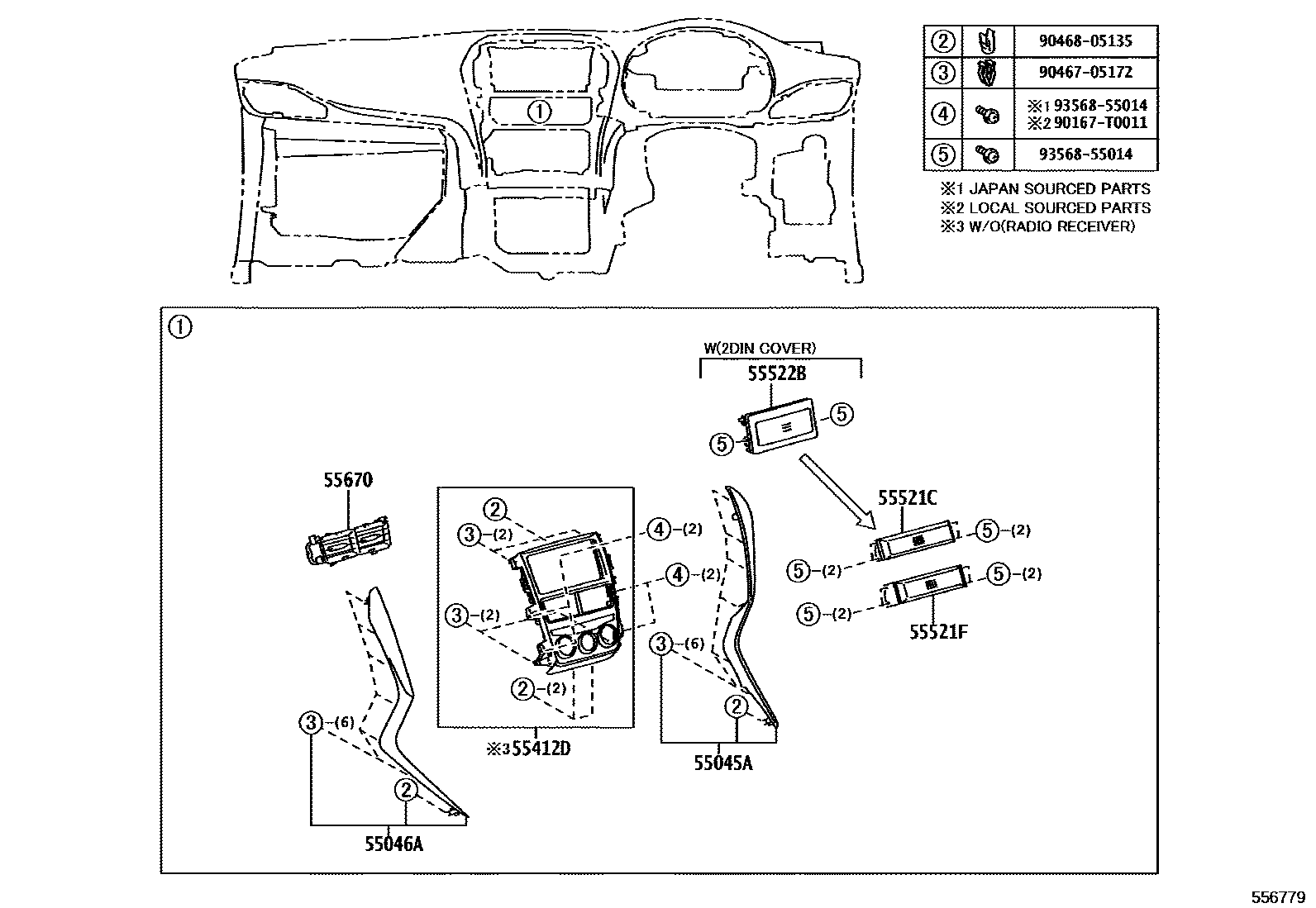

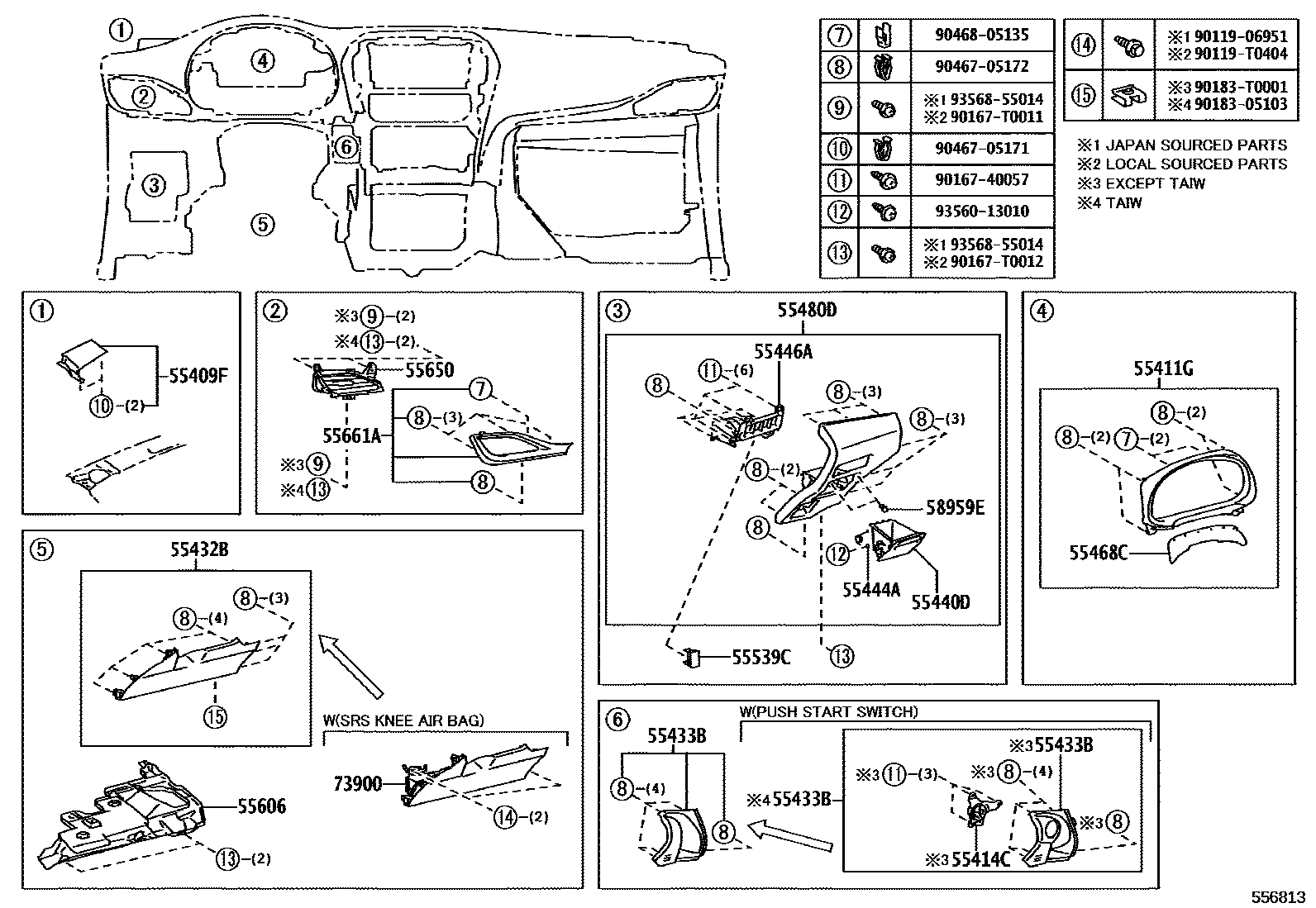

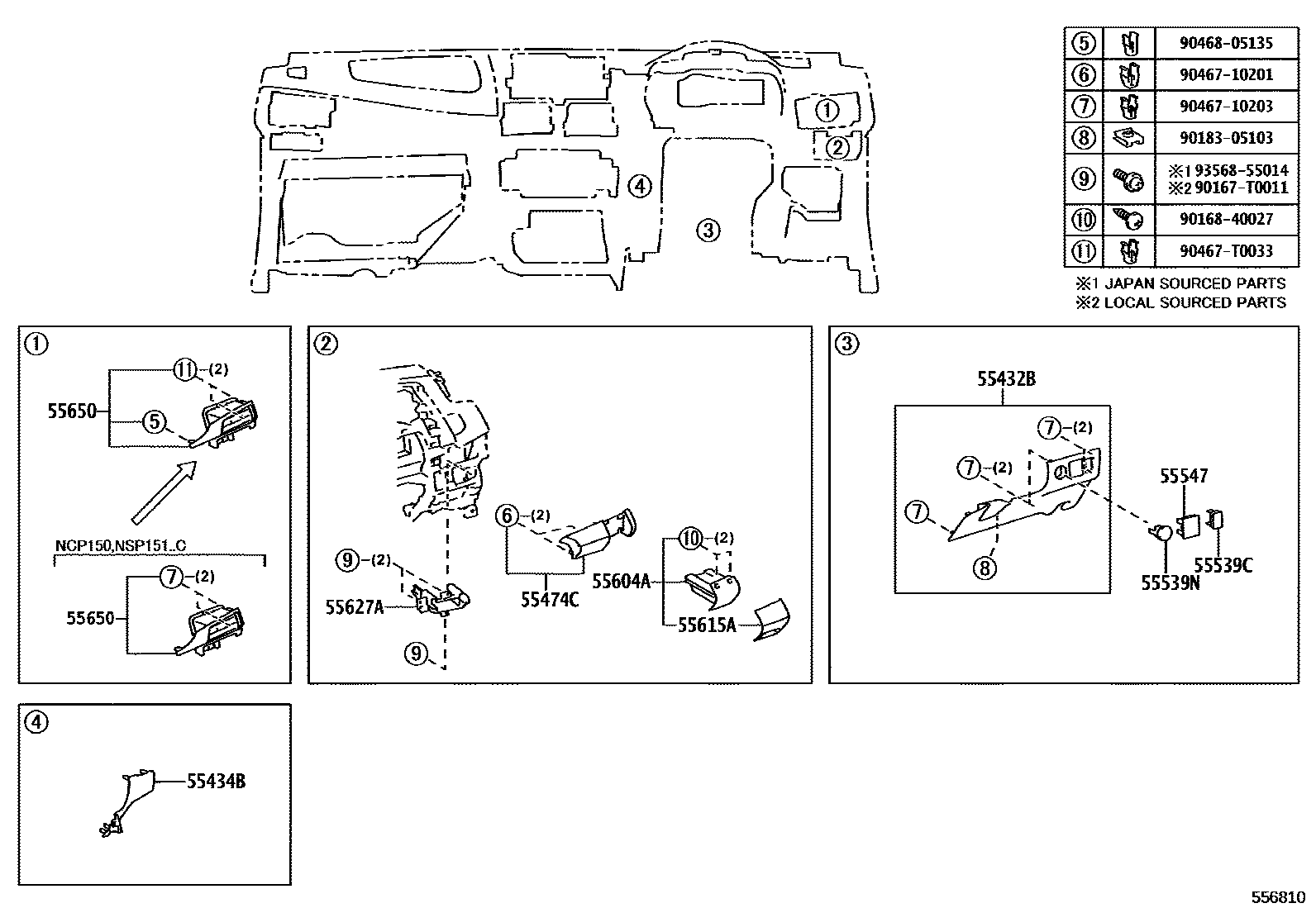

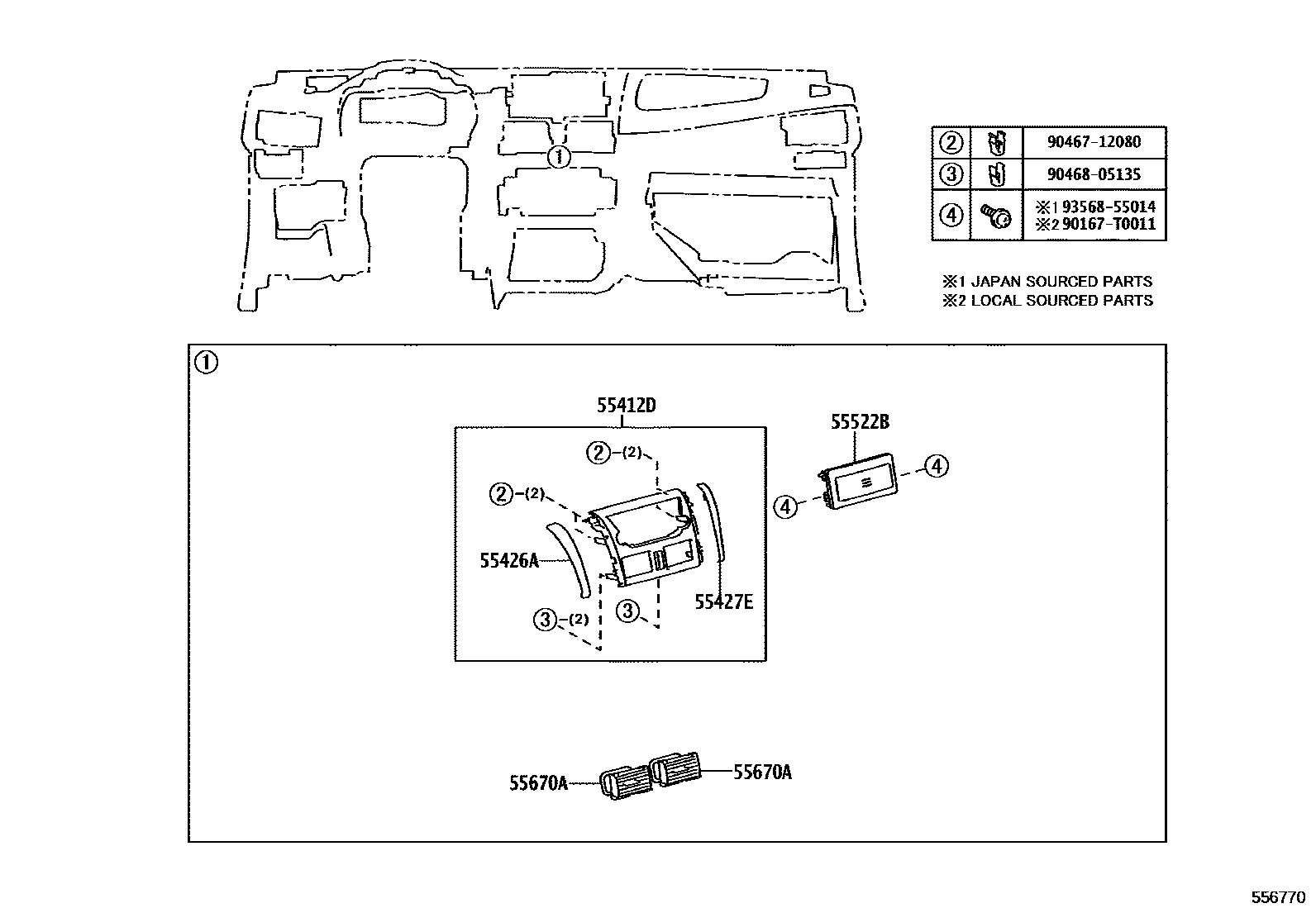

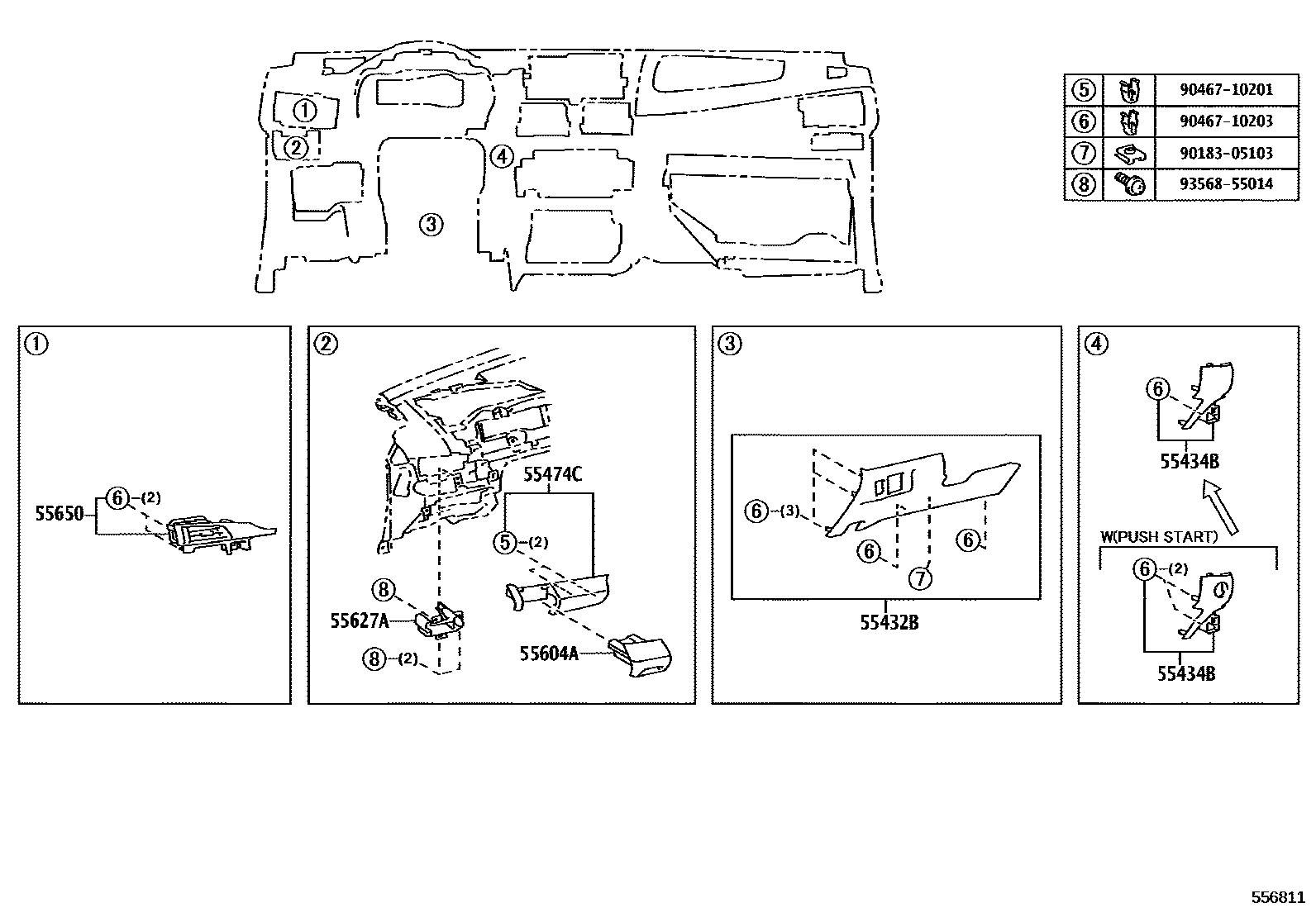

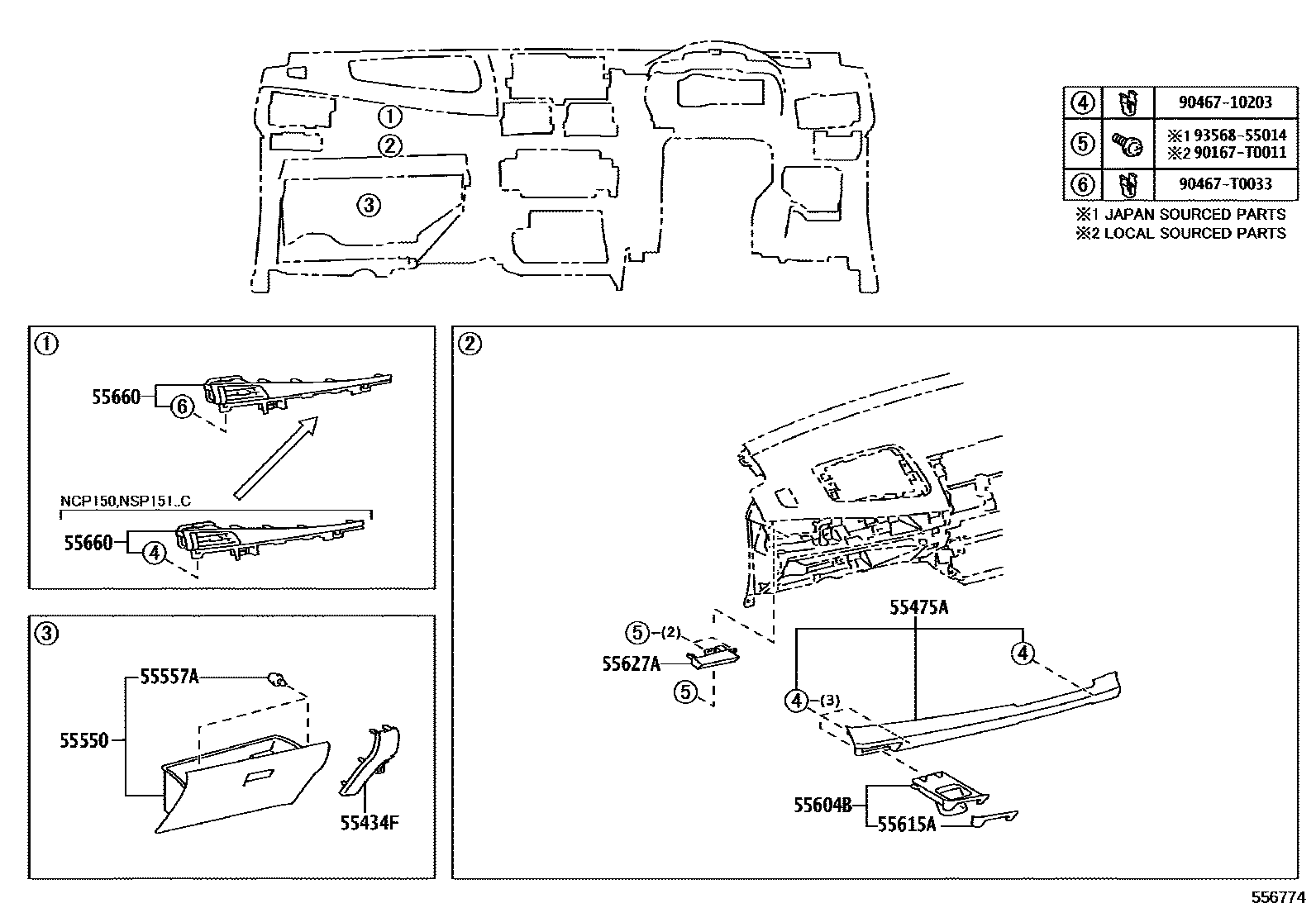

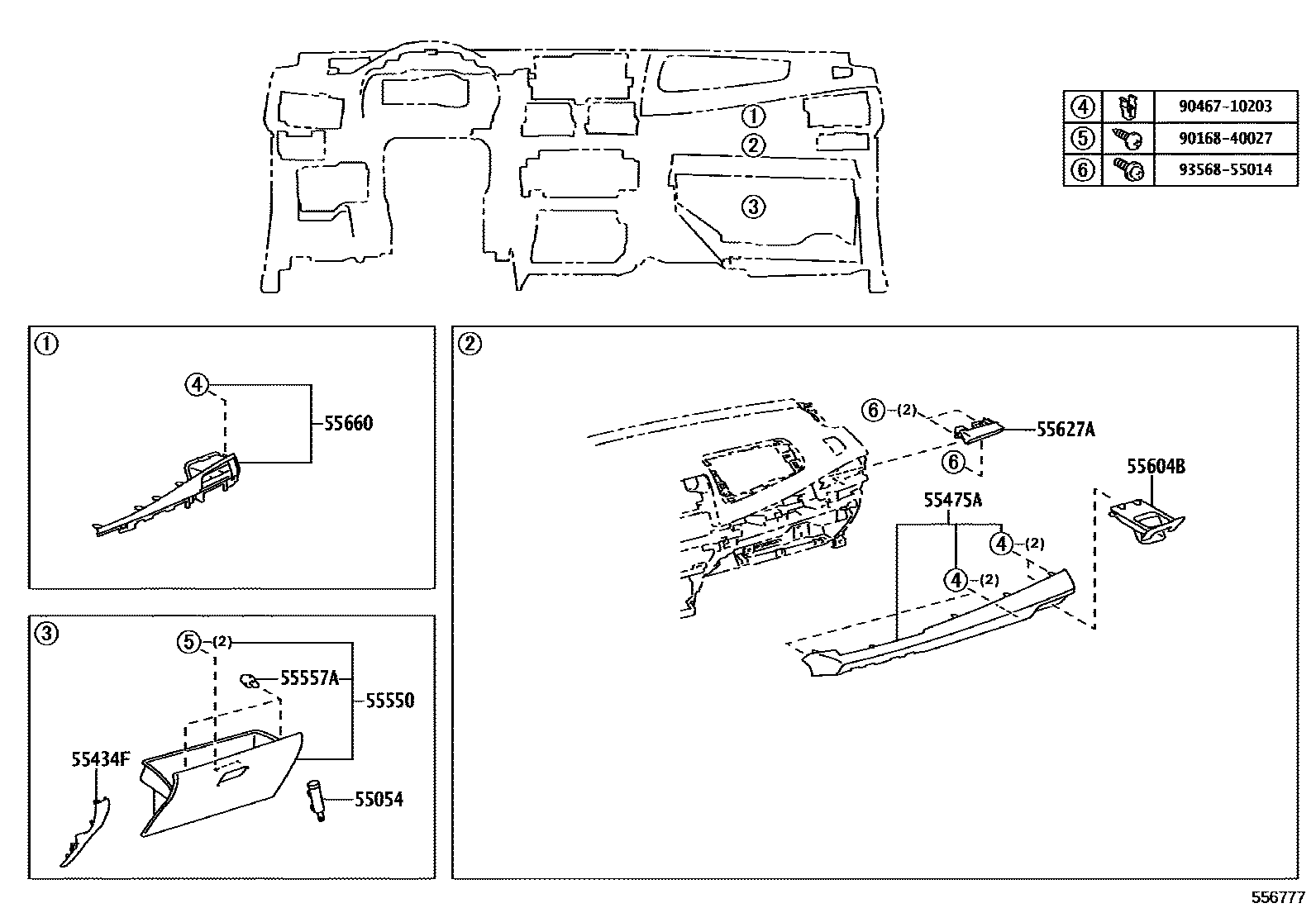

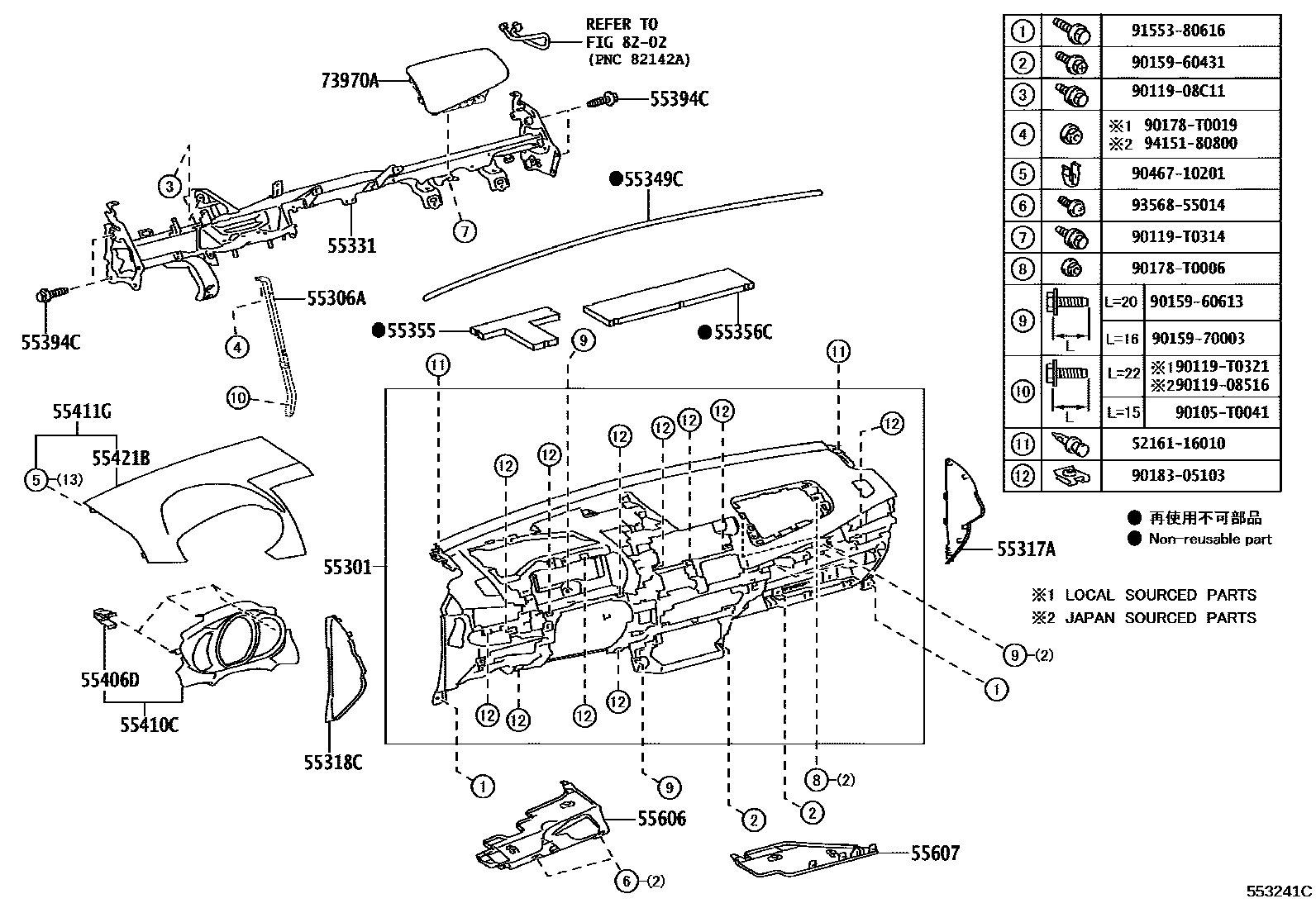

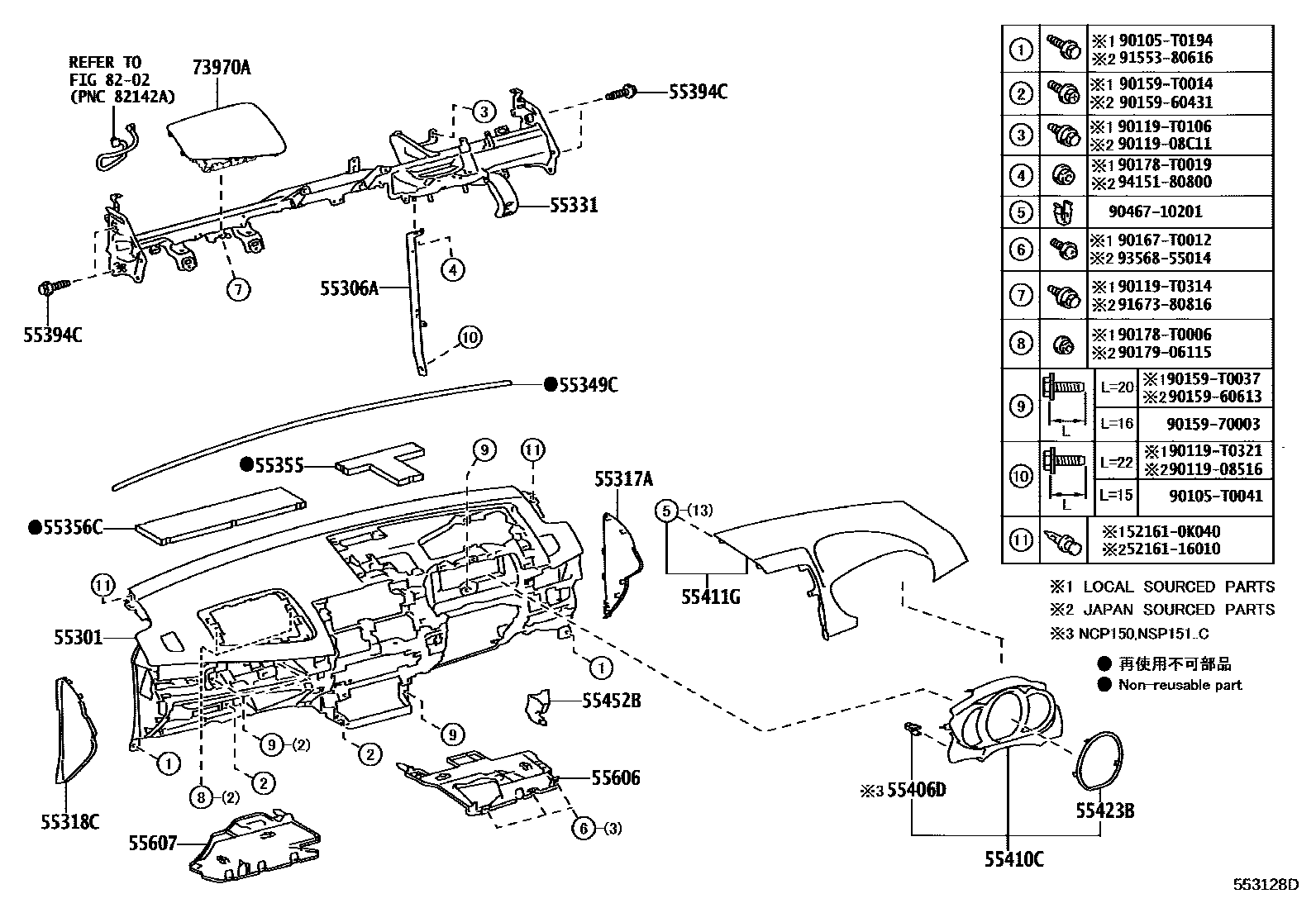

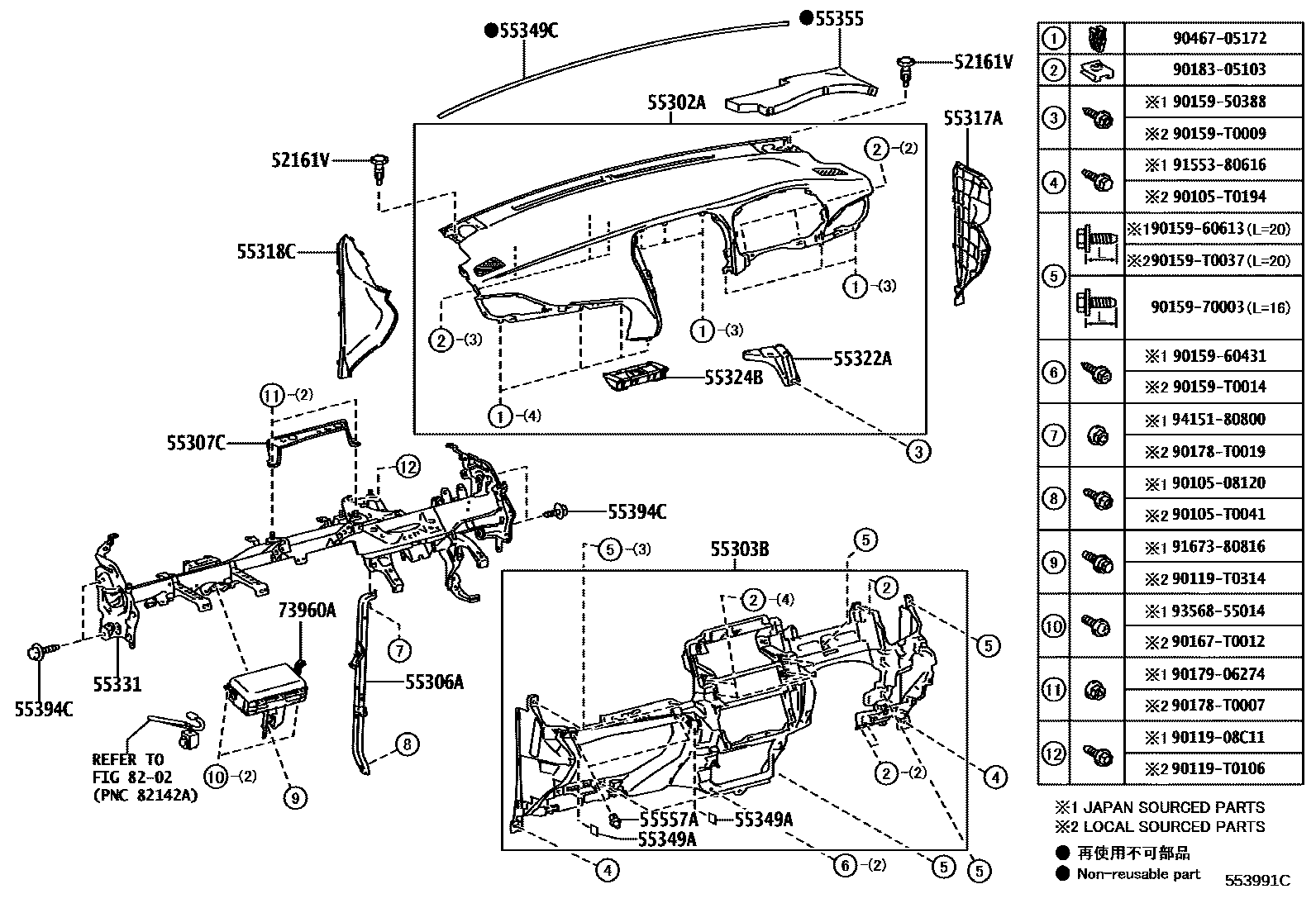

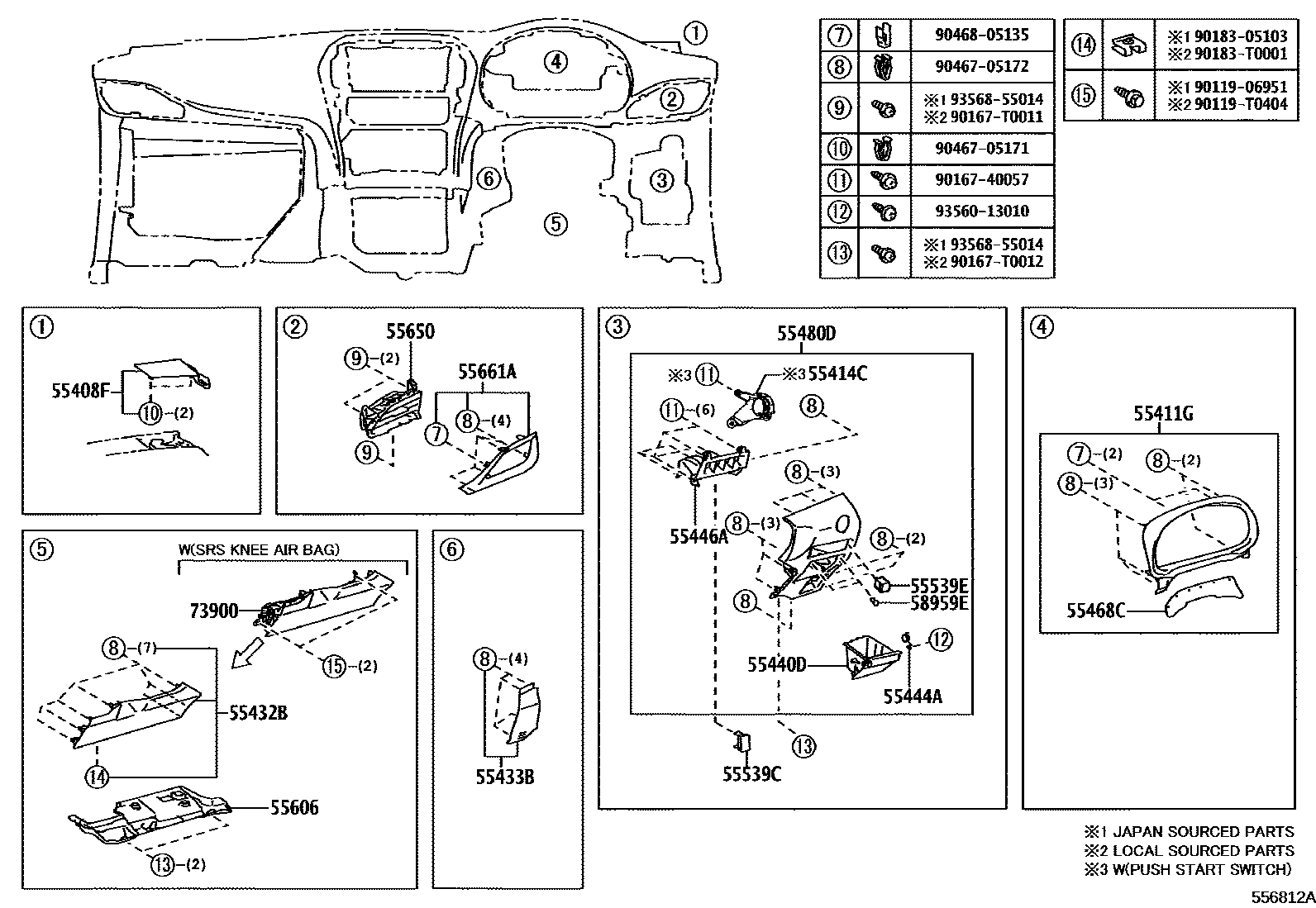

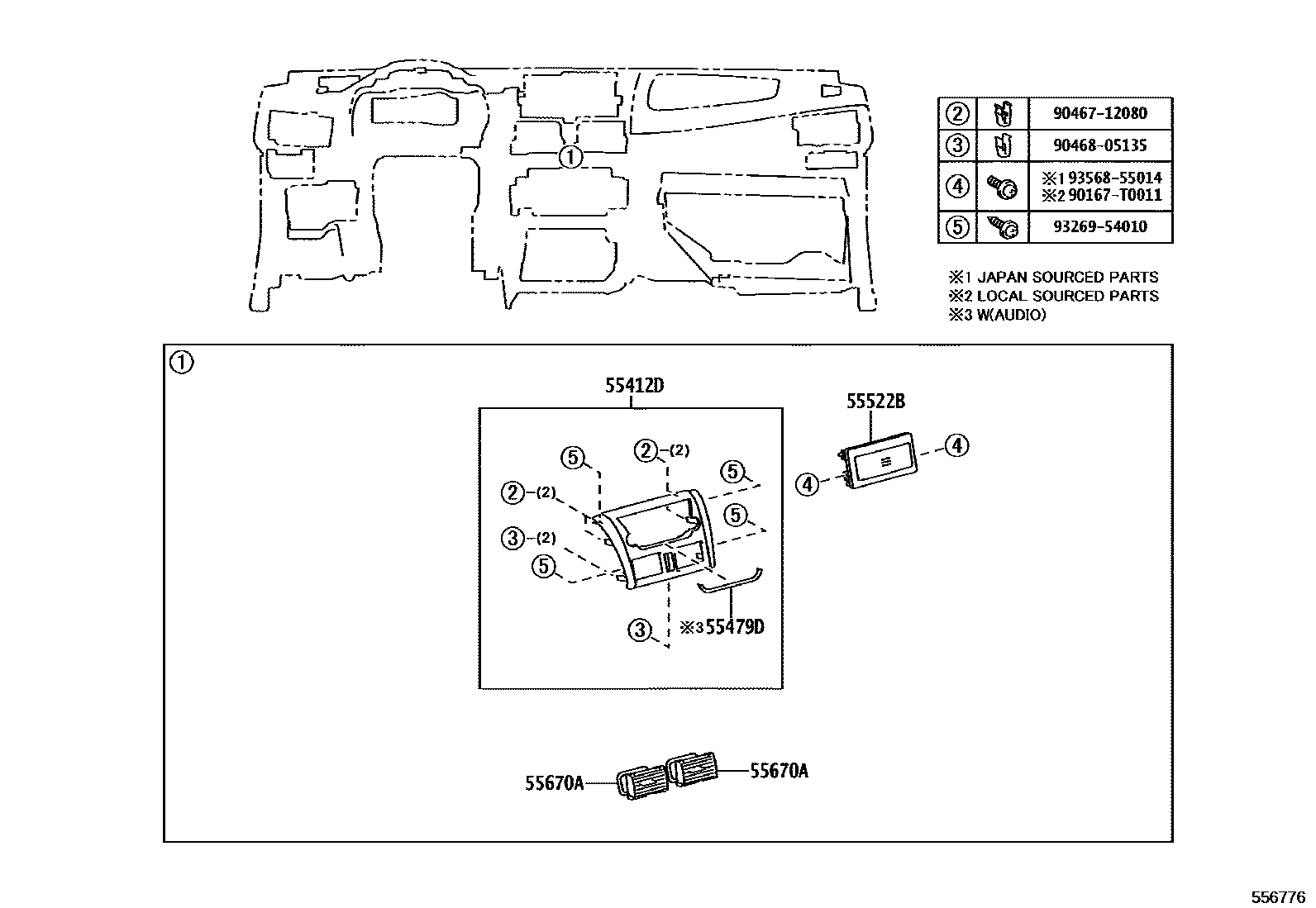

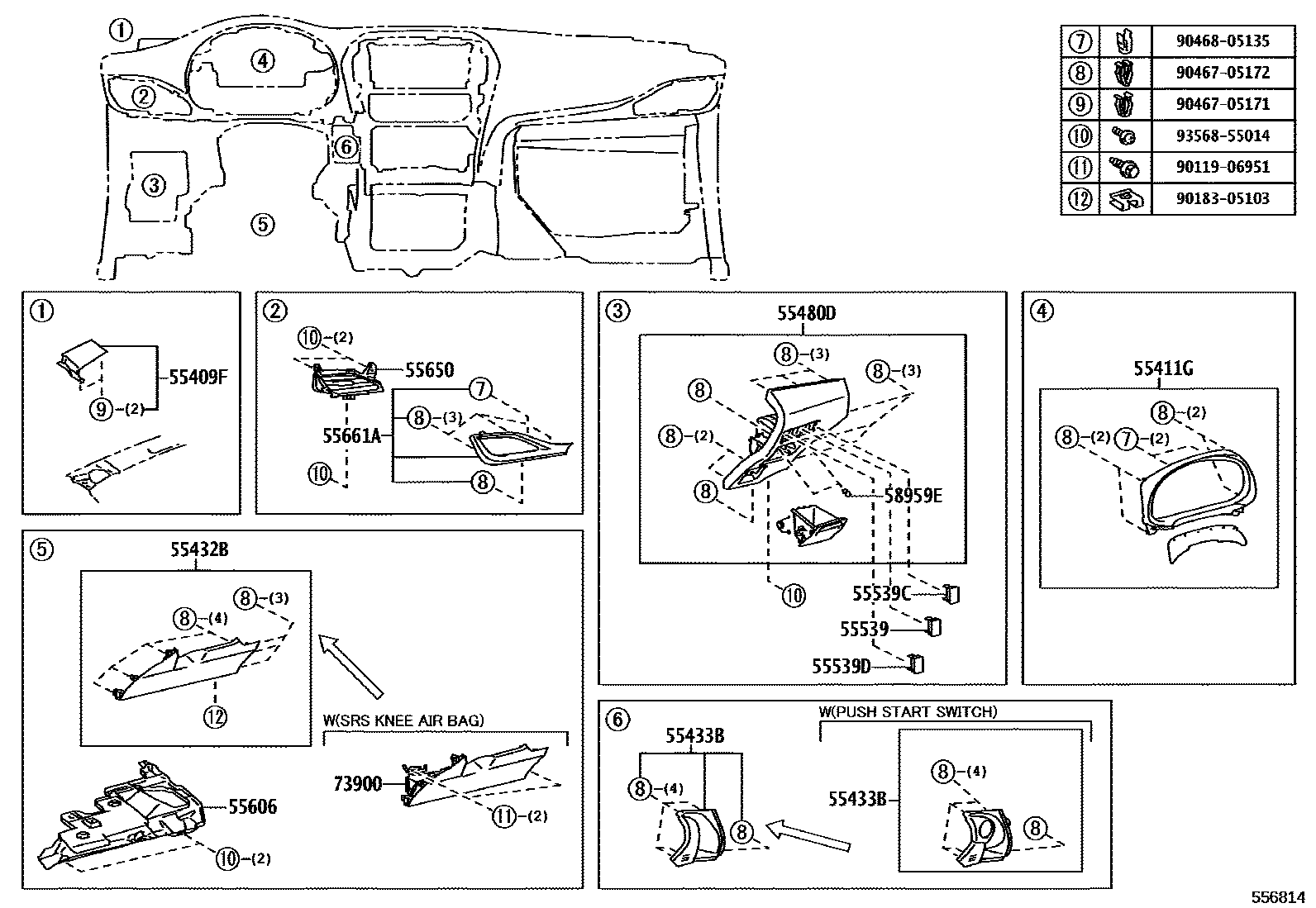

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 23 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161V | instrument panel insert | 52161-0K040 · 52161-16010 |
| 55041A | Passenger air bag mounting bracket sub-assembly | 55041-0D070 |
| 55045A | Instrument panel lower right decorative panel sub-assembly | 55045-0D030 · 55045-0D070 · 55045-0D090 · 55045-0D170 · 55045-0D200 · 55045-0D290 · 55045-52060 · 55045-52090 · 55046-0D030 · 55046-0D080 · 55046-0D120 · 55046-0D160 · 55046-52020 · 55046-52040 |
| 55046A | Instrument panel lower left decorative panel sub-assembly | 55045-0D050 · 55045-0D100 · 55045-0D140 · 55045-0D180 · 55045-52070 · 55045-52100 · 55046-0D010 · 55046-0D050 · 55046-0D070 · 55046-0D150 · 55046-0D180 · 55046-0D270 · 55046-52010 · 55046-52030 |
| 55054 | Glove box cover stopper sub-assembly | 55054-0K030 · 55054-33060 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D220 · 55306-0D230 · 55306-0D270 · 55306-0D390 · 55306-0D400 · 55306-0D410 · 55306-0D440 · 55306-0D450 · 55306-0D470 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55308-0D070 · 55308-0D080 · 55308-0D100 · 55308-0D130 · 55308-0D160 |
| 55322A | Instrument panel bracket No. 2 | 55322-0D220 · 55322-0D230 · 55322-0D240 · 55322-0D250 |
| 55324B | Instrument panel bracket No. 4 | 55324-0D220 · 55324-0D230 · 55324-0D240 · 55324-0D250 |
| 55331 | Dashboard reinforcement | 55330-0D370 · 55330-0D380 · 55330-0D480 · 55330-0D490 · 55330-0D520 · 55330-0D660 · 55330-0D670 · 55330-0D680 · 55330-0D720 · 55330-0D750 · 55330-0D751 · 55330-0D760 · 55330-0D770 · 55330-0D771 · 55330-0D780 · 55330-0D810 · 55330-0D830 · 55330-0D850 |
| 55332A | Instrument panel reinforcement No. 2 | 55332-0D210 |
| 55349A | Dashboard cushion | 55349-0D360 · 55349-0D370 · 55349-0D380 · 55349-0D400 |
| 55349C | Dashboard cushion | 55349-0D170 · 55349-0D190 · 55349-0D200 · 55349-0D220 · 55349-0D240 · 55349-0D260 · 55349-0D280 · 55349-0D300 · 55349-0D320 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D170 · 55355-0D230 · 55355-0D250 · 55355-0D400 · 55355-0D420 · 55355-0D430 · 55355-0D460 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0D160 · 55356-0D200 · 55356-0D210 |
| 55394C | Dashboard bolts | 55394-52010 |
| 55406D | Clip (for instrument cluster decorative panel) | 90467-10203 |
| 55410C | Instrument cluster decorative panel assembly | 55410-0D070 · 55410-0D080 · 55410-0D110 · 55410-0D130 |
| 55412D | Center instrument cluster decorative panel | 55405-0D470 · 55405-0D480 · 55405-0D560 · 55405-0D570 · 55405-0D600 · 55405-0D850 · 55405-0D860 · 55405-0DA80 · 55405-0DA90 · 55405-0DB00 · 55405-0DB30 |
| 55414C | starter switch box | 55414-0D060 |
| 55416C | Instrument cluster decorative panel fixings | 55416-0D200 |
| 55423B | Instrument cluster decorative panel cover | 55423-0D030 · 55423-0D070 |
| 55426A | Instrument cluster No. 1 decorative panel bracket | 55426-0D010 · 55426-0D060 |
| 55427E | Instrument cluster No. 2 decorative panel bracket | 55427-0D140 · 55427-0D200 |
| 55444A | Dashboard storage box spring | 55444-0D230 · 55444-0D280 · 55444-0D290 · 55444-0D300 |
| 55452B | Dashboard safety pad curved filler | 55452-0D100 · 55452-0D120 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-0D250 · 55468-0D260 · 55468-0D270 · 55468-0D280 |
| 55479D | Instrument cluster lower trim panel trim parts | 55479-0D050 |
| 55521C | stereo system hole cover | 55521-12190 |
| 55521F | Stereo system hole cover No. 2 | 55521-05030 |
| 55522B | Radio tuner opening cover | 55522-0D010 · 55522-0K010 · 55522-52020 |
| 55539C | Spare switch hole cover | 55539-06130 |
| 55557A | Glove box cover limit pad | 55557-52030 · 55557-60050 · 55557-78010 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D090 · 55606-0D091 · 55606-0D100 · 55606-0D130 · 55606-0D131 · 55606-0D150 · 55606-0D180 · 55606-0D190 · 55606-0D200 · 55606-0D210 · 55606-0D230 · 55606-0D250 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D100 · 55607-0D110 · 55607-0D140 · 55607-0D160 · 55607-0D190 · 55607-0D200 · 55607-0D210 · 55607-0D220 · 55607-0D240 · 55607-0D260 |
| 55615A | Dashboard cup holder housing | 55615-0D280 · 55615-0D310 |
| 55627A | Dashboard cup holder guide | 55627-0D030 · 55627-0D040 · 55627-0D050 · 55627-0D060 · 55627-0D090 · 55627-0D100 · 55627-0D130 · 55627-0D140 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-0D360 · 55650-0D440 · 55650-0D470 · 55650-0D590 · 55650-0D600 · 55650-0D640 · 55660-0D440 · 55660-0D450 · 55660-0D530 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55650-0D590 · 55650-0D600 · 55650-0D680 · 55660-0D200 · 55660-0D280 · 55660-0D310 · 55660-0D440 · 55660-0D450 · 55660-0D490 |
| 55661A | Dashboard air register bezel | 55011-0D120 · 55011-0D130 · 55661-0D110 · 55661-0D200 · 55661-0D220 · 55661-0D240 · 55661-0D280 · 55661-0D300 · 55661-0D310 |
| 55662A | No. 2 air regulator frame on dashboard | 55012-0D120 · 55012-0D130 · 55662-0D100 · 55662-0D120 · 55662-0D140 · 55662-0D180 · 55662-0D200 · 55662-0D210 · 55662-0D330 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-0D400 · 55670-0D410 · 55670-0D430 · 55670-0D470 · 55670-0D480 · 55670-0D490 · 55670-0D500 · 55670-0D520 · 55670-0D540 |
| 55670A | Instrument panel central air register assembly | 55670-0D130 · 55670-0D140 · 55670-0D180 · 55670-0D230 · 55680-0D040 · 55680-0D050 · 55680-0D090 · 55680-0D130 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D160 · 73960-0D170 · 73960-0D230 |
