Toyota YARIS 后保险杠及附件 — Figure 5202

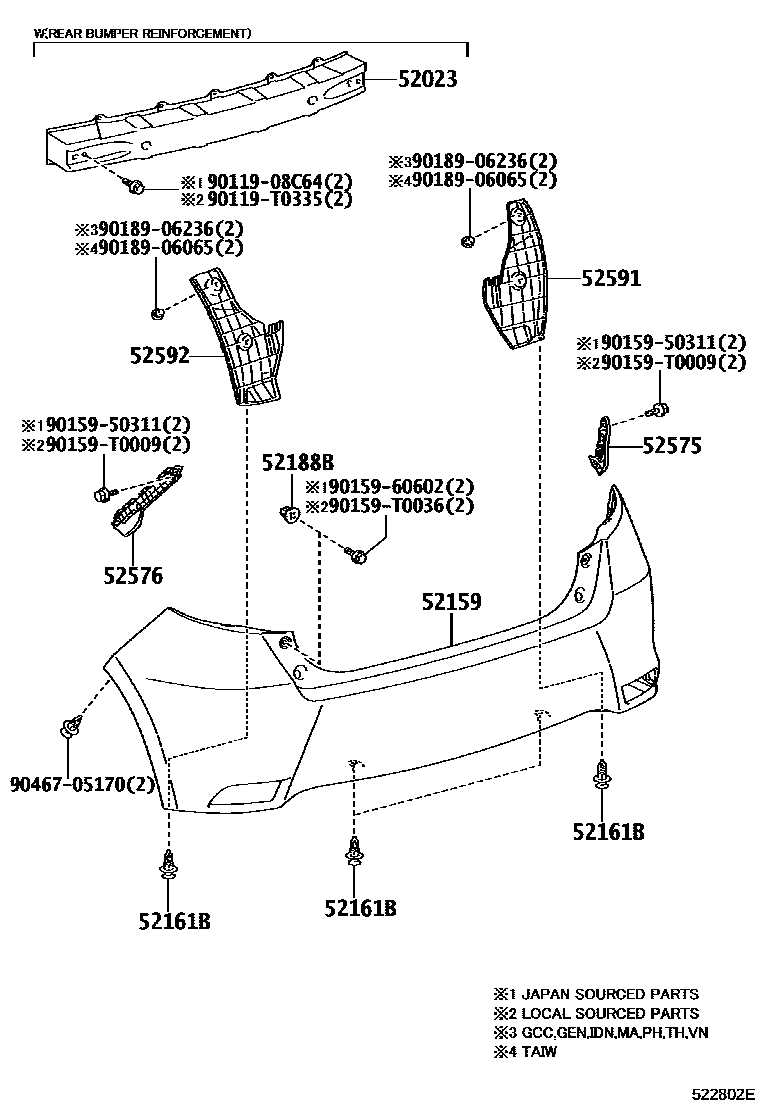

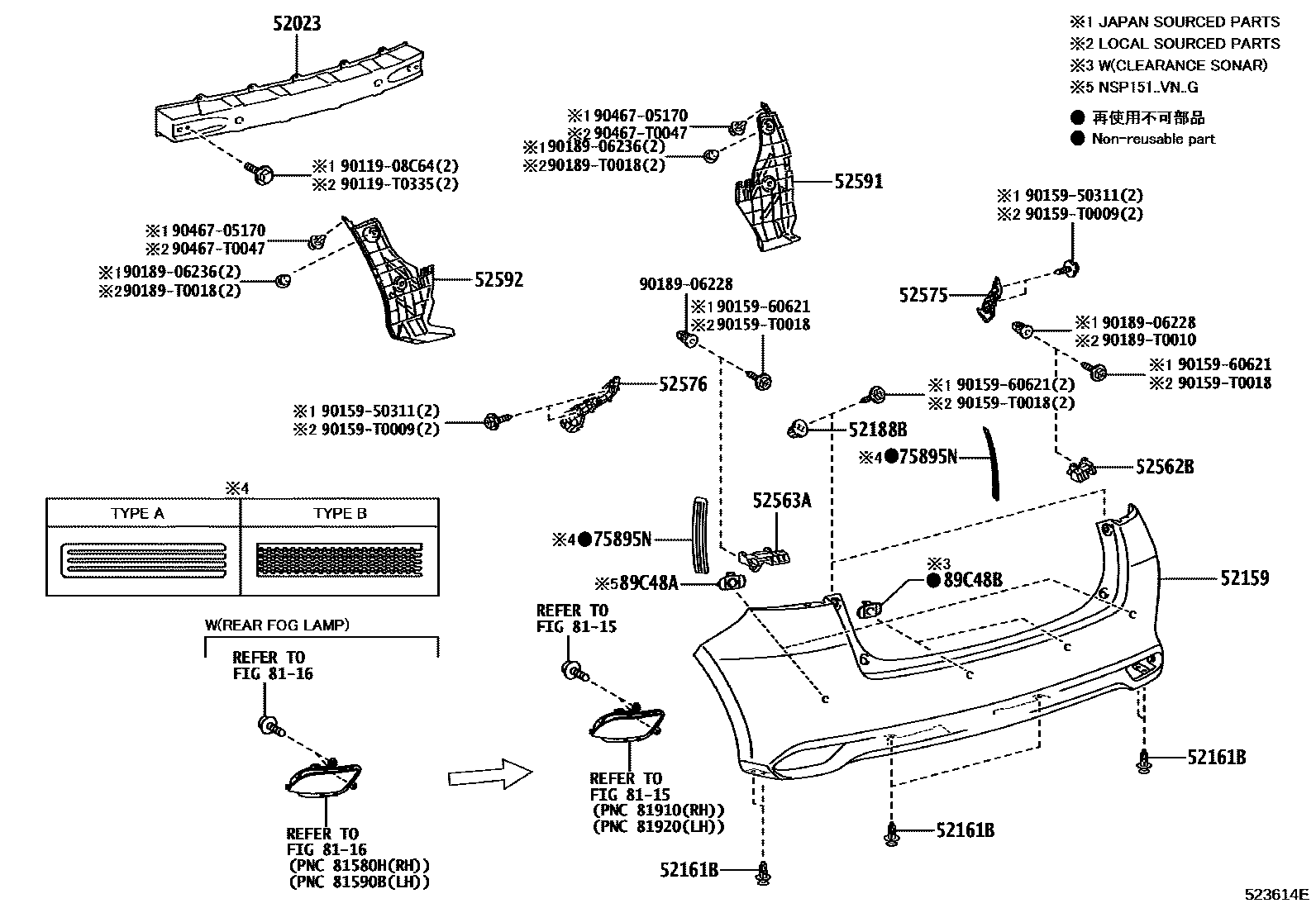

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0D090 · 52023-0D100 · 52023-0D110 · 52023-0D120 |
| 52159 | rear bumper cover | 52159-0U902 · 52159-0U907 · 52159-0U910 · 52159-0U922 · 52159-0U923 · 52159-0U926 · 52159-0U927 · 52159-0U928 · 52159-0U929 · 52159-0U942 · 52159-0U950 · 52159-0U951 · 52159-0U952 · 52159-0U953 · 52159-0U958 · 52159-0U962 · 52159-0U969 · 52159-0U970 |
| 52161B | Rear bumper insert | 52161-0K040 · 52161-0K060 · 52161-16010 |
| 52188B | Rear bumper installation spacer | 52188-0D010 · 52188-33040 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0D170 · 52562-0D180 · 52562-0D190 · 52562-0D200 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0D070 · 52563-0D080 · 52563-0D090 · 52563-0D100 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D180 · 52575-0D210 · 52575-0D230 · 52575-0D400 · 52575-0D410 · 52575-0D420 · 52575-0D430 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D180 · 52576-0D210 · 52576-0D230 · 52576-0D390 · 52576-0D400 · 52576-0D410 · 52576-0D420 |
| 52591 | Rear bumper right seal | 52591-0D210 · 52591-0D230 · 52591-0D260 · 52591-0D460 · 52591-0D470 · 52591-0D480 · 52591-0D490 |
| 52592 | Rear bumper left seal | 52592-0D210 · 52592-0D230 · 52592-0D260 · 52592-0D460 · 52592-0D470 · 52592-0D480 · 52592-0D490 |
| 75895N | No. 1 protective strip tape | 75895-0D270 · 75895-0D280 · 75895-0D290 · 75895-0D310 · 75895-0D330 · 75895-0D350 · 75895-28010 · 75895-53010 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-0D030 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-0D030 |
