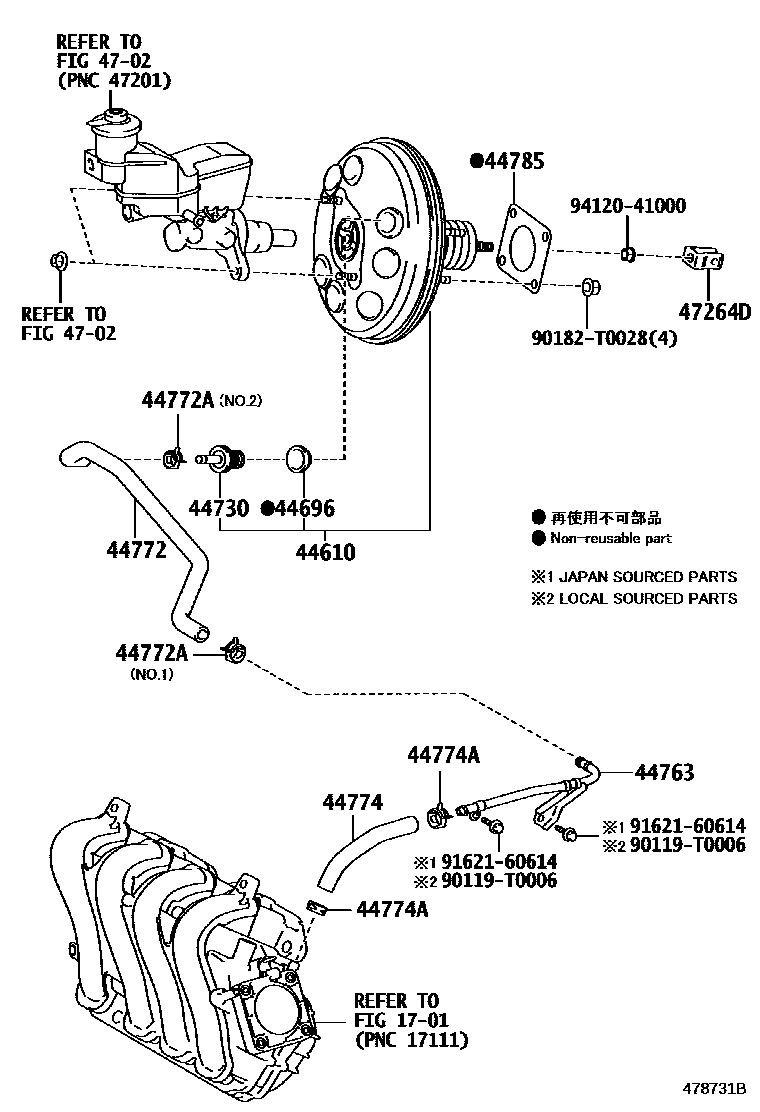

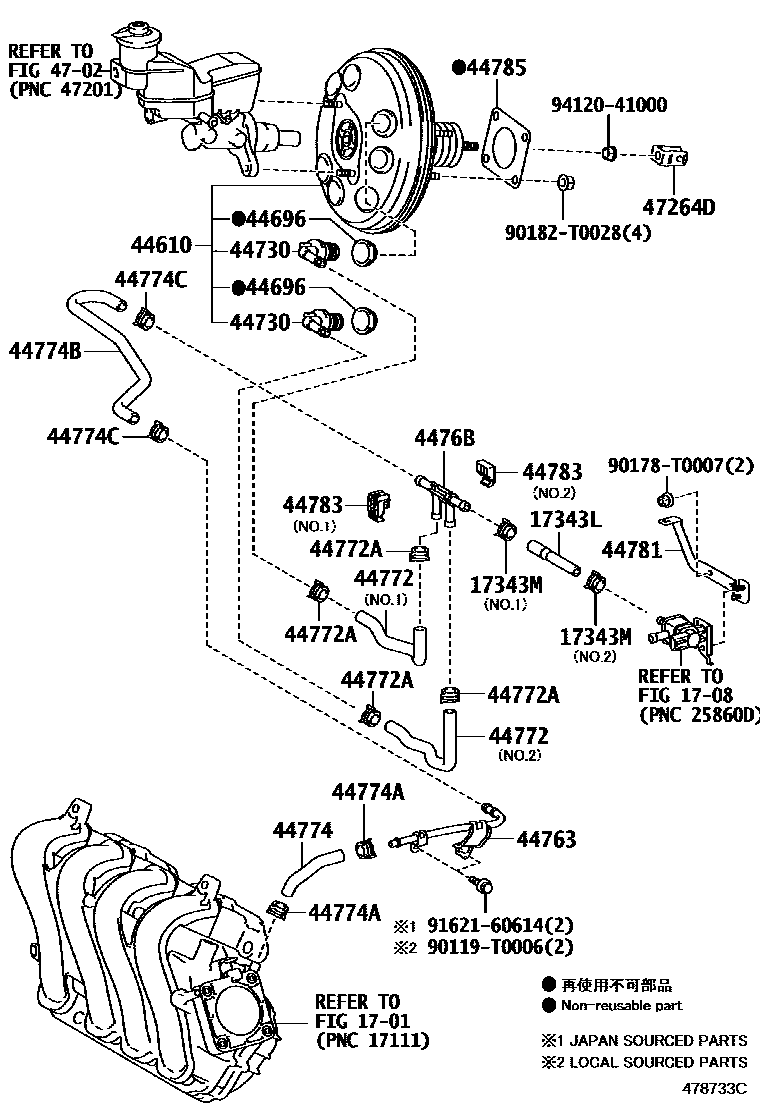

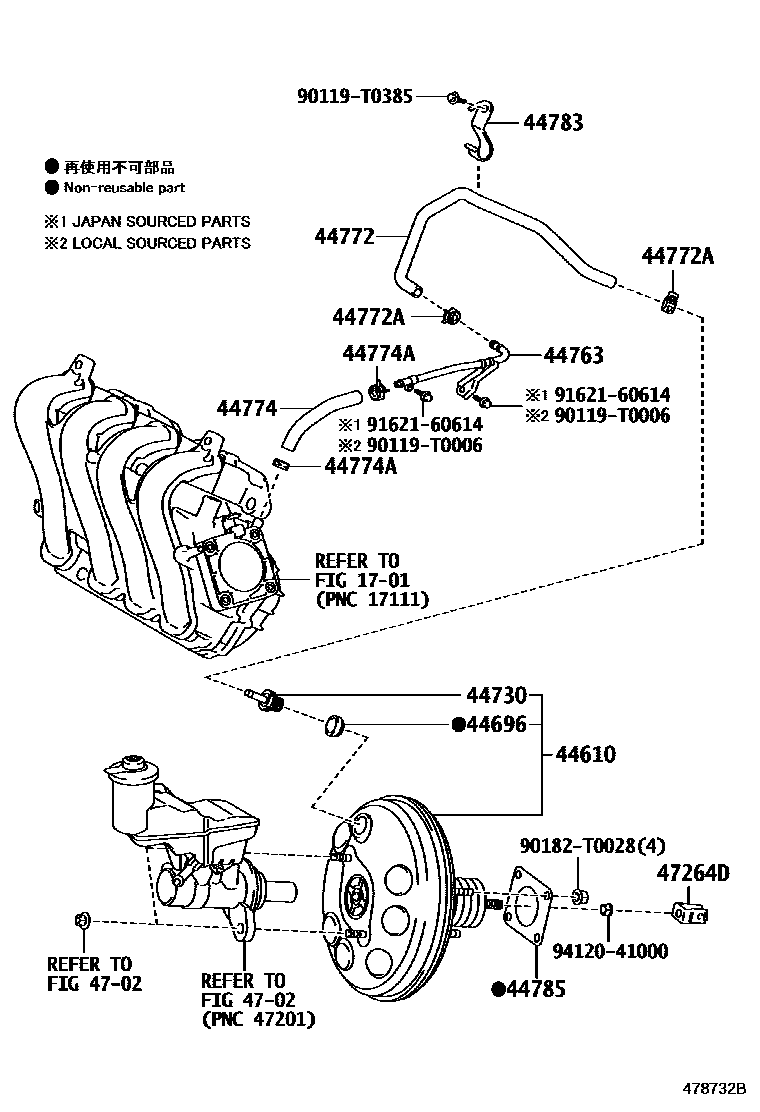

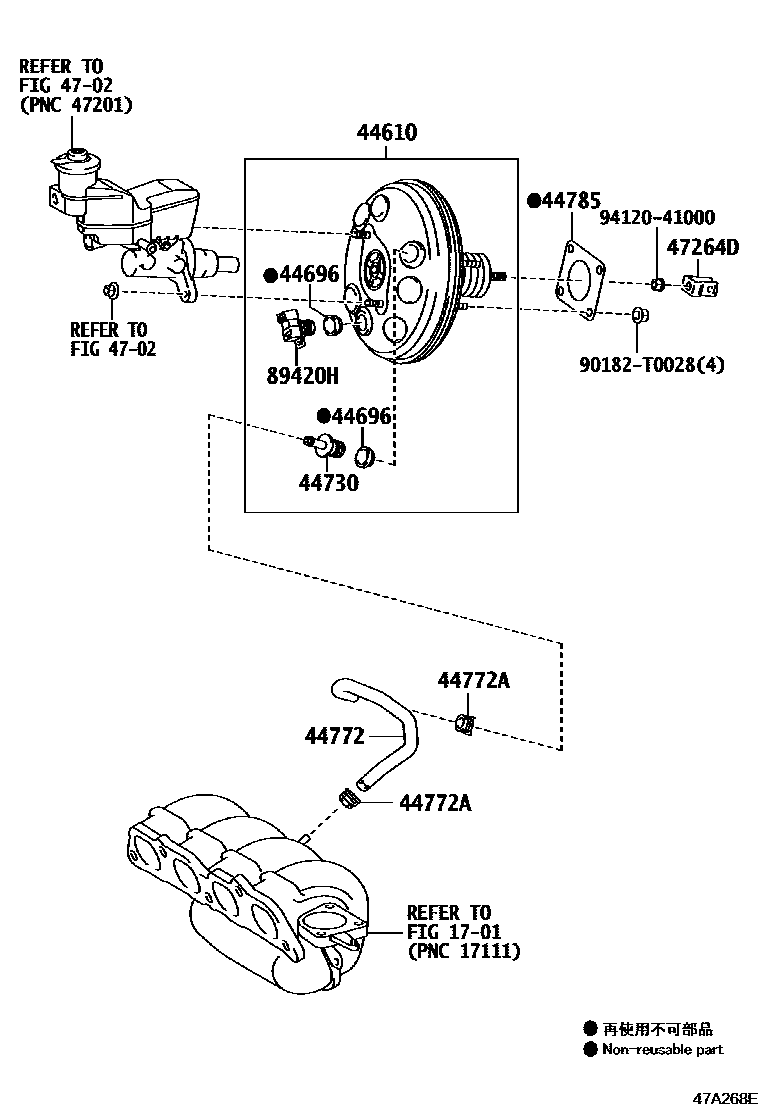

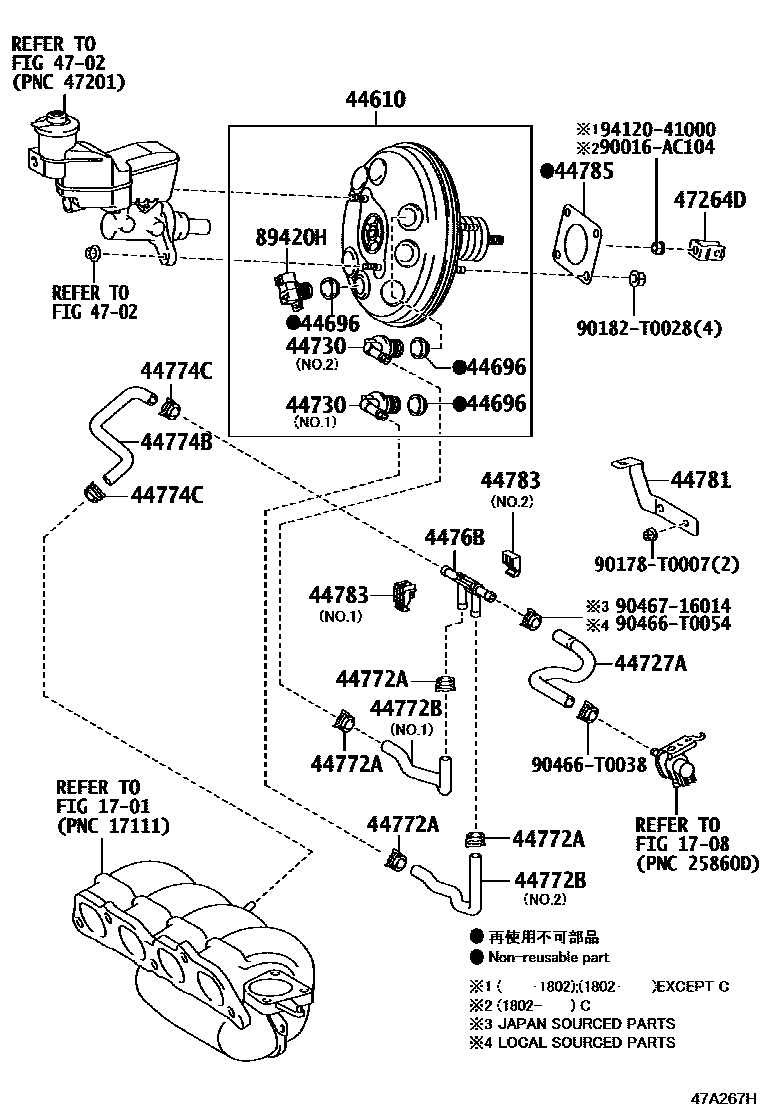

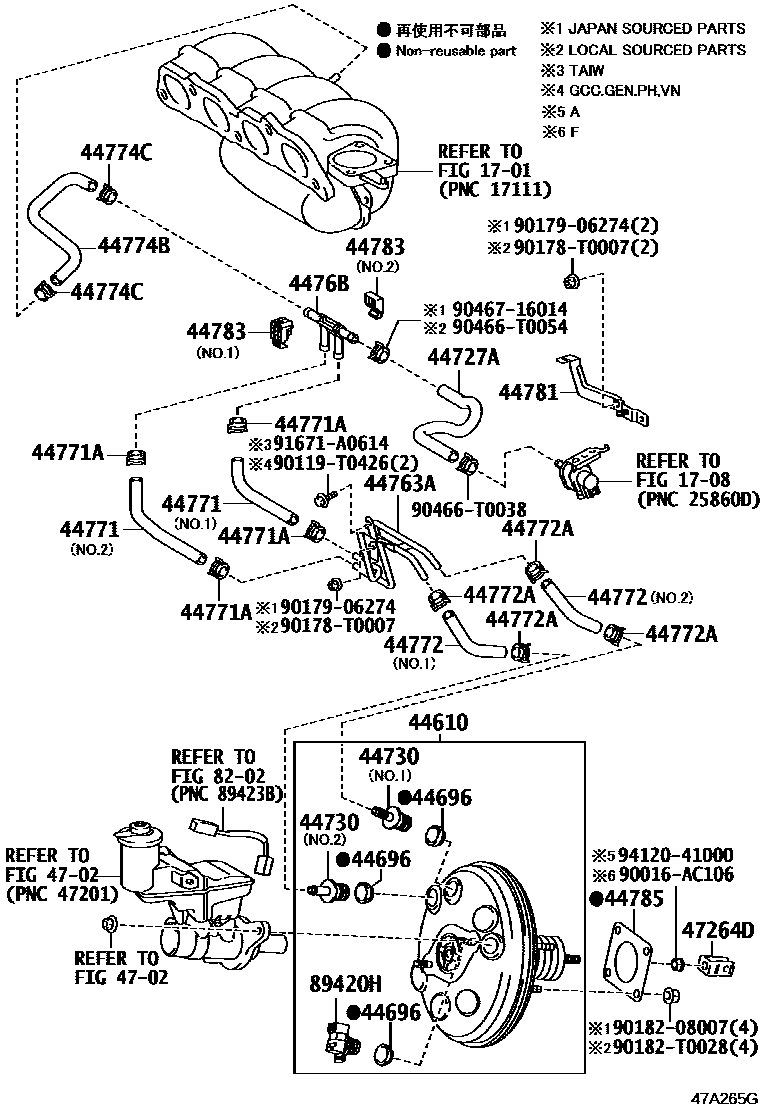

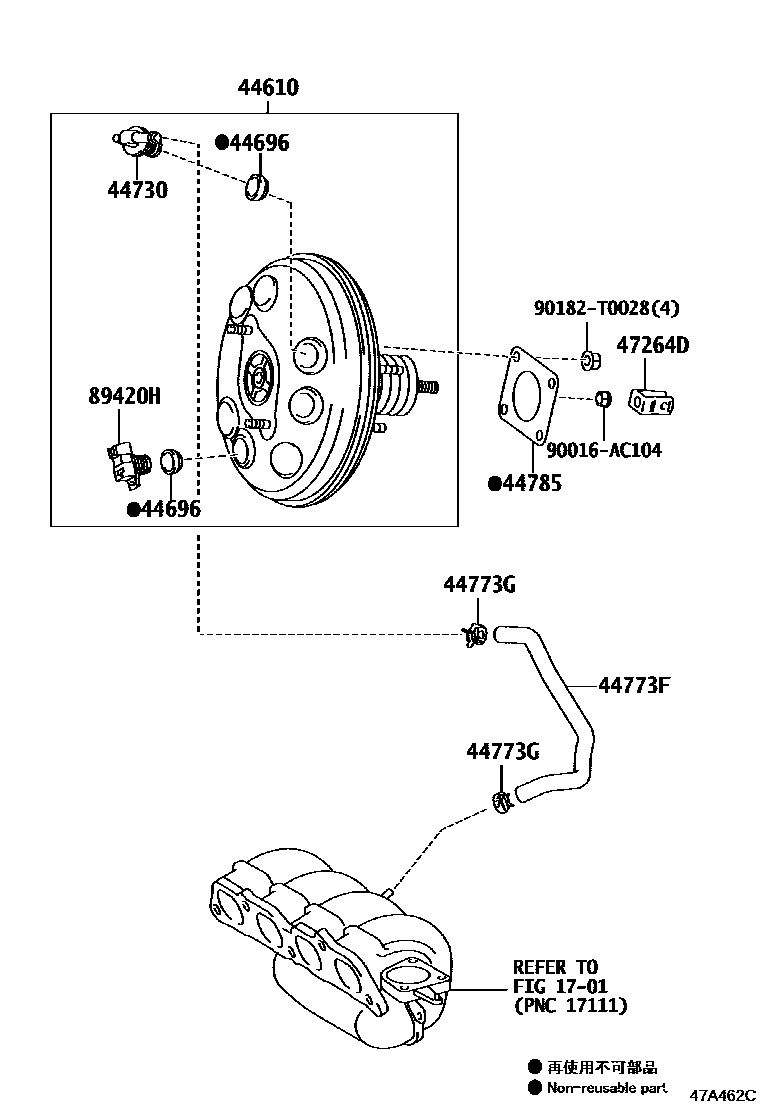

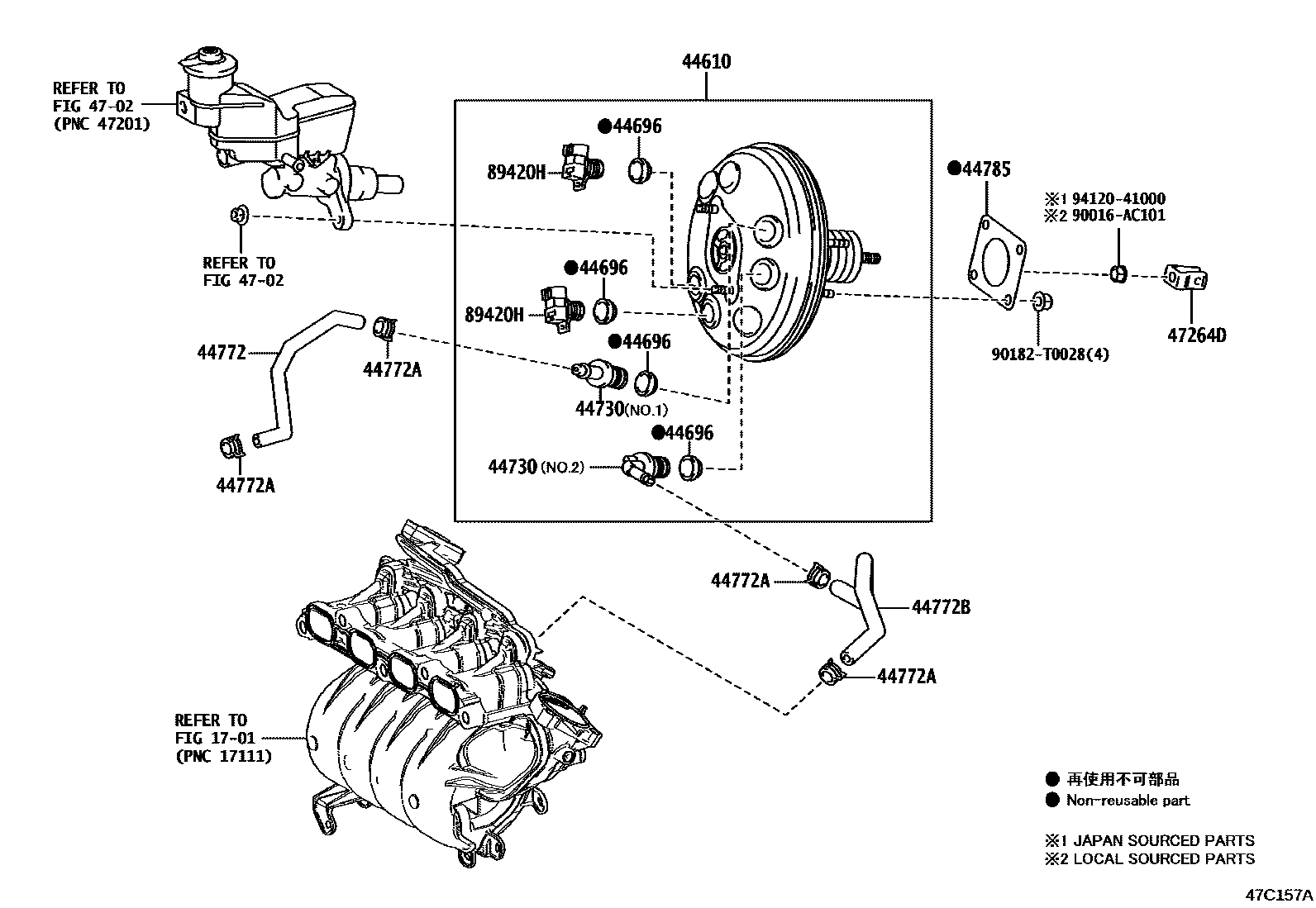

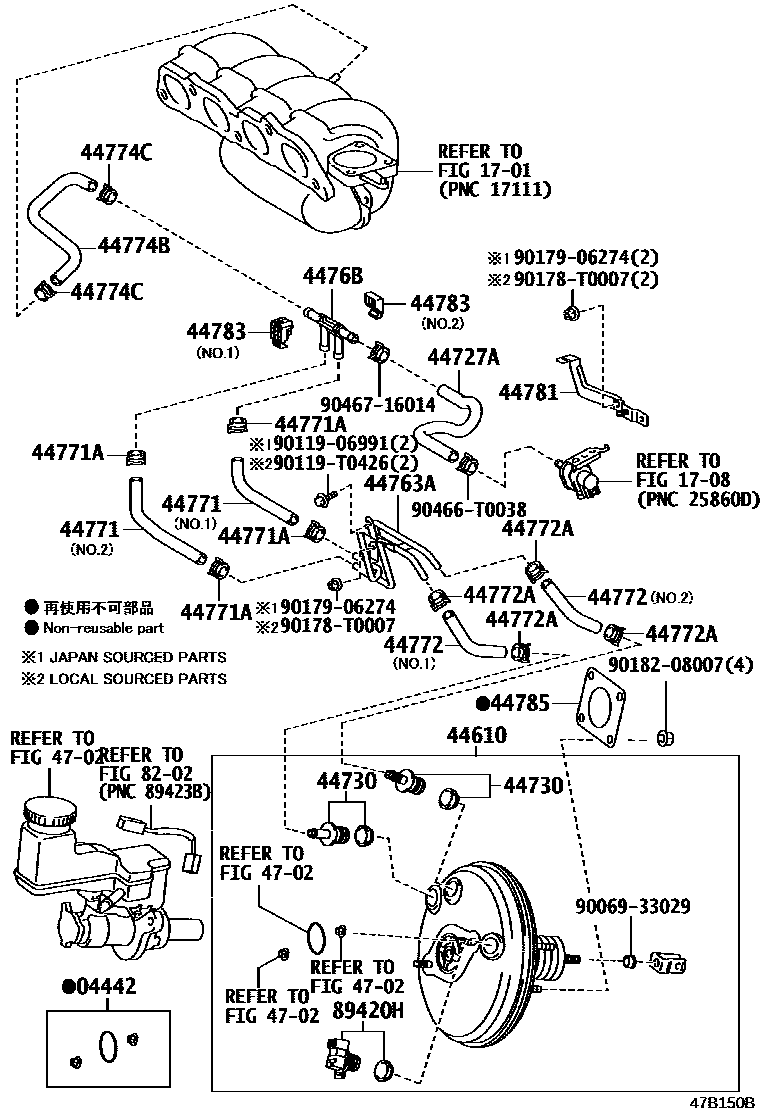

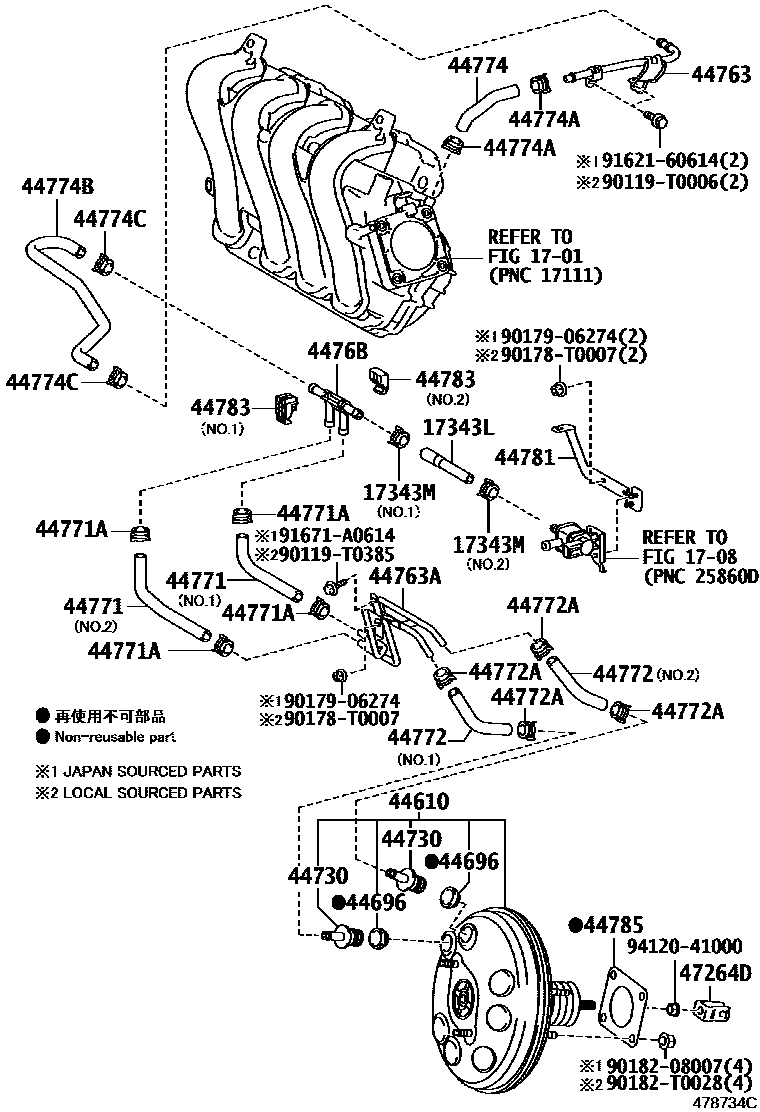

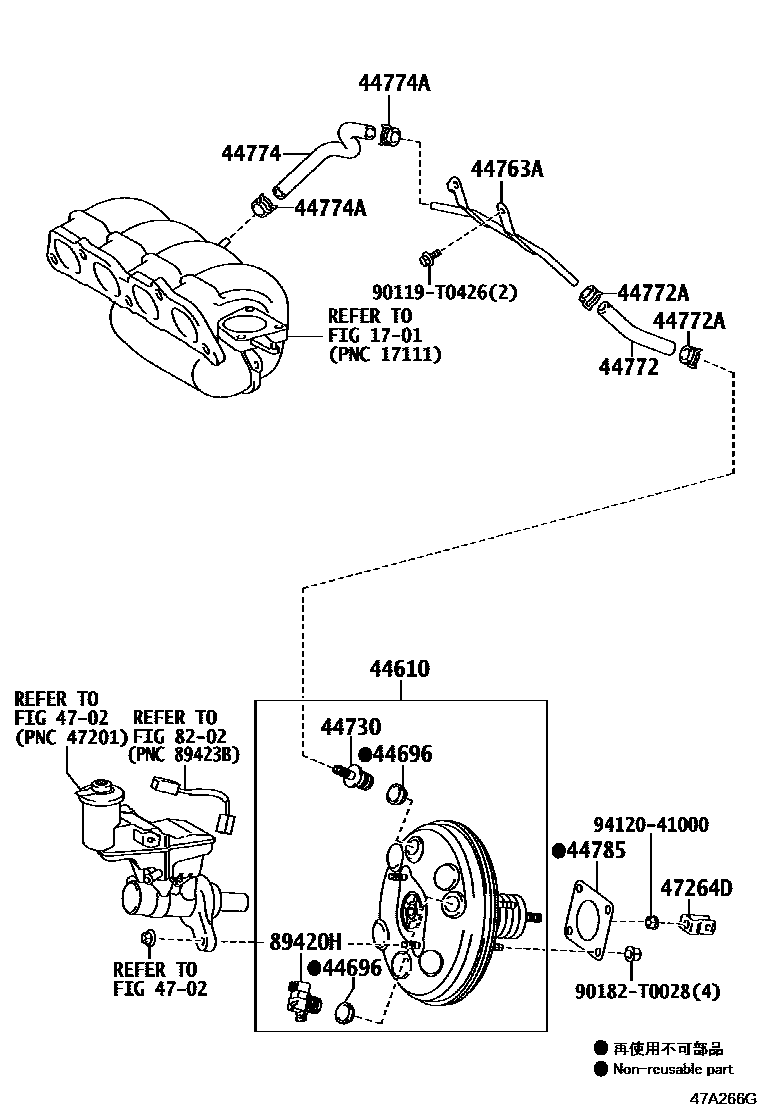

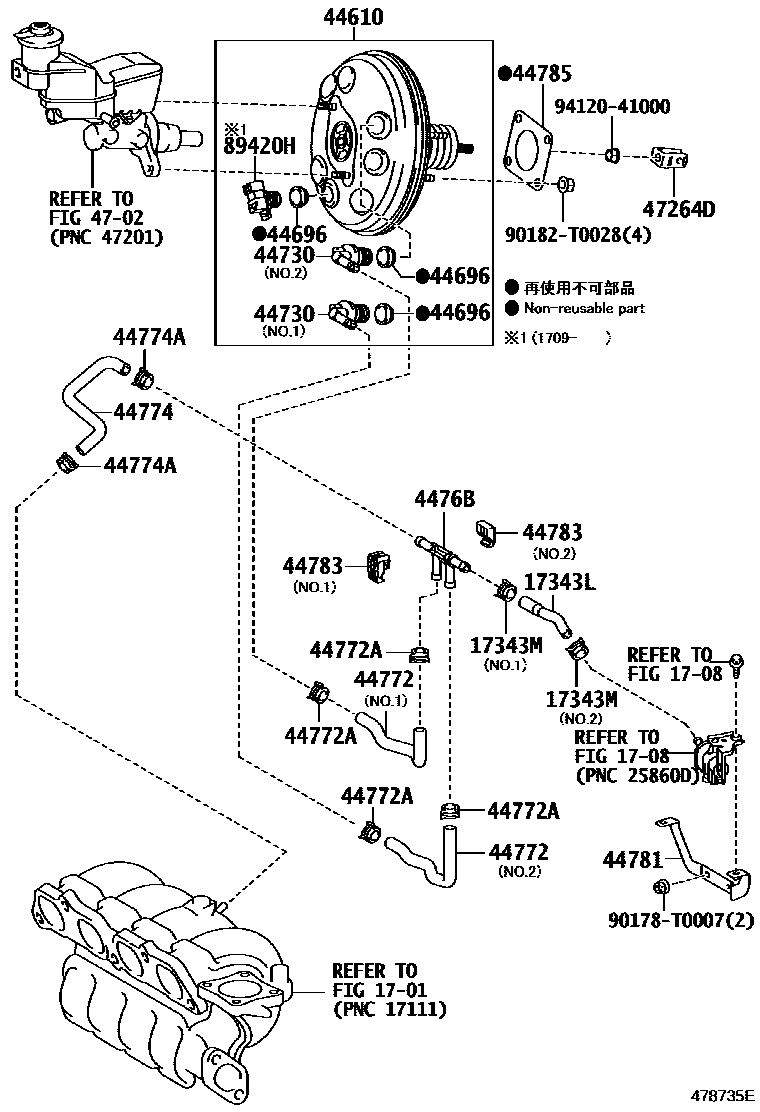

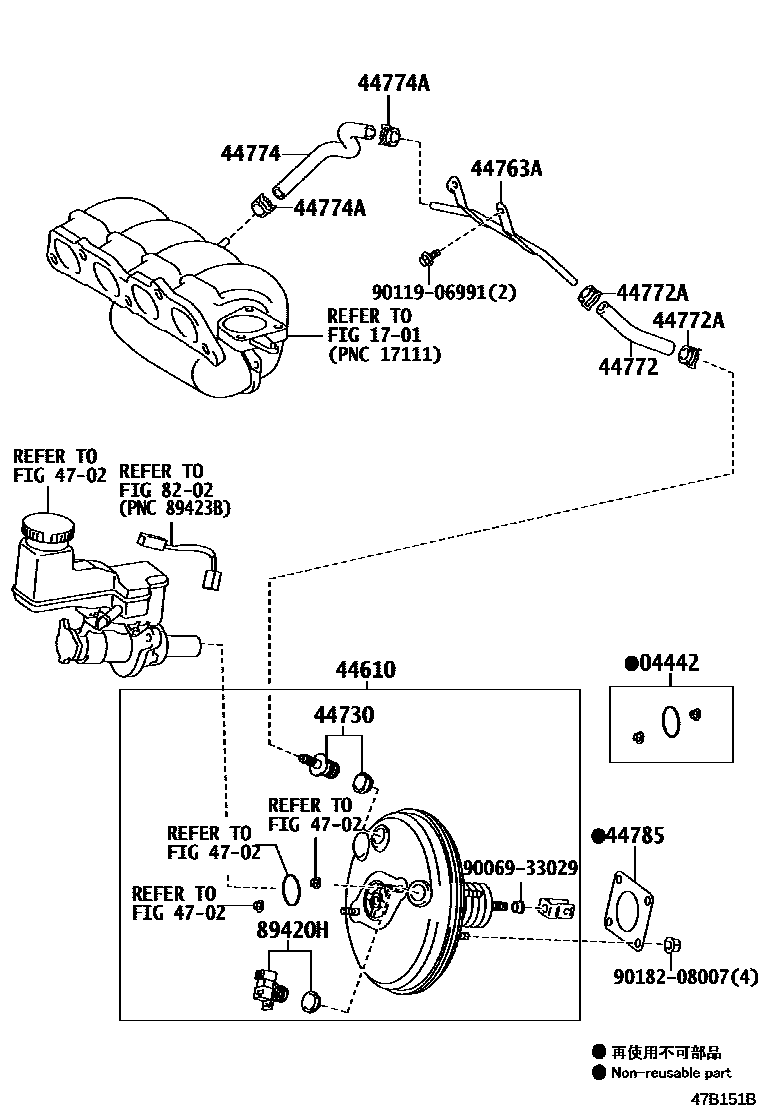

Toyota YARIS 制动助力器和真空管 — Figure 4703
Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 13 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04442 | Brake booster mounting kit | 04442-0D030 |
| 17343L | No. 3 air hose | 17343-0M010 |
| 17343M | Clip (for No. 3 air hose) | 90466-T0038 · 90467-16014 · 96132-41500 |
| 44610 | brake booster assembly | 44610-09F50 · 44610-09F60 · 44610-0D380 · 44610-0D390 · 44610-0D400 · 44610-0D410 · 44610-0D440 · 44610-0D450 · 44610-0D460 · 44610-0D480 · 44610-0D510 · 44610-0D520 · 44610-0D680 · 44610-0D690 · 44610-0D710 · 44610-0D730 · 44610-0D740 · 44610-0D750 · 44610-0D760 · 44610-0D780 · 44610-0D790 · 44610-0D800 · 44610-0D810 · 44610-0D830 · 44610-0D840 · 44610-0D860 · 44610-0D870 · 44610-0DA00 · 44610-0DA10 · 44610-0DB50 · 44610-0DC10 · 44610-0DC11 · 44610-0DC20 · 44610-0DC21 · 44610-0DC30 · 44610-0DC31 · 44610-0DC40 · 44610-0DC41 · 44610-0DC50 · 44610-0DC60 · 44610-0DD80 |
| 44696 | One-way valve seal | 90016-AT003 |
| 44727A | Air hose No. 2 | 17342-0Y010 · 17342-0Y070 · 17342-0Y090 · 17342-0Y130 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-09080 · 44730-14050 · 44730-20080 · 44730-20170 · 44730-30060 · 44730-52010 · 44730-60070 |
| 44763 | booster vacuum tube | 44763-0D080 · 44763-0D100 · 44763-52080 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-0D170 · 44763-0D200 · 44763-0D290 · 44763-0D300 · 44763-0D310 · 44763-0D350 · 44763-0D360 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44771 | Vacuum tube connector hose | 44771-0D030 · 44771-0D040 · 44771-0D070 · 44771-0D080 · 44771-0D090 · 44771-0D190 · 44771-0D200 · 44771-0D210 · 44771-0D260 · 44771-0D270 |
| 44771A | Clip (for vacuum tube connector hose) | 90467-16014 |
| 44772 | Hoses (check valve to connector tube) | 44772-0D120 · 44772-0D130 · 44772-0D140 · 44772-0D150 · 44772-0D180 · 44772-0D190 · 44772-0D230 · 44772-0D240 · 44772-0D250 · 44772-0D260 · 44772-0D270 · 44772-0D360 · 44772-0D370 · 44772-0D380 · 44772-0D410 · 44772-0D450 · 44772-0D580 · 44772-0D590 · 44772-0D680 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 · 96133-41500 |
| 44772B | Hoses (check valve to brake booster) | 44772-0D310 · 44772-0D320 · 44772-0D430 · 44772-0D440 · 44772-0D690 |
| 44773F | Hoses (connector to check valve) | 44773-0D080 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-0D090 · 44774-0D170 · 44774-0D200 · 95446-09130 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-T0018 · 90467-16014 · 96133-41500 · 96136-41801 |
| 44774B | Hoses (joints to connector tubes) | 44774-0D080 · 44774-0D110 · 44774-0D120 · 44774-0D130 · 44774-0D160 · 44774-0D190 · 44774-0D210 · 44774-0D220 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44781 | hose holder | 44781-0D020 · 44781-0D030 · 44781-0D050 · 44781-0D060 · 44781-0D120 · 44781-0D130 · 44781-0D140 · 44781-0D150 · 44781-0D190 |
| 44783 | Vacuum hose clamp | 44783-0D010 · 44783-0D020 · 44783-0D030 |
| 44785 | brake booster pad | 44785-0D020 · 44785-0D030 · 44785-12040 · 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0D030 · 47264-0D040 |
| 89420H | Vacuum sensor assembly | 89421-09030 · 89421-12160 · 89421-52020 |
