Toyota YARIS Steering Wheel — Figure 4504

Toyota YARIS EPC diagram 4504, Steering Wheel, with 3 images and 3 PNC and OE references.

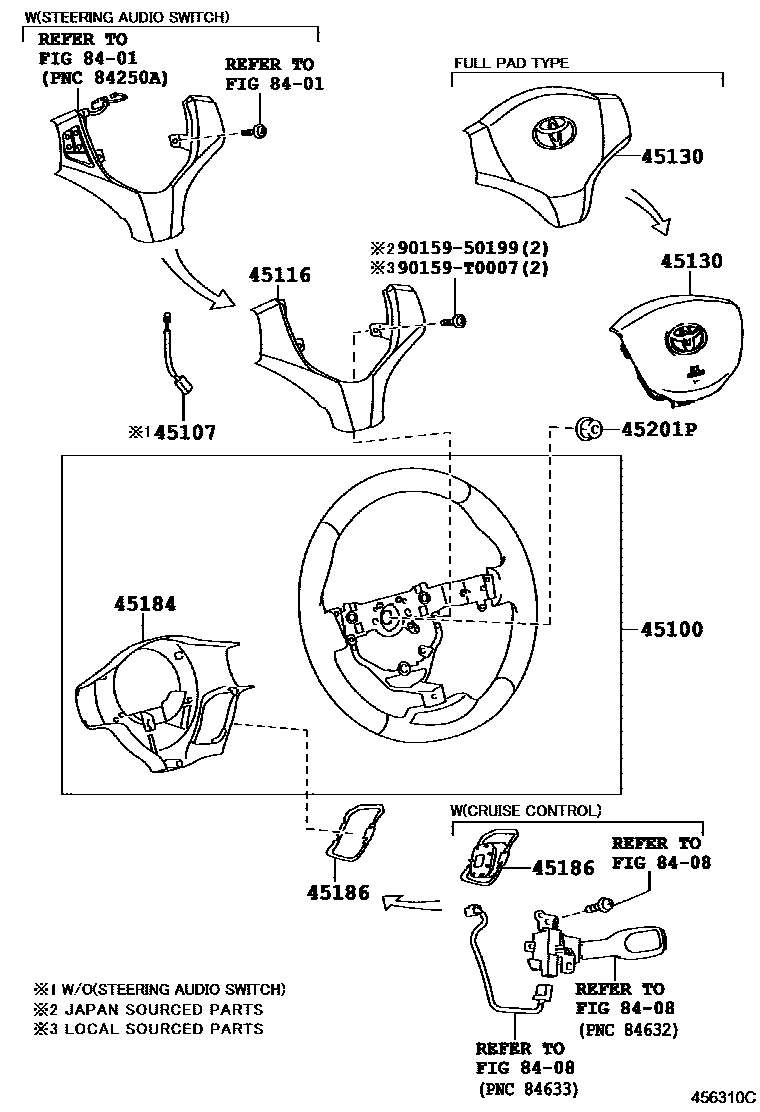

Toyota YARIS Steering Wheel EPC diagram — 456310C
Steering Wheel — 456310C (201310 – 201802)

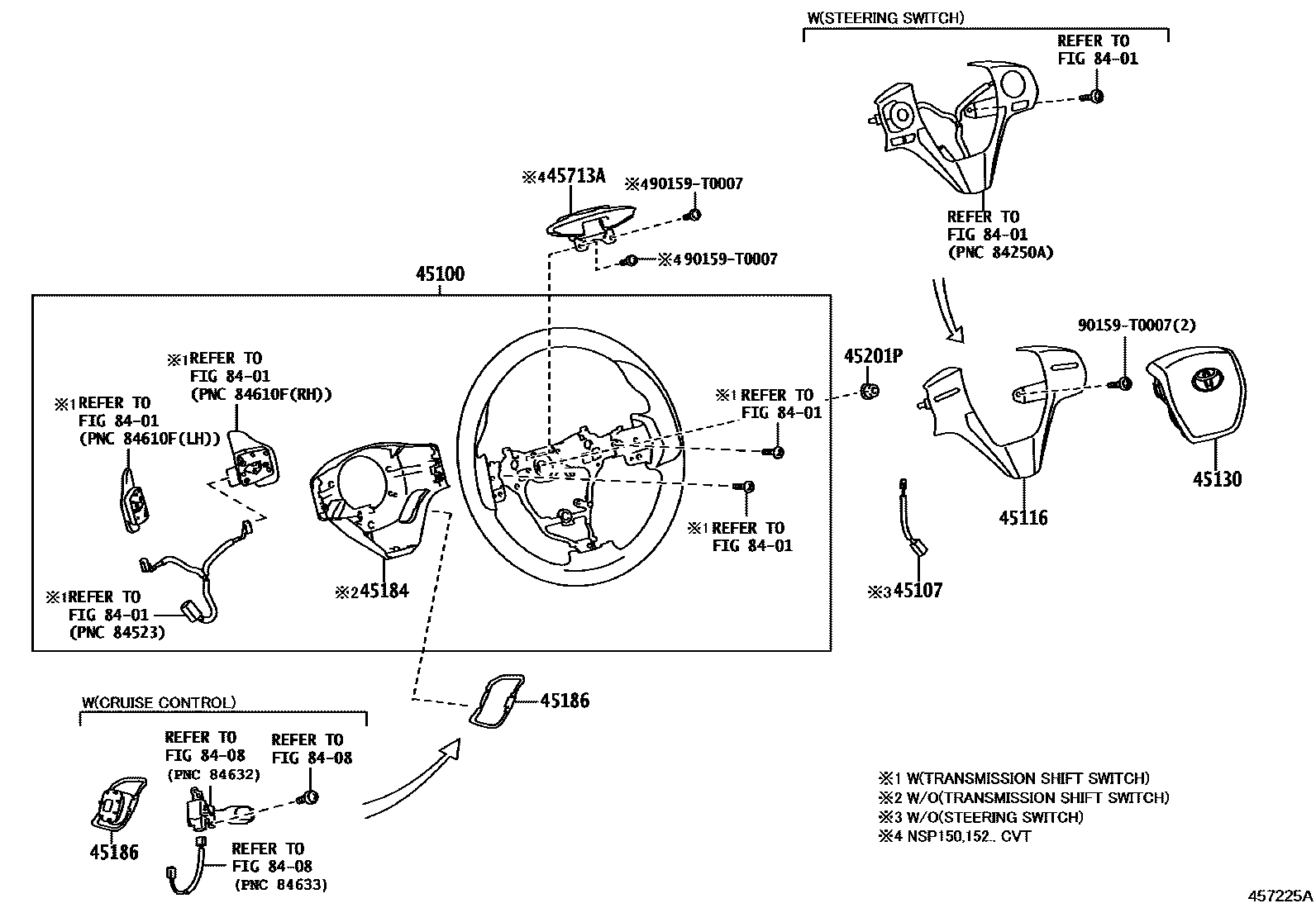

Toyota YARIS Steering Wheel EPC diagram — 457225A
Steering Wheel — 457225A (201709 – 999999)

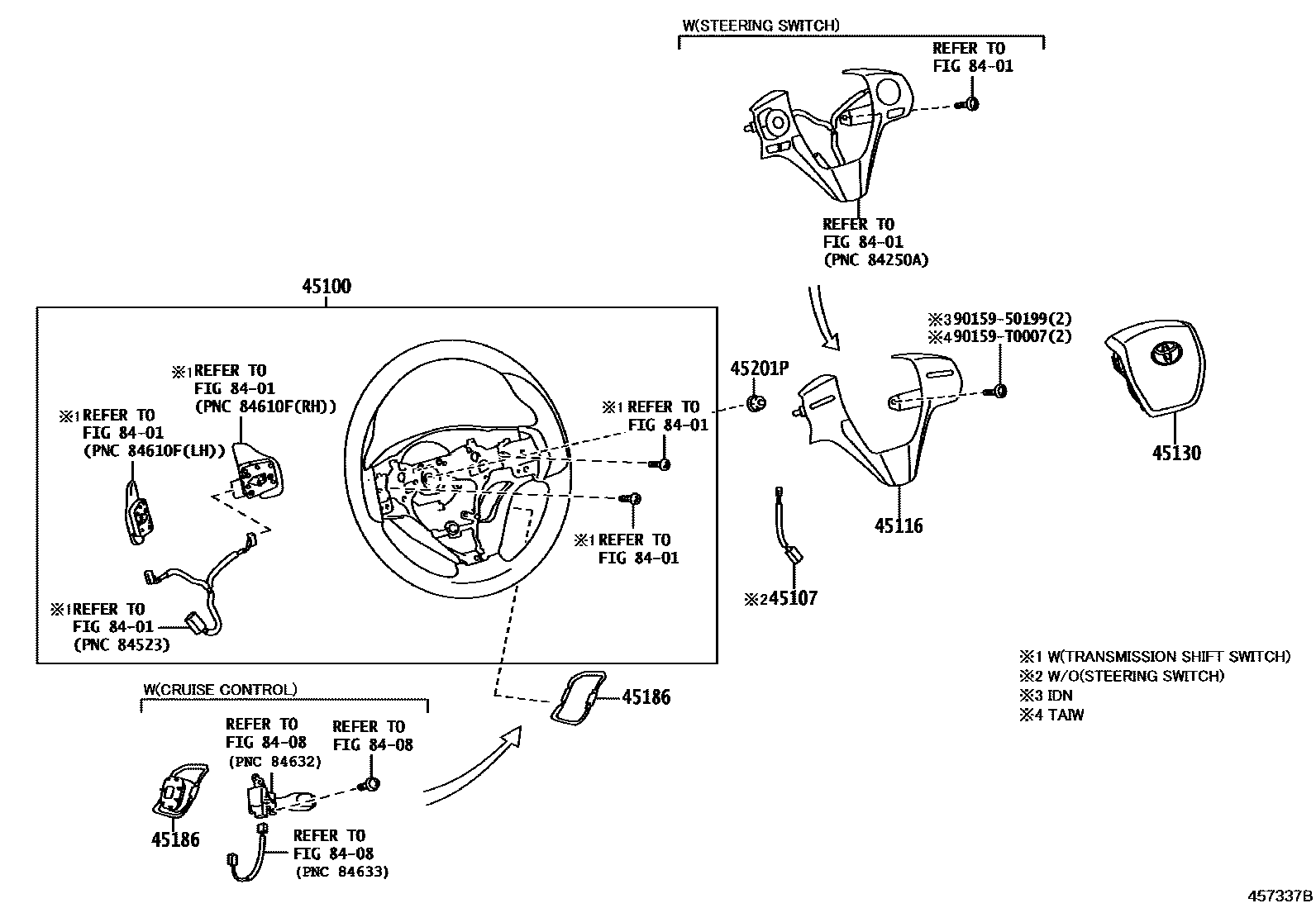

Toyota YARIS Steering Wheel EPC diagram — 457337B
Steering Wheel — 457337B (201802 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-0D010 · 45107-0D030 · 45107-0D050 · 45107-52010
45201PSteering wheel fixing nut90179-12071
45713Asteering damper45713-52100
