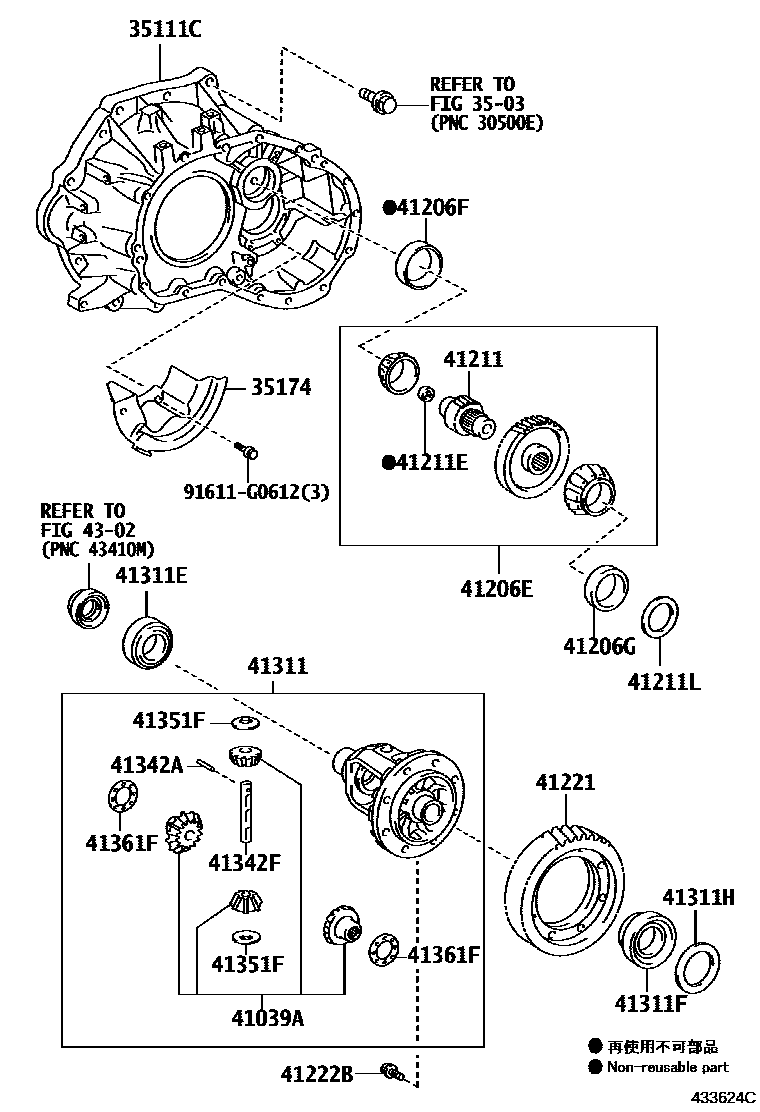

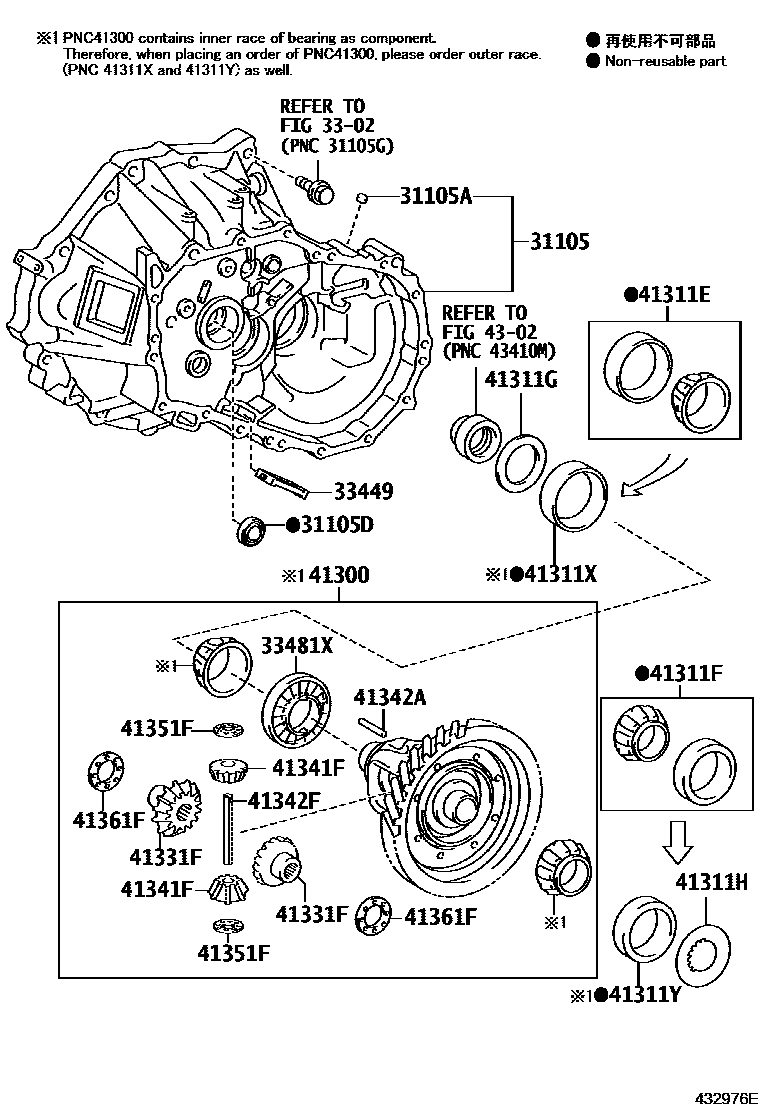

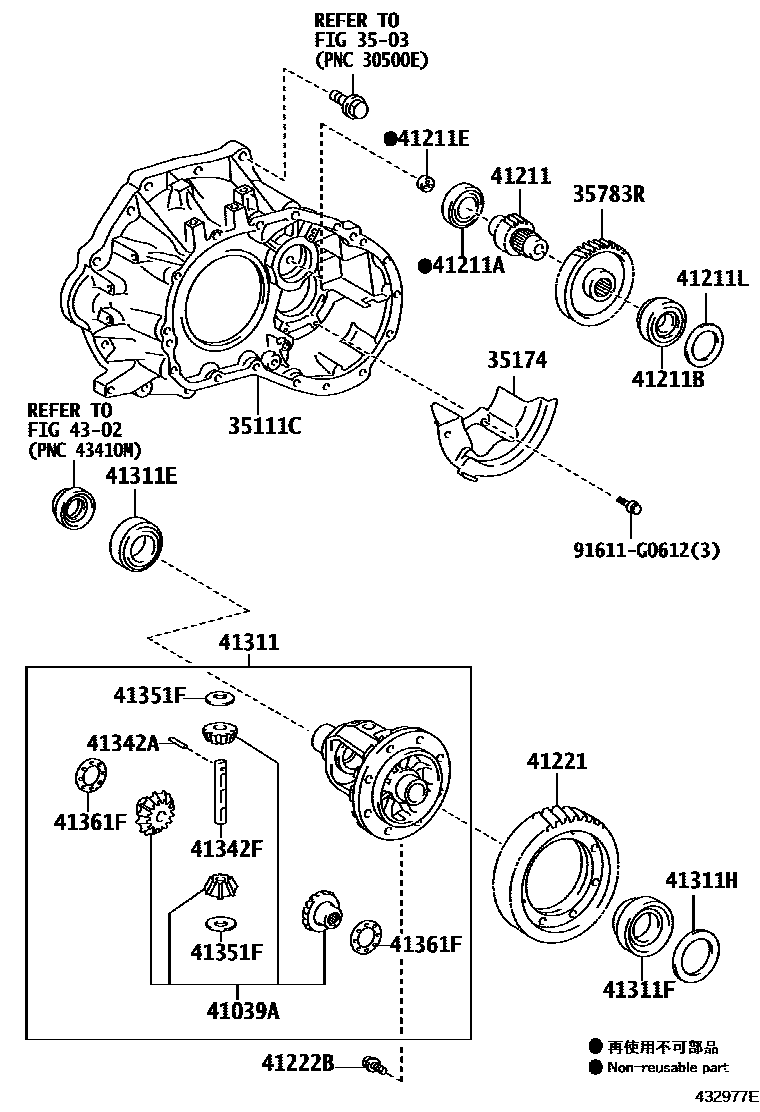

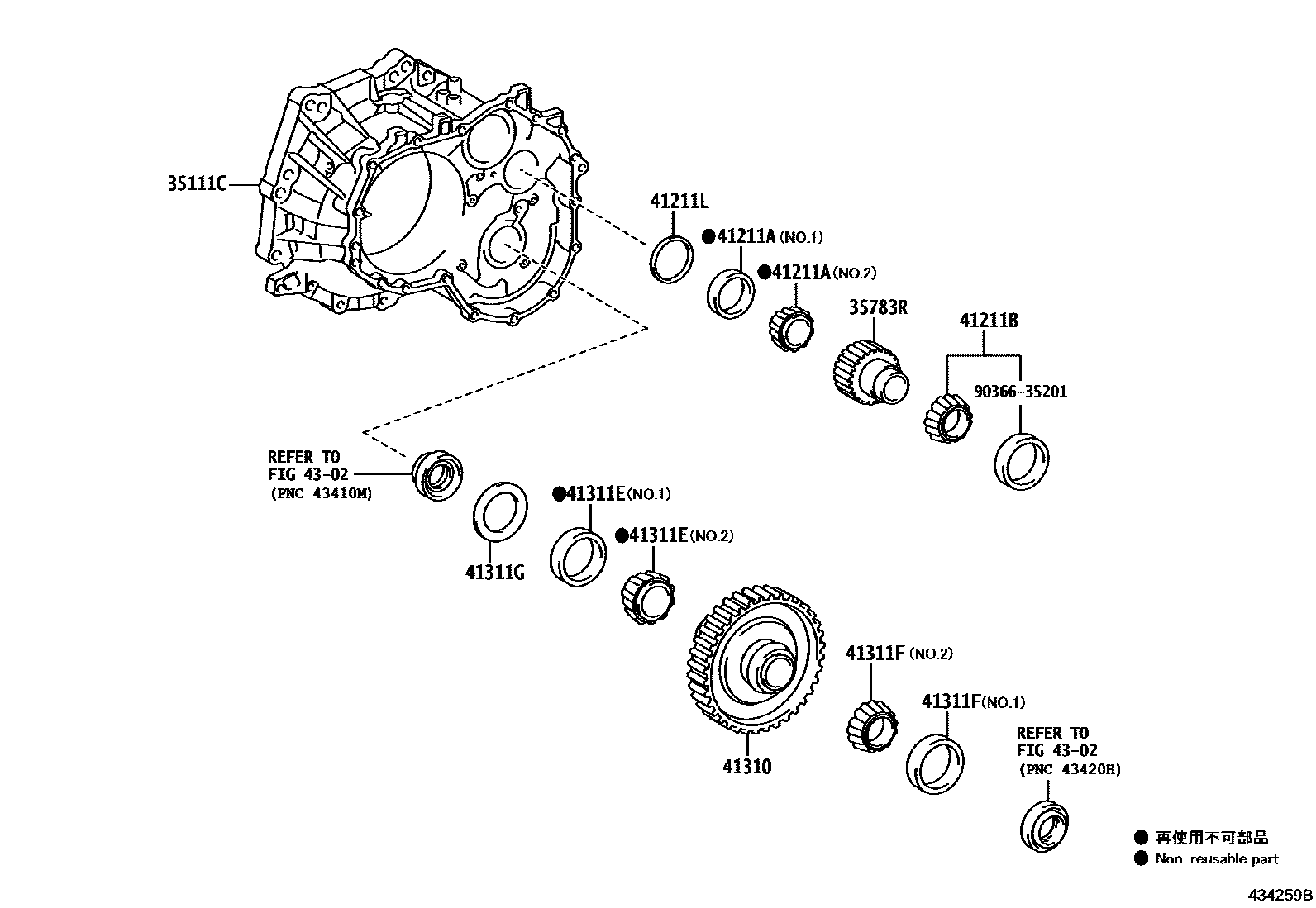

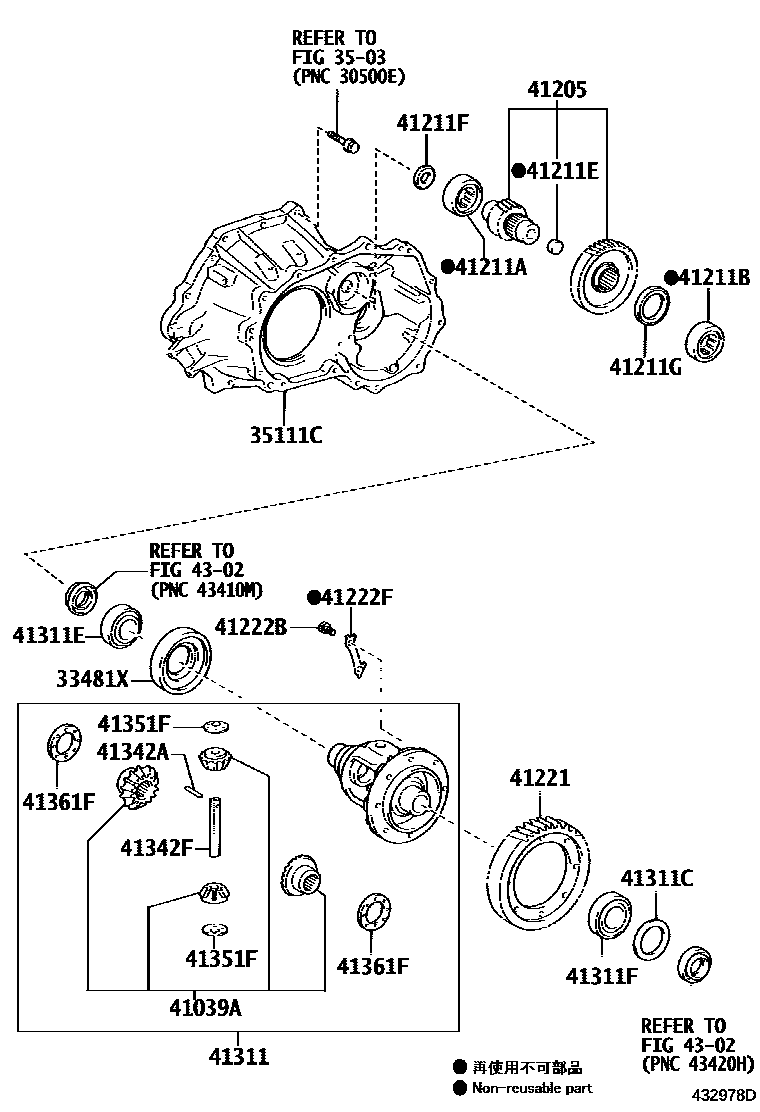

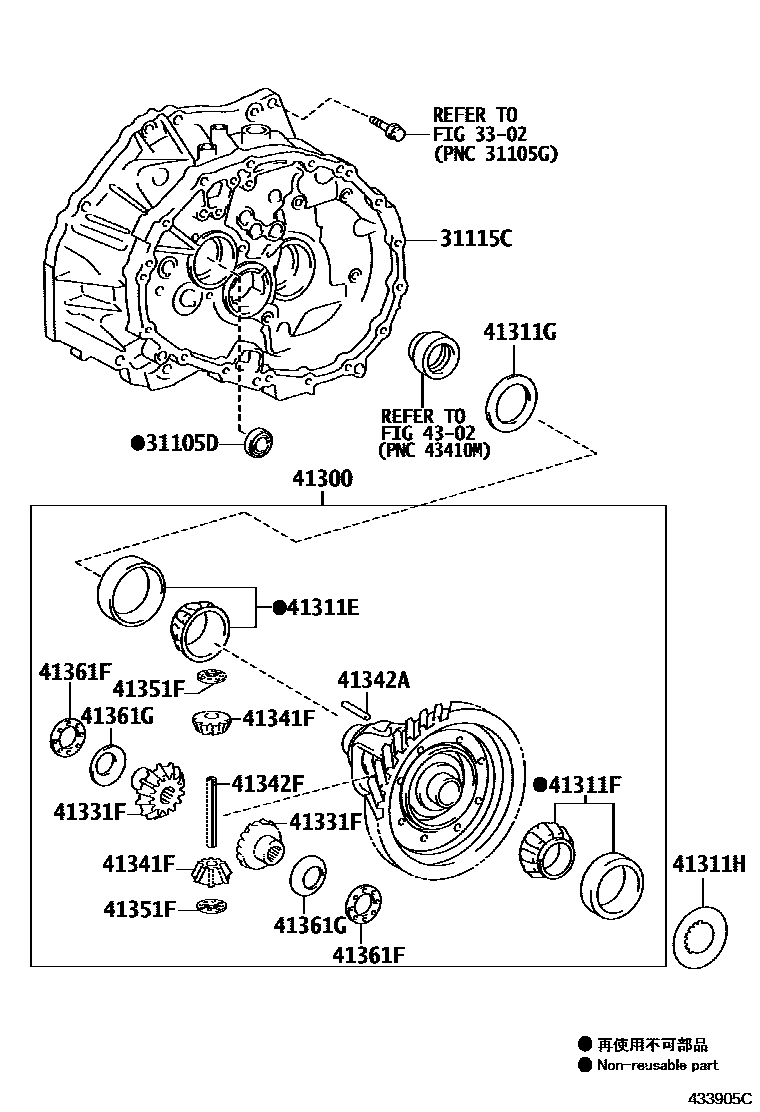

Toyota YARIS 前桥壳和差速器 — Figure 4301
Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 6 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-0D070 · 31105-0D080 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25028 · 90311-25030 · 90311-T0078 |
| 31115C | Front transmission axle housing (MTM) | 31115-0D210 |
| 33449 | derailleur magnet | 33449-12020 |
| 33481X | speedometer drive gear | 33481-12040 · 33481-32010 |
| 35111C | Transmission axle housing | 35105-52071 · 35105-52140 · 35105-52280 |
| 35174 | Transmission axle housing oil separator | 35174-52020 |
| 35783R | countershaft driven gear | 35705-52110 · 35783-52030 |
| 41039A | Differential gear assembly | 41039-12010 · 41039-44020 |
| 41205 | Differential drive pinion sub-assembly | 41205-52021 |
| 41206E | Gear and countershaft driven gear sub-assembly | 41206-52010 |
| 41206F | Right roller tapered bearing outer race | 90366-30080 |
| 41206G | Left side roller tapered bearing outer race | 90366-29005 |
| 41211 | Differential drive pinion | 41211-52060 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 · 90366-24002 · 90366-24003 · 90366-30079 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 · 90366-29004 · 90366-35200 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 · 90339-13005 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41211L | Spacer (for differential drive pinion) | 90564-43016 · 90564-43017 · 90564-43018 · 90564-43019 · 90564-43020 · 90564-43021 · 90564-43022 · 90564-43023 · 90564-43024 · 90564-43025 · 90564-43026 · 90564-43027 · 90564-43028 · 90564-43029 · 90564-43030 · 90564-43031 · 90564-43032 · 90564-43033 · 90564-43034 · 90564-43035 · 90564-43036 · 90564-43037 · 90564-43038 · 90564-43039 · 90564-43040 · 90564-43041 · 90564-43042 · 90564-43043 · 90564-43044 · 90564-43045 · 90564-43046 · 90564-43047 · 90564-43048 · 90564-43049 · 90564-43050 · 90564-43051 · 90564-43052 · 90564-43053 · 90564-43054 · 90564-43055 · 90564-43056 · 90564-51039 · 90564-51040 · 90564-51041 · 90564-51042 · 90564-51043 · 90564-51044 · 90564-51045 · 90564-51046 · 90564-51047 · 90564-51048 · 90564-51049 · 90564-51050 · 90564-51051 · 90564-51052 · 90564-51053 · 90564-51054 · 90564-51055 · 90564-51056 · 90564-51057 · 90564-51058 · 90564-51059 · 90564-51060 · 90564-51061 · 90564-51062 · 90564-51063 |
| 41221 | Front differential ring gear | 41221-52080 · 41221-52091 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41300 | Front differential case assembly with ring gear | 41300-0D110 · 41300-0D120 · 41300-0D903 |
| 41310 | Differential case assembly | 41310-52040 |
| 41311 | front differential case | 41301-52010 · 41301-52070 |
| 41311C | Rear gasket (for front differential case) | 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-38004 · 90366-38026 · 90366-38064 · 90366-38065 · 90366-40016 · 90366-S0028 · 90366-T0087 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-38023 · 90366-38061 · 90366-38062 · 90366-44001 · 90366-S0025 · 90366-T0086 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90564-42123 · 90564-42124 · 90564-42125 · 90564-42126 · 90564-42127 · 90564-42128 · 90564-42129 · 90564-42130 · 90564-42131 · 90564-42132 · 90564-42133 · 90564-42134 · 90564-42135 · 90564-42136 · 90564-42137 · 90564-42138 · 90564-42139 · 90564-42140 · 90564-42141 · 90564-42142 · 90564-42143 · 90564-42144 · 90564-42145 · 90564-42146 · 90564-42147 · 90564-42148 · 90564-42149 · 90564-42150 · 90564-42151 · 90564-42152 · 90564-42153 · 90564-42154 · 90564-42155 · 90564-42156 · 90564-42157 · 90564-42158 · 90564-42159 · 90564-42160 · 90564-42161 · 90564-42162 · 90564-42163 · 90564-42164 · 90564-42165 · 90564-42166 · 90564-42167 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 · 90564-42080 · 90564-42081 · 90564-42082 · 90564-42083 · 90564-42084 · 90564-42085 · 90564-42086 · 90564-42087 · 90564-42088 · 90564-42089 · 90564-42090 · 90564-42091 · 90564-42092 · 90564-42093 · 90564-42094 · 90564-42095 · 90564-42096 · 90564-42097 · 90564-42098 · 90564-42099 · 90564-42100 · 90564-42101 · 90564-42102 · 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-T0089 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-T0088 |
| 41331F | Front differential side gear | 41331-0D080 · 41331-12011 |
| 41341F | Front differential planetary gear | 41341-0D080 · 41341-12030 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-04053 · 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-0D030 · 41342-10041 · 41342-20090 · 41342-52060 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 · 41351-32010 · 41351-52010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-48010 · 41361-52010 · 41361-52020 · 41361-52030 · 41361-52040 · 41361-52050 · 41361-52060 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-35001 |
