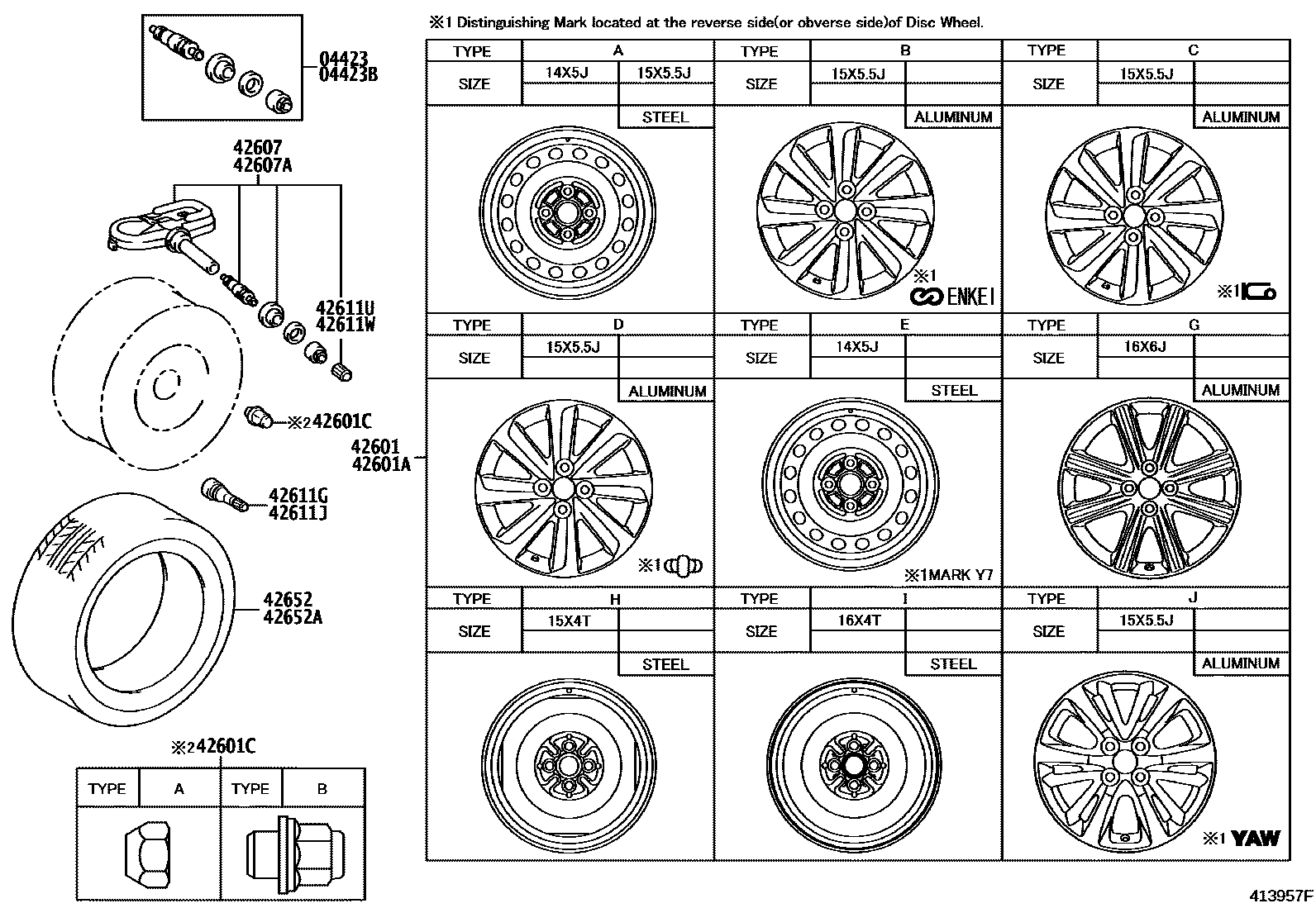

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 · 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |

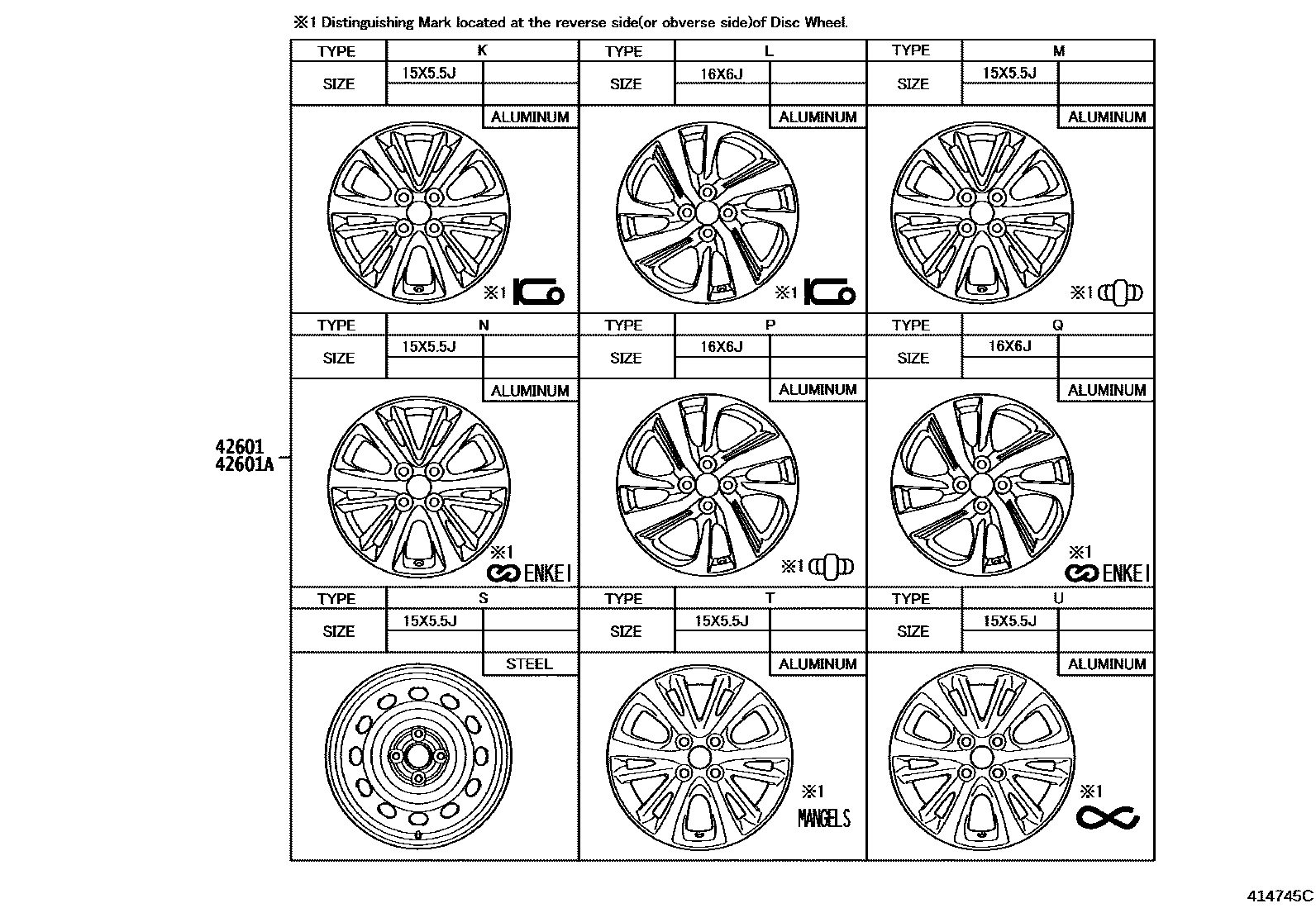

| 42601 | spoke wheel | 42611-0D690 · 42611-0D691 · 42611-0D700 · 42611-0D701 · 42611-0D750 · 42611-0D751 · 42611-0D770 · 42611-0D771 · 42611-0D780 · 42611-0D781 · 42611-0D800 · 42611-0D801 · 42611-0D850 · 42611-0D851 · 42611-0DB90 · 42611-0DB91 · 42611-0DC00 · 42611-0DE80 · 42611-0DE90 · 42611-0DF00 · 42611-0DF30 · 42611-0DF40 · 42611-0DF50 · 42611-0DF60 · 42611-0DF70 · 42611-0DF90 · 42611-0DG20 · 42611-0DG30 · 42611-0DG40 · 42611-0DG90 · 42611-0DJ00 · 42611-0DL10 · 42611-0DL70 · 42611-0DL80 · 42611-0DM00 · 42611-0DM60 |

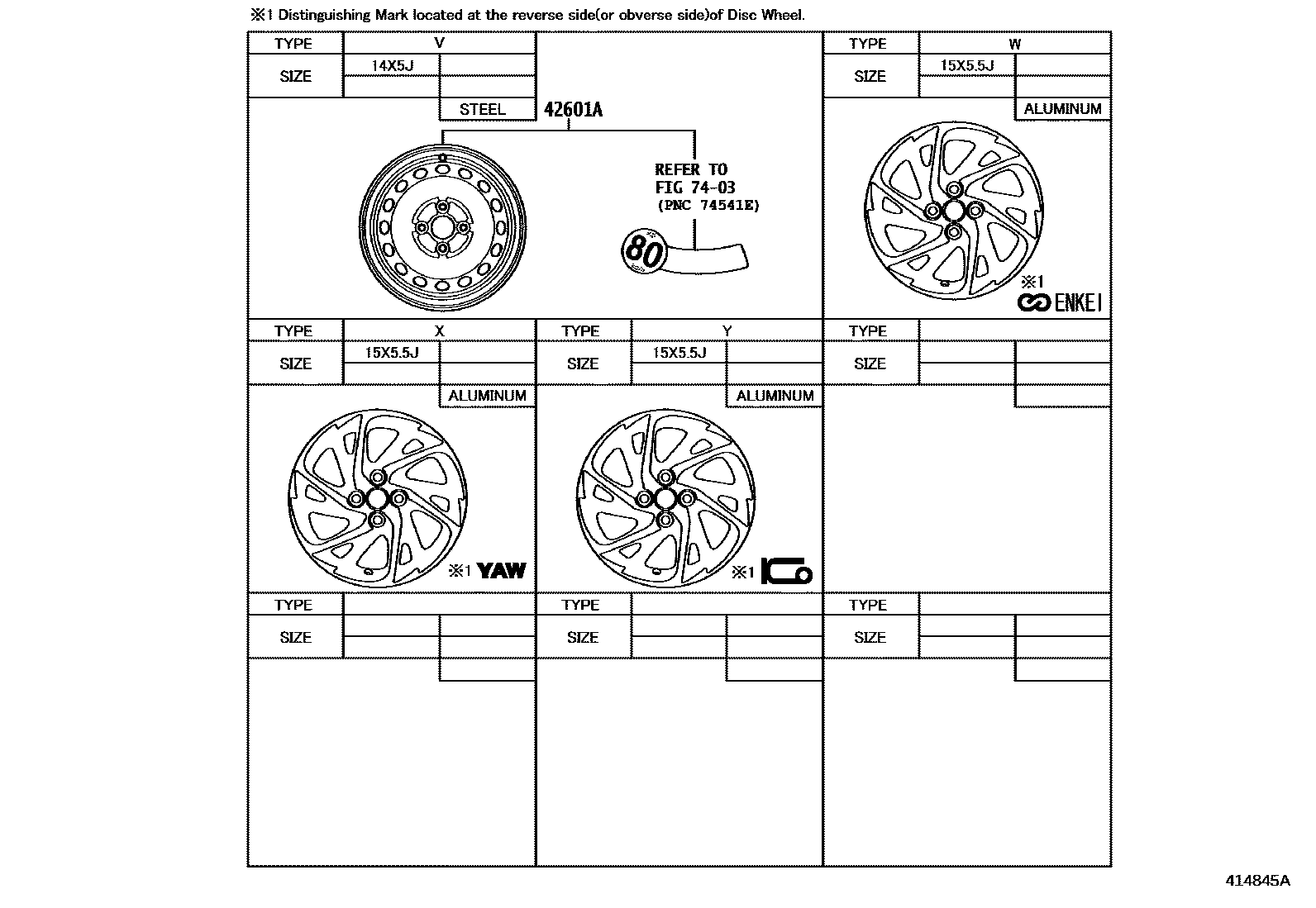

| 42601A | Spoke wheel (for spare tire) | 42611-02280 · 42611-02690 · 42611-0D690 · 42611-0D691 · 42611-0D750 · 42611-0D751 · 42611-0D760 · 42611-0D770 · 42611-0D771 · 42611-0D780 · 42611-0D781 · 42611-0DB81 · 42611-0DB90 · 42611-0DB91 · 42611-0DC00 · 42611-0DE80 · 42611-0DE90 · 42611-0DF40 · 42611-0DF50 · 42611-0DF70 · 42611-0DF90 · 42611-0DG20 · 42611-0DG90 · 42611-0DJ00 · 42611-0DL70 · 42611-0DL80 · 42611-0DM00 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-T1009 |

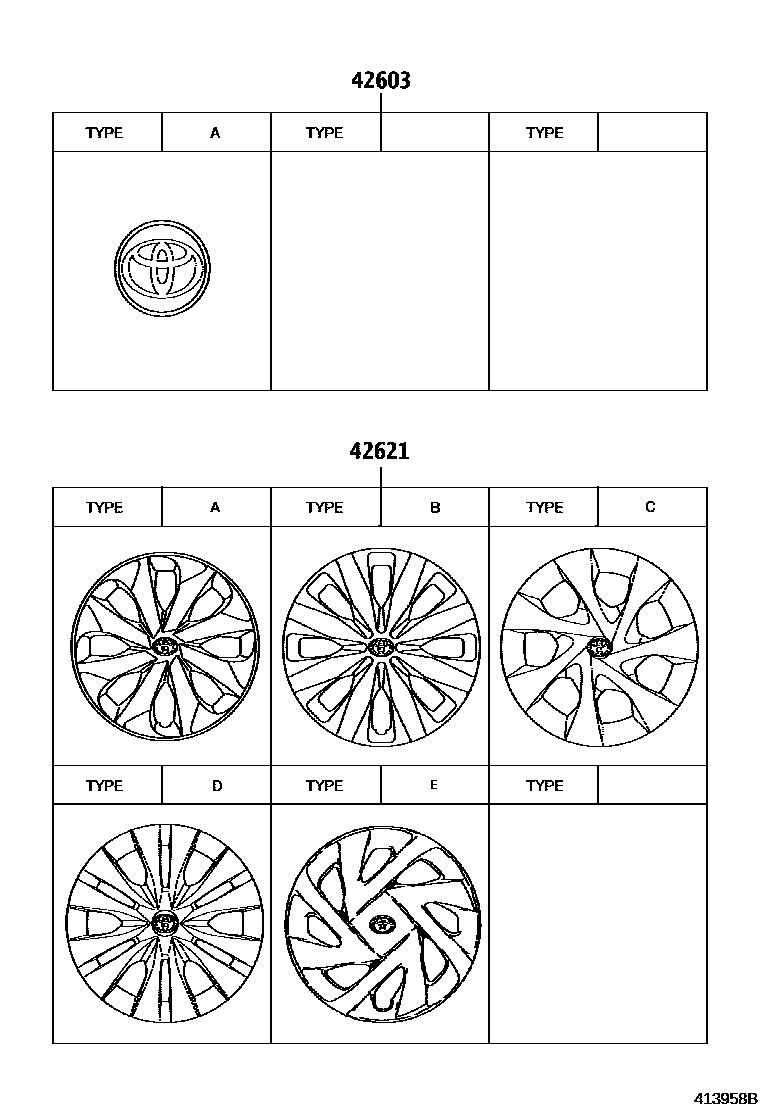

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D070 · 42603-0D090 · 42603-0D200 · 42603-0D230 · 42603-52170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06040 · 42607-42021 · 42607-52020 · 42607-52040 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-42021 · 42607-52040 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90942-05009 · 90942-C5004 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90083-45001 · 90942-05009 · 90942-C5004 |
| 42611U | tire valve cover | 90942-05039 · 90942-C5001 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-0D230 · 42602-0D250 · 42602-0D260 · 42602-0D370 · 42602-0D380 · 42602-0D390 · 42602-0D400 · 42602-0D430 |
| 42652 | tires | 42652-0D620 · 42652-0D640 · 42652-0D660 · 42652-0DE70 · 42652-0DE80 · 42652-0DG50 · 42652-0DG60 |
| 42652A | Tire (for Spare Wheel) | 42652-02890 · 42652-02891 · 42652-0DD10 · 42652-0DG50 · 42652-0DG60 · 4265A-0D050 |
