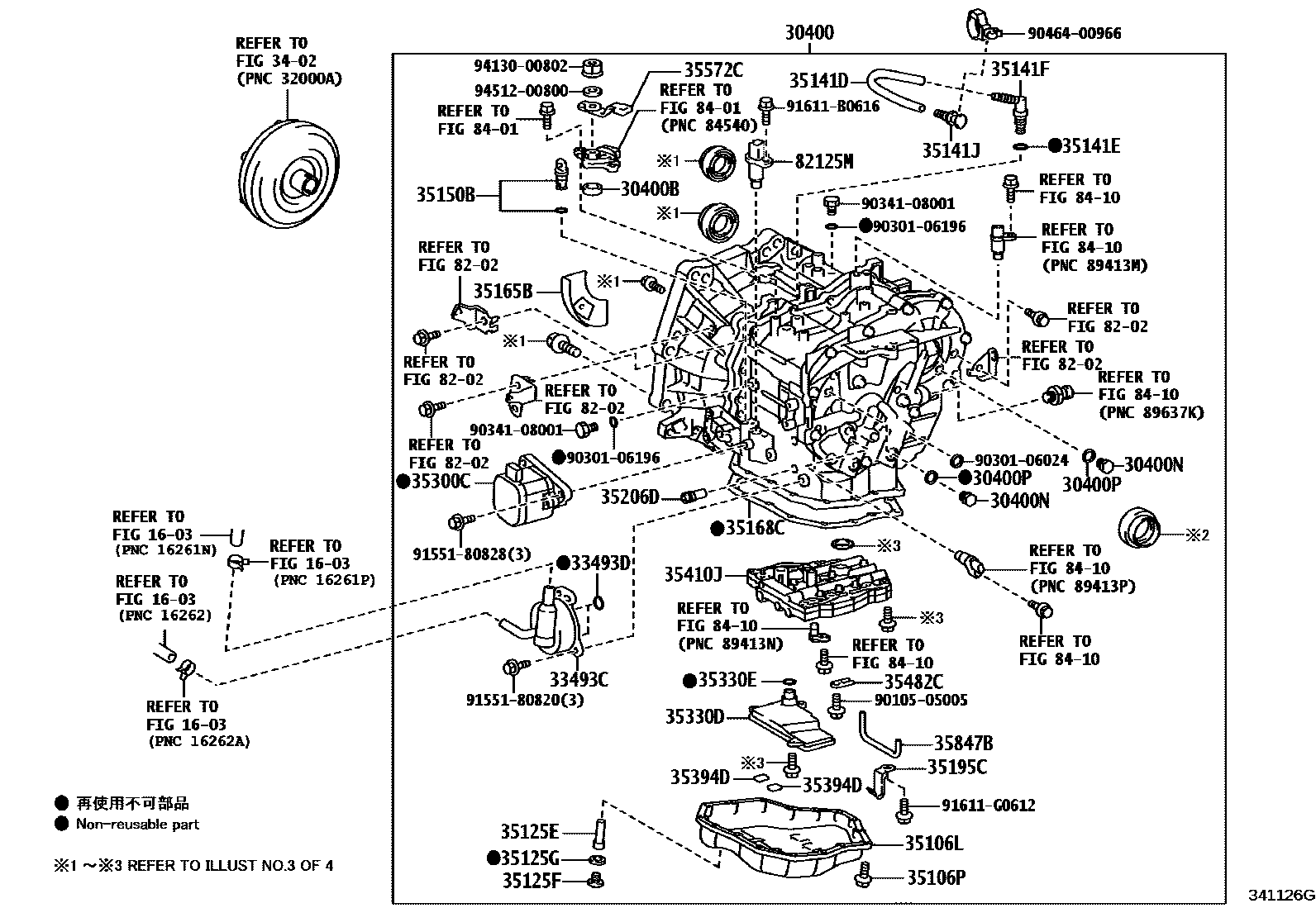

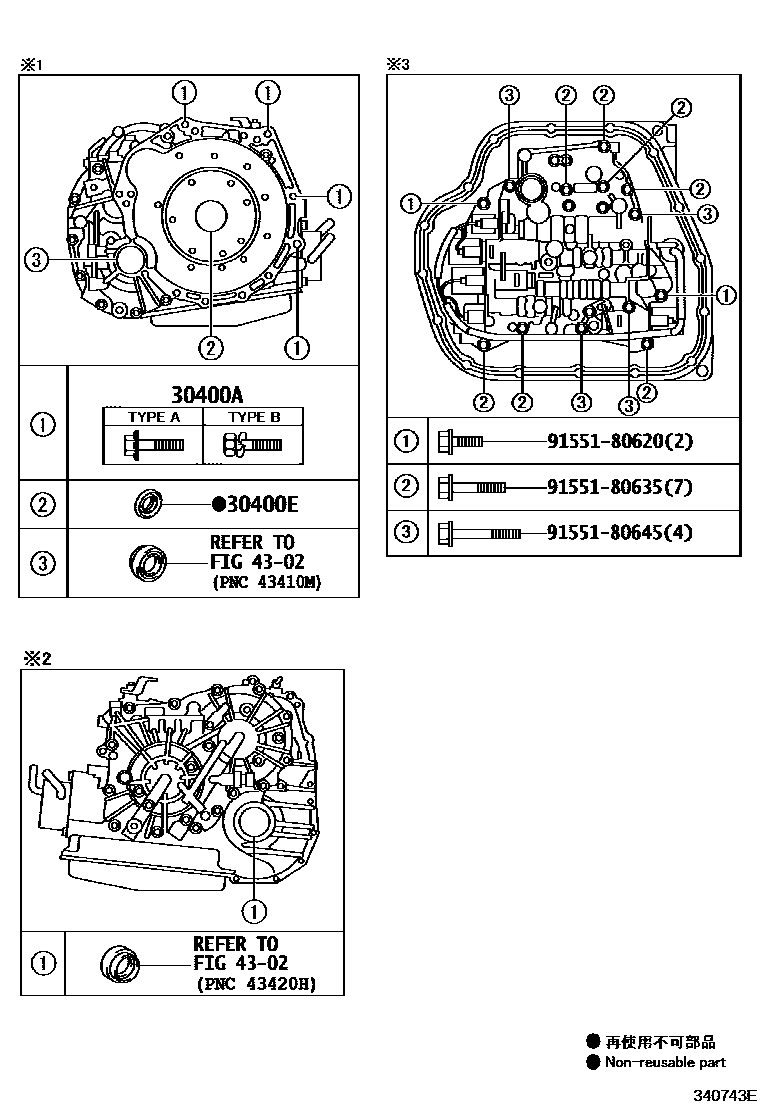

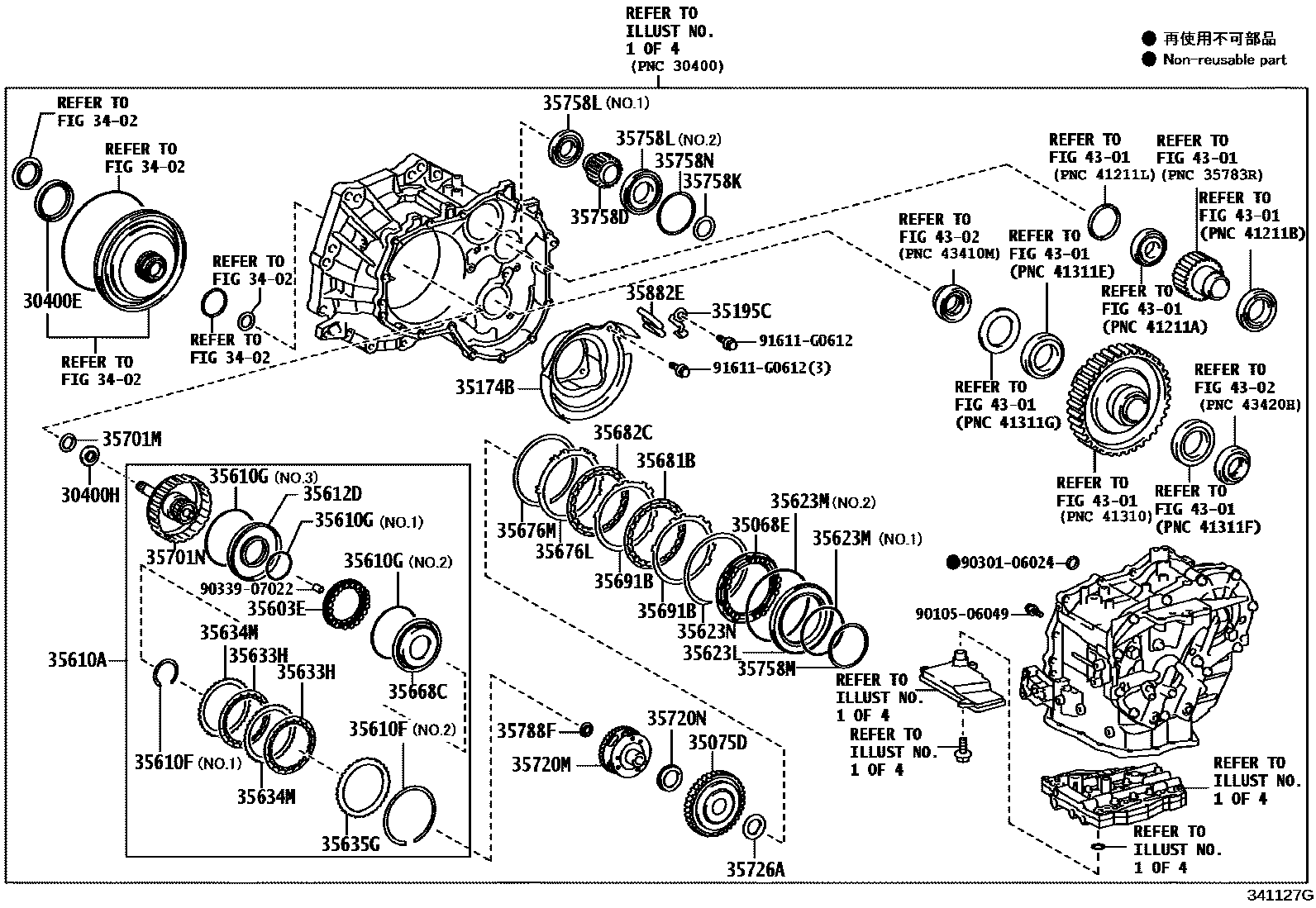

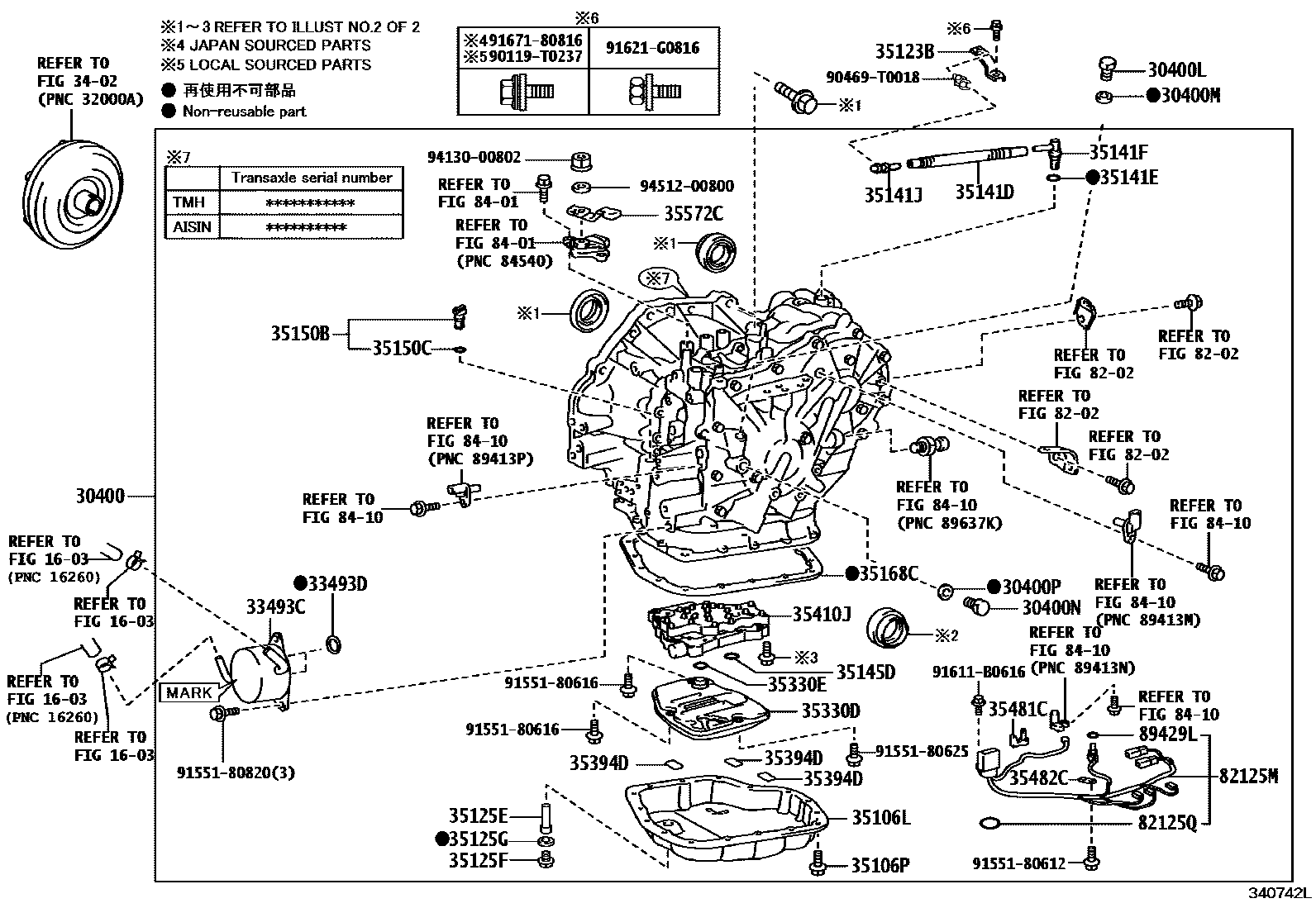

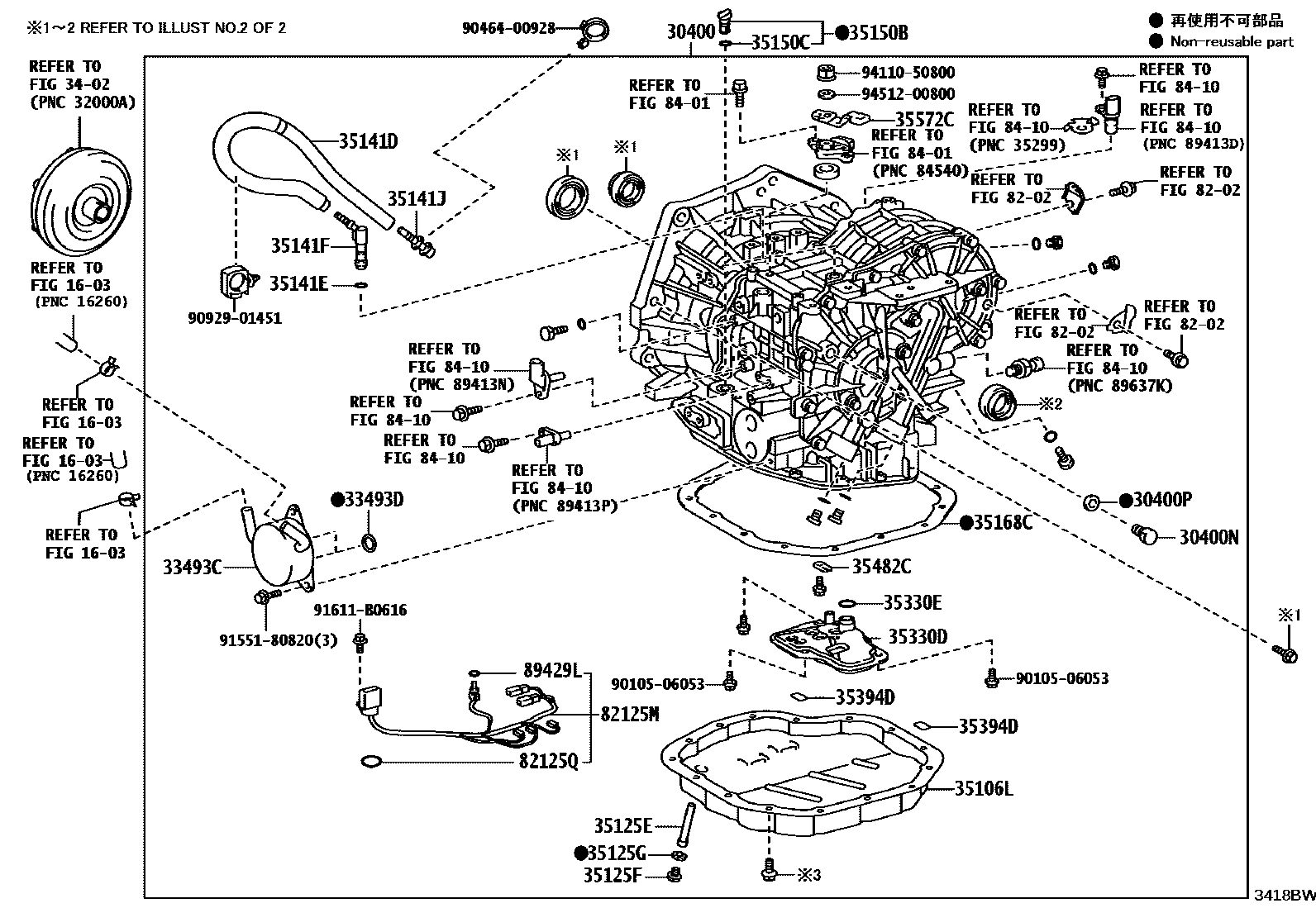

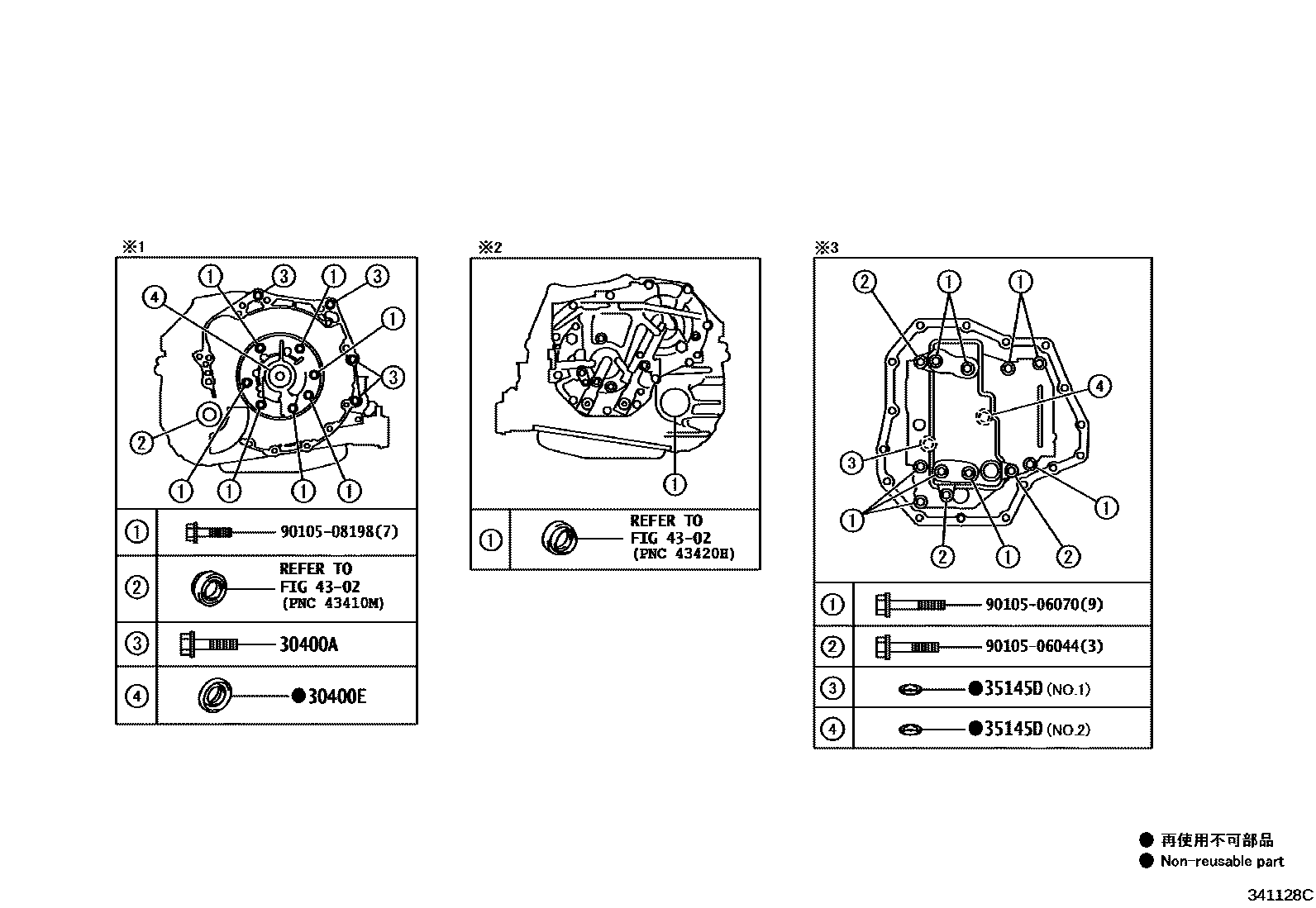

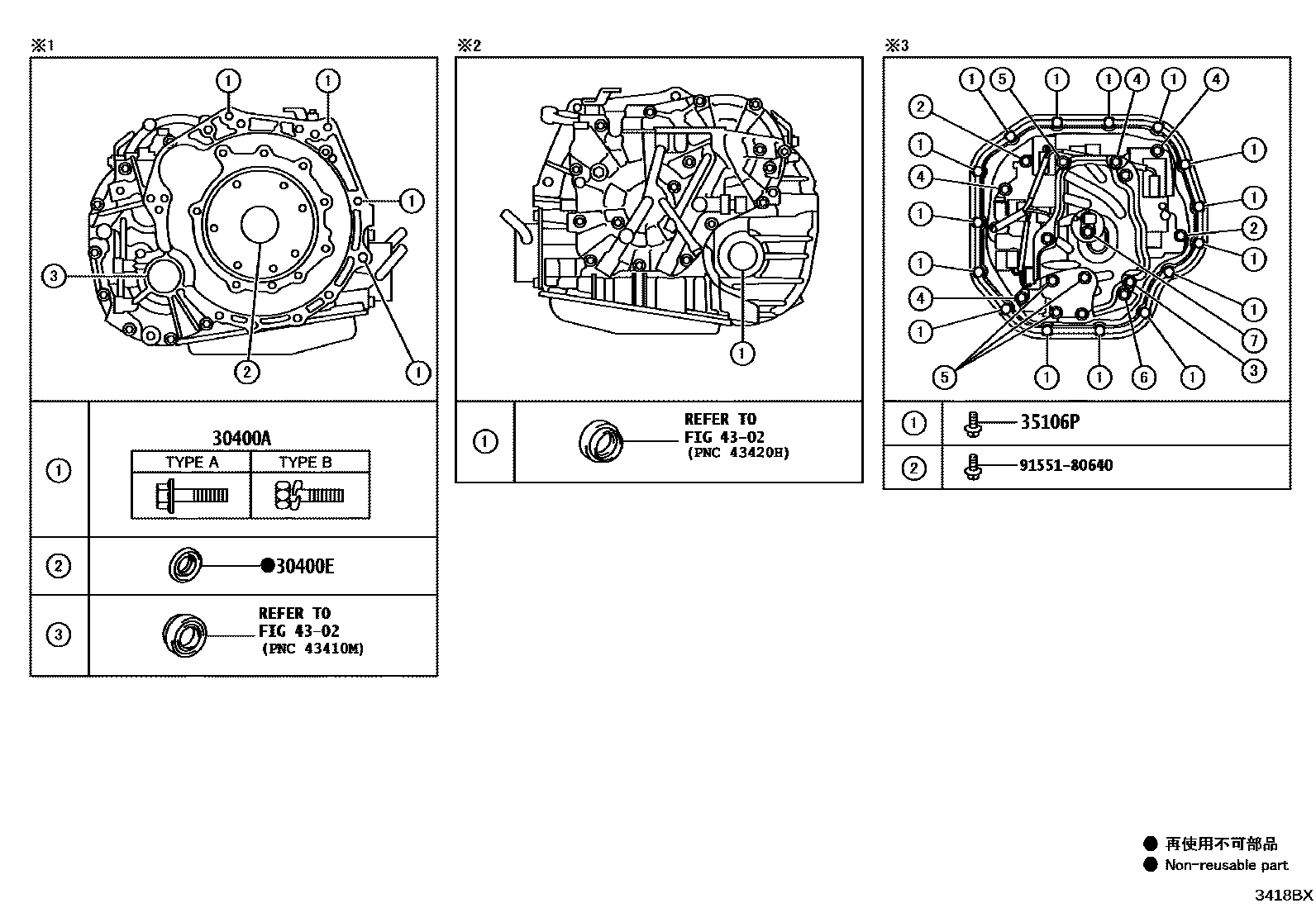

Toyota YARIS 传动桥总成(CVT) — Figure 3401
Toyota YARIS EPC diagram 3401, 传动桥总成(CVT), with 8 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

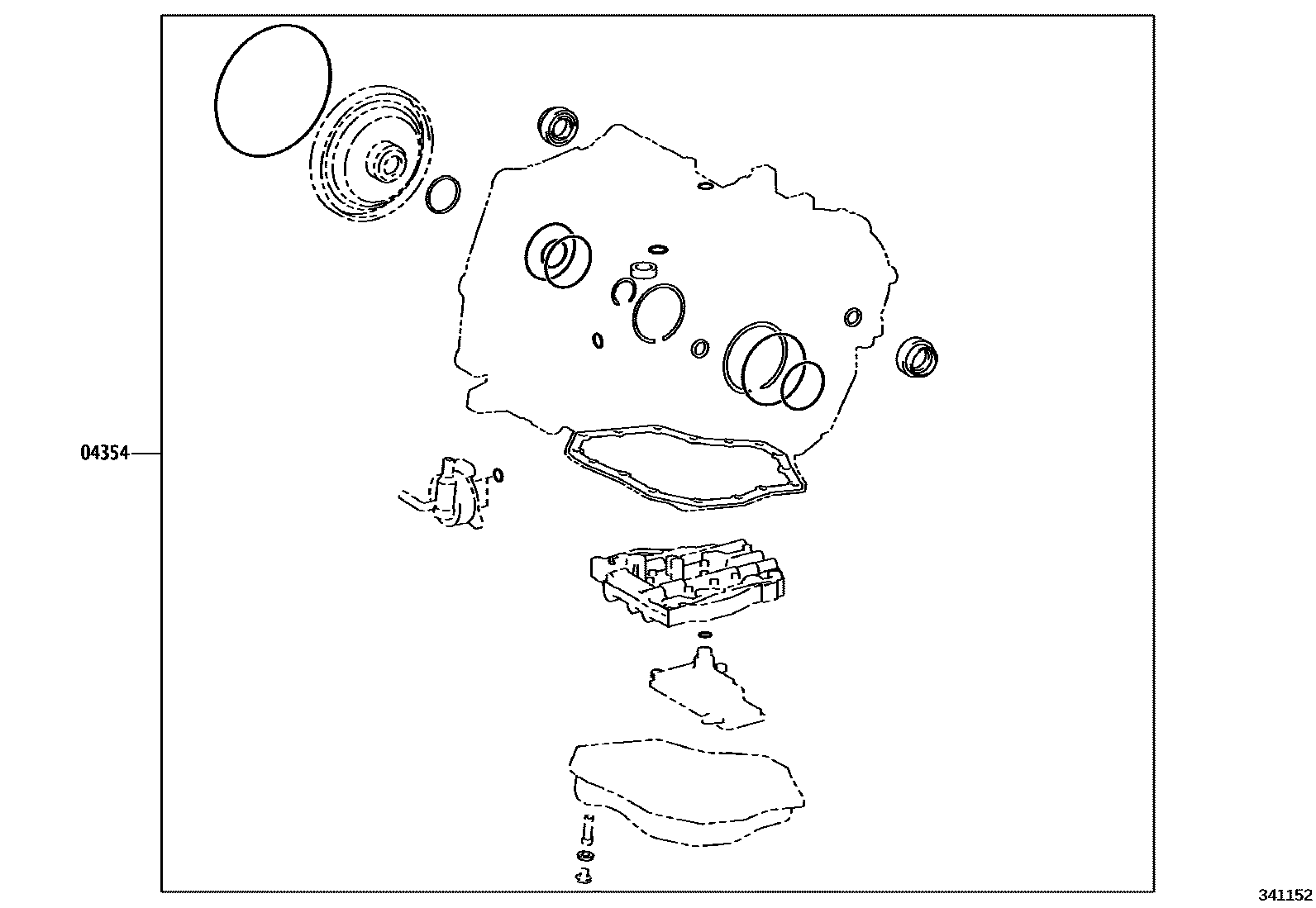

| 04354 | CVT Transaxle Overhaul Kit | 04354-52010 |
| 30400 | Continuously variable transmission axle assembly | 30400-52390 · 30400-52440 · 30400-52450 · 30400-52490 · 30400-52550 · 30400-52570 |
| 30400A | Bolts (for securing transaxle and engine) | 90105-T0173 · 90119-T0310 · 91552-81245 · 91619-61245 |
| 30400B | No. 1 T-type oil seal (for CVT) | 90311-12002 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-42039 · 90311-42060 · 90311-45027 |
| 30400H | Thrust needle roller bearing | 90374-18009 |
| 30400L | Oil filling plug (CVT) | 90341-12025 |
| 30400M | Oil filling plug gasket (CVT) | 90430-12221 |
| 30400N | Oil filling plug (CVT) | 90341-18077 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 |
| 33493C | Transmission oil cooler | 32970-52010 · 33493-12050 · 33493-20100 · 33493-52030 |
| 33493D | O-ring (for transmission oil cooler) | 90301-20012 |
| 35068E | First and reverse brake return spring sub-assembly | 35068-52090 |
| 35075D | Front planetary ring gear sub-assembly | 35075-52040 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-12200 · 35106-12210 · 35106-52090 · 35106-52110 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35123B | Transmission breather skirt | 35123-0D060 · 35123-0D070 · 35123-0D080 · 35123-0D100 |
| 35125E | Overflow pipe (CVT) | 35125-12440 · 35125-12480 · 35125-52200 · 35125-52220 |
| 35125F | Overflow plug (CVT) | 90341-12034 |
| 35125G | Overflow plug gasket (CVT) | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-52020 · 35121-52030 · 35121-52040 |
| 35141E | O-ring (for breather plug) | 90301-06021 · 90301-08015 |
| 35141F | No. 1 vent plug (CVT) | 90930-03191 · 90930-03209 |
| 35141J | No. 2 vent plug (CVT) | 90930-03149 |
| 35145D | Transmission axle housing gasket | 35145-33010 · 35145-52050 · 35145-52060 |
| 35150B | gearbox plug assembly | 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35165B | No. 1 gearbox block | 35165-52070 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-12091 · 35168-52030 · 35168-52080 |
| 35174B | Oil storage tank locking plate | 35174-52100 |
| 35195C | No. 1 transmission axle fuel supply pipe clamp | 35195-12030 |
| 35206D | No. 1 one-way valve sub-assembly | 35206-52020 |
| 35300C | Oil pump assembly with motor | 35300-52040 |
| 35330D | Oil filter assembly | 35330-12050 · 35330-52060 · 35330-52080 |
| 35330E | O-ring (for oil filter) | 90301-22014 · 90301-22019 |
| 35394D | Oil filter magnet (CVT) | 35394-30011 · 35394-48010 |
| 35410J | Transmission valve body assembly | 35410-12862 · 35410-12871 · 35410-52280 |
| 35481C | Valve body wiring harness clip | 35481-12020 · 35481-12030 |
| 35482C | temperature sensor clip | 35482-21020 · 35482-73010 |
| 35572C | transmission control lever | 35572-12160 · 35572-12170 · 35572-52070 |
| 35603E | Forward gear clutch return spring sub-assembly | 35603-52070 |
| 35610A | Forward gear multi-plate clutch assembly | 35610-52110 |
| 35610F | Snap ring (for forward multi-plate clutch) | 90520-44041 · 90520-99087 |
| 35610G | O-ring (for forward multi-plate clutch) | 90301-50001 · 90301-95003 · 90301-99155 |
| 35612D | forward clutch piston | 35612-74010 |
| 35623L | Reverse brake piston | 35623-52110 |
| 35623M | O-ring (for reverse brake piston) | 90301-79003 · 90301-99118 |
| 35623N | Snap ring (for reverse brake piston) | 90520-99101 |
| 35633H | Clutch disc (for forward multi-plate clutch) | 35633-52080 |
| 35634M | No. 1 clutch plate (for forward multi-plate clutch) | 35634-52080 |
| 35635G | forward clutch flange | 35635-52130 · 35635-52140 · 35635-52150 · 35635-52160 |
| 35668C | No. 1 clutch balancer | 35668-52070 |
| 35676L | brake flange | 35676-52040 |
| 35676M | Snap ring (for brake flange) | 90521-99001 |
| 35681B | No. 1 brake disc | 35681-52090 |
| 35682C | Brake disc No. 2 | 35681-52100 |
| 35691B | No. 1 brake pad | 35691-52050 |
| 35701M | Thrust needle roller bearing (for input shaft) | 90374-20008 |
| 35701N | Input shaft sub-assembly | 35701-52090 |
| 35720M | Planetary gear assembly | 35720-52080 |
| 35720N | Thrust needle roller bearings (for planetary gears) | 90374-34014 |
| 35726A | Planetary ring gear thrust washer | 35726-52080 |
| 35758D | Reduction driving gear | 35758-52060 |
| 35758K | Spacer (for reduction drive gear) | 90564-23001 · 90564-23002 · 90564-23003 · 90564-23004 · 90564-23005 · 90564-23006 · 90564-23007 · 90564-23008 · 90564-23009 · 90564-23010 · 90564-23011 · 90564-23012 · 90564-23013 · 90564-23014 · 90564-23015 · 90564-23016 · 90564-23017 · 90564-23018 · 90564-23019 · 90564-23020 · 90564-23021 · 90564-23022 · 90564-23023 · 90564-23024 · 90564-23025 · 90564-23026 |
| 35758L | Radial ball bearing (for reduction drive gear) | 90363-31004 · 90363-38012 |
| 35758M | Spacer (for main pulley shaft) | 90564-64140 · 90564-64141 · 90564-64142 · 90564-64143 · 90564-64144 · 90564-64145 · 90564-64146 · 90564-64147 · 90564-64148 · 90564-64149 |
| 35758N | Cleaner (for reducing the driving gear) | 90201-69001 |
| 35788F | thrust bearing race | 35789-12090 |
| 35847B | Transmission lubricant supply pipe | 35847-52030 |
| 35882E | Differential gear lubricant oil supply pipe | 35882-52070 |
| 82125M | Transmission wiring harness | 82125-12641 · 82125-12642 · 82125-52130 · 82125-52140 |
| 82125Q | O-ring (for transmission wiring harness) | 90301-21009 |
| 89429L | O-ring (for oil temperature sensor) | 90301-06004 |
