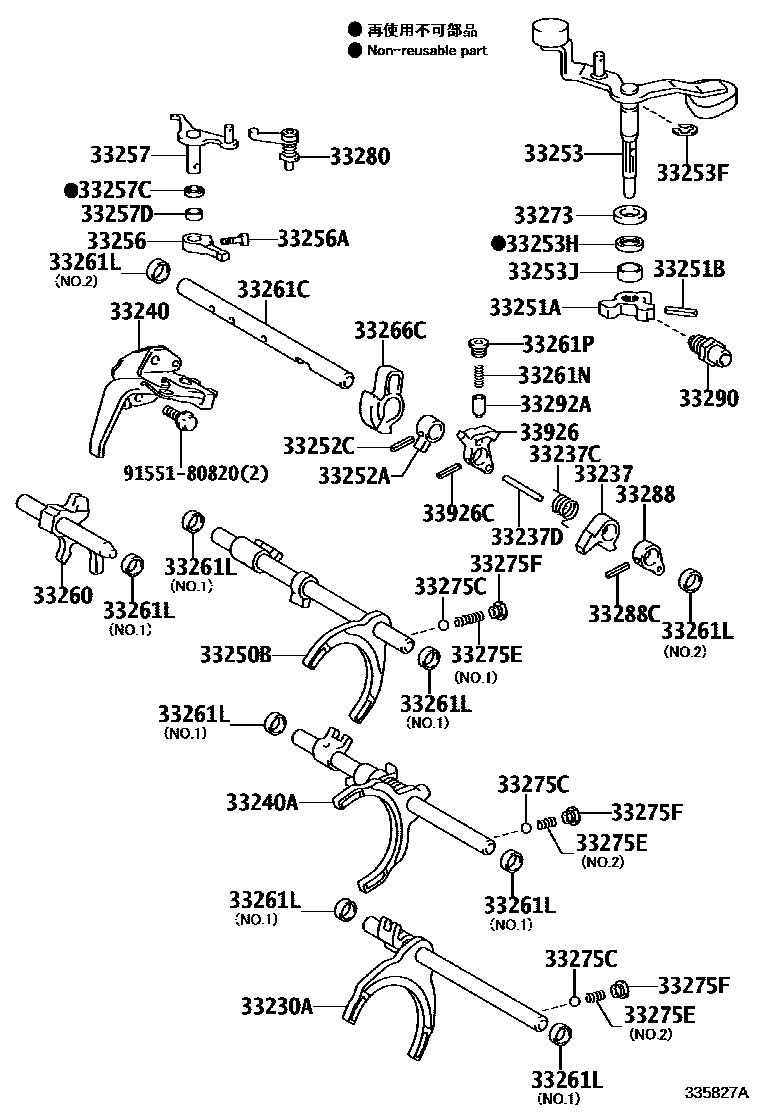

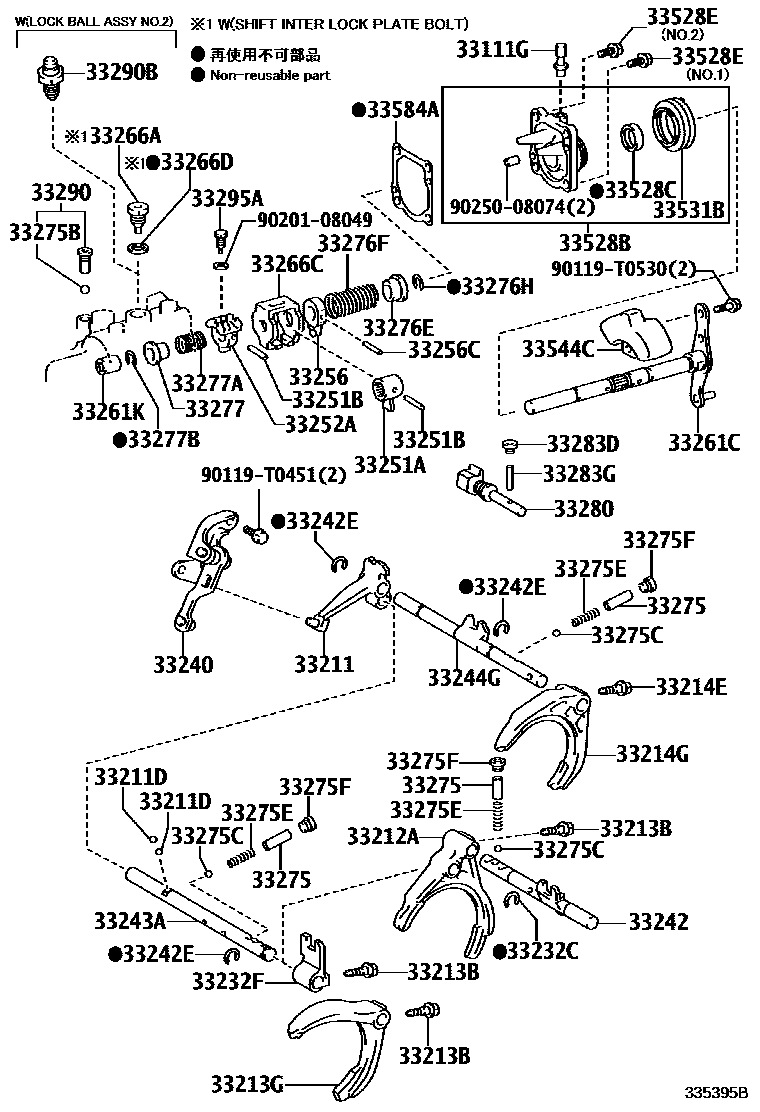

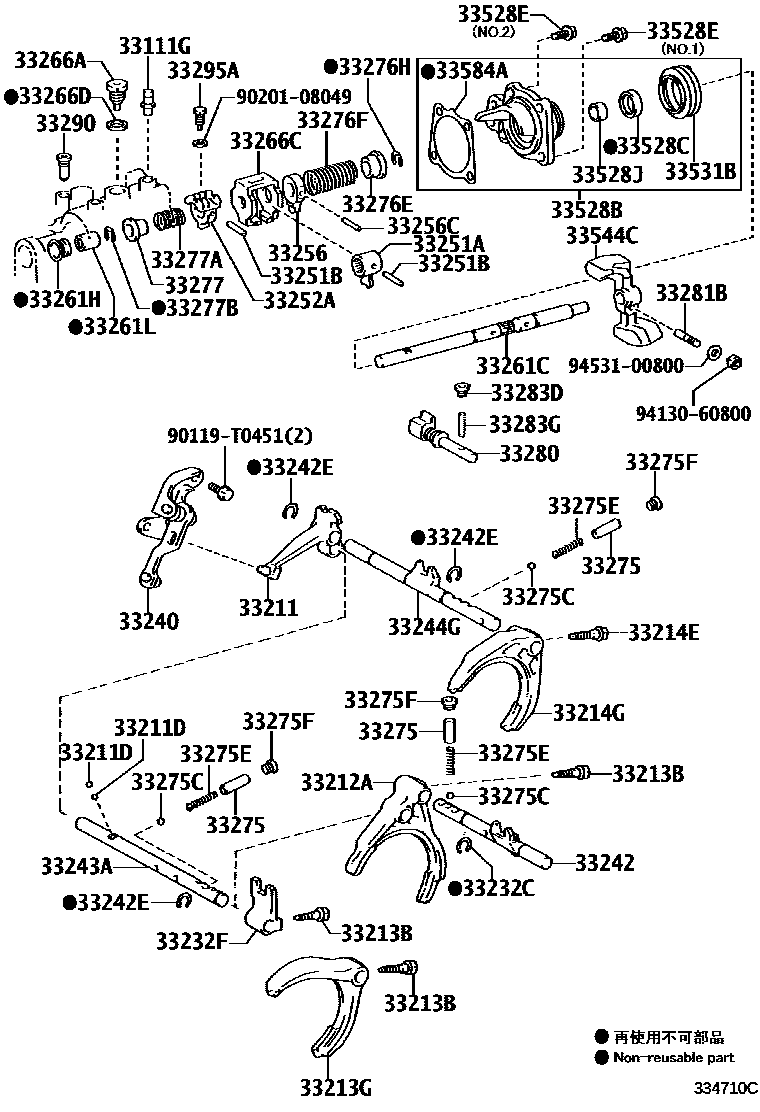

Toyota YARIS 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota YARIS EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 3 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03133 · 90930-T3001 |
| 33211 | Reverse Shift Fork | 33211-0D060 |
| 33211D | Steel ball (for reverse shift fork) | 90360-06004 · 90360-T0009 |
| 33212A | No. 1 shift fork | 33212-0D010 |
| 33213B | Bolt (for securing shift fork) | 90105-06115 |
| 33213G | No. 2 shift fork | 33213-0D020 |
| 33214E | Bolt (for shift fork lock) | 90105-06115 |
| 33214G | No. 3 shift fork | 33214-0D030 |
| 33230A | No. 1 shift fork shaft assembly | 33230-0D010 |
| 33232C | Snap ring (for first and second gear shift guide blocks) | 90520-12003 · 90520-T0135 |
| 33232F | No. 1 transmission guide block | 33232-0D030 · 33232-20030 |
| 33237 | Separate guide block | 33237-0D020 |
| 33237C | Torsion spring (for separating guide block) | 90508-27001 |
| 33237D | Direct sales (for detaching guide blocks) | 90250-06042 |
| 33240 | Reverse shift arm bracket assembly | 33240-0D050 · 33240-16020 · 33240-20042 |
| 33240A | No. 2 shift fork shaft assembly | 33240-0D060 |
| 33242 | No. 1 shift fork shaft | 33205-0D030 · 33205-52010 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90520-T0135 |
| 33243A | No. 2 shift fork shaft | 33243-0D070 · 33243-20070 |
| 33244G | No. 3 shift fork shaft | 33244-0D060 · 33244-52030 |
| 33250B | No. 3 shift fork shaft assembly | 33250-0D180 |
| 33251A | Internal shift lever No. 1 | 33251-0D050 · 33251-0D070 · 33251-0D080 · 33251-12080 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 · 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-0D030 · 33252-0D050 · 33252-12041 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-52070 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33253J | Bushing (for outer shift lever) | 90384-A0020 |
| 33256 | Internal gear selector | 33256-0D050 · 33256-0D080 · 33256-12022 |
| 33256A | Fixing bolt (for interior gear selector) | 90110-08041 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-05016 |
| 33257 | External gear selector | 33257-0D060 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 |
| 33257D | Bimetallic bushing (for external selector lever) | 90384-A0021 |
| 33260 | Reverse shift fork shaft assembly (MTM) | 33260-0D010 |
| 33261C | shift lever shaft | 33261-0D080 · 33261-0D081 · 33261-0D110 · 33261-0D120 · 33261-52111 |
| 33261H | Oil seal (for shift lever shaft) | 90310-15004 · 90310-T0011 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90369-15003 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-A0022 · 90384-A0023 · 90389-15009 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11108 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33266A | Bolt (for shift interlock plate) | 90109-18005 |
| 33266C | shift interlock plate | 33266-02020 · 33266-0D030 · 33266-0D050 · 33266-12021 |
| 33266D | Pad (for shift interlock plate) | 90430-T0021 |
| 33273 | No. 1 shift lever shaft cover gasket | 90560-18017 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275B | Gear shift lock steel ball | 90360-10003 |
| 33275C | Steel ball (for shift lock) | 90360-10003 · 90360-T0008 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-12168 · 90501-13088 · 90501-13089 · 90501-T0061 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-0D030 · 33276-12022 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-17040 · 90501-T0047 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 |
| 33277 | No. 2 gear selector spring seat | 33277-0D050 · 33277-12011 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-16190 · 90501-T0046 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 |
| 33280 | Reverse gear positioning pin assembly | 33280-0D030 · 33280-12061 · 33280-20050 |
| 33281B | Shift lever lock pin (for outer shift lever) | 33281-0D010 · 33281-16020 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33288 | Gear selector stop | 33288-0D020 |
| 33288C | Slotted spring pin (for gear selector stop) | 90254-05001 |
| 33290 | No. 1 locking steel ball assembly | 33290-0D040 · 33290-12011 |
| 33290B | No. 2 locking steel ball assembly | 33290-0D050 |
| 33292A | Locking steel ball pin | 33292-20010 |
| 33295A | Reverse gear positioning shaft | 33295-0D030 · 33295-52010 |
| 33528B | control shaft cover | 33506-0D050 · 33506-0D060 · 33506-0D080 |
| 33528C | Oil seal (for control shaft cover) | 90310-T0010 · 90311-18013 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 · 90119-T0055 · 90119-T0510 · 91612-61025 |
| 33528J | Bimetallic bushing (for control shaft cover) | 90384-18017 · 90384-T0019 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12030 |
| 33544C | Gear shifter damper | 33544-0D090 · 33544-52071 |
| 33584A | Shift lever stopper gasket | 33584-0D020 · 33584-0D030 · 33584-12060 |
| 33926 | Front inner shift lever | 33926-0D030 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
