Toyota YARIS vacuum tube — Figure 1708

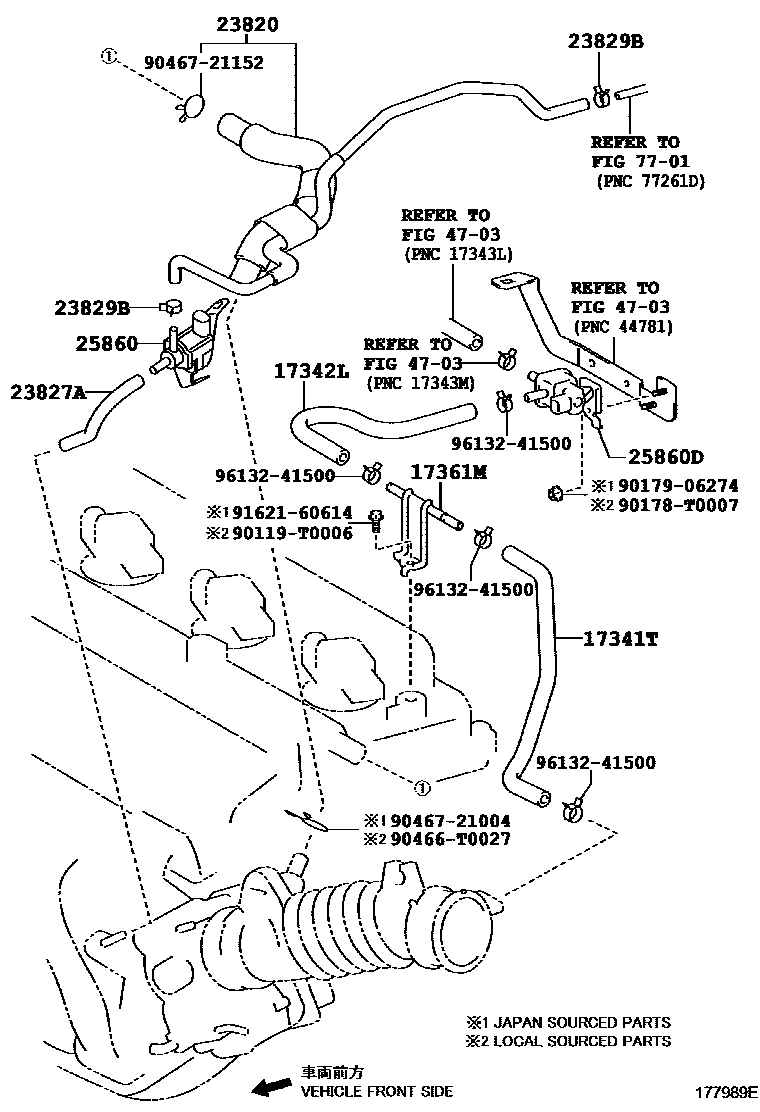

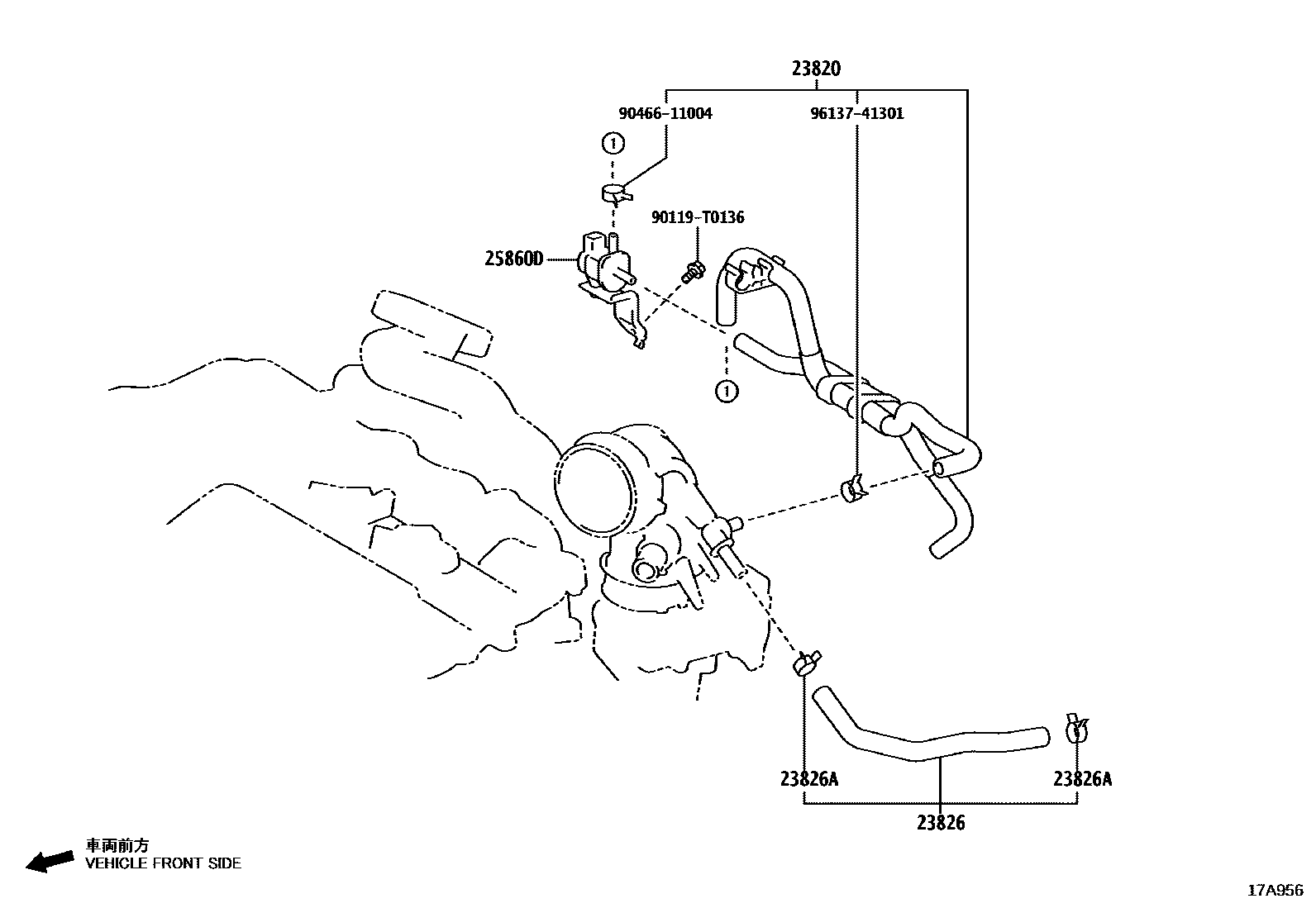

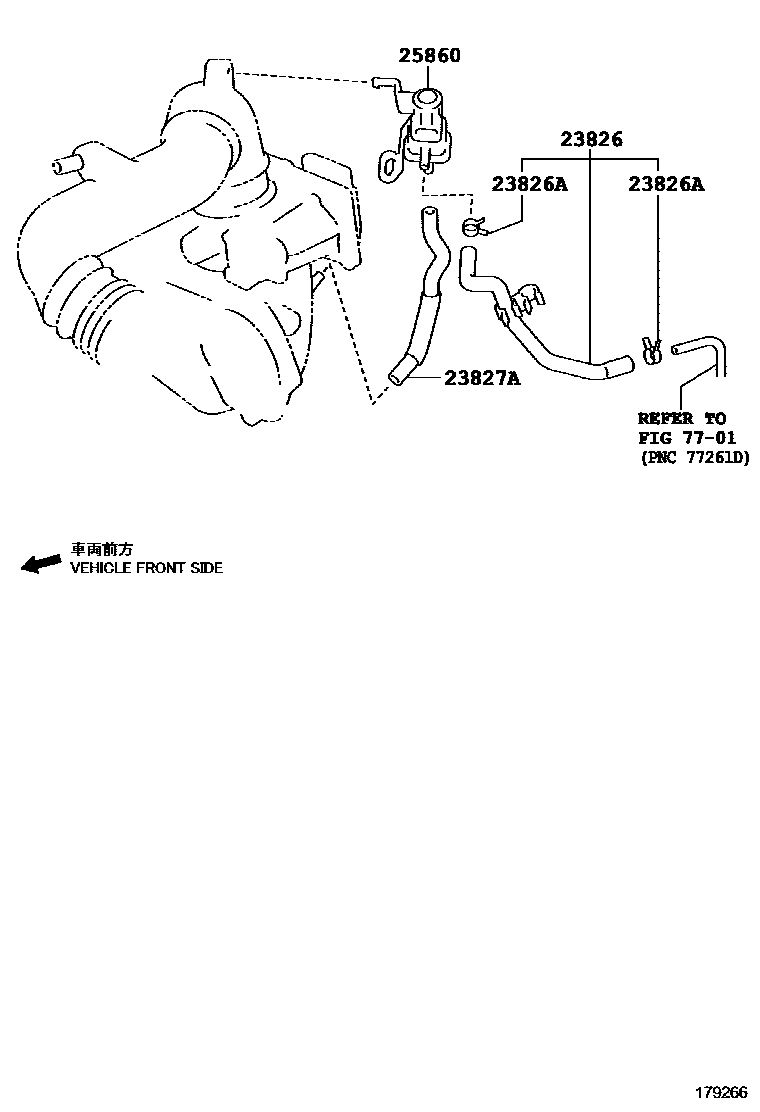

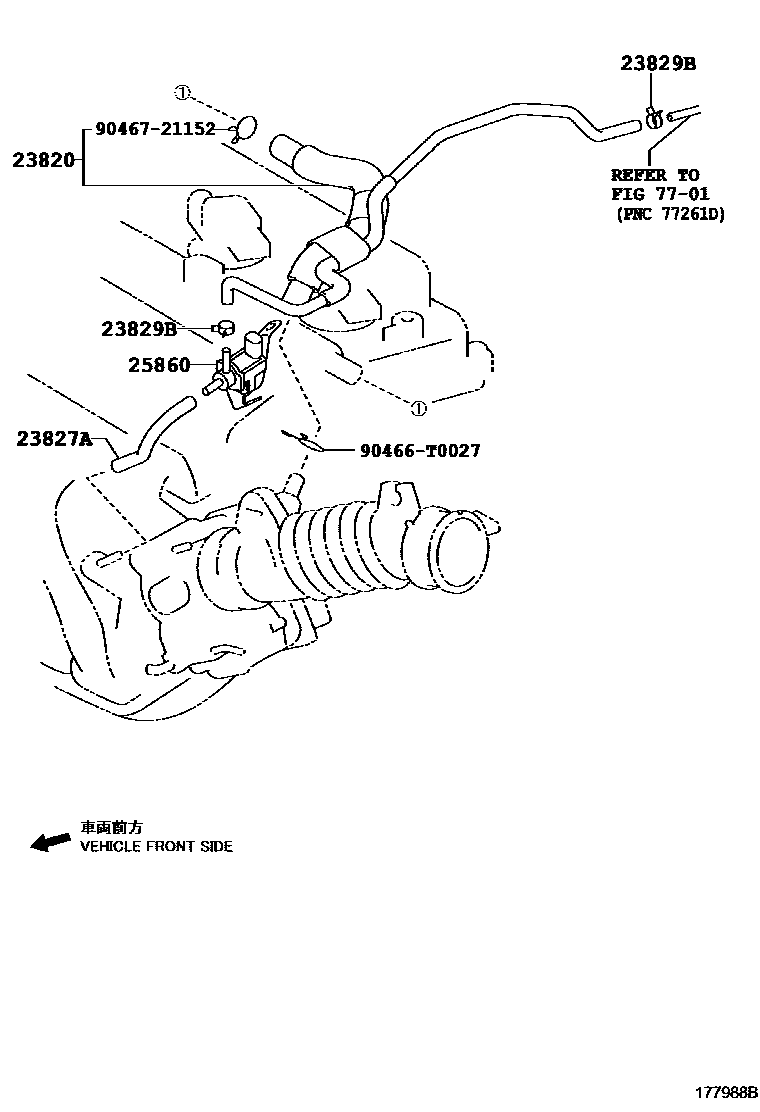

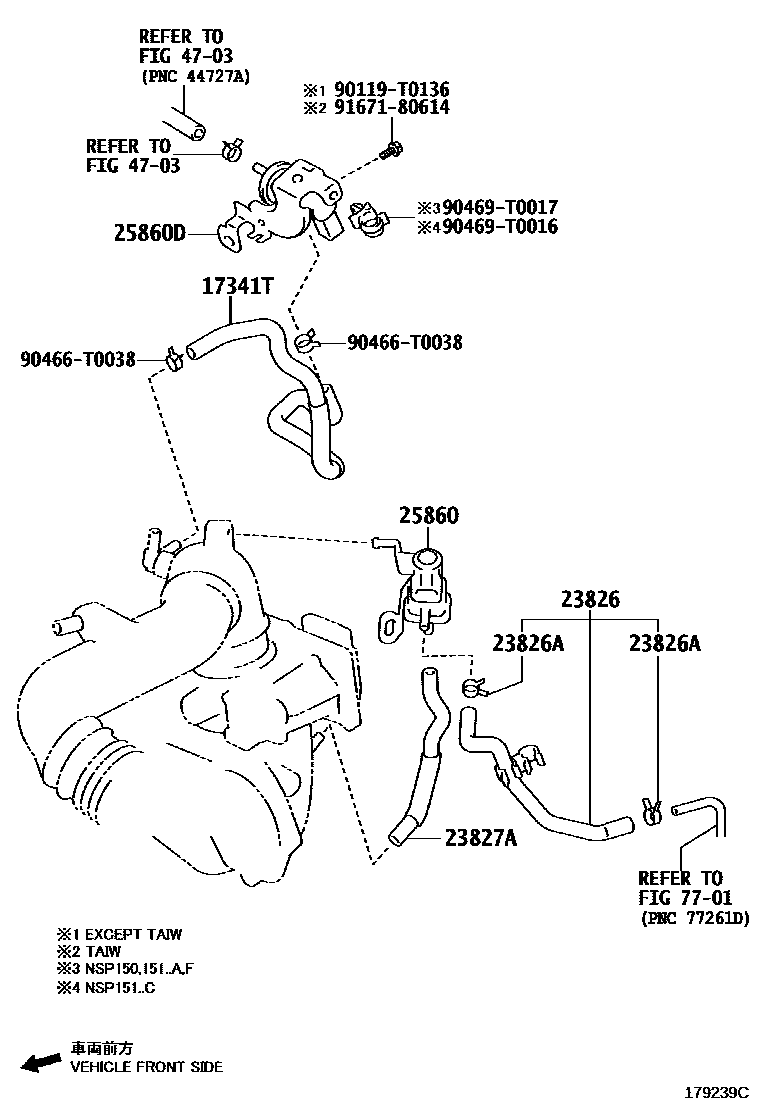

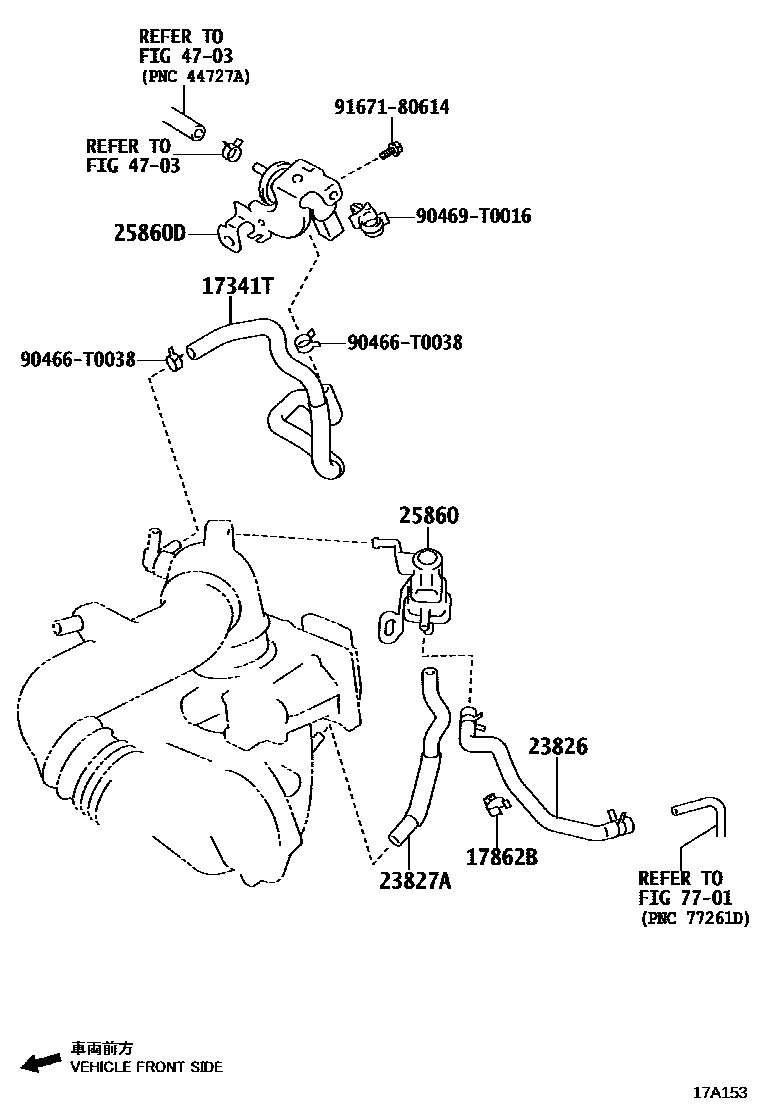

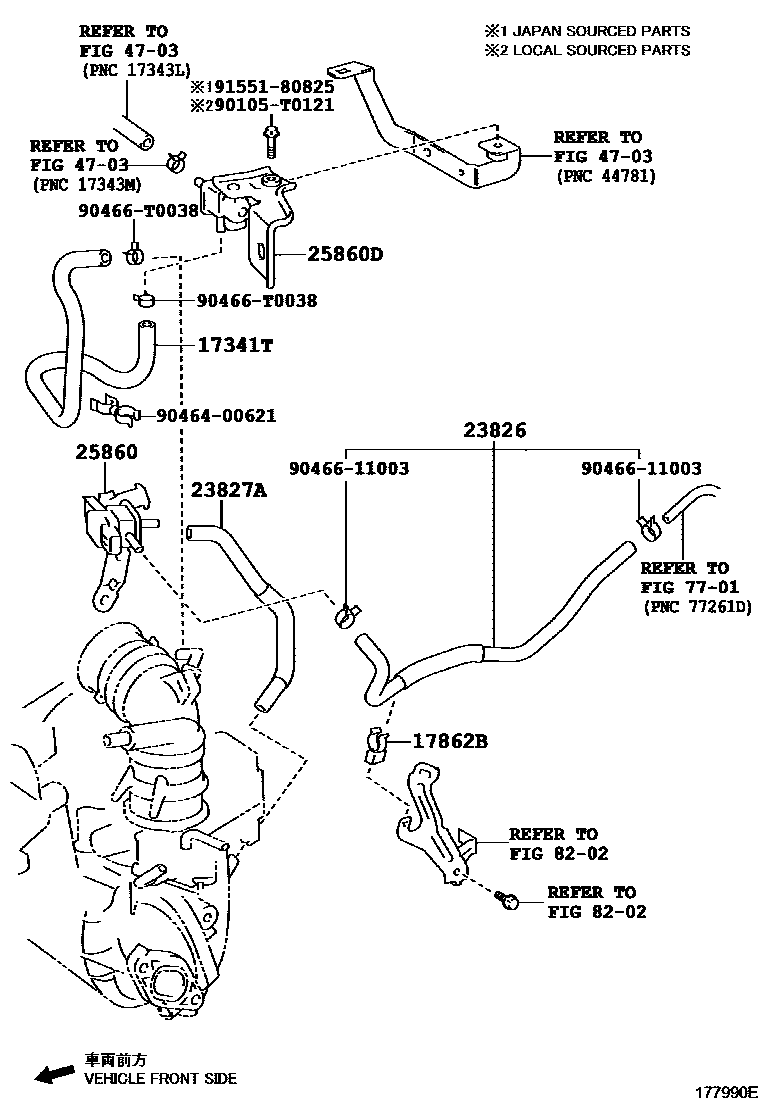

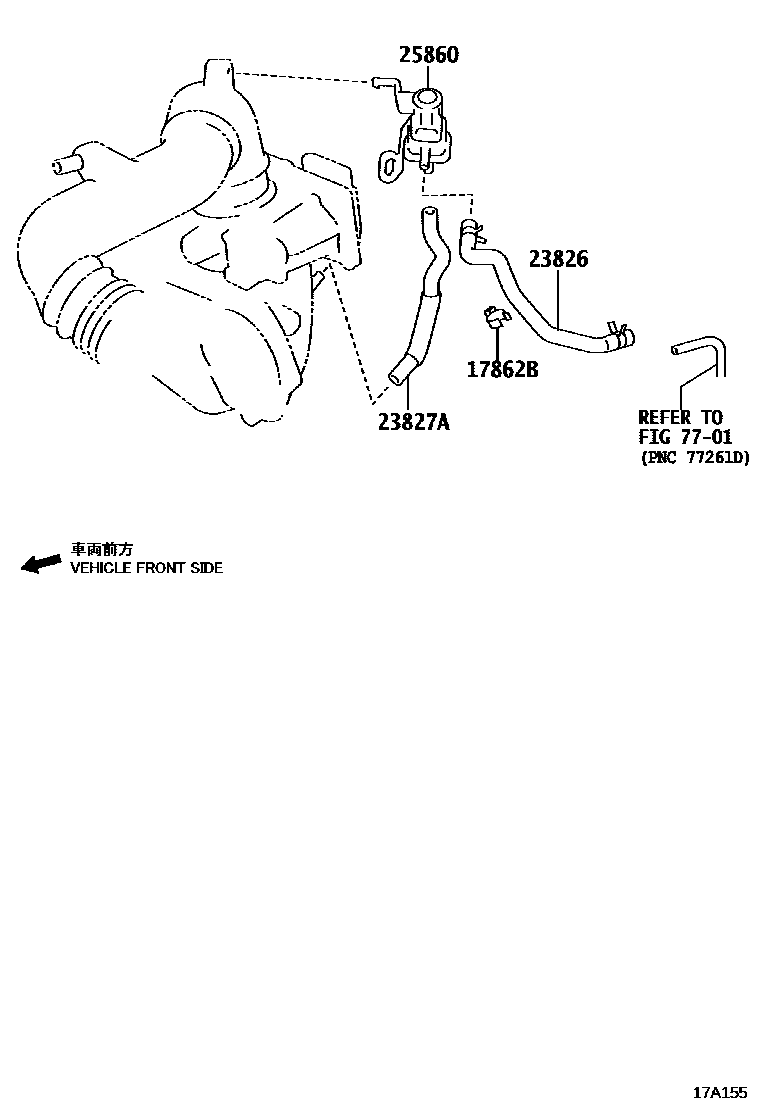

Toyota YARIS EPC diagram 1708, vacuum tube, with 8 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 17341-0M010 · 17341-0Y070 · 17341-0Y080 · 17341-0Y081 · 17341-0Y100 · 44726-0D011 |
| 17342L | Air hose No. 2 | 17342-0M010 |
| 17361M | air tube | 17361-0M010 |
| 17862B | hose clamp | 23847-0Y030 · 23847-47010 |
| 23820 | Fuel vapor supply hose assembly | 23820-0M051 · 23820-0M070 · 23820-0M080 · 23820-0Y100 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0Y110 · 23826-0Y140 · 23826-0Y150 · 23826-0Y180 · 23826-0Y220 · 23826-0Y380 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 90466-11004 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0M081 · 23827-0M090 · 23827-0M100 · 23827-0Y100 · 23827-0Y140 · 23827-0Y150 · 23827-0Y200 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-11003 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0M021 · 25860-0Y080 · 25860-0Y090 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-0M030 · 25860-0M040 · 25860-0Y040 · 25860-0Y190 |
