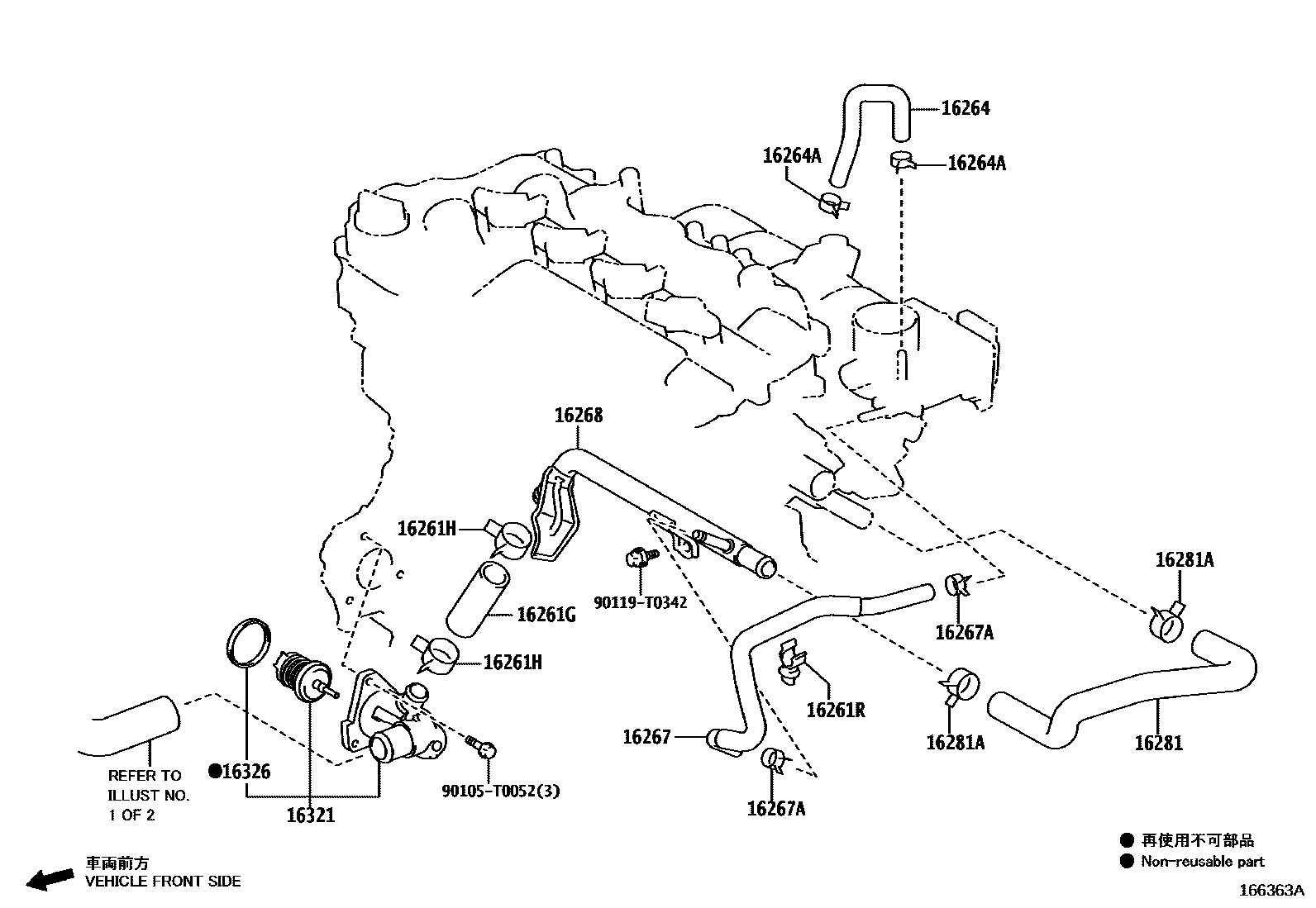

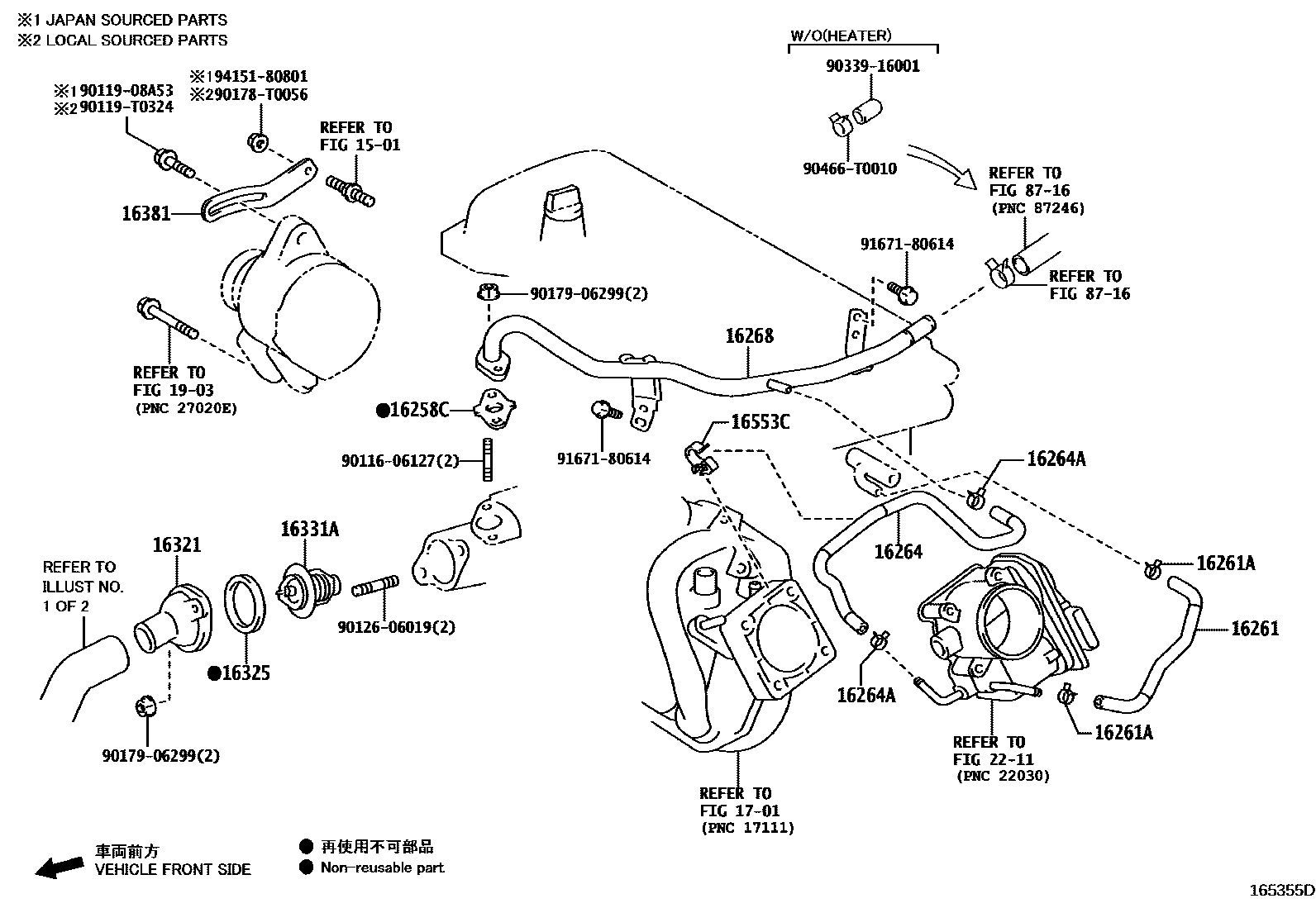

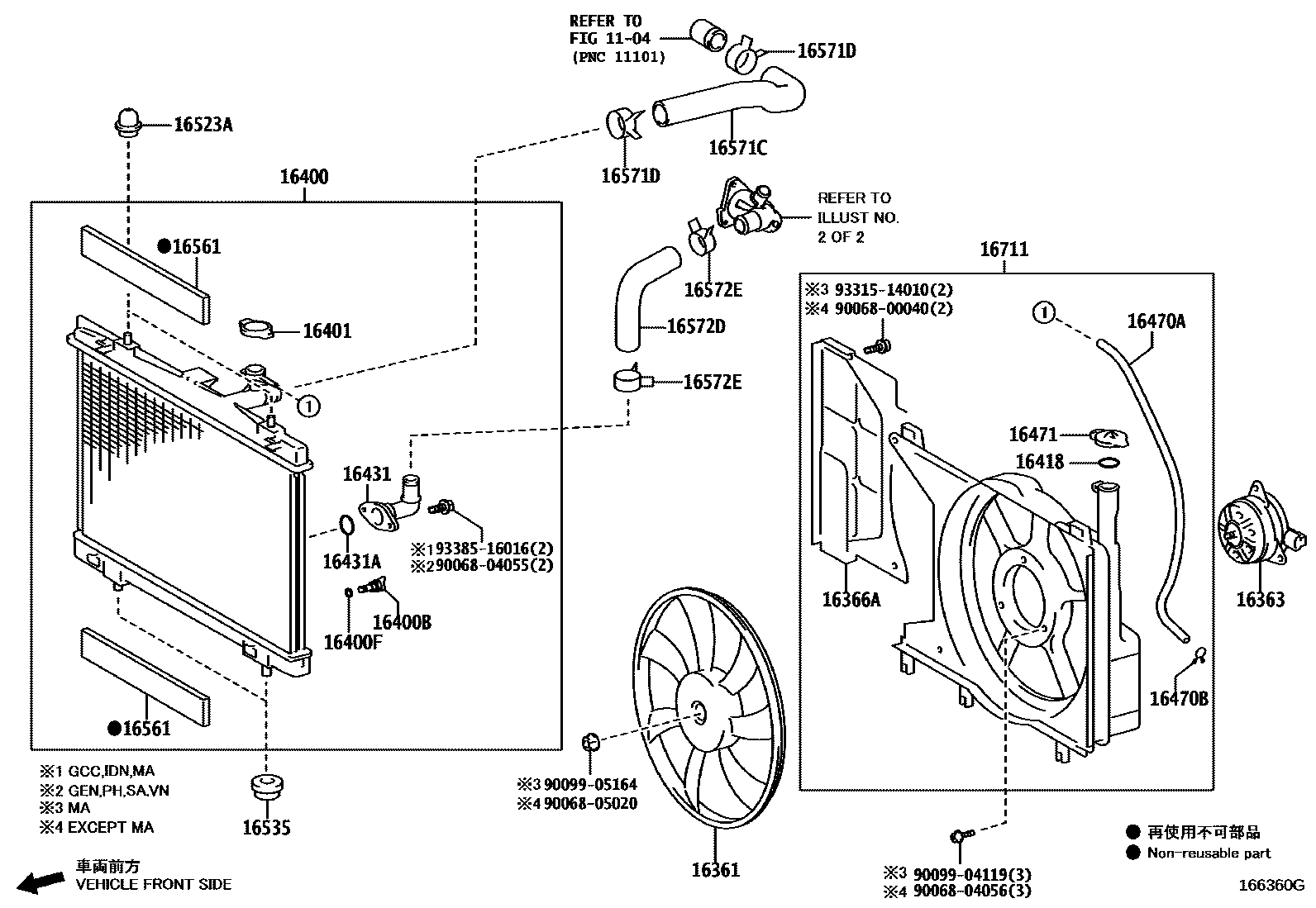

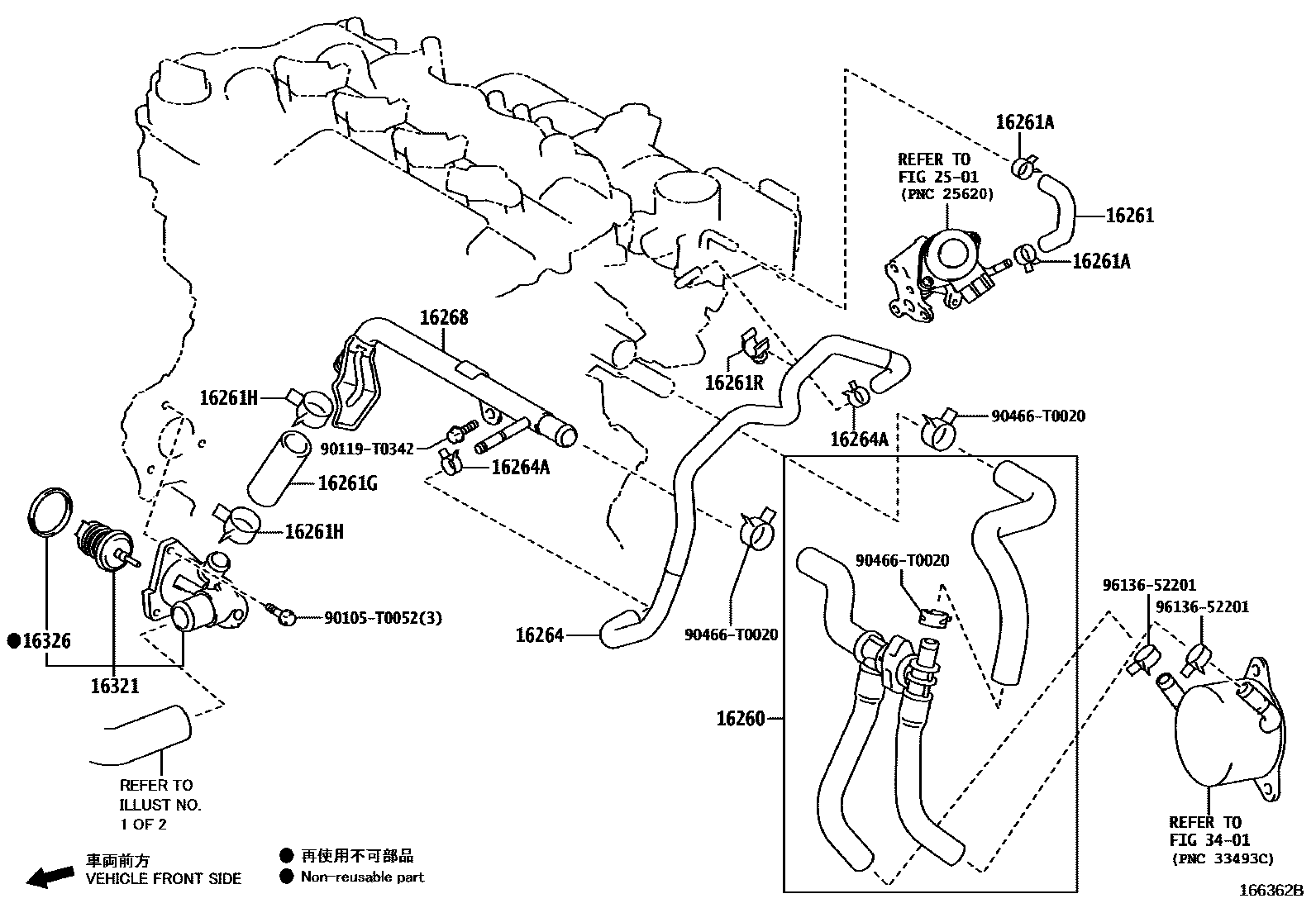

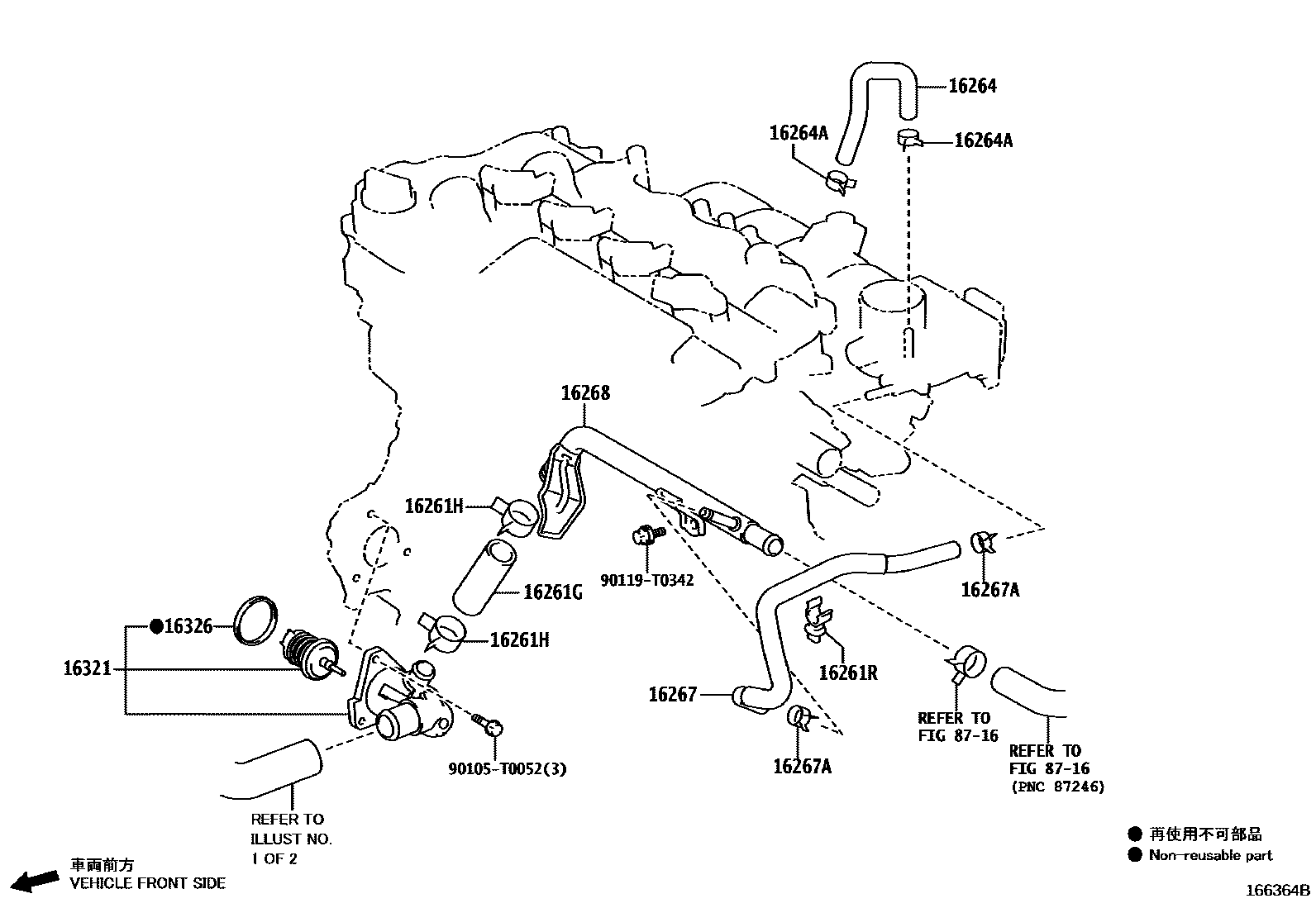

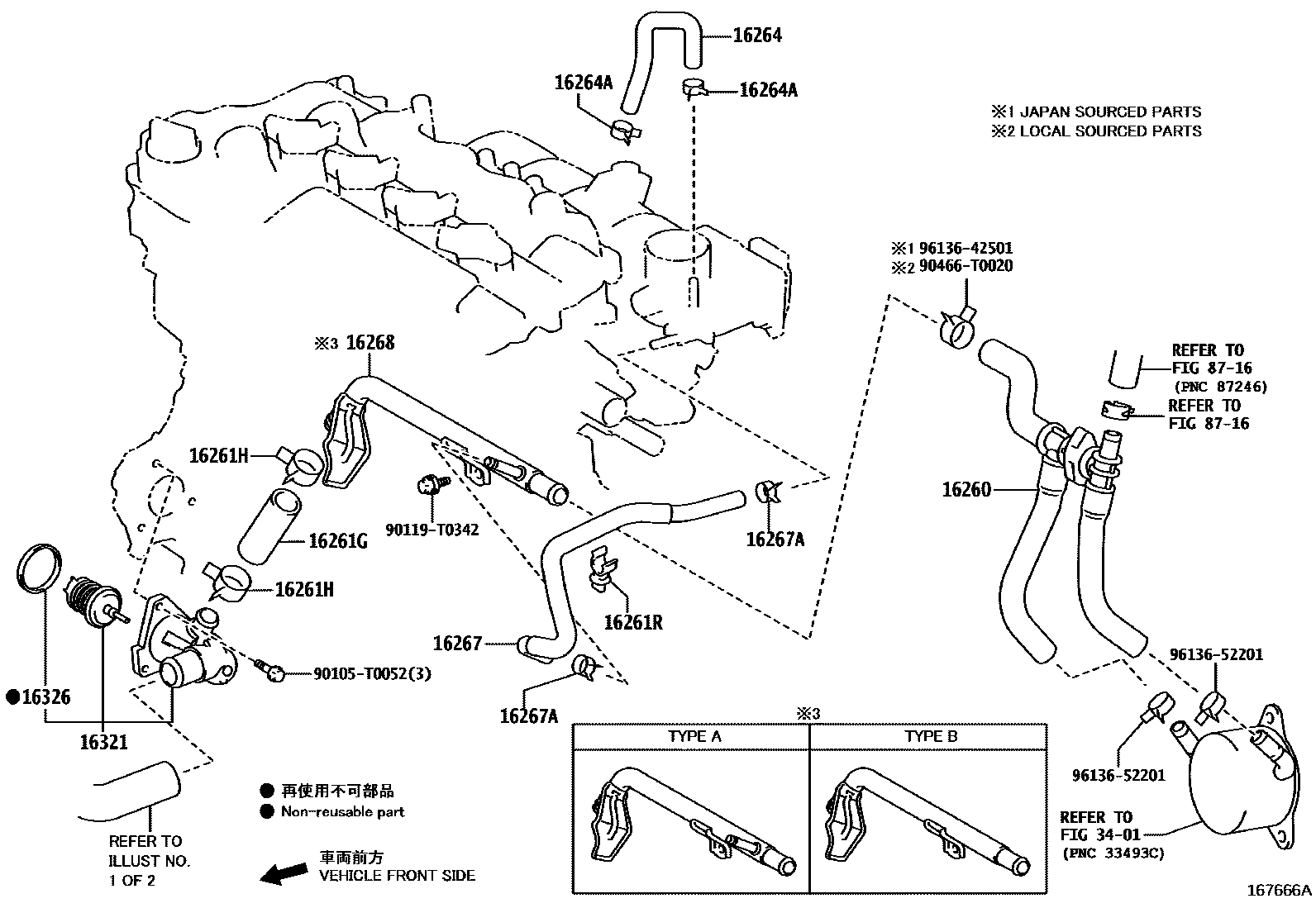

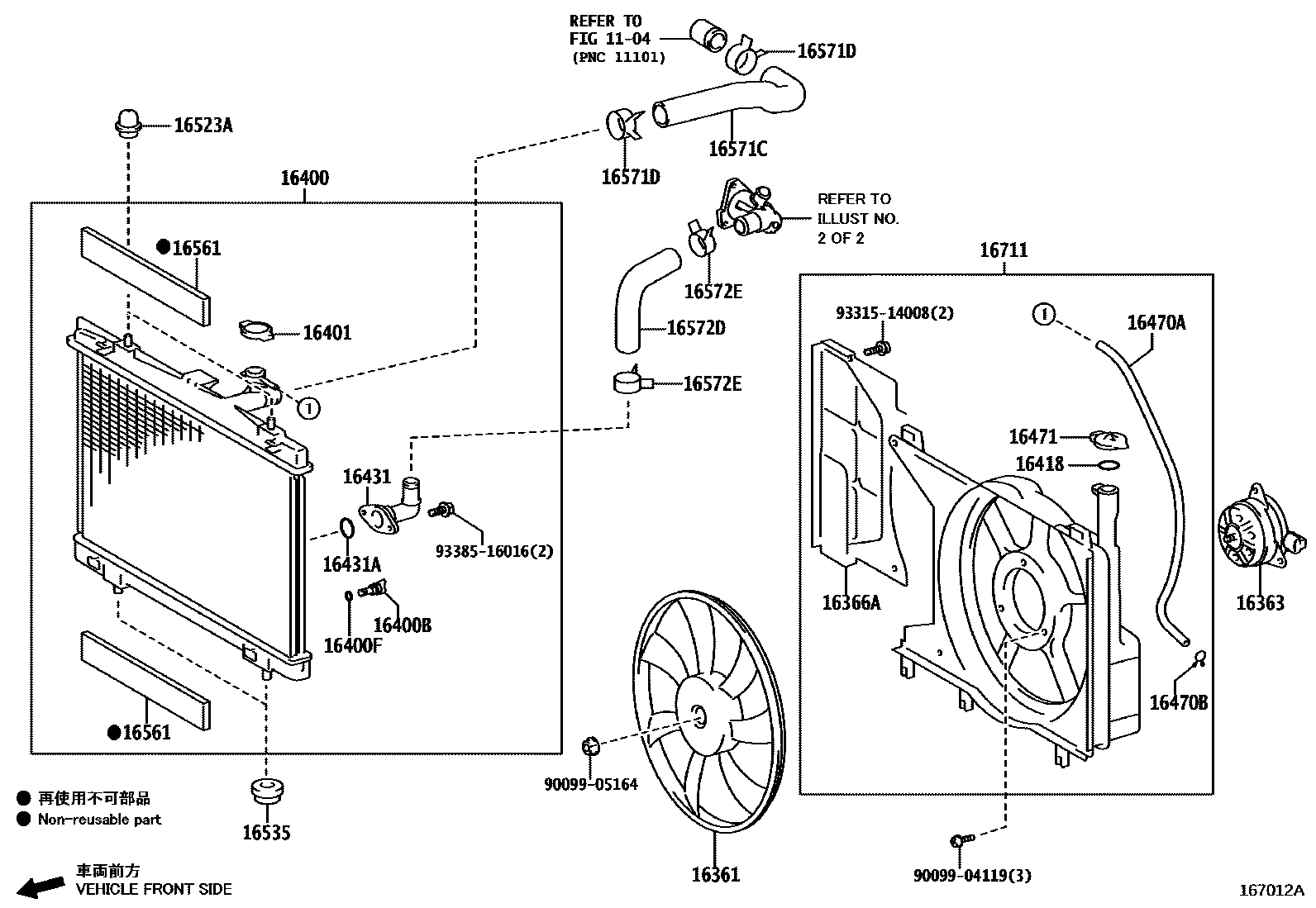

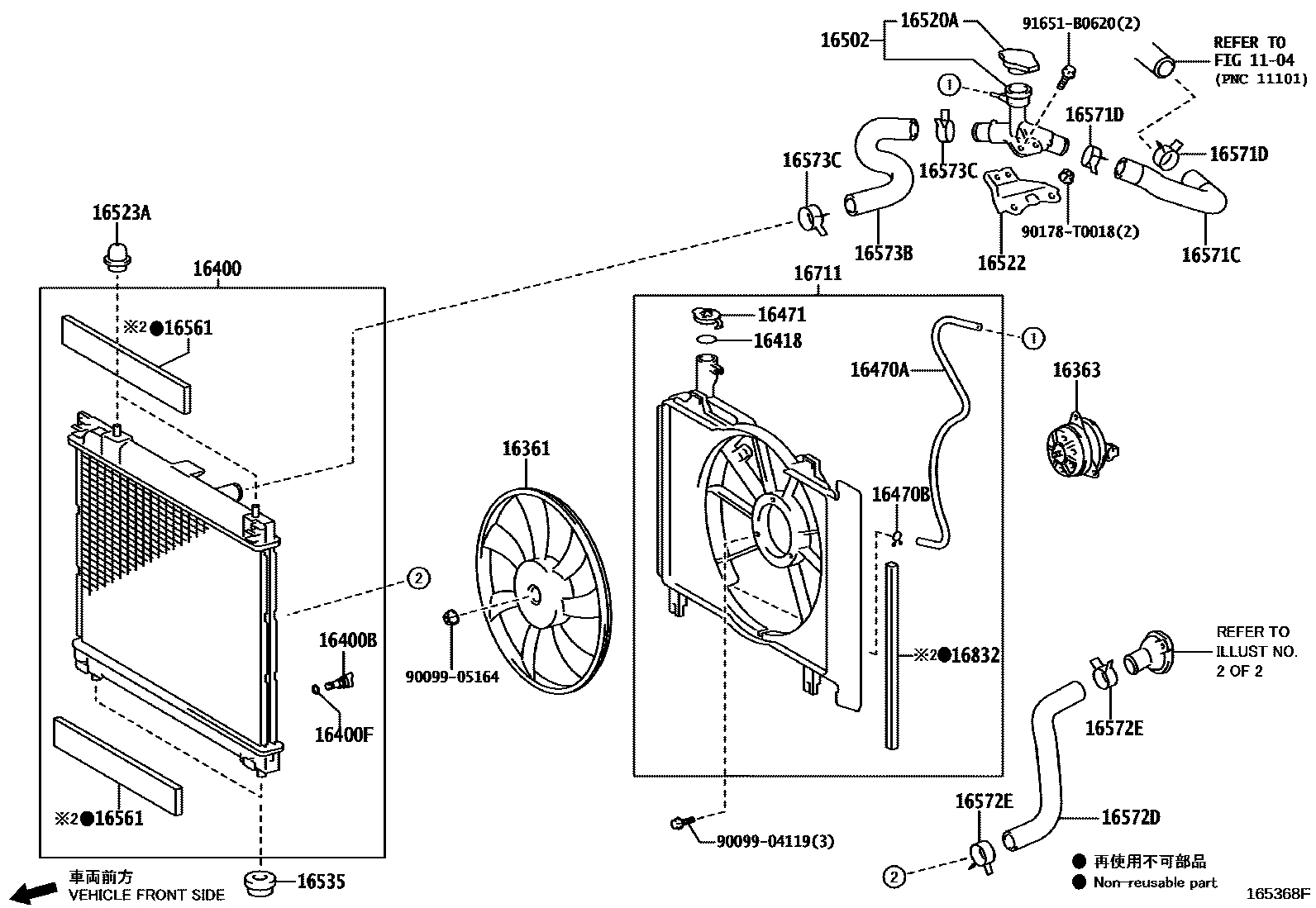

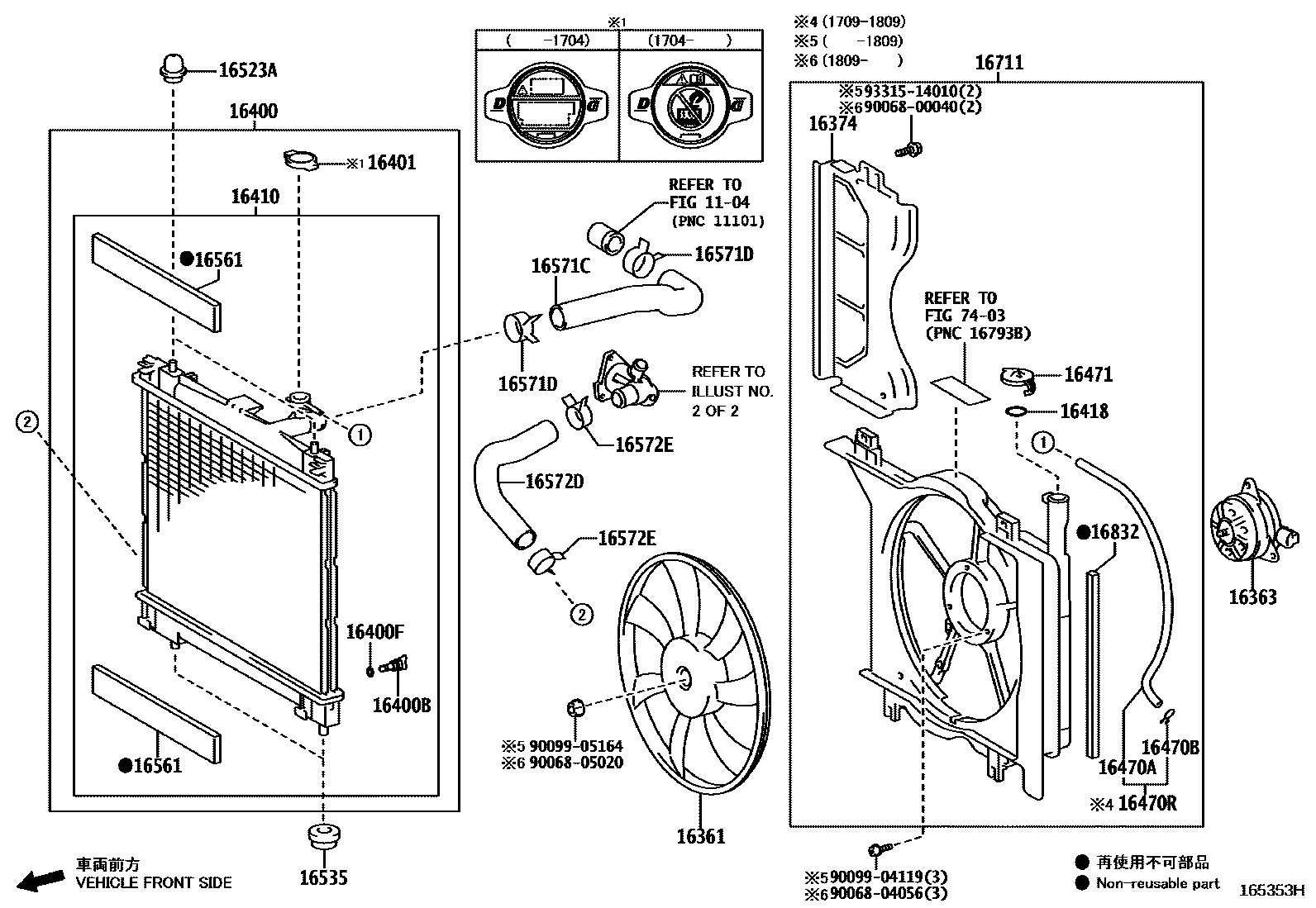

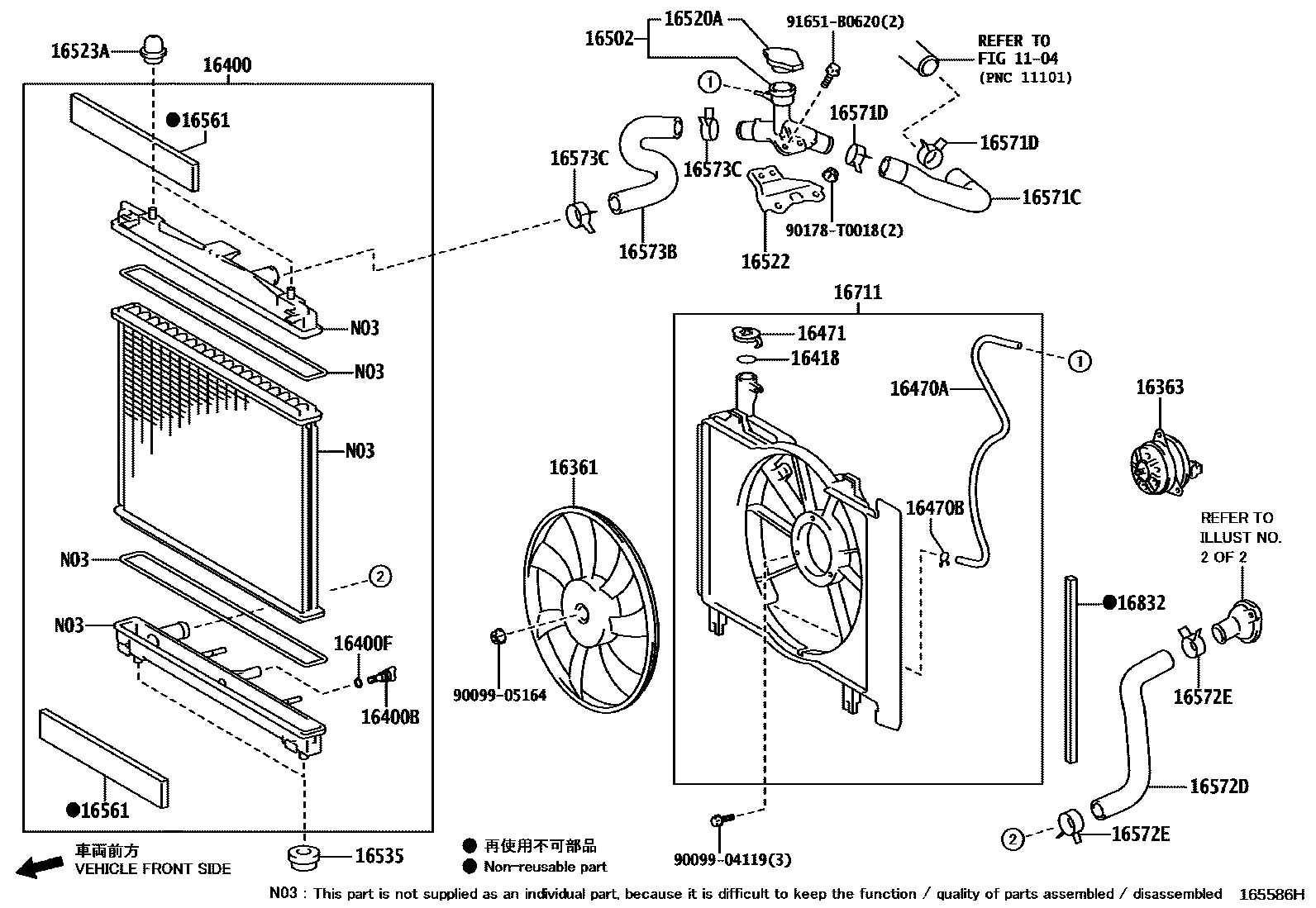

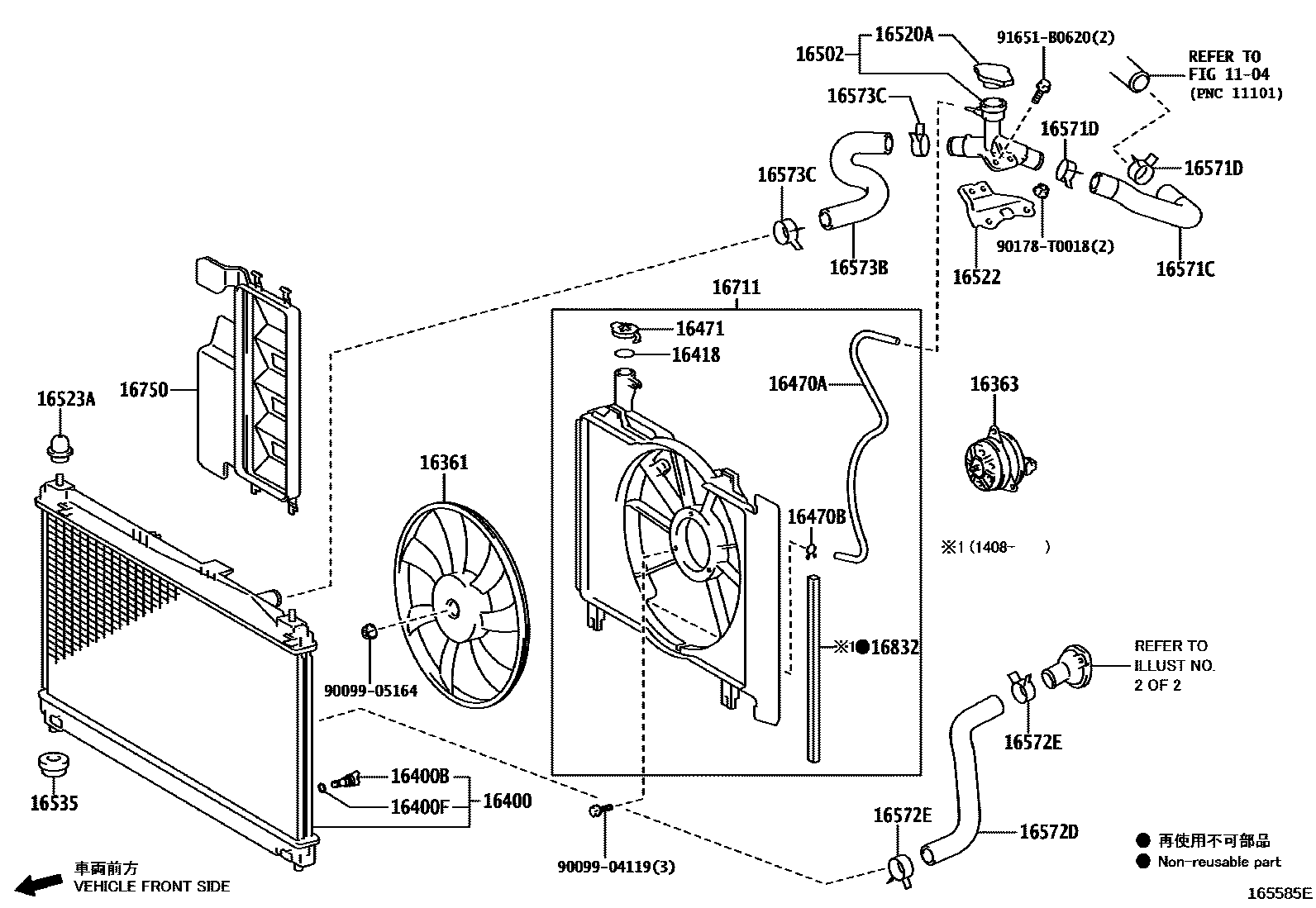

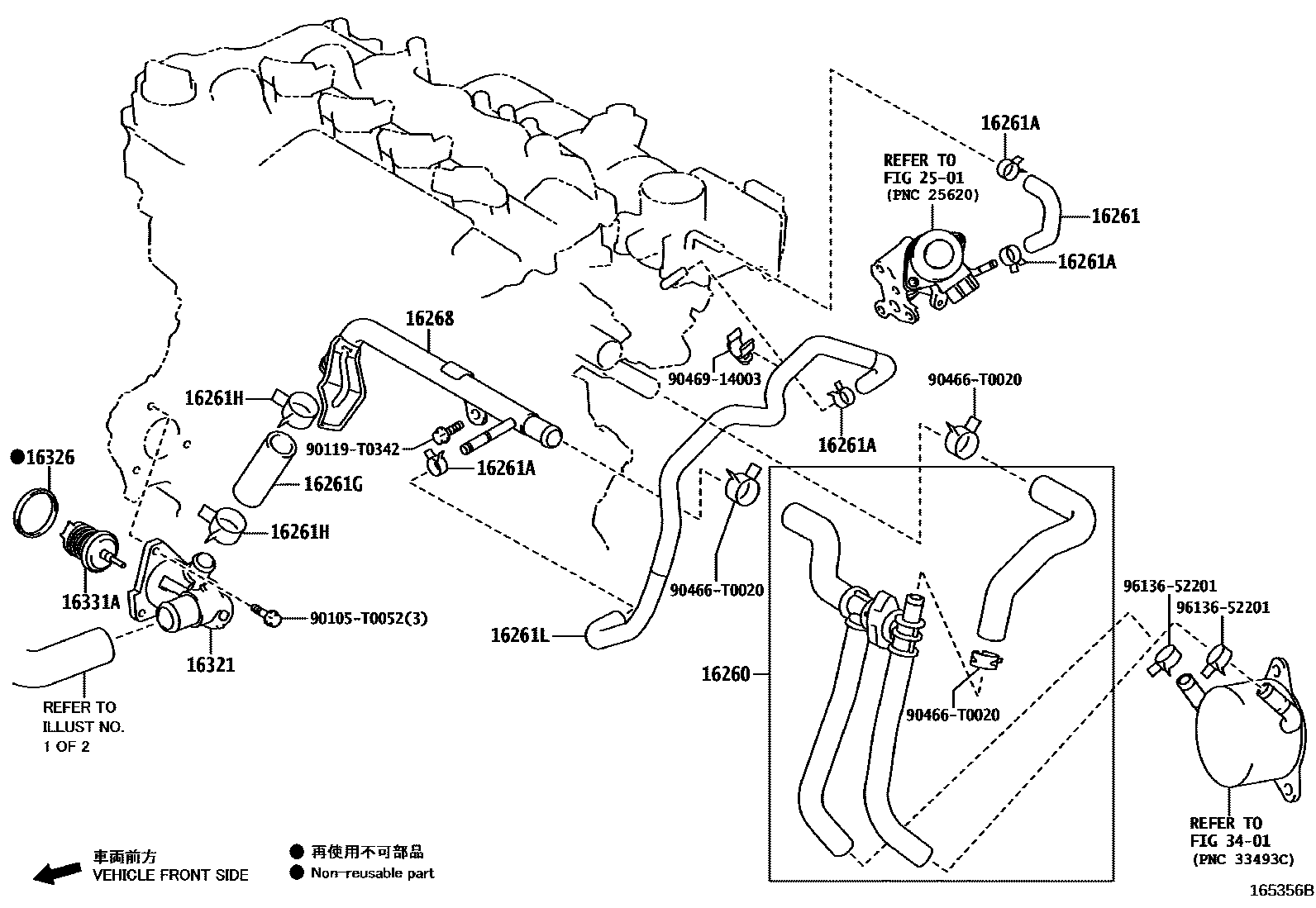

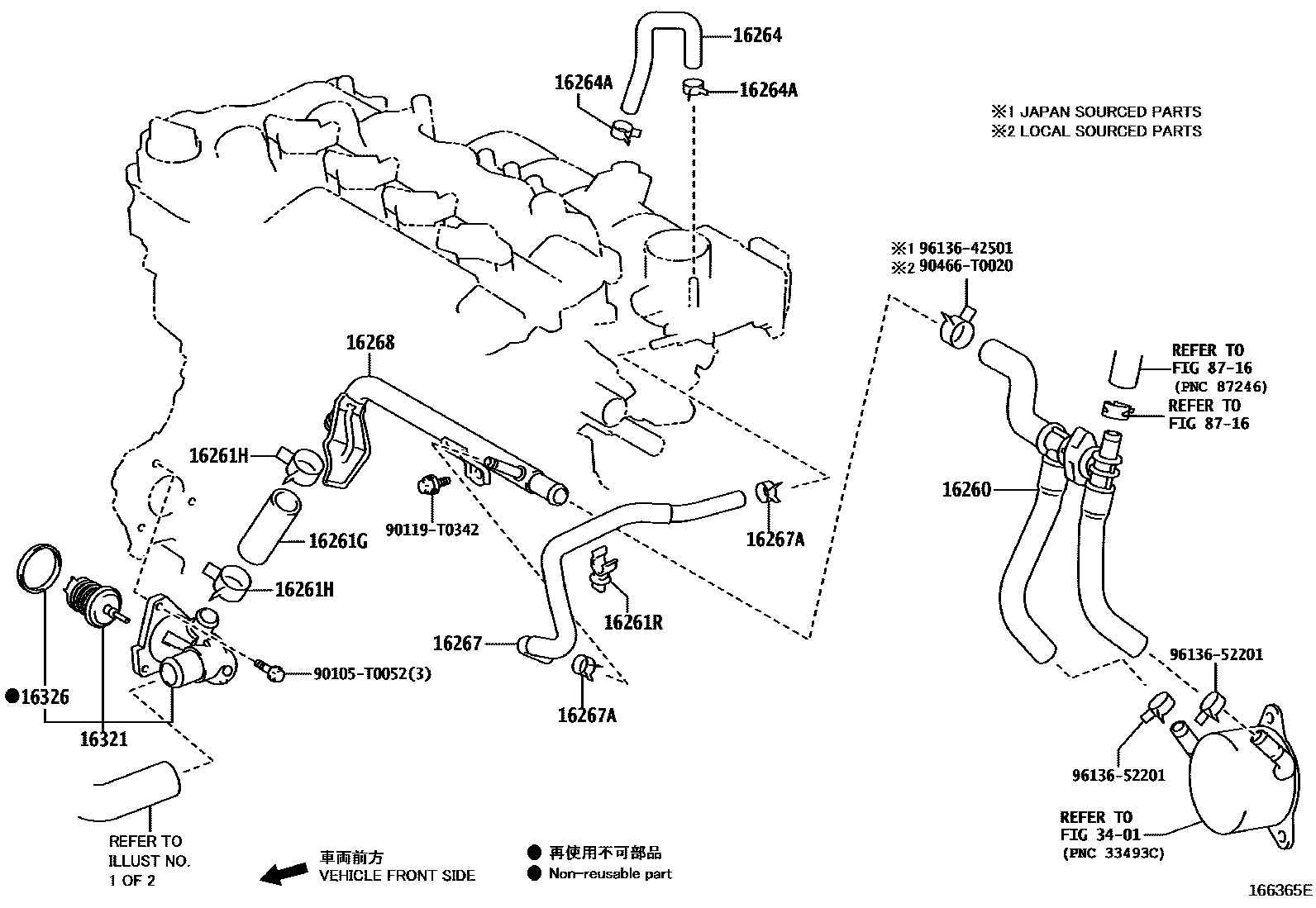

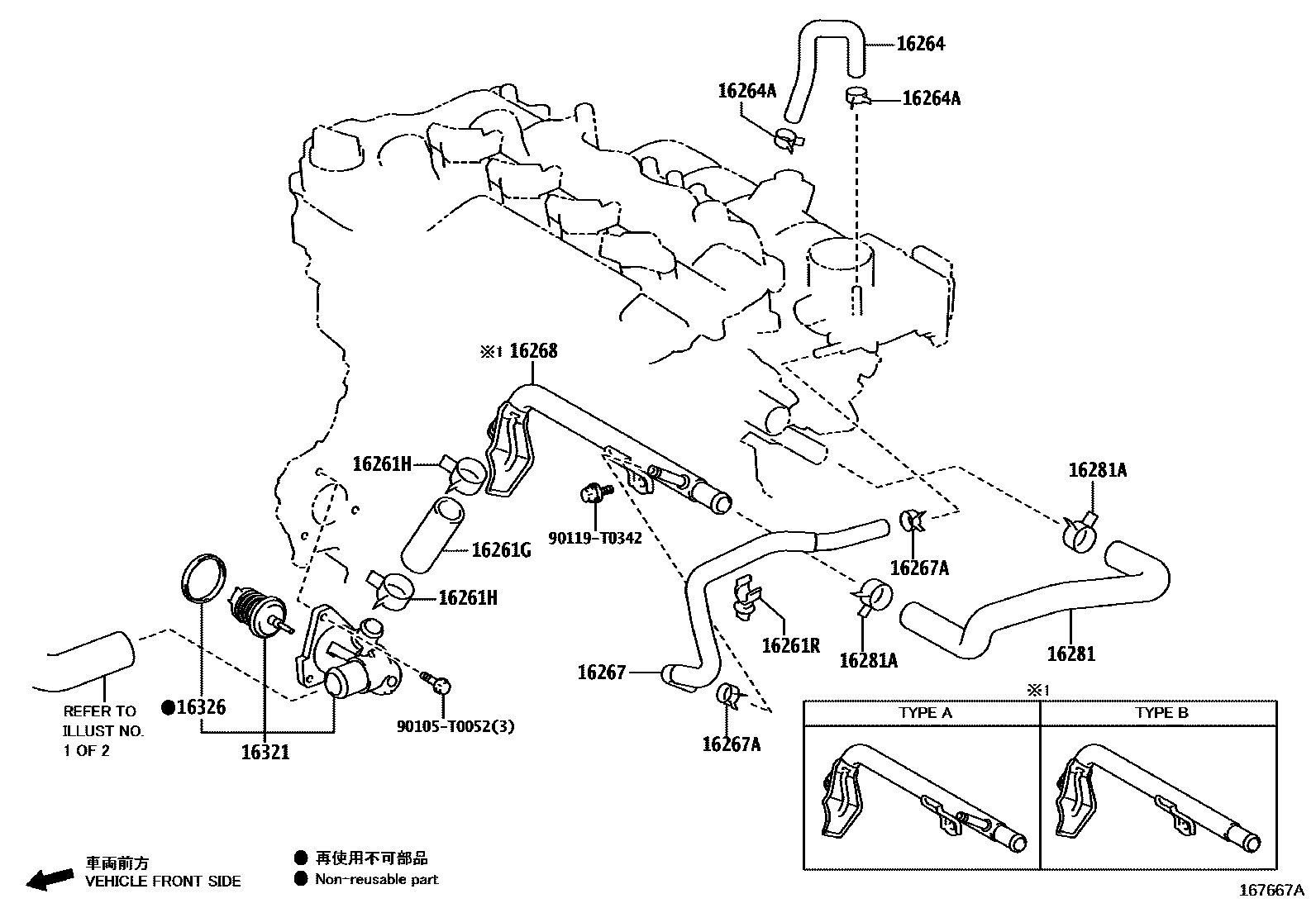

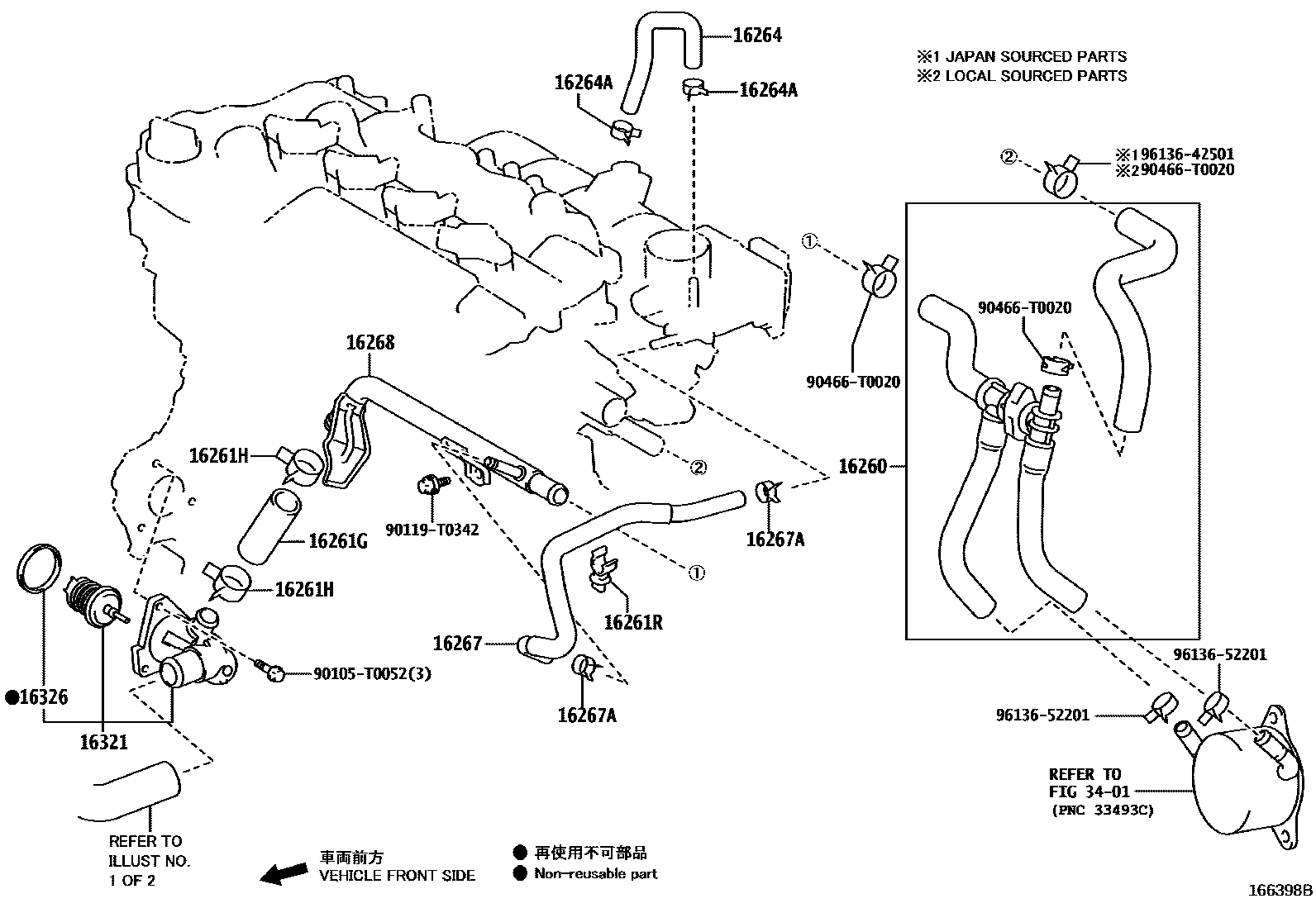

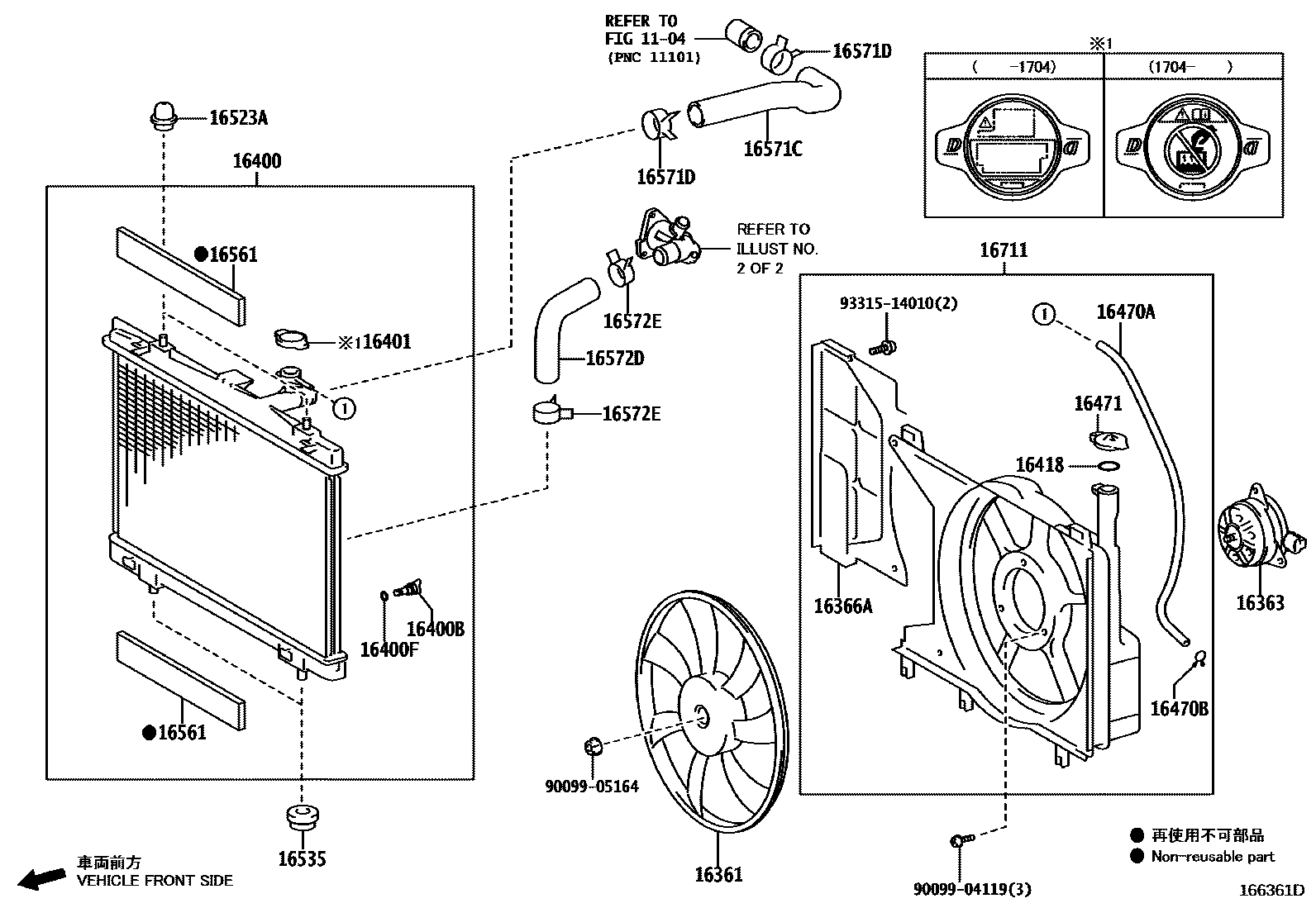

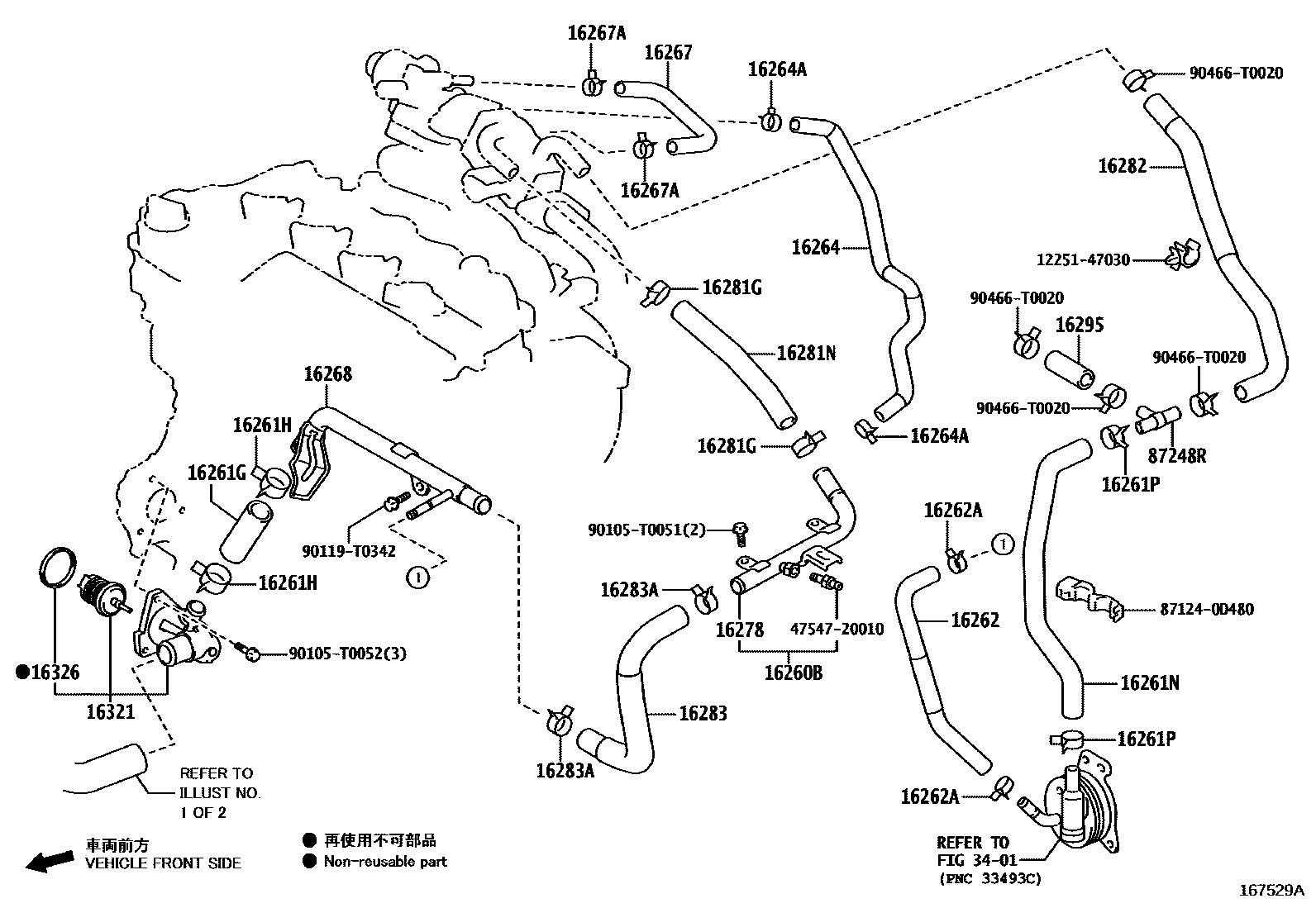

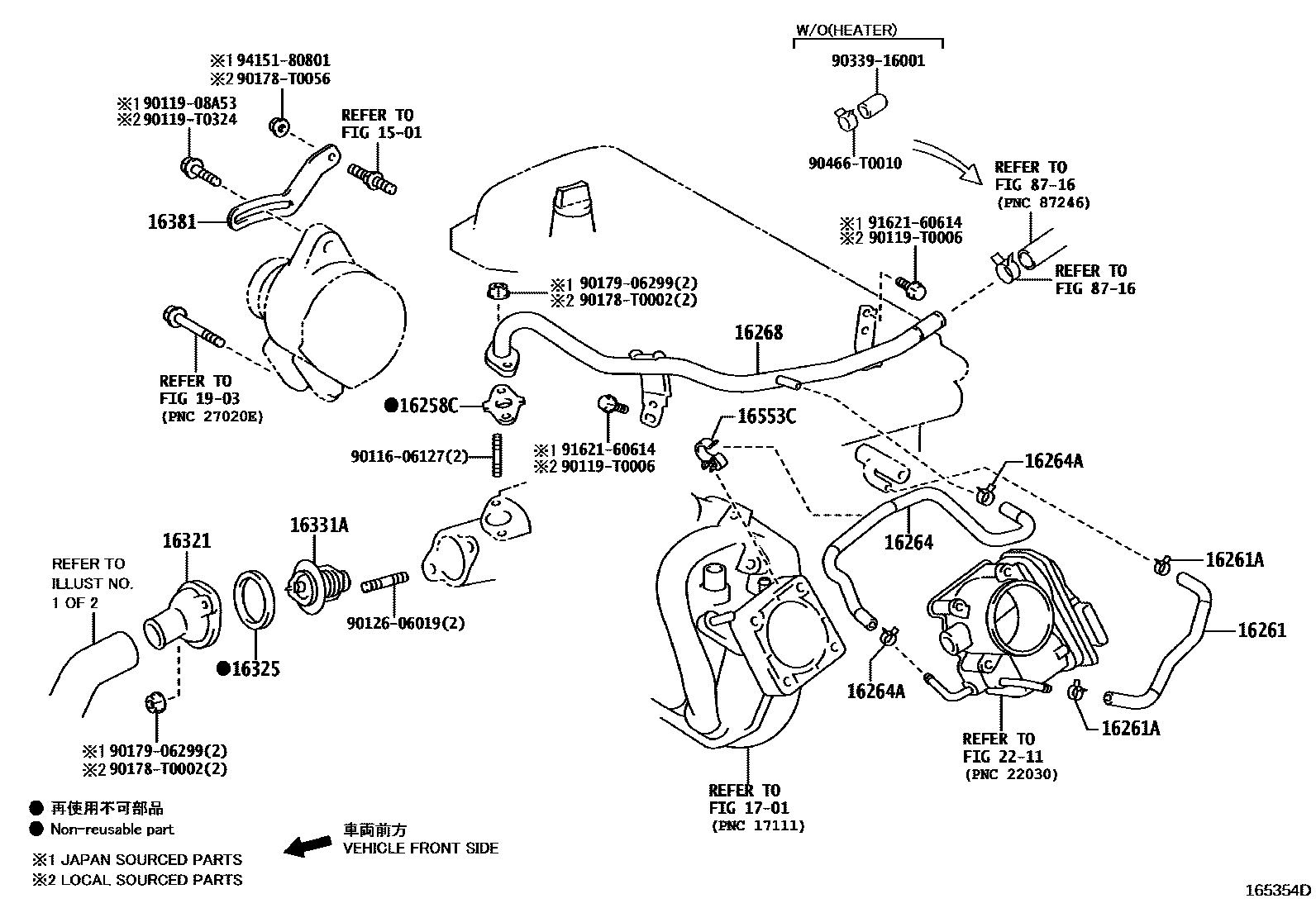

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 18 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258C | Gasket (for water bypass pipe) | 16258-21021 |
| 16260 | Water bypass hose assembly | 16260-0Y040 · 16260-0Y110 · 16260-0Y120 · 16260-0Y130 · 16260-0Y140 · 16260-0Y150 · 16260-0Y170 |
| 16260B | Water bypass pipe assembly | 16270-0Y030 |
| 16261 | HOSE, WATER BY-PASS | 16261-0M010 · 16261-0M020 · 16261-21090 · 16261-47010 · 16267-0Y100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-T0015 · 90466-T0047 · 90467-13054 · 96136-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0Y030 · 16261-0Y100 · 16261-47020 · 16261-BZ270 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90044-66054 · 90466-T0050 · 96136-42901 |
| 16261L | HOSE, WATER BY-PASS | 16261-47030 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-0Y230 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0020 |
| 16261R | Clip or clip (for water bypass hose) | 90469-T0014 · 90469-T0015 |
| 16262 | water inlet hose | 16262-0Y030 |
| 16262A | Clamp (for water inlet hose) | 96136-52201 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0M010 · 16264-0M020 · 16264-0Y040 · 16264-0Y080 · 16264-0Y110 · 16264-0Y120 · 16264-21070 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0015 · 90466-T0047 · 90467-13054 · 96136-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0Y030 · 16267-0Y080 · 16267-0Y090 · 16267-0Y230 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-T0015 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0M020 · 16268-0M030 · 16268-0Y040 · 16268-0Y060 · 16268-0Y070 · 16268-0Y130 · 16268-0Y140 · 16268-0Y160 · 16268-0Y180 · 16268-0Y190 · 16268-21022 · 16268-47031 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-0Y030 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0Y070 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0020 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-T0020 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-0Y180 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0Y050 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0Y041 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-T0020 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0Y020 |
| 16321 | water inlet | 16031-0Y010 · 16031-0Y030 · 16321-21020 · 16321-47011 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H010 · 16325-0H020 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-0Y010 · 16326-47010 · 16326-47020 |
| 16331A | thermostat | 90916-03093 · 90916-03147 |
| 16361 | Fan | 16361-0M110 · 16361-0M120 · 16361-0M130 · 16361-0Y220 |
| 16363 | cooling fan motor | 16363-0Y040 · 16363-0Y050 · 16363-0Y140 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-0Y120 · 16366-0Y240 · 16366-0Y250 · 16366-0Y270 · 16366-0Y290 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-0Y050 |
| 16381 | Fan belt adjustment lever | 16381-0M010 · 16381-0M020 · 16381-0M030 · 16381-0M040 · 16381-21020 · 16381-21030 |
| 16400 | Radiator assembly | 16400-0M190 · 16400-0M200 · 16400-0M220 · 16400-0M250 · 16400-0M280 · 16400-0M290 · 16400-0Y100 · 16400-0Y191 · 16400-0Y200 · 16400-0Y220 · 16400-0Y231 · 16400-0Y250 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 |
| 16400F | Seal (for radiator drain switch) | 16492-0L060 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-0H060 · 16401-0M010 · 16401-31520 · 16401-36020 |
| 16410 | Radiator assembly without cover | 16410-0Y050 |
| 16418 | Seals | 16476-0H060 · 16476-0M150 · 90069-43014 |
| 16431 | Radiator water inlet | 16431-0Y190 · 16431-0Y250 |
| 16431A | O-ring (for radiator water inlet) | 16492-0Y100 · 16492-0Y130 · 16492-0Y200 · 16492-6A300 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-0M110 · 16377-0M140 · 16377-0M150 · 16377-0Y050 · 16377-0Y120 · 16377-0Y240 · 16377-0Y250 · 16377-0Y270 · 16377-0Y290 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470R | No. 2 hose (for radiator reservoir) | 16378-0Y050 |
| 16471 | Liquid storage tank cover sub-assembly | 16376-0M140 · 16376-0M150 · 16376-0Y050 |
| 16502 | Water injection port sub-assembly | 16502-0M020 · 16502-0M040 |
| 16520A | Water injection port cover sub-assembly | 16401-0H060 · 16401-31520 |
| 16522 | Water injection port bracket | 16522-0M020 |
| 16523A | Radiator bracket cushion | 16523-0M030 · 16523-0M040 · 16523-0M050 · 16523-0Y010 · 16523-21030 |
| 16535 | Radiator lower support | 90480-22025 · 90480-T0001 · 90480-T0008 |
| 16553C | hose clamp | 16581-21010 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0M010 · 16561-0M060 · 16561-0M080 · 16561-0Y010 |
| 16571C | Radiator hose No. 1 | 16571-0M080 · 16571-0Y100 · 16571-0Y101 · 16571-0Y180 · 16571-0Y181 · 16571-0Y200 · 16571-0Y210 · 16571-0Y280 · 16571-0Y290 |
| 16571D | No. 1 radiator hose clip | 96136-43901 |
| 16572D | Radiator hose No. 2 | 16572-0M090 · 16572-0Y080 · 16572-0Y150 · 16572-0Y151 · 16572-0Y160 · 16572-0Y161 · 16572-0Y170 · 16572-0Y190 |
| 16572E | No. 2 radiator hose clip | 96136-43901 |
| 16573B | Radiator hose No. 3 | 16573-0M070 · 16573-0M080 |
| 16573C | No. 3 radiator hose clamp or clip | 96136-43901 |
| 16711 | fan cover | 16711-0M110 · 16711-0M120 · 16711-0M140 · 16711-0Y060 · 16711-0Y061 · 16711-0Y090 · 16711-0Y160 · 16711-0Y170 · 16711-0Y190 · 16711-0Y210 · 16711-0Y330 · 16711-0Y340 |
| 16750 | Fan cover ventilation duct assembly | 16750-0M010 |
| 16832 | fan cover seal | 16561-0M020 · 16561-0M030 · 16561-0M050 · 16561-0Y020 |
| 87248R | water pipe | 87248-26880 |
