Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 3 images and 7 PNC and OE references.

Toyota YARIS Oil Filter EPC diagram — 152058B
Oil Filter — 152058B (201403 – 999999)

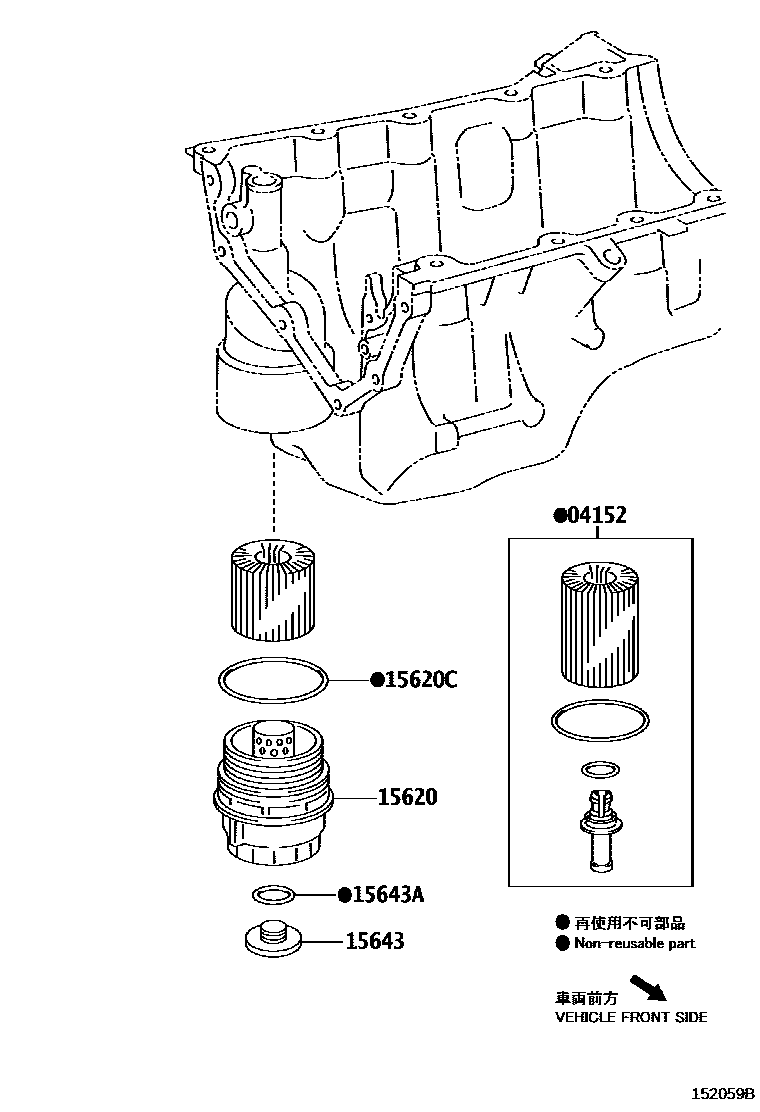

Toyota YARIS Oil Filter EPC diagram — 152059B
Oil Filter — 152059B (201310 – 201607)

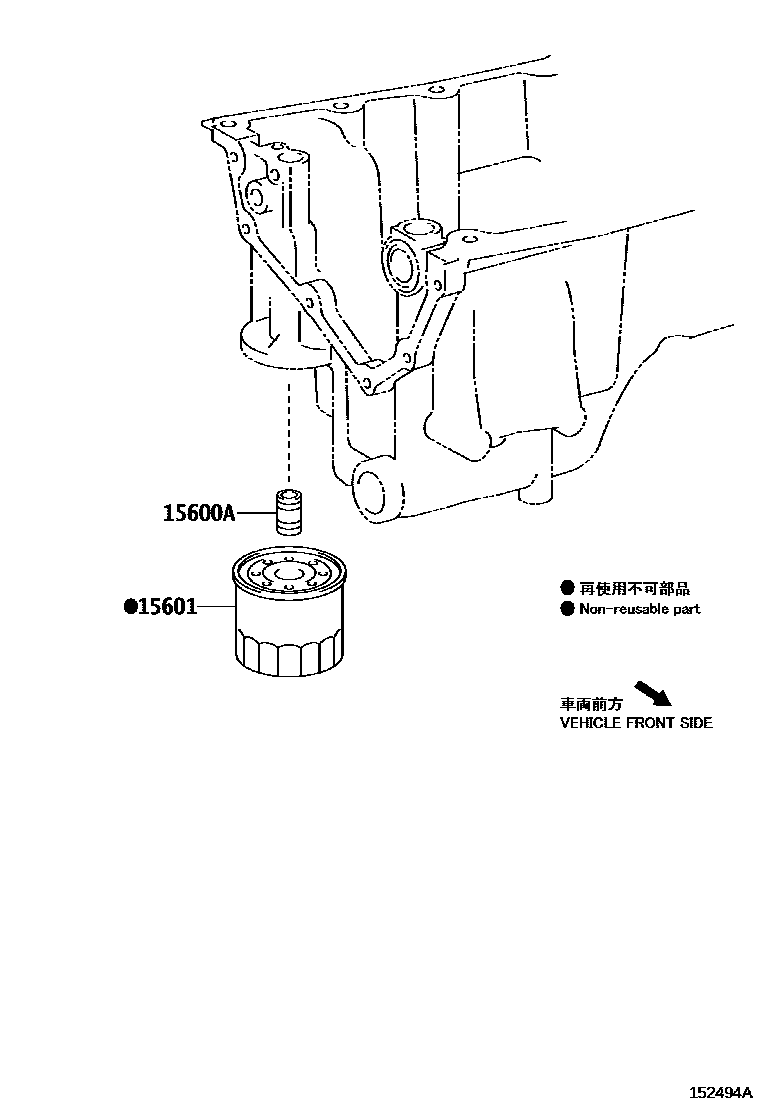

Toyota YARIS Oil Filter EPC diagram — 152494A
Oil Filter — 152494A (201605 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-40060
15600AConnector (for oil filter)90404-19011 · 90404-T0005 · 90904-04004
15601Oil filter sub-assembly90915-10003 · 90915-TA001
15620Oil filter cover assembly15620-40030
15620CGasket (for oil filter cover)90301-69011
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
