Toyota YARIS Camshaft & Valve — Figure 1302

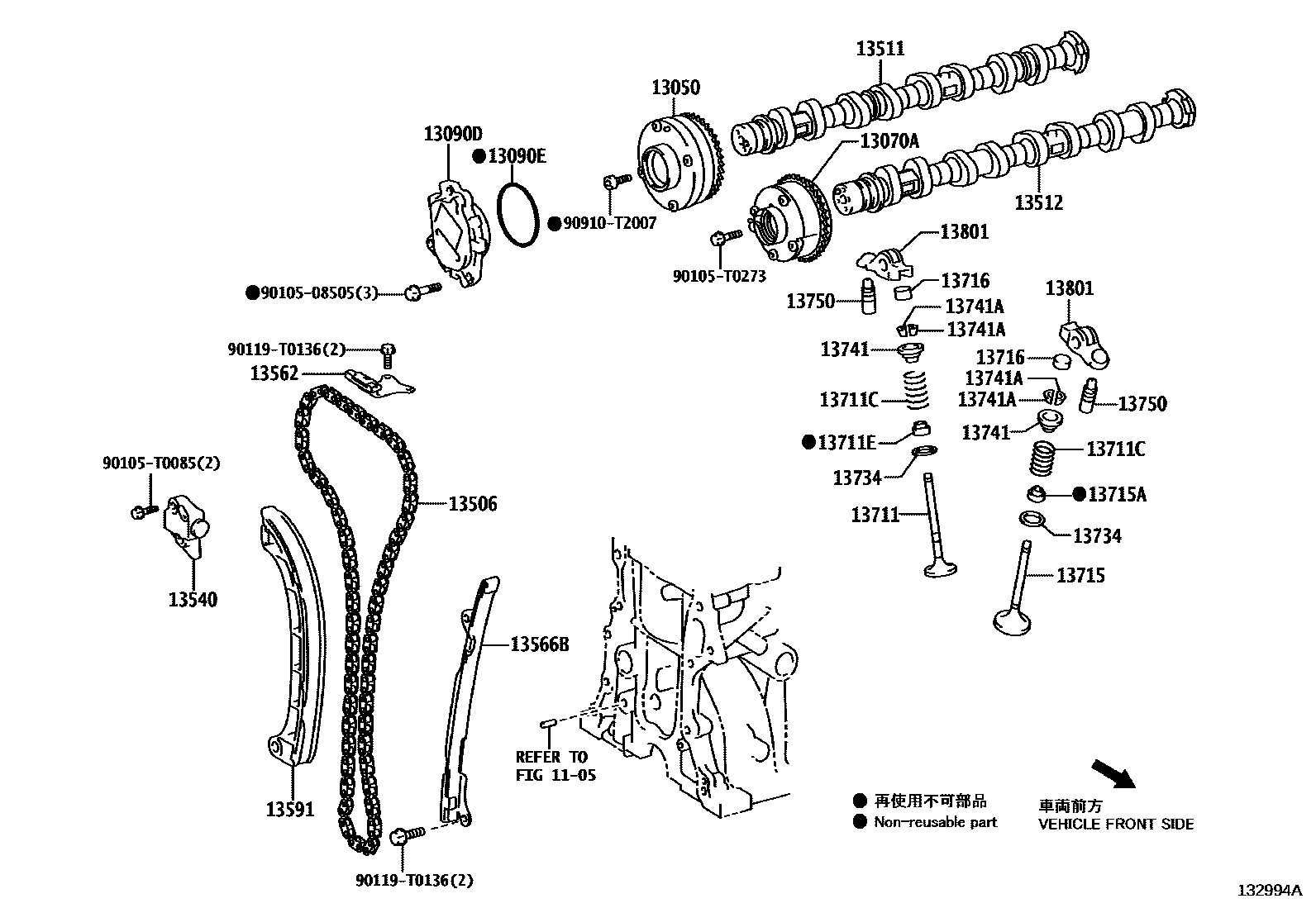

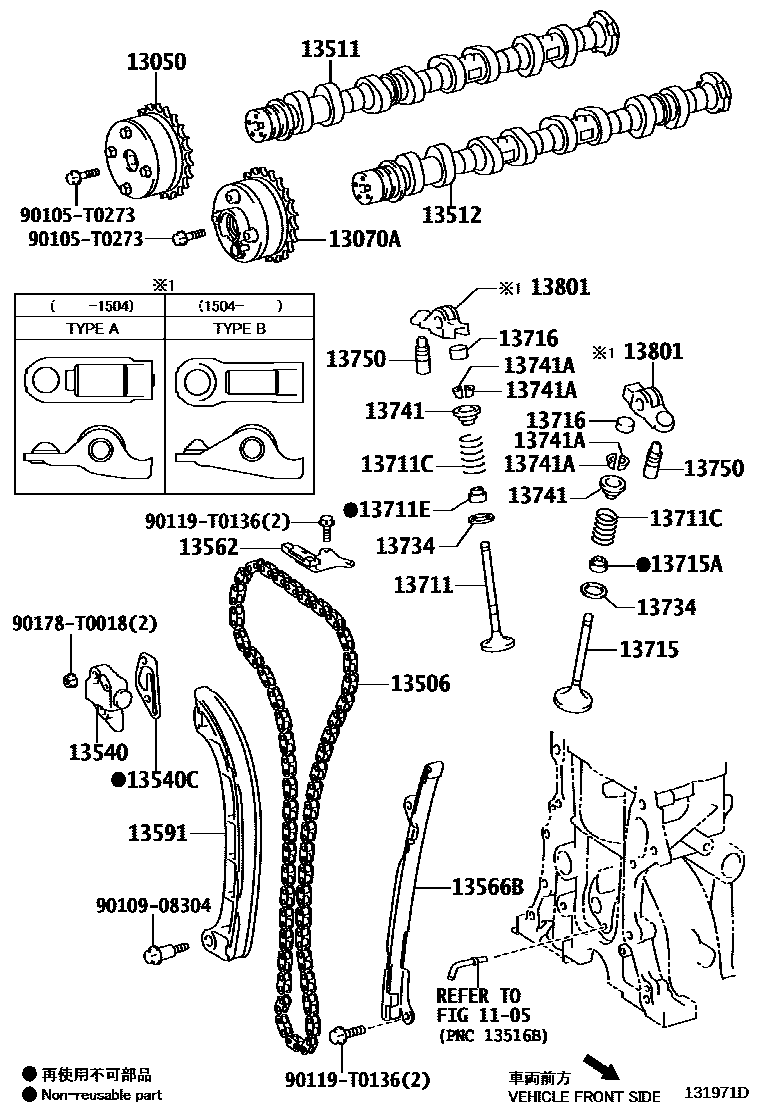

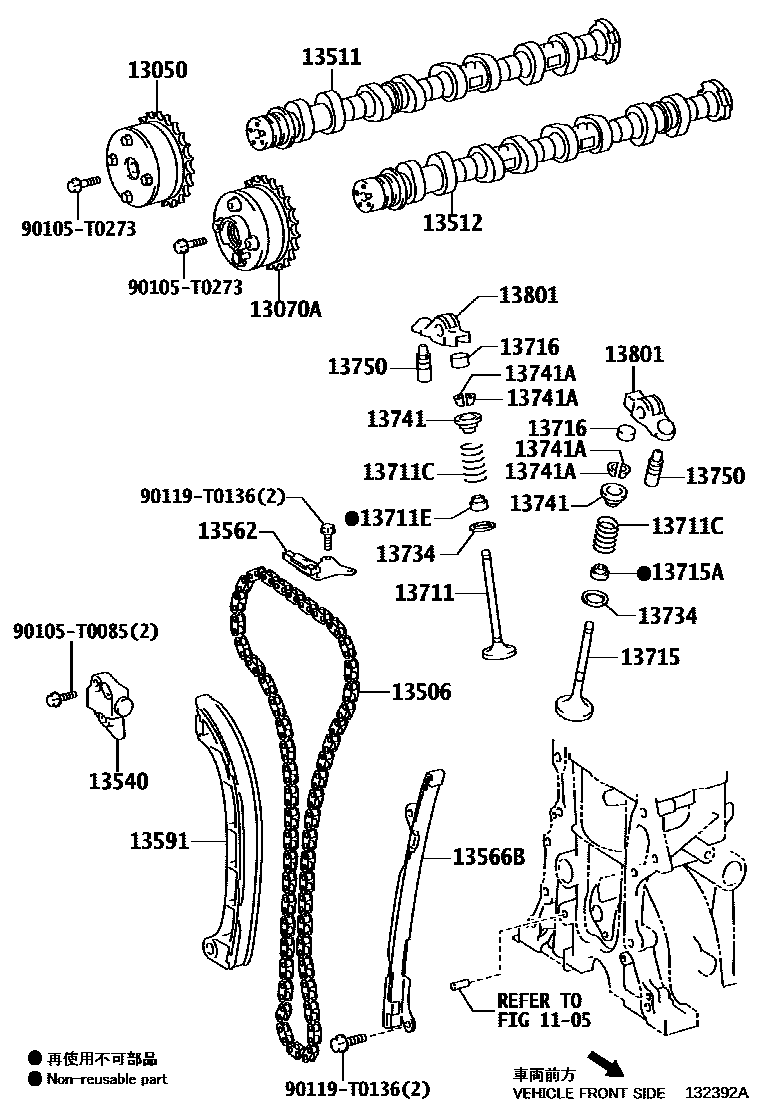

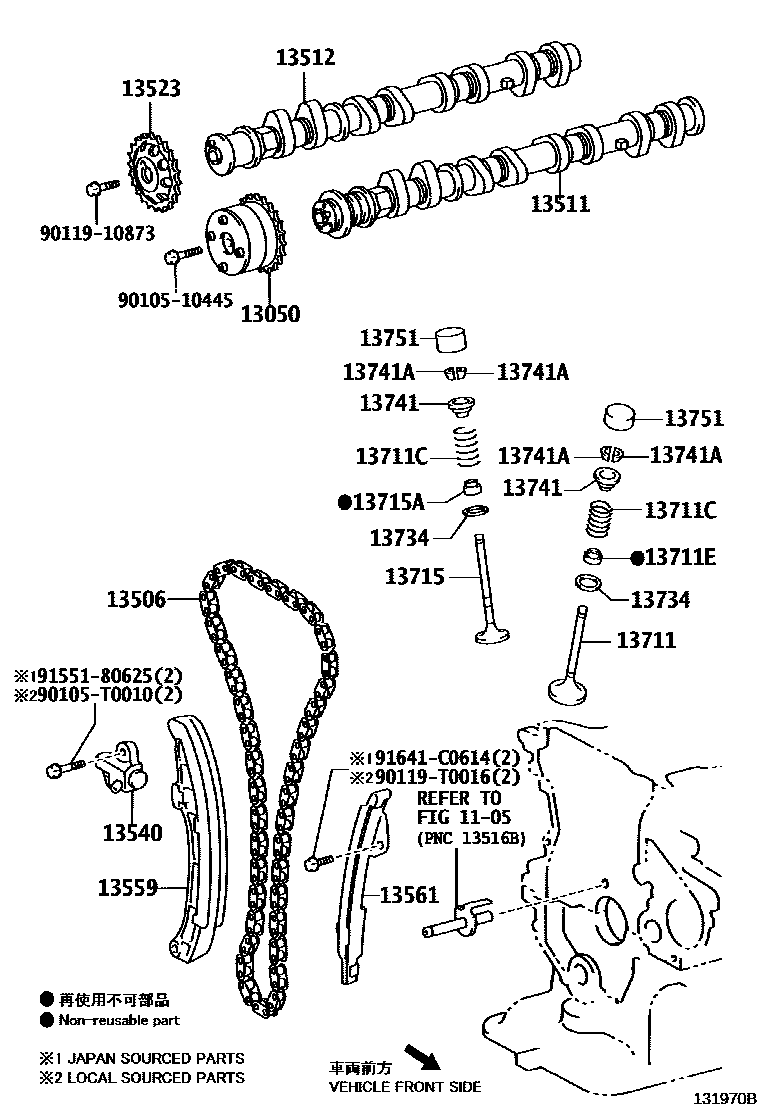

Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-0Y020 · 13050-21041 · 13050-47011 · 13050-47040 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0T011 · 13070-0Y020 · 13070-0Y060 · 13070-47010 |
| 13090D | Cam timing control motor assembly with EDU | 13090-47020 |
| 13090E | O-ring (for cam timing control motor) | 90301-T0095 |
| 13506 | Chain sub-assembly | 13506-0M020 · 13506-0Y040 · 13506-21030 · 13506-21050 · 13506-47030 |
| 13511 | camshaft | 13501-0Y040 · 13501-0Y050 · 13501-0Y080 · 13501-0Y090 · 13501-0Y100 · 13501-0Y140 · 13501-21030 · 13501-BZ040 |
| 13512 | Camshaft No. 2 | 13502-0Y040 · 13502-0Y050 · 13502-0Y070 · 13502-0Y080 · 13502-0Y120 · 13502-21021 · 13502-21031 · 13502-BZ030 |
| 13523 | Camshaft timing gear or sprocket | 13523-22020 |
| 13540 | No. 1 chain tensioner assembly | 13540-0M010 · 13540-0M020 · 13540-0Y010 · 13540-21010 · 13540-21020 · 13540-47010 · 13540-47011 |
| 13540C | Pad (for chain tensioner) | 13552-47010 |
| 13559 | chain tensioner guide plate | 13559-0M010 · 13559-21030 |
| 13561 | No. 1 chain shock absorber | 13561-0M010 · 13561-21040 |
| 13562 | No. 2 chain shock absorber | 13562-0Y020 · 13562-47020 |
| 13566B | Timing chain guide plate | 13566-0Y010 · 13566-47030 |
| 13591 | Timing chain tensioner arm | 13591-0Y010 · 13591-47030 |
| 13711 | intake valve | 13711-0Y020 · 13711-21010 · 13711-47010 · 13711-47050 |
| 13711C | Compression spring (for outside) | 90501-27040 · 90501-32062 · 90501-T0045 |
| 13711E | Intake valve stem oil seal | 90080-31085 · 90913-02092 · 90913-02093 · 90913-02128 |
| 13715 | exhaust valve | 13715-0Y020 · 13715-21010 · 13715-47010 · 13715-47050 |
| 13715A | Exhaust valve stem oil seal | 90080-31084 · 90913-02092 · 90913-02093 · 90913-02112 · 90913-02128 |
| 13716 | valve stem cover | 13716-0C010 · 13716-0C020 · 13716-0C030 · 13716-75020 |
| 13734 | Valve spring seat | 13734-0C010 · 13734-74010 |
| 13741 | Valve spring seat ring | 13741-0C020 · 13741-0C030 · 13741-0Y010 · 13741-22021 · 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-03031 |
| 13750 | Valve lash adjuster assembly | 13750-0C020 · 13750-0C030 · 13750-0C040 · 13750-0Y050 |
| 13751 | valve lifter | 13751-21020 · 13751-21030 · 13751-21040 · 13751-21050 · 13751-21060 · 13751-21070 · 13751-21080 · 13751-21090 · 13751-21100 · 13751-21110 · 13751-21120 · 13751-21130 · 13751-21140 · 13751-21150 · 13751-21160 · 13751-21170 · 13751-21180 · 13751-21190 · 13751-21200 · 13751-21210 · 13751-21220 · 13751-21230 · 13751-21240 · 13751-21250 · 13751-21260 · 13751-21270 · 13751-21280 · 13751-21290 · 13751-21300 · 13751-21310 · 13751-21320 · 13751-21330 · 13751-21340 · 13751-21350 · 13751-21360 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0C020 · 13801-0C030 · 13801-0Y050 · 13801-47010 |
