Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 4 images and 10 PNC and OE references.

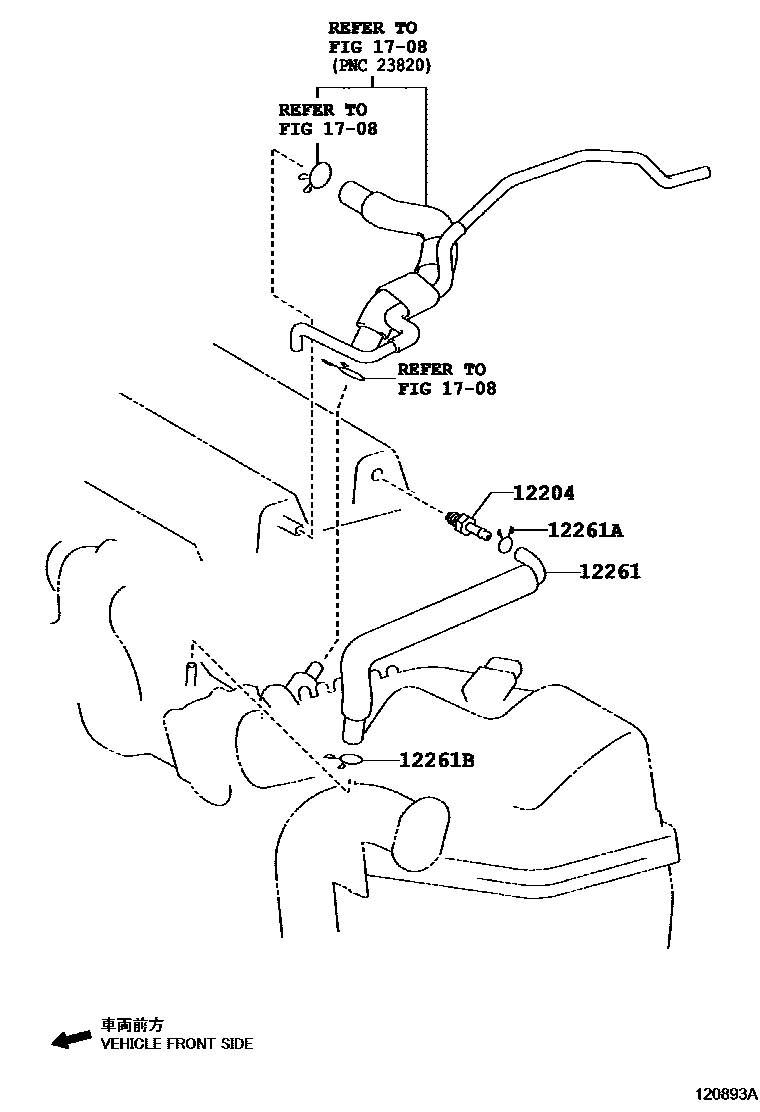

Toyota YARIS Ventilation Hose EPC diagram — 120893A
Ventilation Hose — 120893A (201403 – 999999)

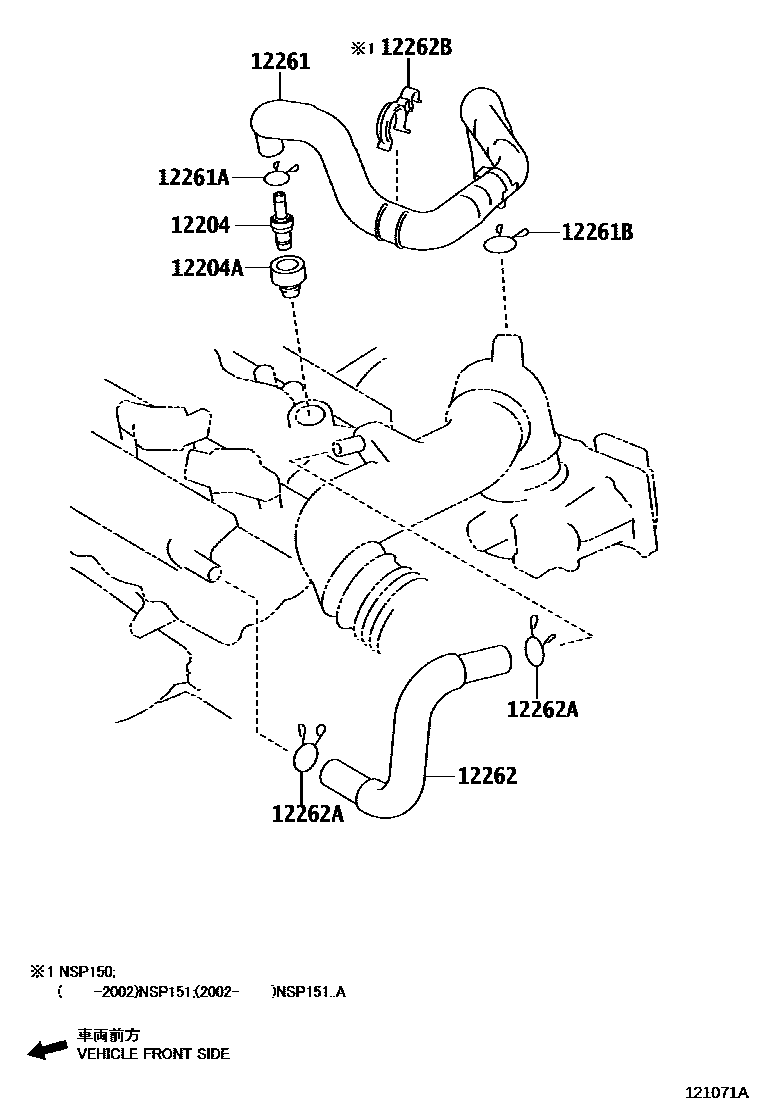

Toyota YARIS Ventilation Hose EPC diagram — 121071A
Ventilation Hose — 121071A (201605 – 999999)

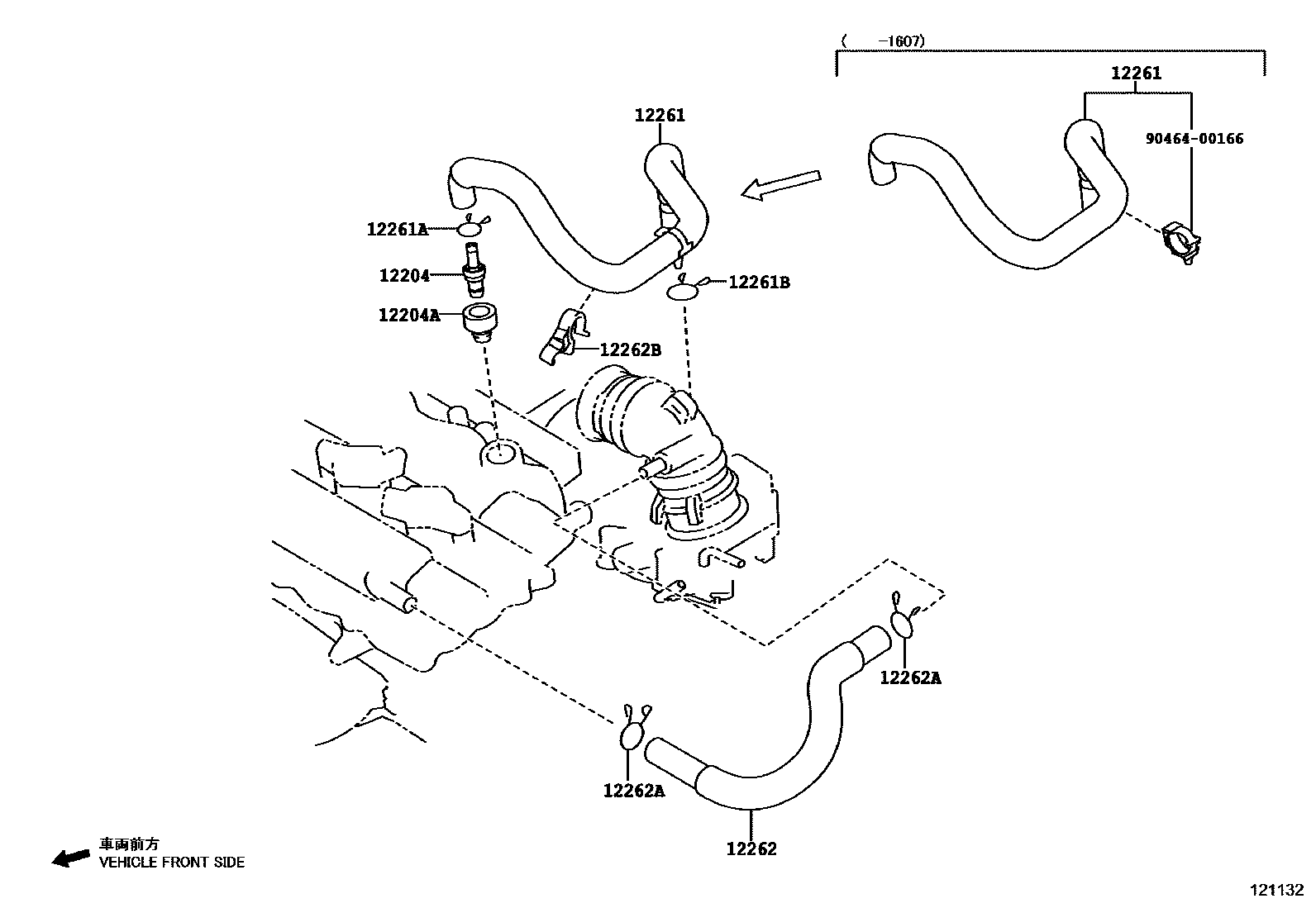

Toyota YARIS Ventilation Hose EPC diagram — 121132
Ventilation Hose — 121132 (201310 – 999999)

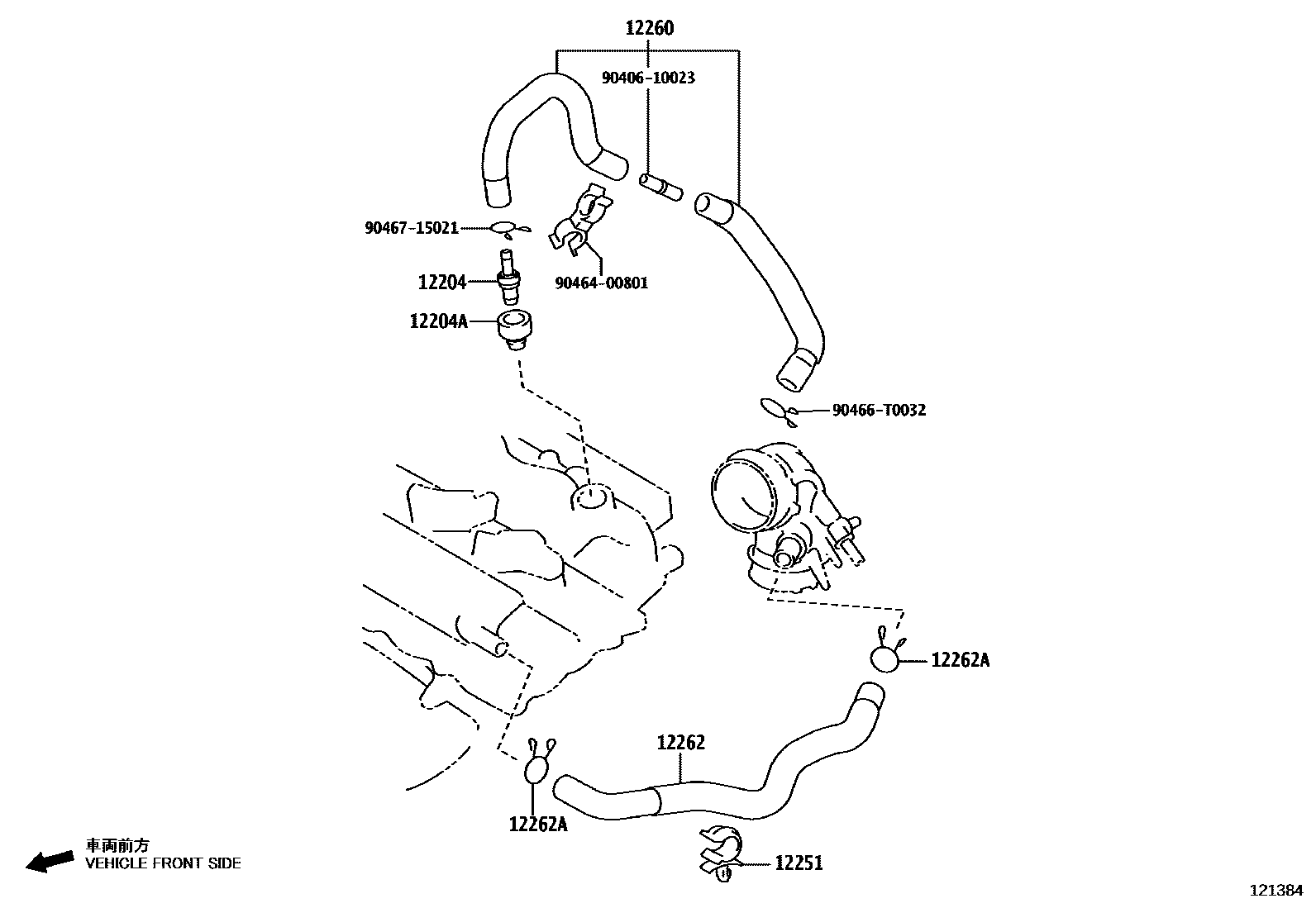

Toyota YARIS Ventilation Hose EPC diagram — 121384
Ventilation Hose — 121384 (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0Y020 · 12204-0Y040 · 12204-0Y050 · 12204-21013 · 12204-47060
12204AGasket (for ventilation system)11249-47020 · 90480-18016 · 90480-T0013
12251Ventilation duct clamp12251-47030
12260Ventilation hose assembly12260-0Y010 · 12260-47020
12261Ventilation Hose12261-0M010 · 12261-0Y040 · 12261-0Y041 · 12261-0Y050 · 12261-0Y081 · 12261-21030 · 12261-47090
12261AClip or clip (for vent hose)90466-T0060 · 90466-T0061 · 90467-15120 · 90467-16035
12261BClip or clip (for vent hose)90466-23003 · 90466-T0032 · 90466-T0062 · 90467-22010 · 90467-24038
12262Ventilation hose No. 212262-0Y110 · 12262-47010 · 12262-47060
12262AClamp (for vent hose No. 2)90466-T0027 · 90467-21004
12262BClamp (for ventilation hose)16581-47020
