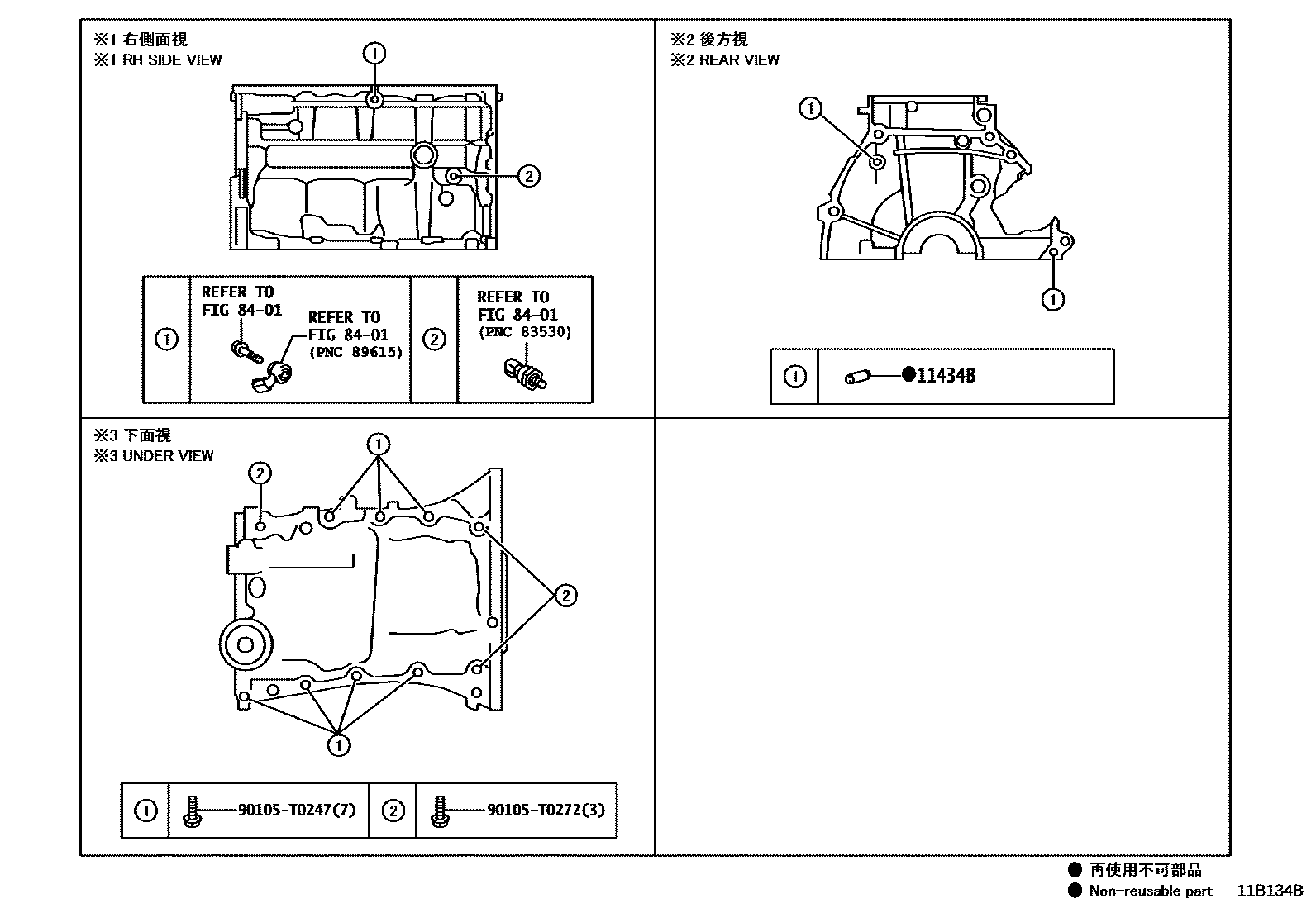

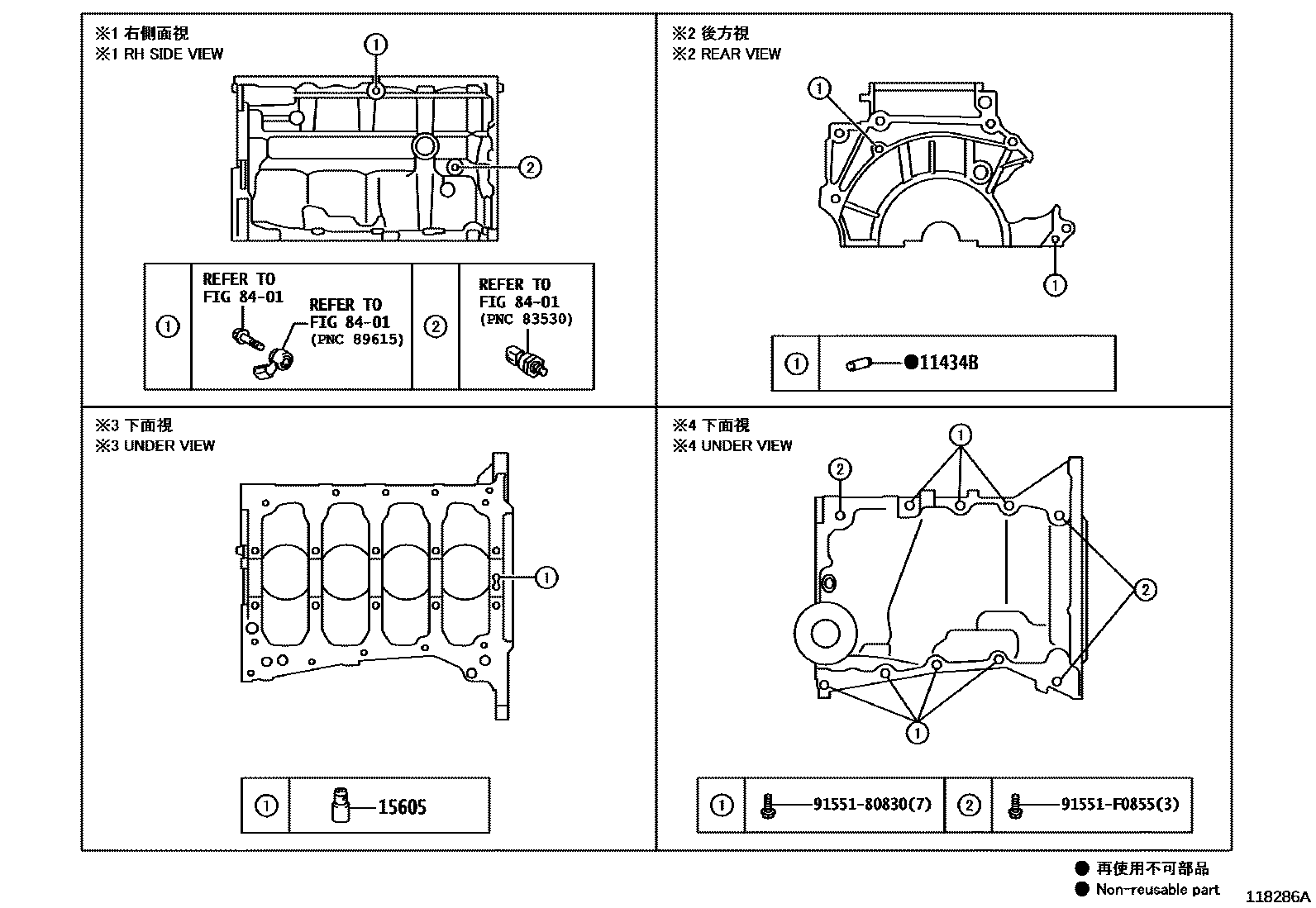

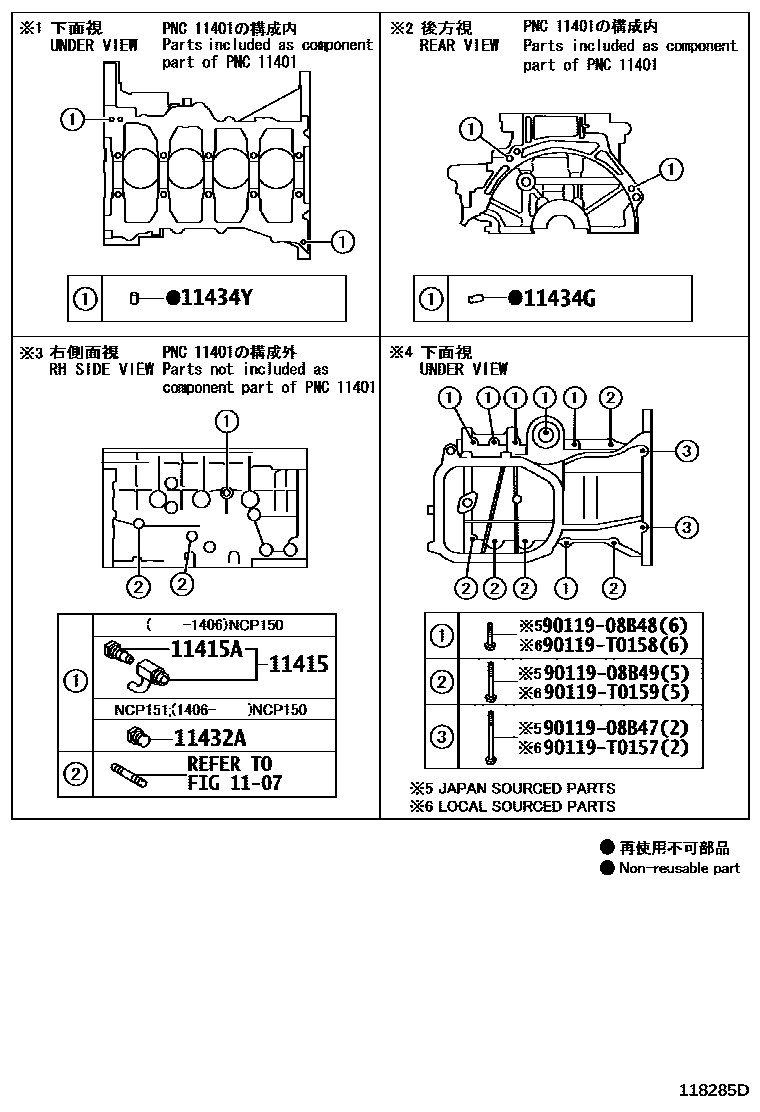

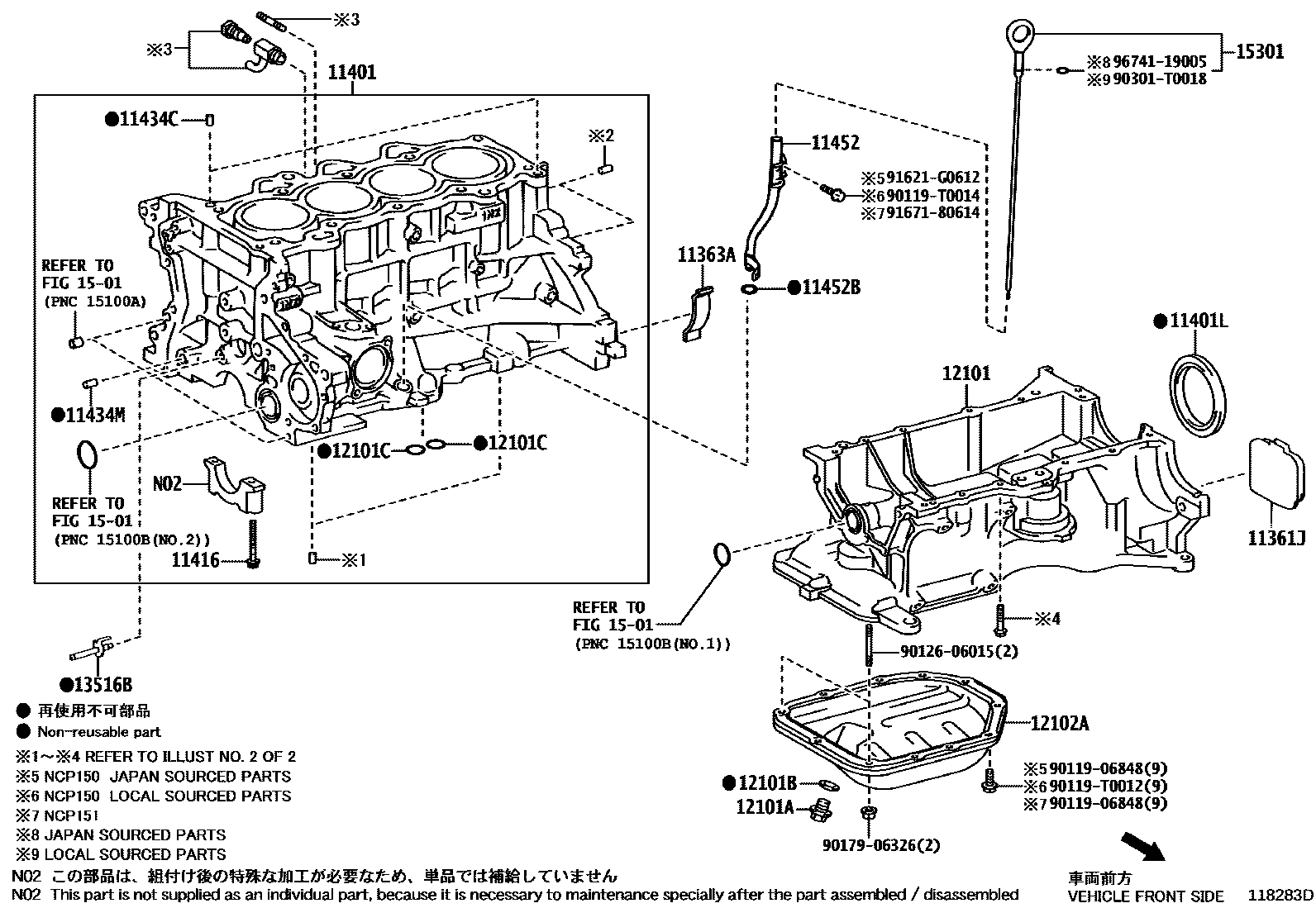

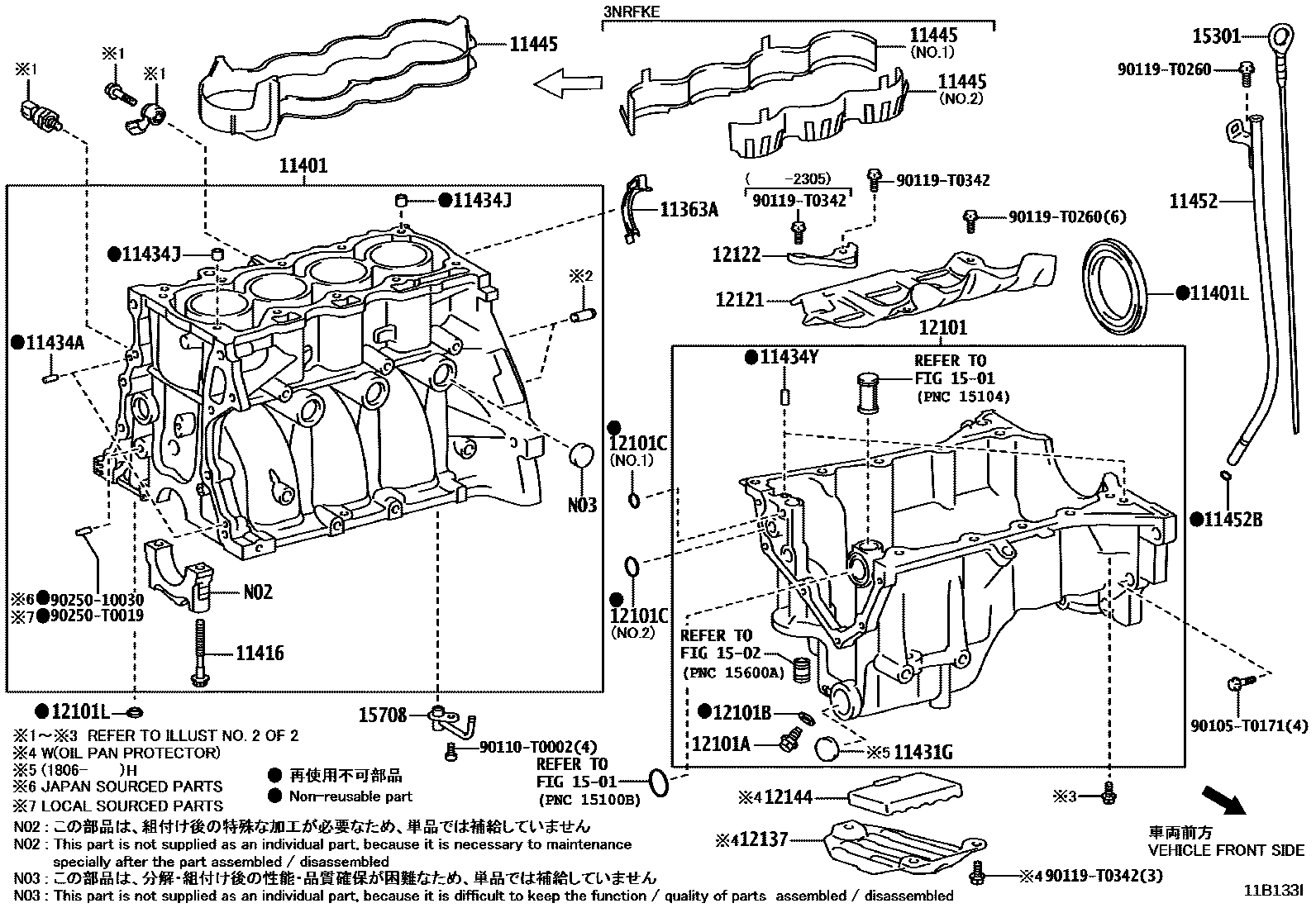

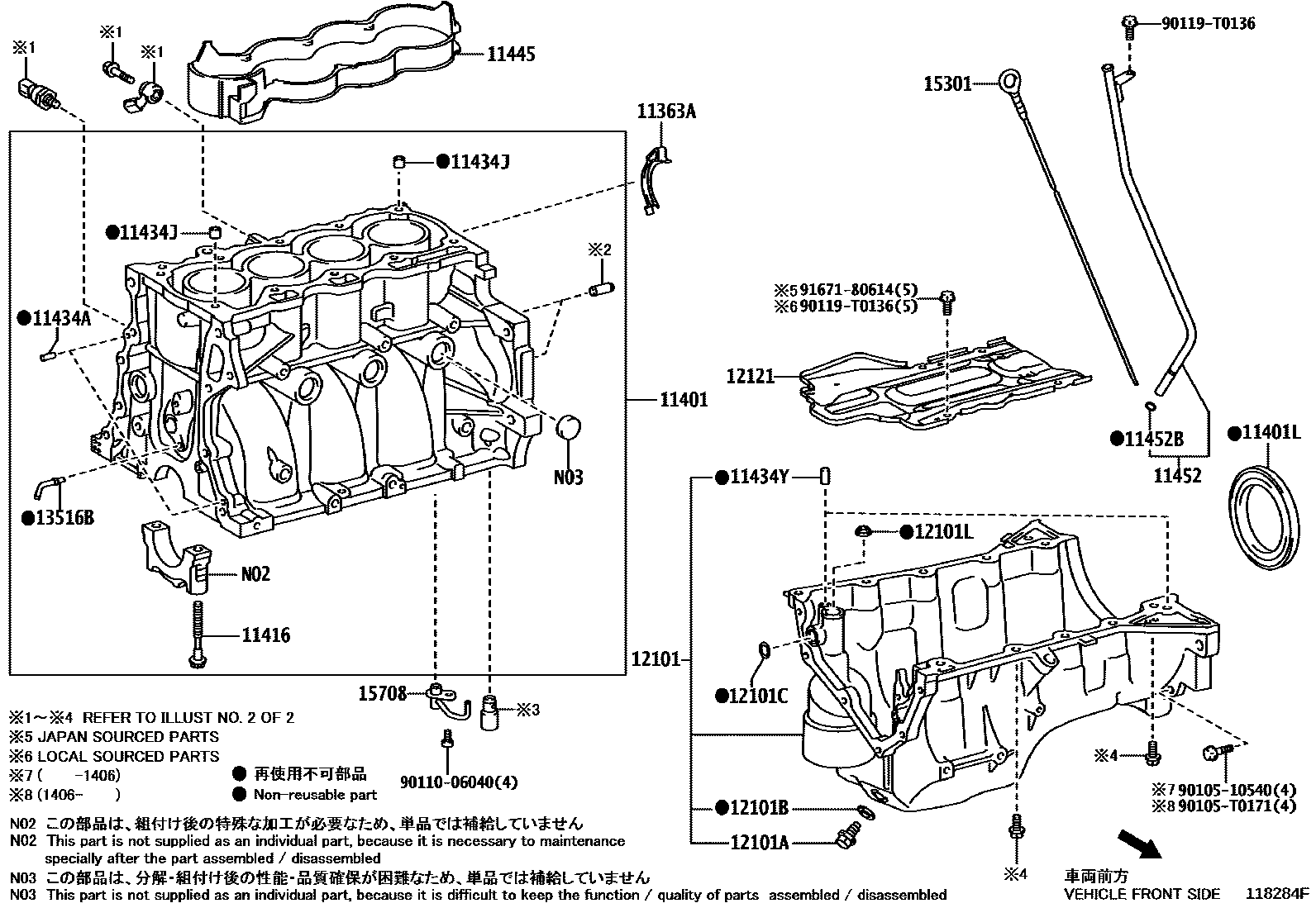

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 6 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-0M010 · 11361-21011 |
| 11363A | Flywheel housing side cover | 11363-0M010 · 11363-0Y020 · 11363-0Y040 · 11363-21010 · 11363-40010 |
| 11401 | Cylinder block sub-assembly | 11401-29847 · 11401-29848 · 11401-29858 · 11401-80881 · 11410-09700 · 11410-09710 · 11410-09725 · 11410-09735 · 11410-09740 · 11410-09750 · 11410-09760 · 11410-49037 · 11410-49095 · 11410-49105 · 11410-49106 · 11410-B9050 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-75019 · 90311-75022 · 90311-78005 · 90311-T0033 · 90311-T0073 · 90311-T0074 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02125 · 90910-02175 · 90910-T2013 |
| 11431G | sealing plug | 96411-42500 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 · 90250-T0018 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90250-T0007 |
| 11434G | Direct sales (for end plates) | 90250-10113 · 90250-T0018 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 · 90250-T0019 |
| 11434Y | Direct sales (for oil pan) | 90250-08074 · 90250-08120 · 90250-T0007 |
| 11445 | Cylinder block water jacket spacer | 11445-0Y020 · 11445-47010 · 11445-47050 · 11445-47060 |
| 11452 | Engine oil level gauge guide | 11409-47012 · 11452-0M010 · 11452-0M020 · 11452-0Y020 · 11452-0Y030 · 11452-0Y050 · 11452-0Y080 · 11452-21030 |
| 11452B | O-ring (for oil level gauge guide) | 9004A-30058 · 90301-T0025 · 90301-T0060 · 96721-19010 · 96741-19010 |
| 12101 | Oil pan sub-assembly | 12101-0Y040 · 12101-0Y060 · 12101-0Y070 · 12101-0Y080 · 12101-0Y090 · 12101-47101 · 12111-0M010 · 12111-21033 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12032 · 90341-T0017 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 · 90430-T0024 |
| 12101C | O-ring (for oil pan) | 90301-19023 · 90301-T0041 · 90301-T0054 · 90301-T0055 · 90301-T0056 · 90301-T0057 · 96722-24020 |
| 12101L | Gasket No. 1 (for oil pan) | 90430-12039 · 90430-T0022 · 90430-T0023 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0M010 · 12102-21010 |
| 12121 | No. 1 oil pan baffle | 12121-0Y030 · 12121-0Y050 · 12121-0Y060 · 12121-0Y090 · 12121-47030 · 12121-B1060 · 12121-BZ090 |
| 12122 | No. 2 oil pan baffle | 12122-0Y010 · 12122-0Y011 · 12122-0Y020 · 12122-BZ020 |
| 12137 | Oil pan protective cover | 12137-0Y010 · 12137-0Y020 |
| 12144 | Oil pan cover muffler | 12144-47020 |
| 13516B | oil nozzle | 13516-21011 · 13516-40010 |
| 15301 | Engine oil level scoring assembly | 15301-0M010 · 15301-0Y010 · 15301-0Y040 · 15301-0Y070 · 15301-0Y080 · 15301-21060 · 15301-47050 |
| 15605 | Oil check valve sub-assembly | 15703-47010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0Y040 · 15708-47031 · 15708-47080 |
